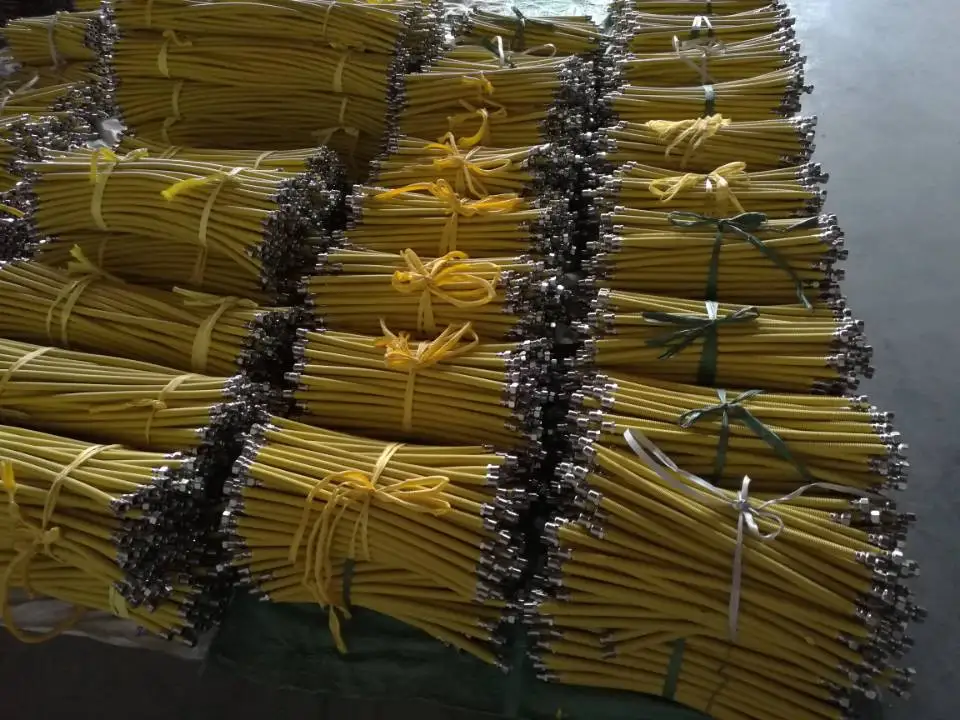

1/2" gas stove hose/pipe

Product Overview

Description

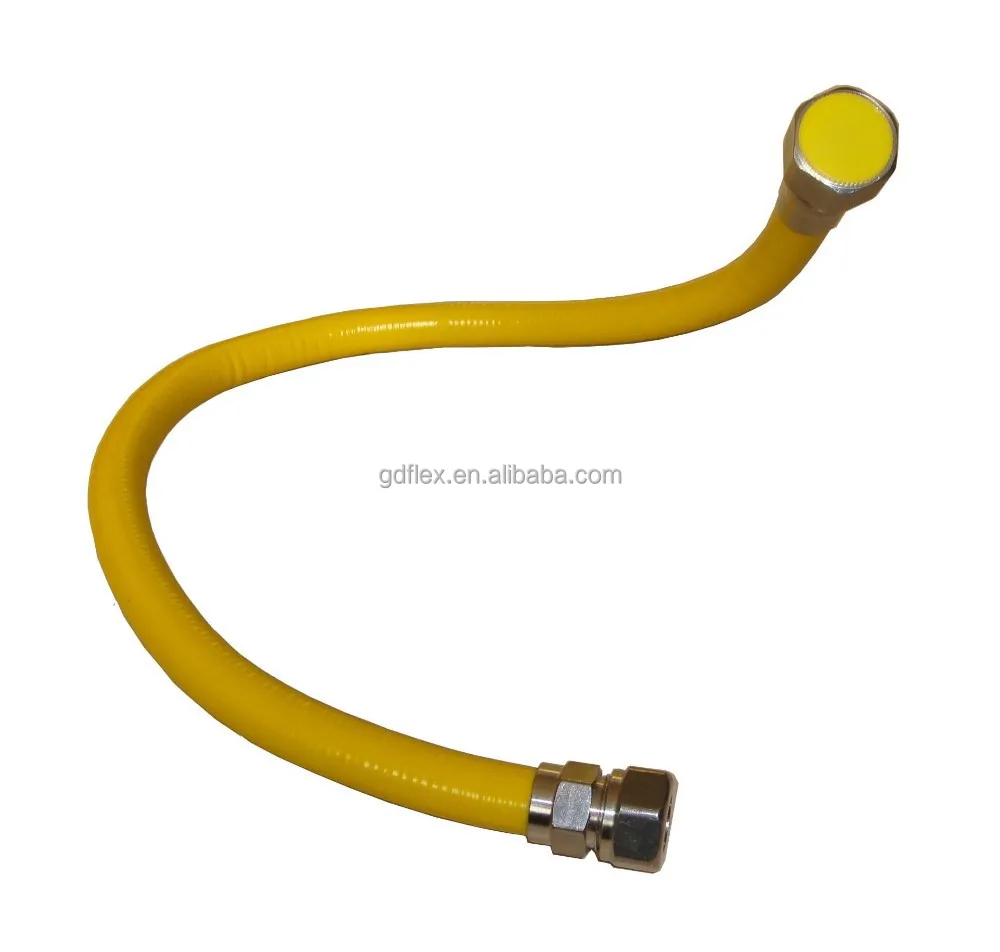

1/2" flexible corrugated stainless steel gas stove hose/pipe

Item Name	1/2" flexible corrugated stainless steel gas stove hose/pipe
Part No.	GDFIXGASCSSTFP16025-300
Material	AISI304
Size	DN12( 1/2 inch)
Inner Diameter	12mm
Outer Diameter	16 mm
stainless steel wall thickness	0.25mm
Jacketing	PVC/PE

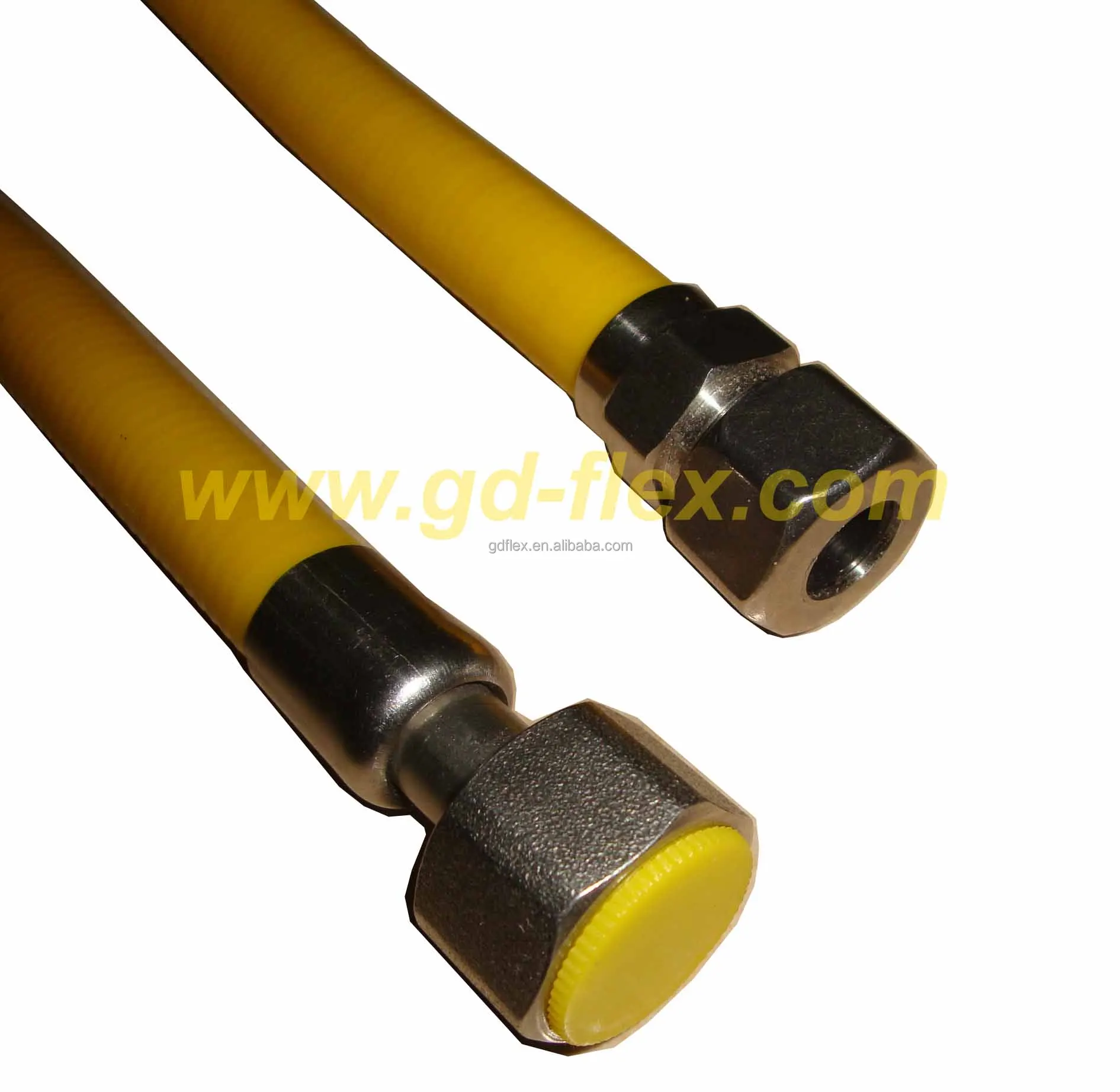

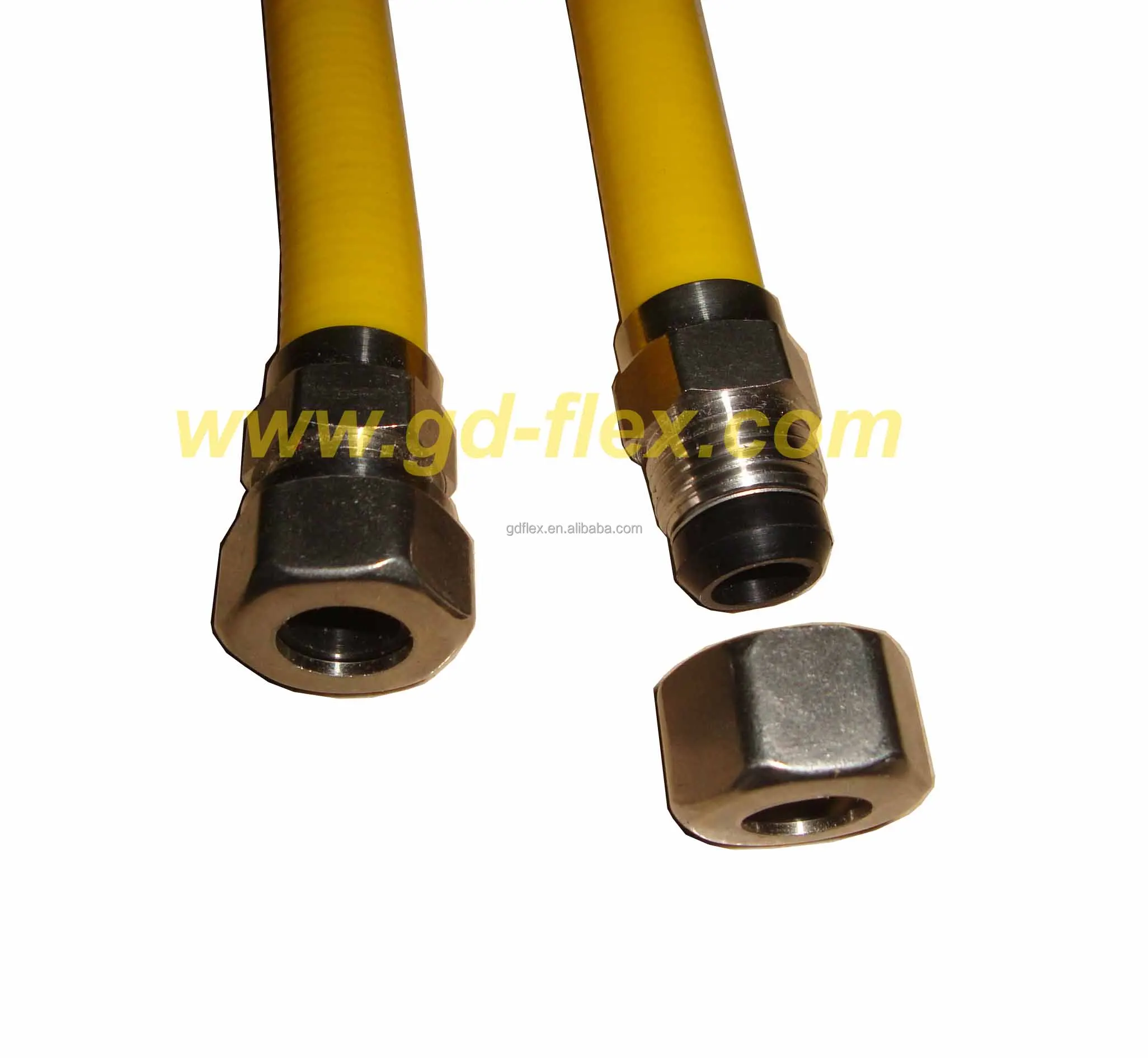

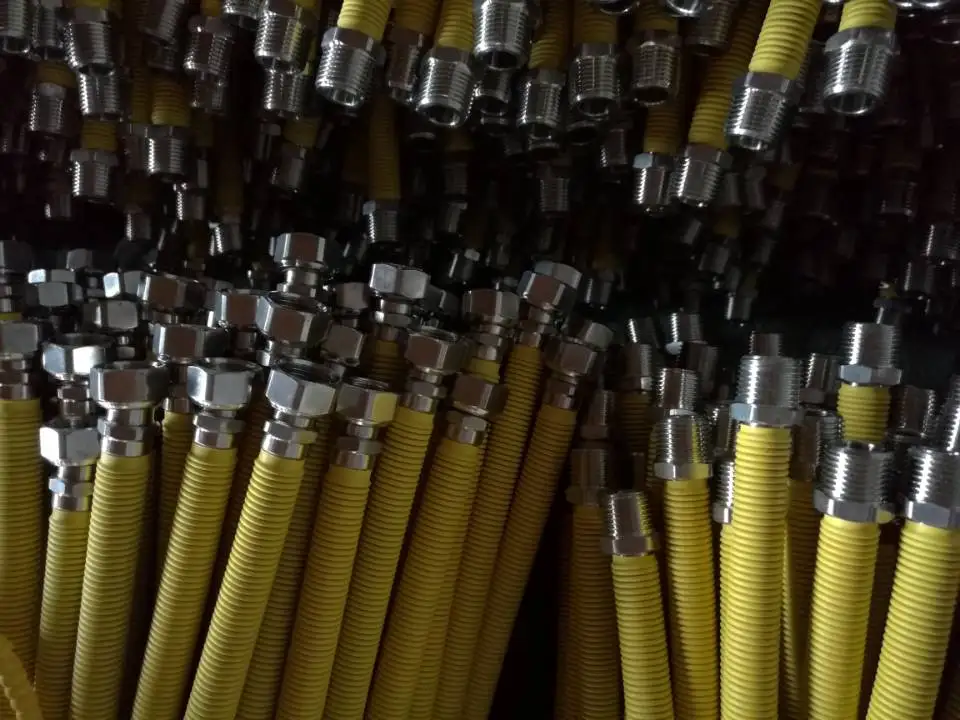

Fitting size	1/2" female one end and other end Pagoda joint (other requirement is available)
Length	From 200mm to 2500mm
MOQ	1000 piece
Brand	GD-FLEX / OEM
Original	China





Introduction:

1. The body of the tube is made of high quality material of stainless steel with over 20 years of technical maturation. The body has been flexible with intensified inner structure by high temperature process.
2. The body has been covered with corrosion resistant  and anti-aging material which can protect the body and insulating. So it is easy to be installed underground or in the wall.

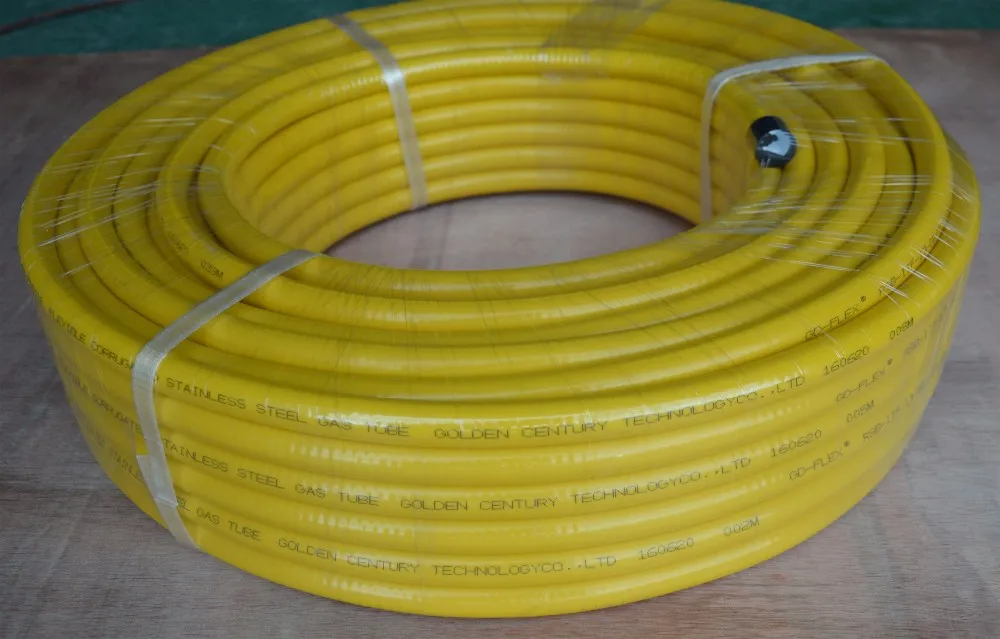

3. The body is made of thin-wall stainless steel. It can be of over 60 meters length continuously. Therefore, it is convenient for transportation and cut according to the requirements during installation and avoids the waste as well.
4. The flexible stainless steel gas pipe has been used widely in China and most western countries. The most important for the client point is from the beginning to the last kilometer of installation of gas piping. We will provide you high-quality, safety, fine-appearance. Convenient reasonable and advanced techniques products.

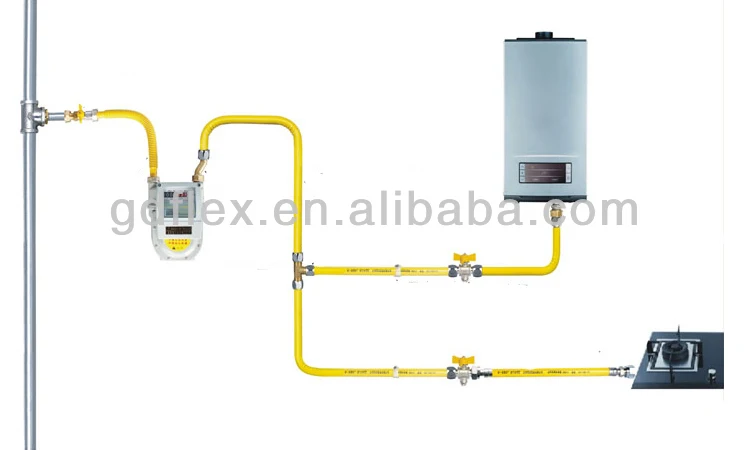

Application :  connection of gas appliance



Description:



1050°C high temperature annealing heat treatment, Intergranular melting and solidification, The elimination of stress



Highly flexible and durable

PVC or PE  corrosion resistant  and anti-aging jacketing,PE jacketing can put under ground and inwall .

Jacketing Color is greyish white or Yellow,other color is available upon customer's require
