Landglass Mini Glass Tempering Furnace for sale
- Category: >>>
- Supplier: Luoyang Landglass Technology Co. Ltd.
Share on (1639251124):
Product Overview
Description
Product Description

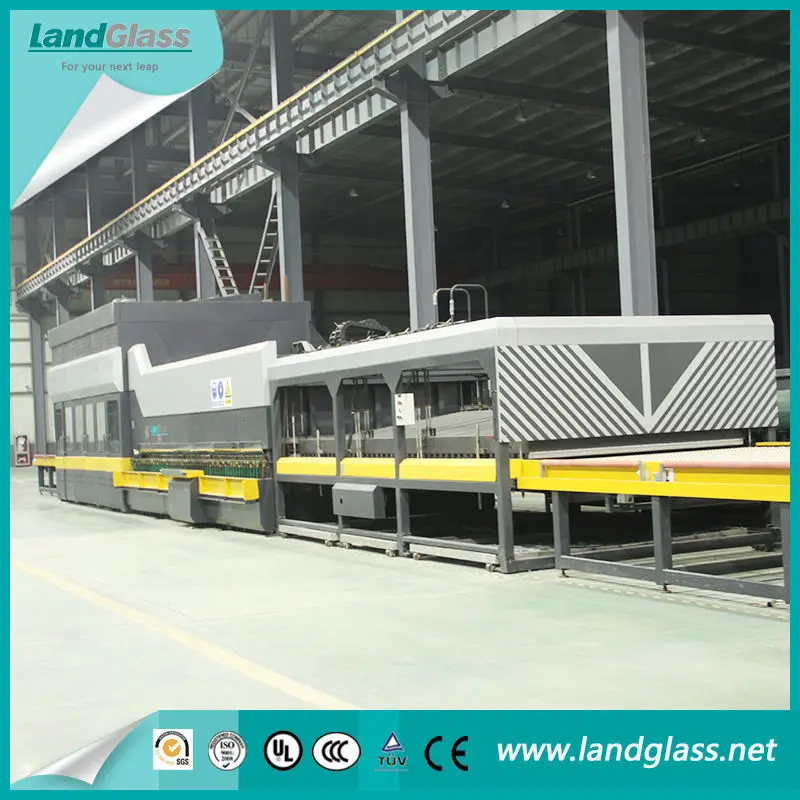

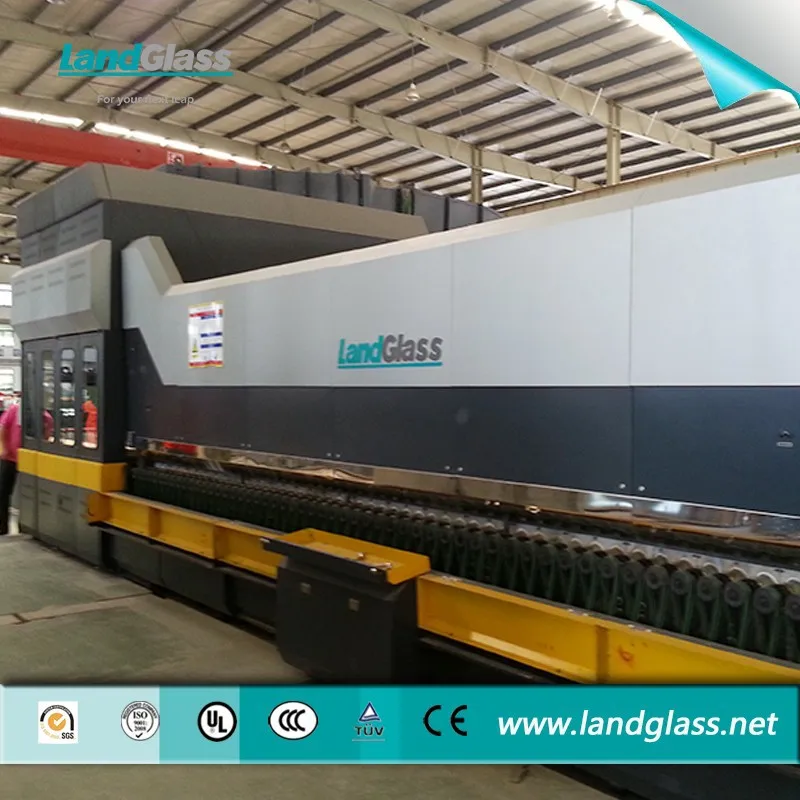

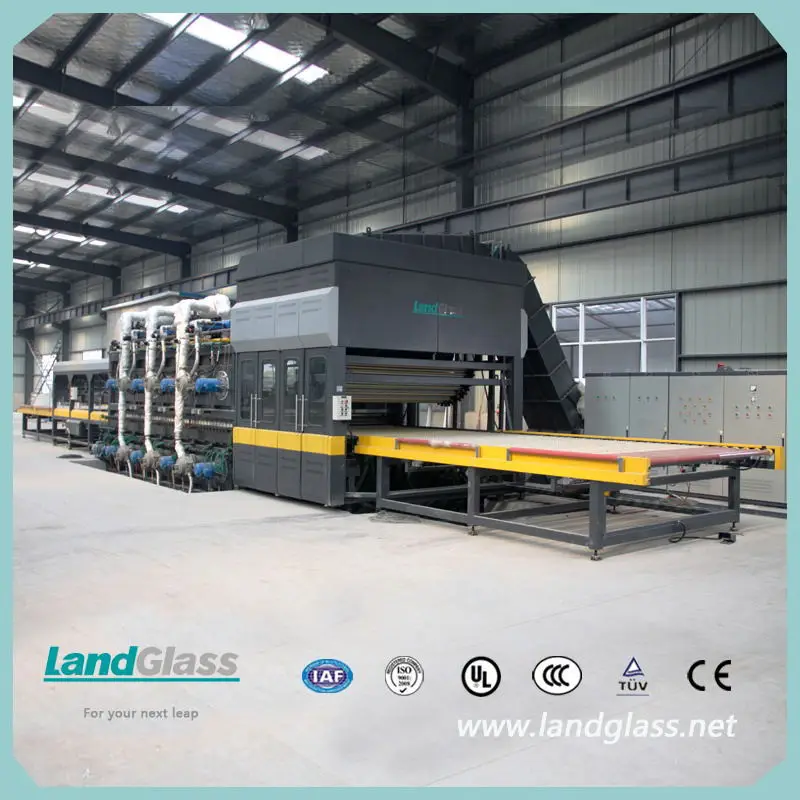

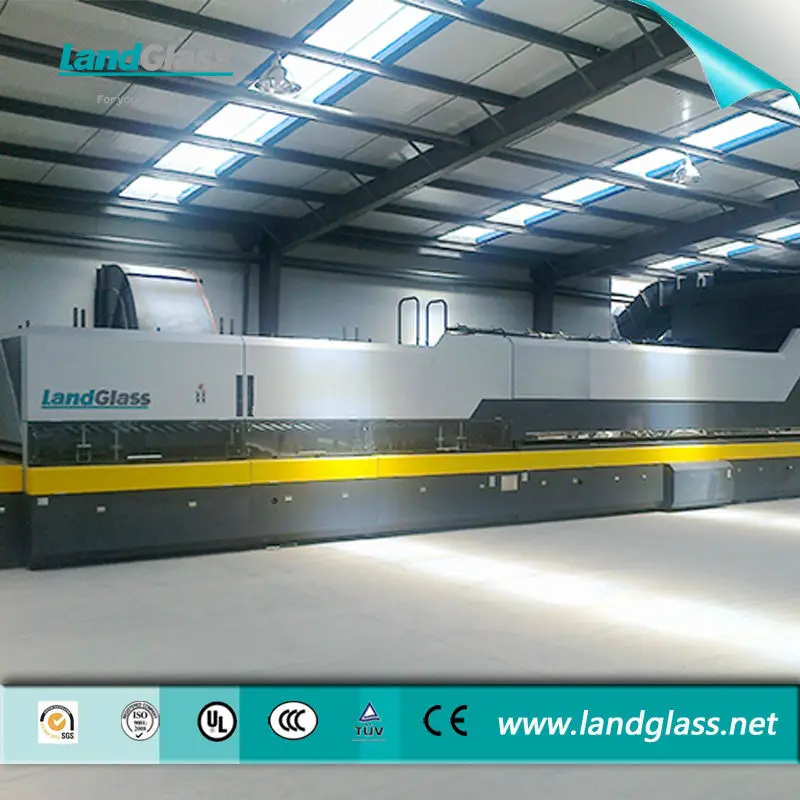

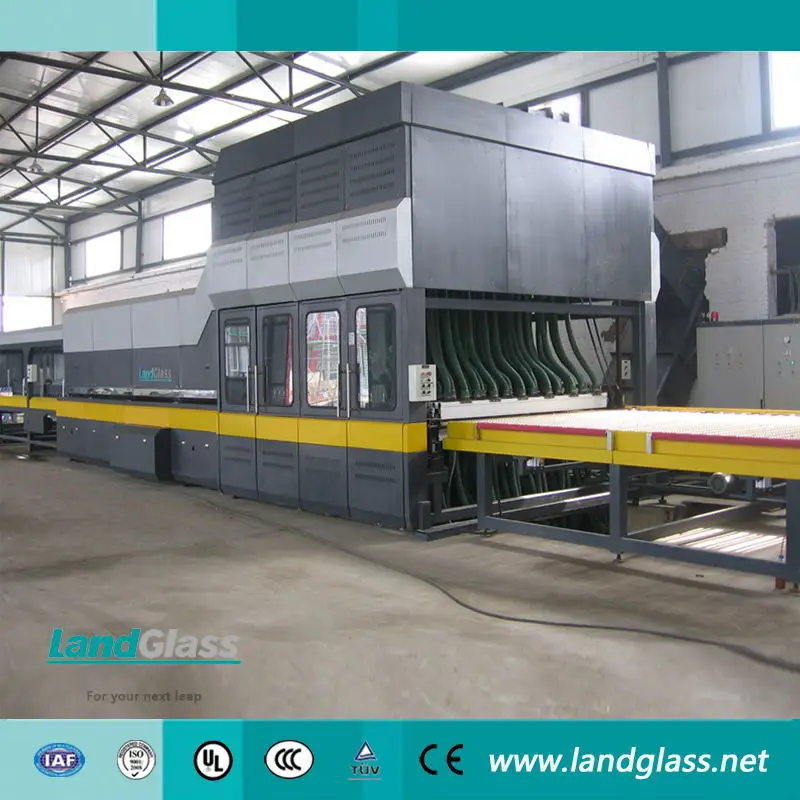

Landglass Mini Glass Tempering Furnace for sale
1. It is equipped with a flat and a bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can either temper flat glass or bent glass.

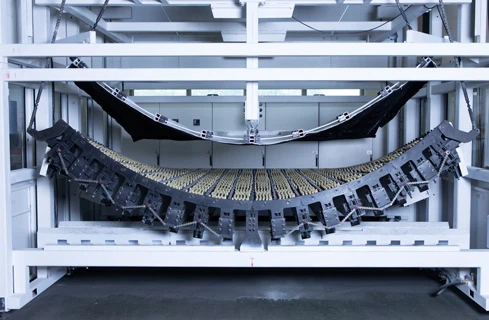

2. The bending system is controlled by German Servo Control System, which ensures good repeatability and consistency.
3. Thanks to the adoption of servo-controls in the bending section, the bent tempered glass has an excellent repeatability. Furthermore, there is a mechanical bolt for slightly adjusting to make perfect bent glass with high accuracy.
4. The chillers with computer optimized nozzles arrangements consist of several blocks made of aluminum profiles, which maximizes air flow and minimizes air marks.
Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Glass Can Be Tempered:
On-line and Off-line Low-E (E=0.02) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Heating Mode:
Forced convection heating on the top and bottom.Airstream and Superair are also optional.
Model | A2030C30J+ | A2436C36J+ | A2442C42J+ | A2450C50J+ | A2850C42J+ |
Flat Max Dimension | 2000x3000 | 2440x3600 | 2440x4200 | 2440x6000 | 2800x5000 |
Singel Curvature Max Dimension | 2000xARC2000 | 3600xARC2440 | 4200xARC2440 | 5000xARC2440 | 4200xARC2800 |
Flat Min Dimension | 150x350 | 150x350 | 150x350 | 150x350 | 200x400 |
Single Curvature Min Dimension | 400xARC600 | 400xARC600 | 400xARC600 | 400xARC600 | 400xARC600 |
Thickness | 4-19 | 4-19 | 4-19 | 4-19 | 4-19 |
Productivity | 12-16 | 12-16 | 12-16 | 12-16 | 12-16 |
Installed Capacity | 630kVA | 800kVA | 1000kVA | 1000kVA | 1250kVA |
Detailed Images
The built-in optimization algorithm and the computer fuzzy temperature control modules of the PID database, together with the frequency control of the blowers, assure that both heating and frequency profiles can be customized and optimized.

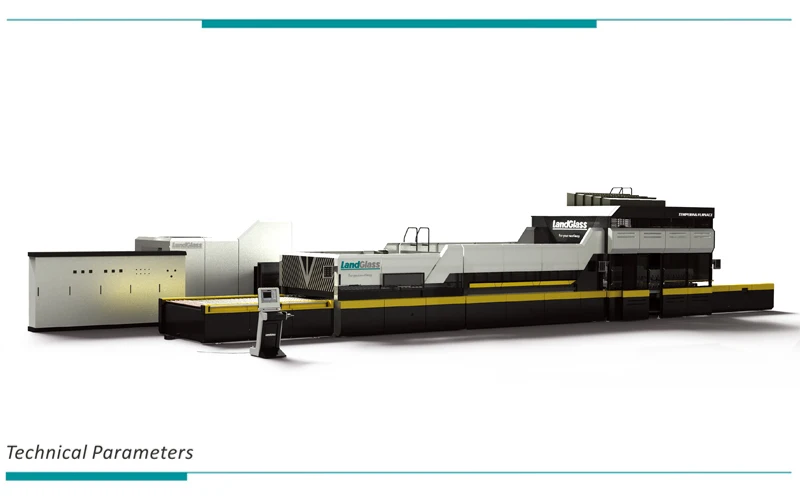

LandGlass introduced the AC Flat & Bent Bi-Direction Glass Tempering Line. This type of line has both a bent and a flat tempering section at the two ends of the heating furnace. It can temper flat or bent glass by loading the glass from different direction. Equipped with JetConvection heating technology, it can bend and temper off-line and online low-e and other highly demanding glasses.
Company Profile
LandGlass Technology Co., Ltd., with the manufacturing plant of 22500 m2 and research base of 6000 m2, is a hi-tech enterprise specialized in developing, manufacturing glass tempering furnaces and tempered vacuum insulated glass. LandGlass' products have been awarded with 3C, CE,UL certification and so on. Moreover, LandGlass owns hundreds of patented technologies and won the National Patent Gold Award for two consecutive years, becoming the first enterprise ever that won a Gold Award consecutively in China.
R&D
After many years of development, LandGlass has set up a R&D facility with a complete range of equipment covering over 20,000 square meters. We have a professional team of researchers and developers characterized by deep technical knowledge and a high capacity for innovation. Because of our commitment to do the best job possible in terms of quality and innovation, we have cooperated with several universities to keep learning, researching and ultimately growing.
Certifications
Product Certification
Up to now, LandGlass has already applied for several hundreds of patents and several tens of PCT patents. Over ten patents among them have already got authorization in America, Germany and Australia, opening a new beginning for glass machinery industry in China. Meanwhile, LandGlass has been granted China Patent Gold Award consecutively in 2012 and 2013, making LandGlass a miracle in China’s glass industry.
Service
Pre-sale Service
LandGlass’s professional engineer’s team will provide you with an all-round and timely service before your choice. It includes:
1. Help the customer choose the most suitable tempering line according to the target market and production volume requirements.
2. Help the customer choose other glass processing machines.
3. Help the customer arrange all the glass processing machines in the workshop.
4. Arrange visits to other glass processing companies.
After-sale Service
LandGlass’s complete and systematic after-sale service can deliver its technology service quickly to reduce equipment malfunction possibility and shorten downtime. It includes:
① Remote diagnosis to provide zero-distance service;
② Establishing localized service agencies to deliver quick service(Former Soviet Union Areas, Southeast Asia, Europe, U.S.A. & Canada, Australia, Korea);
③ Employing foreign employees to get rid of visa restraints;
④ Preventive maintenance service and active communication.
Exhibition
Major Exhibition of LandGlass
ZAK Glass Technology
Glasstech Asia
GlassBuild America
Fenestration Bau China
Glass Istanbul Expo
GlassTec
GlassTech 2018
China Glass 2019
China Glass 2019
Customer and partner
LandGlass around the world
At present, more than one thousand LandGlass tempering furnaces are in operation from North and South America, to Europe, Africa, the Middle East, Asia and Oceania.
The products of LandGlass family have found a good sale in dozens of countries and regions: and the leading glass processing enterprises from all over the world are working together with LandGlass to optimize the quality of safety glass with advanced tempering technology.
LandGlass's marketing networks around the globe can promptly respond to your demand for technological solutions by offering opportunity for visiting the workshop nearest to you or operating the equiipment to gain first-hand and authentic information about the performance of the product.
Packing & Delivery
Package details : In containers.To be packed in standard export packing-suitable for long distance shipping.
Glass tempering furnace will be packed separately and it will be assembled together at customer's factory.
If you are interested in our glass tempering furnace, please feel free to contact us.
