Индивидуальный заказ, 10 вт, односторонний, постоянный ток, алюминиевый линейный светодиодный модуль PCB

Share on (1640030279):


Price:2,00 $

Quantity:


Product Overview

Description


DC LED MODULE









SOL light engines is dc modules based on your idea,


are built to the highest quality,with high performance and high


efficacy LEDs, With Fit and Plus ranges ,you can expect below features:





                                           - Long Life -up to 50,000 hours


                                     - High efficiency - up to 210 lm/w


                                     - Right CRI options - CRI>95 available in the plus range


                                     - Different color options - 2700-6500K


                                     - Smart solutions available - Flux dimmable (0-10v, TRIAC)

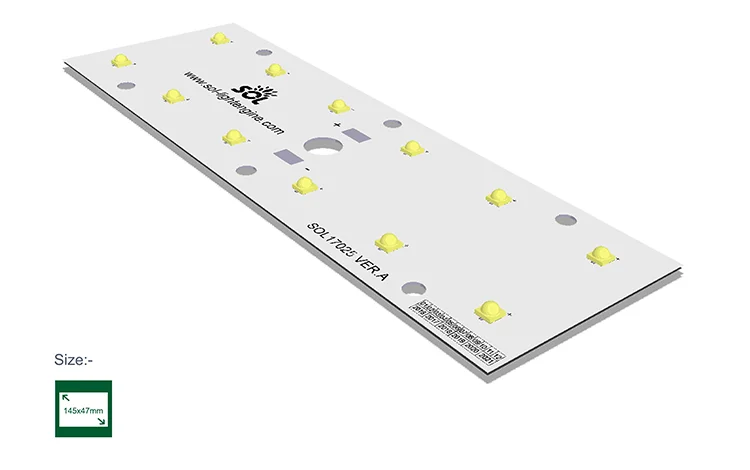

PART 1 : DC Led Module Round Series


--------------------------------------




Diameter: 145*47mm















































































Part No.CCTCRIQTY of LEDInput VoltageTest CurrentrTyp. PowerTyp. Efficacy
SLDM-F025L14547W2700-3000K>7012PCS33.6- 4270025.2115 lm/W
SLDM- F045L52612W105042.8110 lm/W
SLDM- F025L52612P4000-5000K>7012PCS33.6- 4270025.2125 lm/W
SLDM- F045L52612P105042.8120 lm/W
SLDM- P035L52612W2700-3000K>7012PCS38.4- 43.290032.4120 lm/W
SLDM- P050L52612W120050.4110 lm/W
SLDM- P035L52612P 4000-5000K>7012PCS38.4- 43.290032.4130 lm/W
SLDM- P050L52612P120050.4120 lm/W

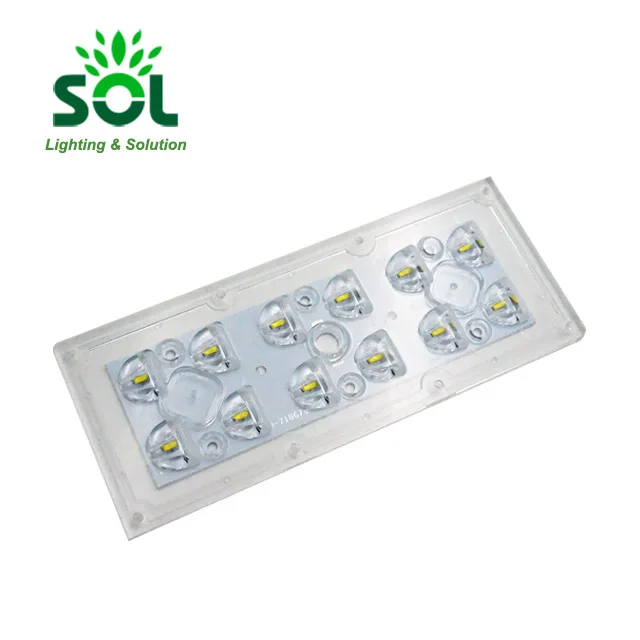

ACCESSORIES
MODEL NUMBERDESCRIPTIONIMAGE
SOL-LS26370-64H1-XXPlastic Barrier for 243x48mm
Engine (Included hardware)
Viewing angle : 25°/ 60°/ 90°/
120°/ 85x157°





SOL-LEDSP-10B10KV surge protection
External
64*22*30mm

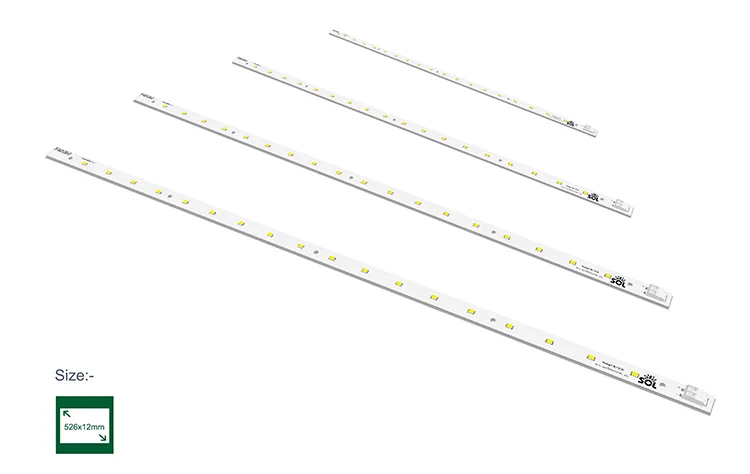

PART 2 : DC Led Module Square Series


--------------------------------------




Diameter: 526*12mm















































































Part No.CCTCRIQTY of LEDInput VoltageTest CurrentrTyp. PowerTyp. Efficacy
SLDM-F004L52612W2700-3000K>8018PCS16.5- 20.51803.2110 lm/W
SLDM- F004L52612W 4508.6110 lm/W
SLDM- F005L52612P4000-5000K>8018PCS16.5- 20.51803.2120 lm/W
SLDM- F009L52612P4508.6120 lm/W
SLDM- P004L52612W2700-3000K>8018PCS16.5- 20.51803.2150 lm/W
SLDM- P009L52612W4508.6135 lm/W
SLDM- P004L52612P4000-5000K>8018PCS16.5- 20.51803.2160 lm/W
SLDM- P009L52612P4508.6145 lm/W




 If you need something completely customization,we call it IDEAL LIGHT ENGINE


Built with our knowledge and experise, make YOUR IDEA come ture!-1.jpg2835 0.5w application.jpg
