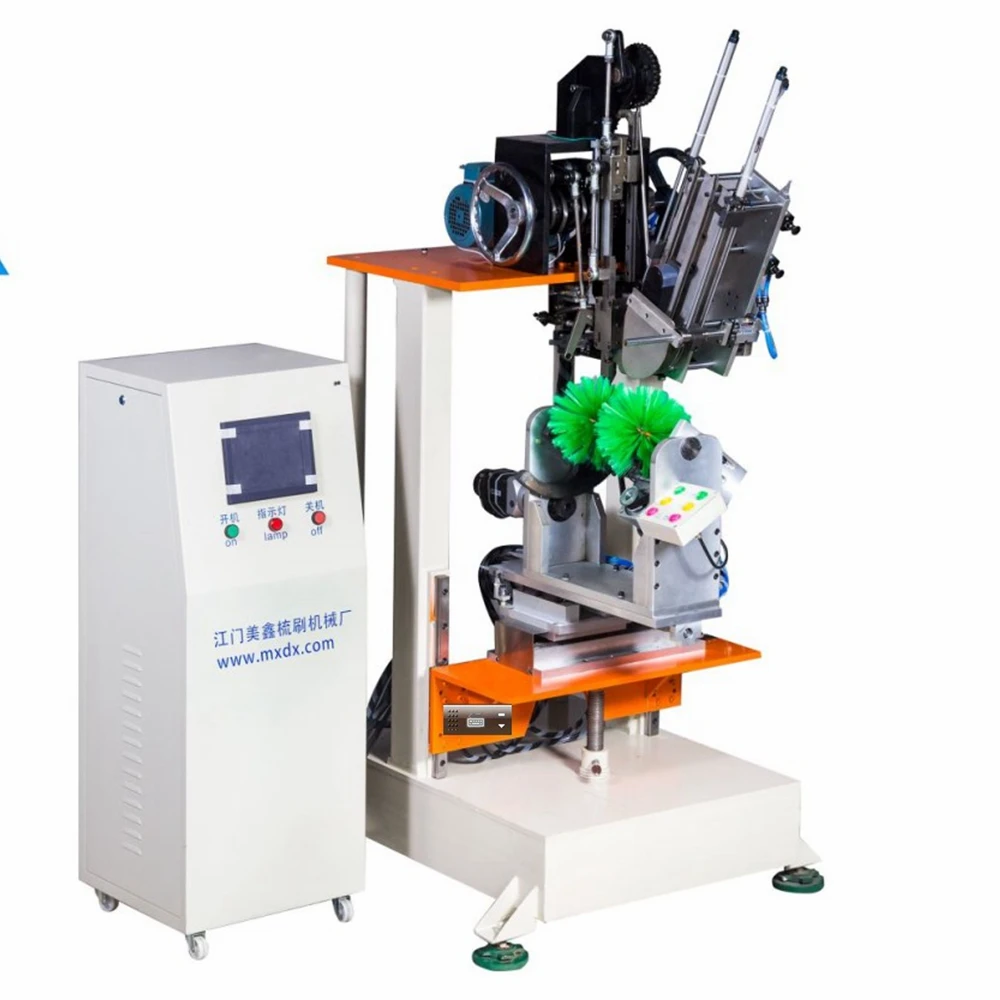

2019Cheap CNC ceiling brush tufting machine made in China

Product Overview

Description

Machine paremeter:

Item	Model	MX260
1	axis	5-axis
2	The stroke of X	1000mm
	The swing angle of Z axis	120°
	The height of A axis	300mm
3	X-Y stroke	300mm*300mm
4	Hole diameter	4-6mm
5	FIber box	double colors o three colours
6	Application	to make broom brush
7	The length of filament	30-115mm
8	Maximum Tufting Speed	5-6holes/second
9	head motor	Italy brake motor
10	main power input	2 phase 220V,3phase 380vor220V
11	programme system	sevo motor
12	gross weight	about 500kg



Control System	CNC controller
Disturbance display	english editiion
Safety protection	overload,short circuit protection
Driving screw	TBI ball screw
Lubrication	TBI original linear guide
driving motor	servo motor
Main speed control	Frequency inverter
Fiber box	double or three colour



Technical characteristics:

 1.installed with one tufting motor head,high speeding processing,high volume,cost effective

2.this machine can produce many different kinds of brushes or brooms which have different filling angles,by changing specific platform

3.hole diameter :¢ 6mm to ¢ 7mm

4. filament by:round nails or flat nails

5.types of platform can be chosen:vertical agnle of brushes

6. PLC and Touch Panel Control System of Man-Machine, Chinese and English display, simple to understand.

7.allow to save as 1000 procedure and easy for the creation of new models

8. Wearing parts and spare parts are standardized designs to reduce hair mechanic technology dependence

9.our machine can produce either one colour or two colours or three colours brush,and also drill or tuft separately



Advantage:



1.high speed and high production,

2.Our band are famours in domestic market and so many international trading companies cooperate with us before,and nowadays we start to export by ourseleves and you can get the lowest price as well.

3.Stable property,it is very easy to control after learning some basic machine knowledge,low maintenance rate

4.Our machine can make many kinds of brush materials:PET filament,PBT filament,PP filament,PA fIlament,PE filament,Abrasive filament,bristles ...











Remark:A Lot of kinds of brushes machines we can produce.Welcome to contact with me for more detail if you are interested with our machines.



Machine main parts:



Packing way:wooden box packing



Company Information:

       Meixin factory is located in xinhui district,jiangmen city,long history and is a famous hometown of oversea Chinese.We are specialized in producing 3 to 5 axis single(double) colour CNC tufting machine,CNC horse nail machine,CNC drilling and tufting combination machine,trimming machine, filament cutting machine.Our products mainly are widely used in all kinds of brushes, for example:electric toothbrush,travel toothbrush,cosmetic brush,nail polish brush,roller brush,dish washing brush,hair series of comb brush,massage brush,wooden brush,barbecue copper wireb brushes,electrical series of vacuuming brush production industry.

     Our factory has abundant brush tufting processing technology,strong design capability, perfect after-sale service system.With guaranteed product quality all of our items are tested by using precision electronic instruments before packing and delivery to clients.

    Our products have been sold to Guangdong,Fujian,Henan,Guangxi,Zhejiang province and also exported to foreign countries(India,Vietnam,Indonesia,Cambodia,Venezuela and so on)

    Meixin comb brush manufacturer adhere to people oriented,customer first.,we treat our every customers sincerely.

Our service purpose  is :the best quality,the most affordable price,the most sincere after-sale service.

Patente Certifticate:

Office:





FAQ:

1.Are you a factory or trading company.

We are a factory.





2.Q:Where is your factory located?How can I visit there?

A: Our factory is located in Jiangmen City,Guangdong Province.Our city is near Guangzhou City.

It is about 2 hours from Guangzhou to Jiangmen by bus,And if you come to our city by lightrail,it is more faster.



3.Q:How long are you in this industry?

A:We have abundant experience and professional engineers in this industry.We have our own product patent certificate.And there are so many domestic brushes suppliers buy from us.So you need not worry the quality issue.



4.How about the after-sales service system?

A:Enginner is available to service machineryoverseas Our warranty period is one year. daily spent and all the default spares' costs. one year later an extra $80 compansation need to be cover for each engineer each day.
