double acting single acting ram steel hydraulic cylinder with oil pump

Product Overview

Description



 hydraulic oil cylinder

Professional manufacture with good service



Hydraulic Cylinder :  hydraulic cylinder long stroke1.8m

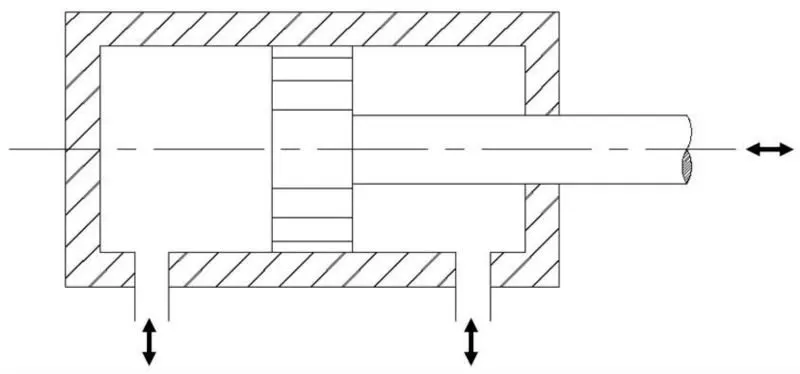

[Structure] [Sign]

→ Explanation It is the model used most widely and oil hydraulic pressure is applied to the extension and return of cylinder. In constrast, speed is higher than that of forward stroke depending on the differences among areas. Therefore, double-acting piston cylinder is expressed as differential cylinder. Material and shape of packing become different depending on cylinder's speed. It is used when halt function is needed between the extension and return. It is used for the diversification of functions by adding on functions such as speed reduction or cushion apparatus on one side or on both ends  → Field of using Skid loader, loader, bailer forceps, oil hydraulic plow



Hydraulic Cylinder Products



Standard 65 (Diameter tube) x 40 (rod) x 689 (stroke) x 934 (mounting distance) Cylinder Lift cylinder Applied Model Skid steer loader Field of use Agricultural Machinery



Standard 65 (Diameter tube) x 30 (rod) x 320 (stroke) x 500 (mounting distance) Cylinder Tilt Pack Applied Model Skid steer loader Field of use Agricultural Machinery



Standard 90 (Diameter tube) x 60 (rod) x 860 (stroke) x 1145 (mounting distance) Cylinder Outrigger Pack Applied Model Aerial-lift Truck Field of use Special purpose Vehicles



Standard 40 (Diameter tube) x 25 (rod) x 504 (stroke) x 762 (mounting distance) Cylinder Slide Pack Applied Model Wide Area Sprayer Field of use Agricultural Machinery



Standard 60 (Diameter tube) x 40 (rod) x 300 (stroke) x 570 (mounting distance) Cylinder Auto top link cylinder Applied Model Disc Rotary Plow Field of use Agricultural Machinery



Standard 50 (Diameter tube) x 35 (pipe rod) x 1200 (stroke) x 1503 (mounting distance) Cylinder Slide cylinder Applied Model Aerial-lift Truck Field of use Special purpose Vehicles



Standard 55 (Diameter tube) x 30 (rod) x 525 (stroke) x 800 (mounting distance) Cylinder Bucket cylinder Applied Model Front Loader Field of use Agricultural Machinery



Standard 90 (Diameter tube) x 35 (pipe rod) x 379 (stroke) x 542 (mounting distance) Cylinder Hoist cylinder Applied Model 1 ton dump truck Field of use Special purpose Vehicles



Double-acting Piston cylinder Apply the model



Skid steer loader	Electric Forklift	Aerial-lift Truck	Ladder-lift Truck
Wide Area Sprayer	Front Loader	Bale Clamp	Backhoe
Muck Spreader	Grapple	Plow	Excavators
Disc Rotary Plow	Bed Former	Harrow	1ton Dump Truck



Hydraulic Cylinder Feasible Product Details



Structure	Double-acting Piston cylinder
Power	Hydraulic
Body Material	Steel
Maximum Stroke	1,800 mm-6000mm
Shaft Diameter	Shaft 80 mm, Pipe Shaft 60 mm
Mounting Distance	2,500 mm
Supply Ability	2,500 Piece/pieces per Month







  OUR HISTORY:



We are established in 1985year,our company holds the business tenet of 'talents as motivation ,technology as basis,management for benefits and quality for market'



Welcome you visit our factory,we can design the product based on your drawing.

Or call me;008615966901802 skype;ms.paddy1

below is our factory pic.for your ref:



FOR USING:

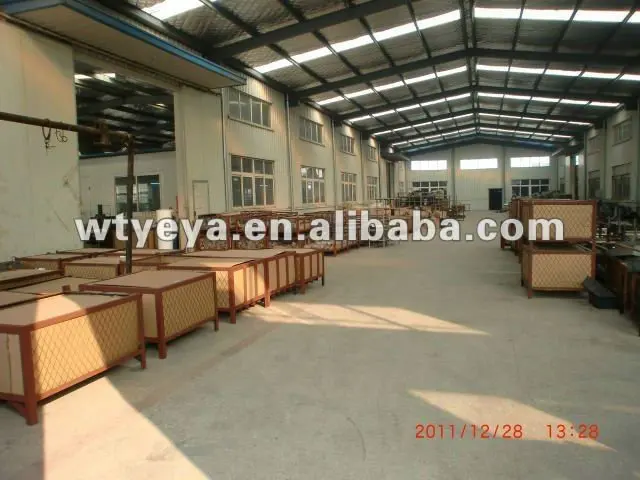

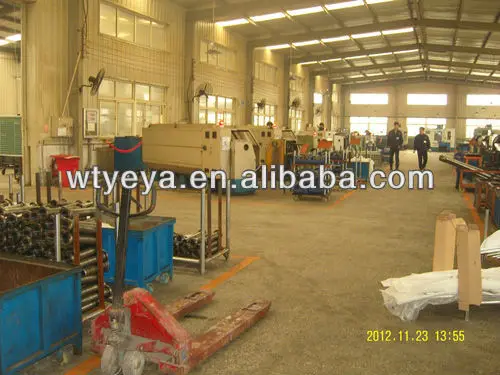

OUR WORKING ROOM:

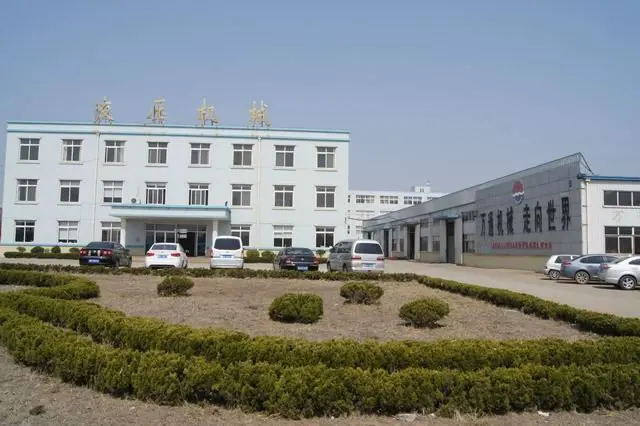

OUR FACTORY OUTLOOK:

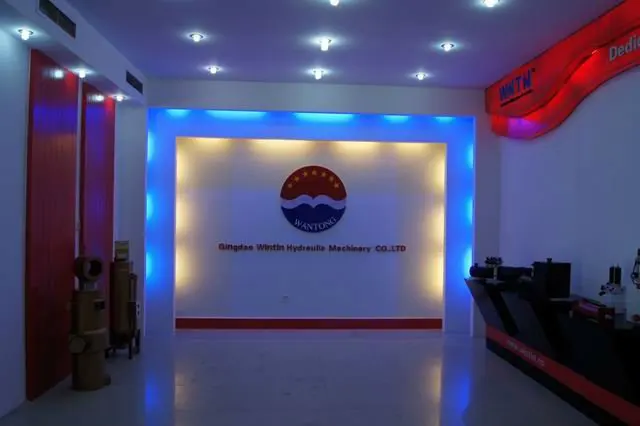

OUR SHOW ROOM:
