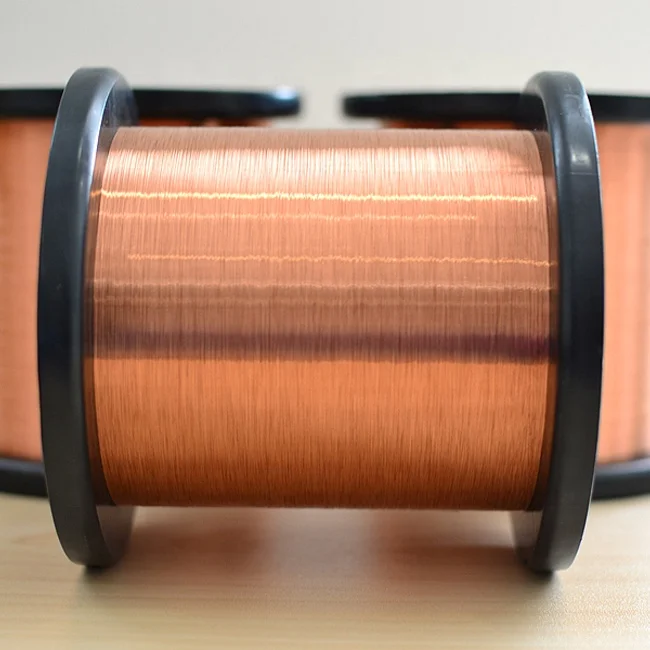

For cable using Copper Clad Aluminum wires CCAW

Product Overview

Description

  For cable using Copper Clad Aluminum wires CCAW



Copper Clad Aluminum is an electrical conductor which has an outer sleeve of copper metallurgically

bonded to a solid aluminum core. The combination of these two metals make

it uniquely suited to many electrical applications



Standard:

SJ/T 11223-2000

ASTM B 566-93



Feature:

Compared to copper conductors:

Higher Flexibility due to lower elastic modulus

63% material weight reduction due to lower specific gravity of CCA over regular copper



Compared to aluminum conductors:

Better corrosion resistance than aluminum due to copper layer

Lower resistance due to high electric conductivity of copper

Better Solderability

Higher strength than aluminum



Application:

 In high frequency signal transmission field, it is applied to:

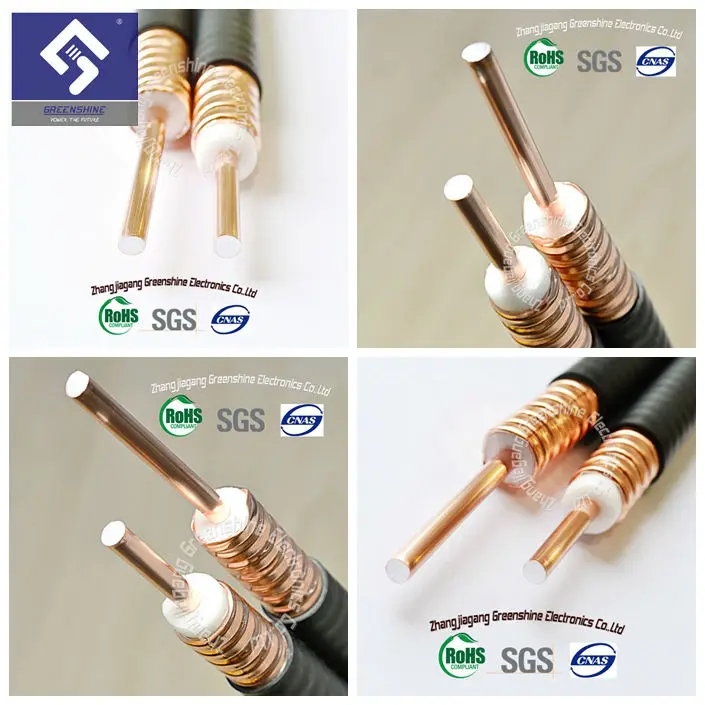

l  Standard Material of Conductor in CATV Coaxial Cable;

l  50 Ohm Radio Frequency Aerial;

l  Leaky Cable;

l  Soft Coaxial Radio Frequency Cable;

l  Data Cable

 In power transmission field, it can be applied to:

l  Stranded wire;

l  Power Cable;

l  Control Cable;

l  automotive cable;

l  Building distribution wire;

l  Busbar;

l  Radio Frequency shielding;

In special electromagnetic wire, it can be applied to:

l  Coils in motor and fans, mahjong machine, Loudspeakers

l  Voice coils (e.g. in Headphone, Headset, ...)

l  Windings



Manufacture Scope:

 0.12MM~5.50MM



Physical property of CCA wire

Specification	Copper in volume (%)	Copper in mass (%)	Length comparison	Density (g/cm3)	Max.DC resistivity Ω.mm2/m (20°C)	Conductivity (%IACS) Min
CCA-10%Copper volume	8~12	27	2.65:1	3.32	0.02743	63
CCA-15%Copper volume	13-17	37	2.45:1	3.63	0.02676	65
Copper wire	100	100	1:1	8.89	017241	100





For cable using Copper Clad Aluminum wires CCAW  with diameter 1.20mm~5.50mm     Plywood bobbin+Pallet

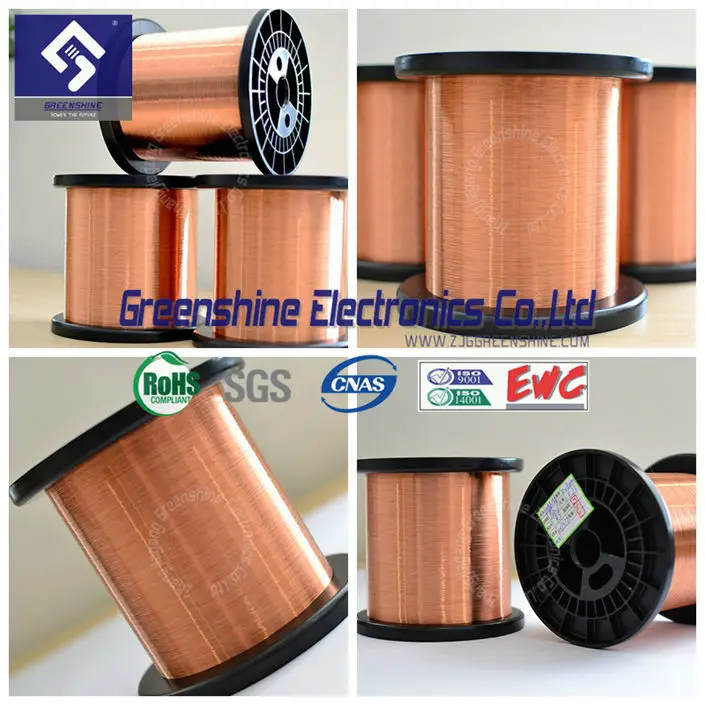

For cable using Copper Clad Aluminum wires CCAW with diameter 0.12mm~1.20mm     Plastic bobbin+Carton+Pallet





 Qualified Products ; Competitive Price; Customized Products;Fast Delivery time; Quick Customer service
