Product Overview

Description



Product Description

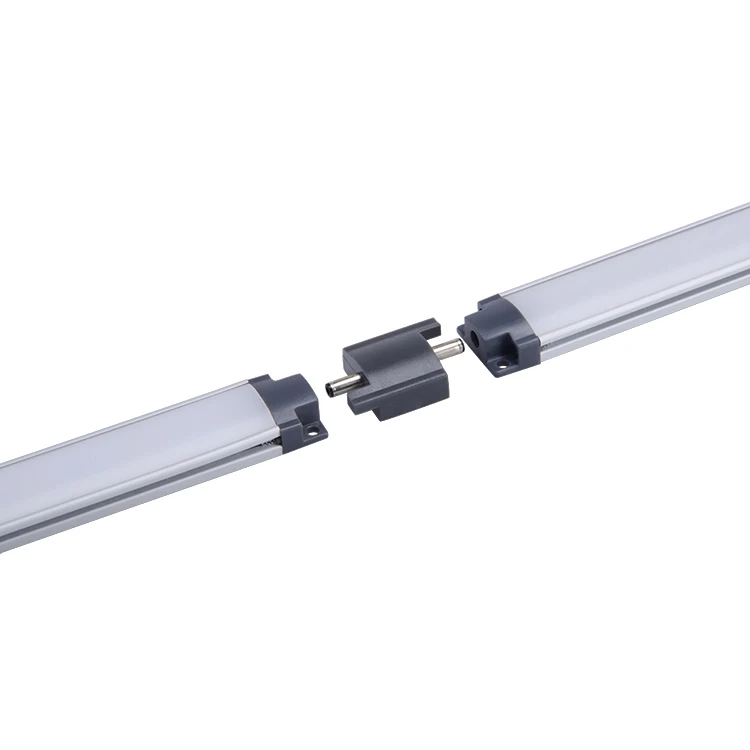

Inter-connector
Connection could be in linear
90°corner connector
Connection could be in right angle

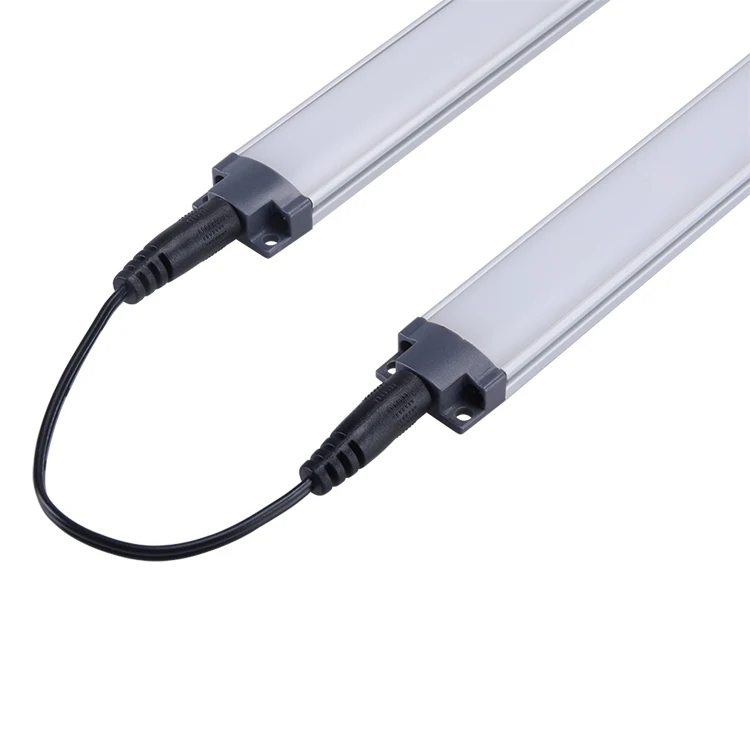

Connect cable
Connection could be in flexible cable


When connected in parallel (using junction box), there is no limited length based on sufficient driver. Touch the metal body of light and last more than 1 second. Aluminum extrusion with black plastic end caps, PMMA lens (transparent lens/milky lens)




Project case

LED Lighting with Linkable and Dimmable, 3 methods to connect the light,Different lengths for you to choose.

Rugged and Applicable Place: It is made of aluminum and plastic with a rust and corrosion-resistant protective shell, which helps extend the life of the cabinet light. Perfect lighting for kitchen counters, closets, sinks, shelves, bookcases, TV cabinets, etc




Super Bright and Energy Saving: Only using 10W LED light bar can provide high brightness of 800lm, which is equivalent to 120W fluorescent lamp, which can help reduce energy consumption by 85%. Brightness and comfort illuminate dark spaces, suitable for small areas and large spaces. Outstanding energy saving and environmental protection features ensure that your lamps have a long life.


Detailed Images

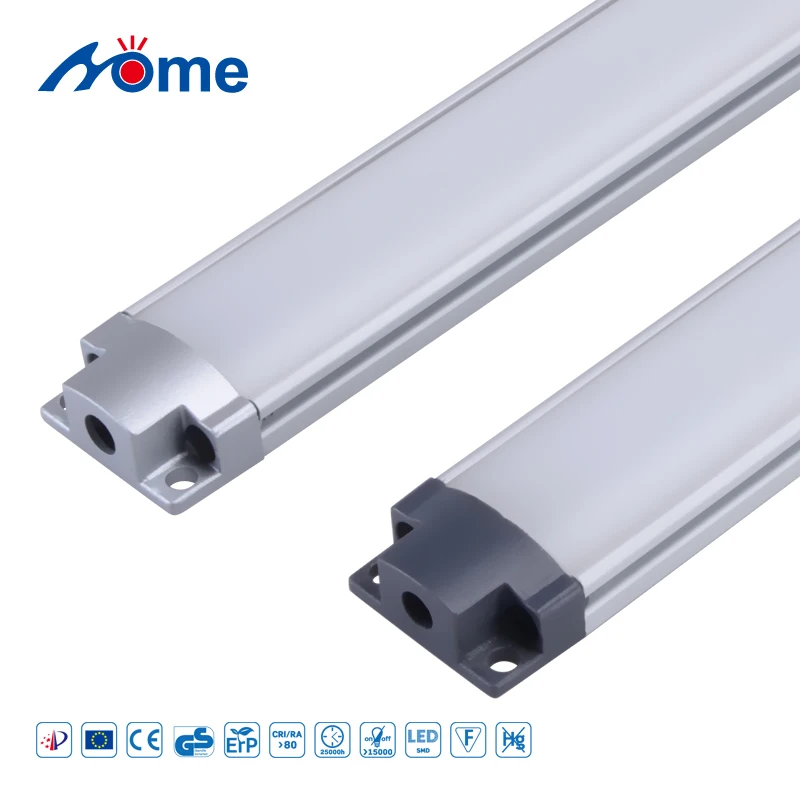

Product detail drawing




silvery
Black

Custom



The whole light could be white black silvery,Design very simple and generous.

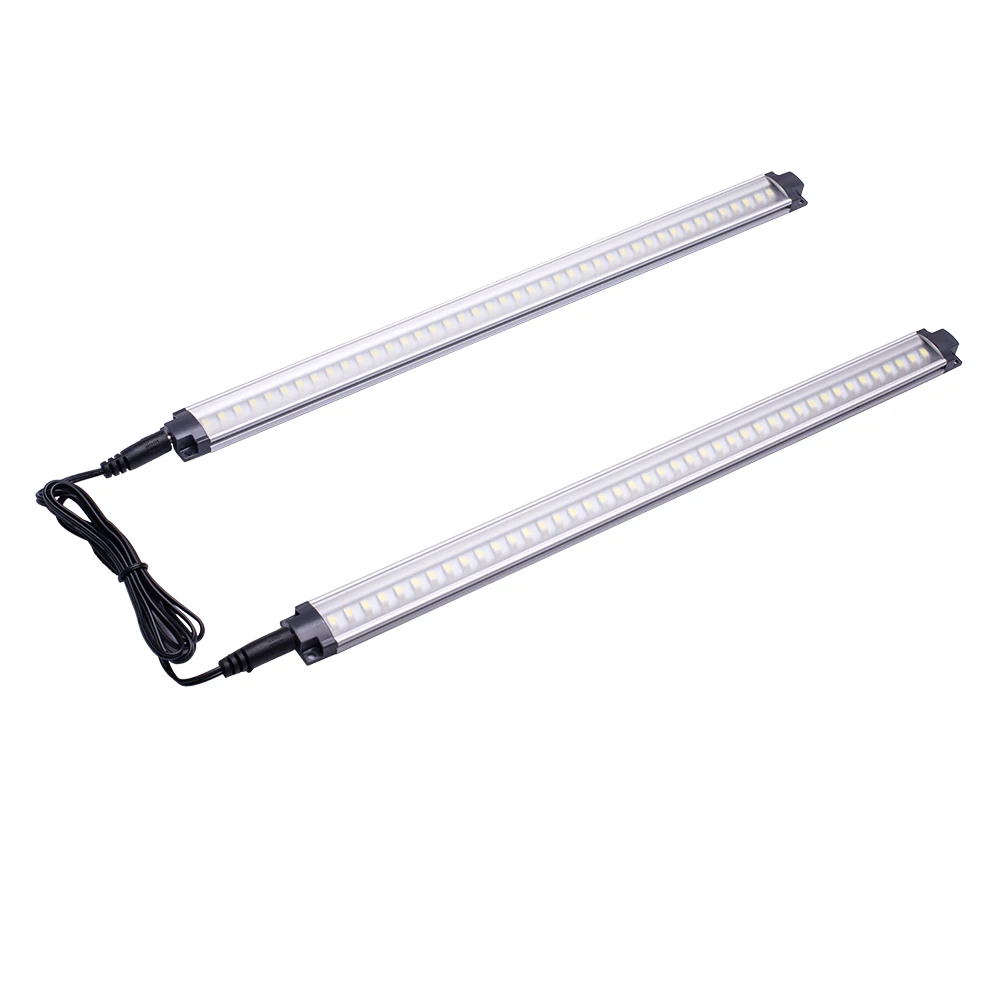

LED Under Cabinet Lighting Kit:
SUPER BRIGHT: 3pcs Extendable Under Counter LED Light Bars Daylight 6000K, Dimmable RF Remote Control for Cupboard,Wardrobe,Locker,Counter,Closet Lighting
-Touch any point of the metal of light body to control light ON/OFF.
(1)The length of light only 300mm is available for using under this function.
(2)Don’t install the light on the metal surface.
(3) It only use for homer compatible driver for working.
(4)The lights can not be directly- connected each other.
(5)The led quantity is 69pcs


Durable & Safe LED Strip:
Single Point Touch function (LS25P):
--Touch a point of the light right side body to control light ON/OFF.
Single Point Touch with dimmable function(LS25PD): Touch a point of light right side body to control light ON/OFF. It can be dimmed to 6%, 50% and 100%.



Super bright :
This under counter lighting is suited for an array of applications – sink, display, bookcase, hutch, workbench, pantry, under
closet, etc.

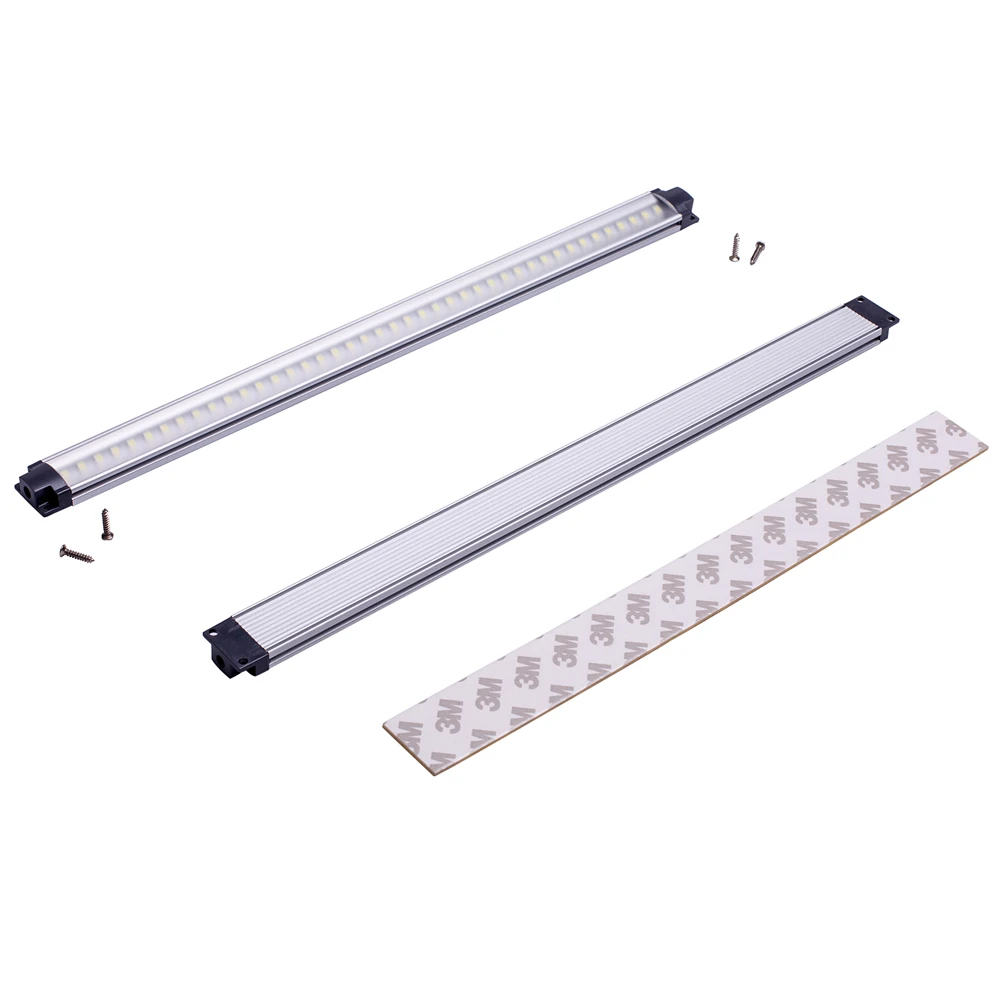

Easy to Install:
 It can be installed by yourself in seconds. All installation accessories included, two flexible mounting ways:
Double sided tape options ( no damage to the cabinet ) or Simple screws method



Product Presentation


  • Size introduction and size picture



Material
Aluminum + PMMA
Parts
screws
Dimensions
20mm (W) x 9mm (H) x300/500/800/1000mm(L)
Light Source:
High brightness SMD2835 LED
Operating Temperature:
-20°C to 45°C - Indoors
Warranty:
2 years with proper installation
Installation:
2pcs M2.5 screws allows easy installation
Ingress Protection Grade:
IP20
Ingress Protection Grade:
IP20


Product specifications
L300S20
L500S20
L800S20
L1000S20
Rated wattage
3W
5.5W
8W
10W
Rated lamp efficacy
70lm/W
70lm/W
70lm/W
70lm/W
Led Current
0.060A
0.060A
0.060A
0.060A
Rated voltage
12VDC
12VDC
12VDC
12VDC
Led quantity
12pcs
24pcs
36pcs
48pcs
Luminous Flux
200-250lm
360-450lm
550-700lm
650-800lm
Color Temp
2700-6500k
2700-6500k
2700-6500k
2700-6500k
Angle
90°
90°
90°
90°
Lifespan
30000H
30000H
30000H
30000H
