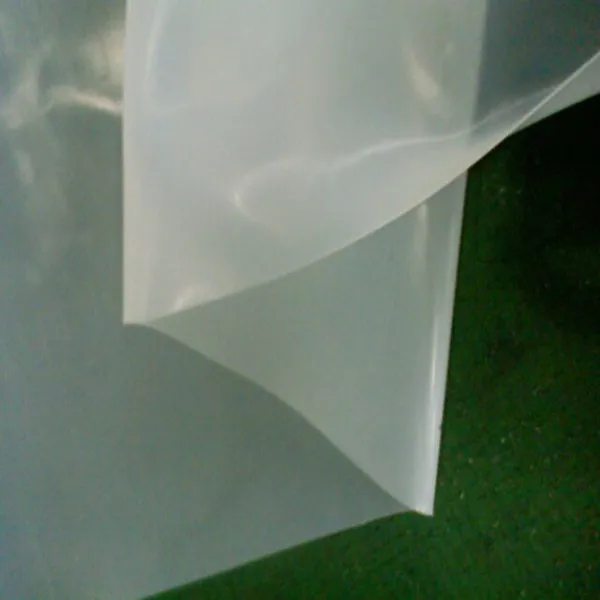

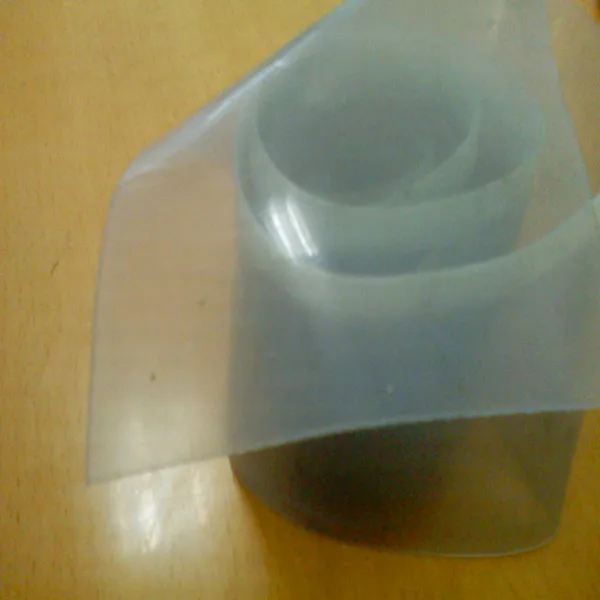

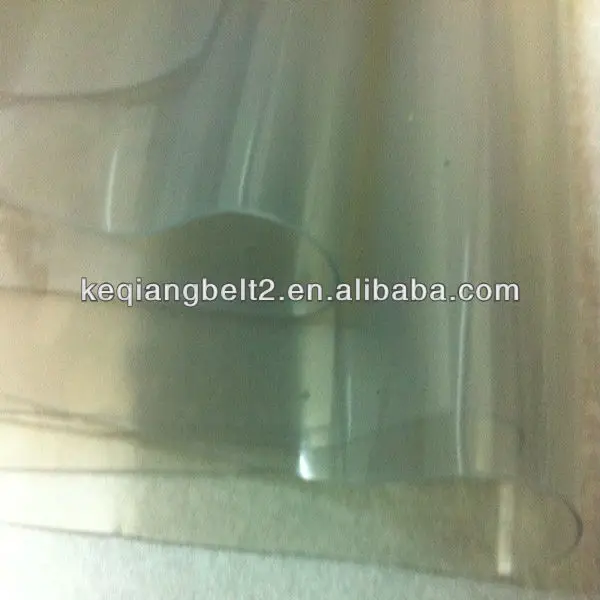

0.5mm thick transparent silicone rubber Diaphragm sheet
- Category: >>>
- Supplier: Jiangsu Keqiang New Material Co. Ltd.
Share on (1646151949):
Product Overview
Description
Specifications
Rubber Diaphragm Sheet
1)Silicone rubber material
2)Perfect heat resistance
3)Waterproof & oilproof
4)Wearable, insulating
0.5mm Silicone Rubber Sheet
Sample is free of charge
[Technical Parameter]
Model | 0.5mm thick transparent silicone rubber sheet | High tearing resistance silicone sheet |
Gravity/Density | 1.25g/cm3 | 1.25 g/cm3,1.35 g/cm3 |
Tensile strength | 6Mpa | 10Mpa |
Elongation | 400% | 450% |
Tear resistance | 18KN/M | 32KN/M |
Hardness(shore A) | 50-80A or be customized | |
Long run temperature | -60~260°C(-76~500F) | |
Thickness | 1~5mm | |
Width | <3M | |
Length | Any | |
Certification | SGS, RoHS,ISO9001,14001,18001 | |
Appearance and color | One side smooth,one side cloth grain /Two sides smooth White/Black/Gray/Transparent/Semi-transparent/Red/Blue | |
[Specification Available (mm)]
Max Length: Unlimited Max Width: 3000 mm
Max Thickness: 5 mm Min Thickness: 0.5 mm
[Features]
(1)High quality silicone as raw material, high elasticity
(2)Excellent heat resistance, no
(3)Anti-aging, ozone resistance, insulative
(4)Can work in air or oil medium during the temperature of -60~250 °C
[Application Industry]
Mechanical and electrical hardware;
Electronic and electrical appliances;
Aviation, Medical treatment, Printing and Insulation industry.
PACKAGE
We can offer you four kinds of free package, just as the below picture
WORK SHOP &MACHINE
we have three big work shops. more than 400 people work in the work shops, and we can produce
more than 50 tons of rubber sheet every day.
