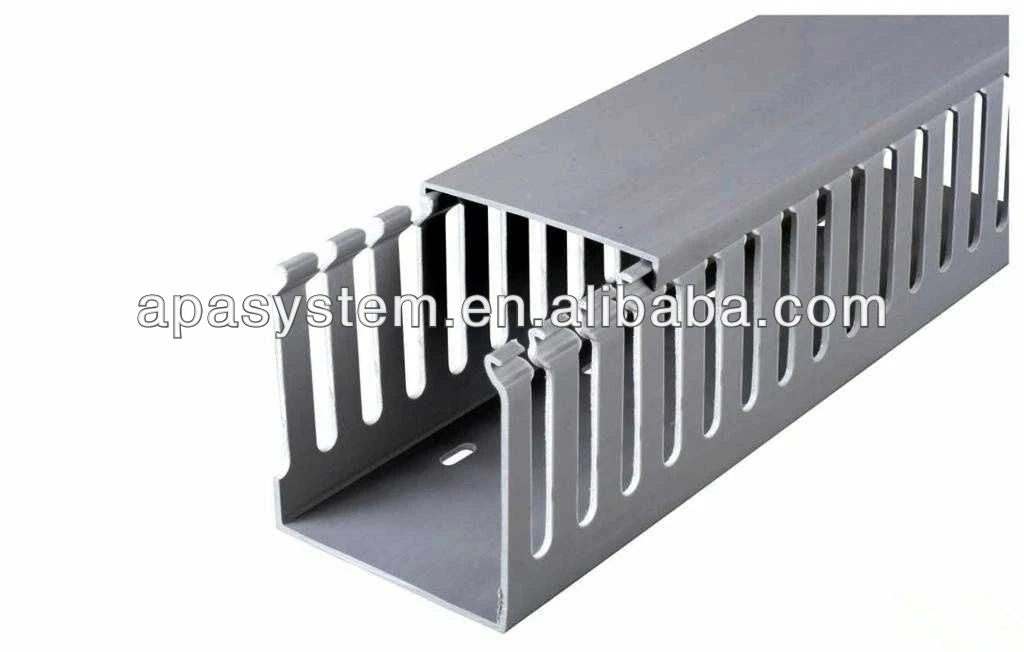

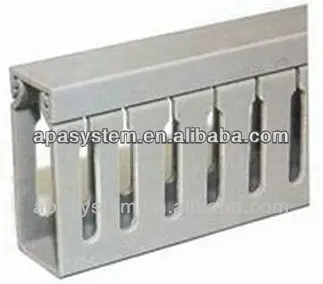

Non flammable PVC/plastic cable trunking

Product Overview

Description

Non-flammable upvc cable trunking



Material: Low smoke,  Halogen free rigid PVC



Temperature range: -25°c ~+75 °c  , short-term to +80 °c



Flame-retardant degree: V0(UL94)



Color: Grey, White,



FEATURES:

1. Reasonable design in cover and  body makes the duct durable. Smooth connection protects hands and wires.



2.Duct can keep its original state in 70 degree, complete accessibility and easiest method of inserting or removing  wires.



3.It is easy to install and remove.





 SPECIFICATIONS:



Dimension	Item No.	Wire Cable Hole SLOT     SLOT       SLOT 8MM       6MM       4MM			Wires to be contained	Length
15*25	WD-1525	•	•	•	5-12pcs	2M
20*25	WD-2025	•	•	•	5-12pcs
25*25	WD-2525	•	•	•	10-25pcs
33*33	WD-3333	•	•	•	25-45pcs
25*35	WD-2535	•	•	•	15-20pcs
35*35	WD-3535	•	•	•	20-30pcs
50*35	WD-5035	•	•	•	40-60pcs
33*44	WD-3344	•	•	•	40-55pcs
25*45	WD-2545	•	•	•	20-25pcs
33*45	WD-3345	•	•	•	44-55pcs
45*45	WD-4545	•	•	•	60-70pcs
65*45	WD-6545	•	•	•	110-120pcs
15*50	WD-1550	•	•	•	15-25pcs
25*50	WD-2550	•	•	•	20-25pcs
30*50	WD-3050	•	•	•	25-40pcs
35*50	WD-3550	•	•	•	40-60pcs
40*50	WD-4050	•	•	•	60-70pcs
45*50	WD-4550	•	•	•	70-80pcs
50*50	WD-5050	•	•	•	80-90pcs

 page is limited, for more item please contact us at anytime.



 PRODUCT DETAILS:







OUR FACTORY & PRODUCTION LINE:



About us:

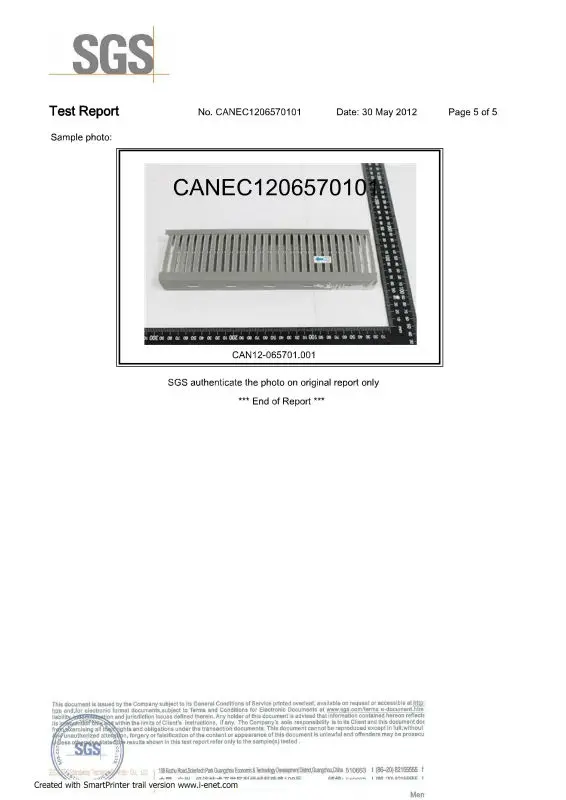

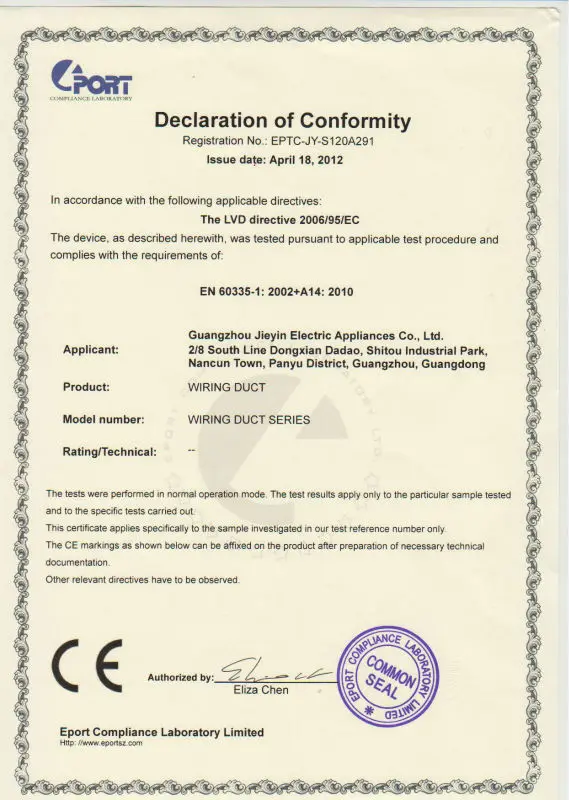

♣    UL,  CE,  RoHS,  REACH , 5510 .

♣   10 years export experience.

♣   We are manufacturer.

♣   More than 15000 square meters factory.

♣   127 workers and 12 engineers.

♣   Quality control system.

♣   Delivery On time.
