TBUC(O)-C



High Powered Ku-Band BUC

(Block Upconverter)



An ideal solution for both mobile and fixed Satellite Communication terminals. It is designed for high efficiency resulting in an optimal compact form factor with high performance and reliability. With the advanced customer interface and HTTP embedded web page, the operator is able to monitor and control both BUC and the System Redundancy








Advantages






Ü  DUAL LO = same unit covers both standard and extended Ku-Band

Ü  Extremely compact size

Ü  1:1 switching logic built into the BUC eliminating expensive external controller

Ü  Built-in Telemetry facilities for critical parameters such as: RF power detection, mute control, over temperature shutdown, summary alarm

Ü  WEB interface and SNMP monitoring

Ü  RS 485, RS232, Ethernet and dry-contacts M&C interface

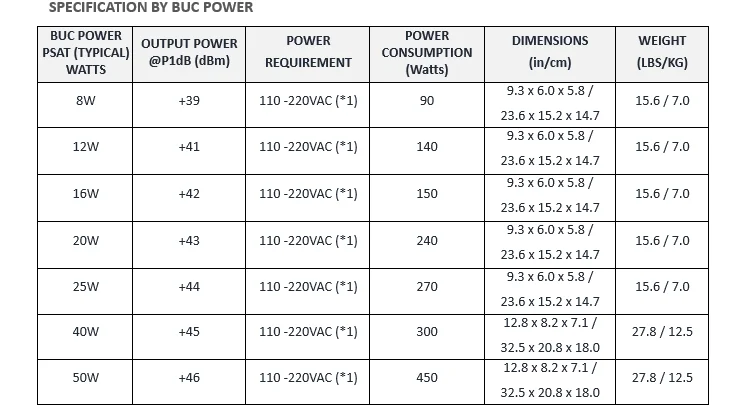

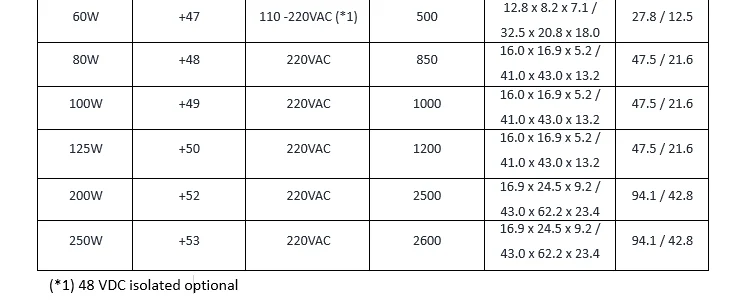

Specifications



ELECTRICAL CHARACTERISTICS



Standard Band

Extended Band

Output Frequency Range

14.00 -14.50 GHz

13.75 - 14.50 GHz (or other customized Ku band frequency)

Input Frequency Range

950-1450 MHz

950 - 1700 MHz

Local Oscillator Frequency

13.05 GHz

12.80 GHz

Gain Stability Over Temperature

± 1.5 dB nominal;

± 2.0 dB max

± 1.5 dB nominal;

± 2.25 dB max

Gain Variation at fixed temperature

±0.5 dB over max over 36 MHz;

± 2.0 dB over full band

± 0.75 dB over max over 36 MHz;

± 2.25 dB over full band

Linear Gain

70 dB min.

User Adjustable Gain

20 dB in 0.5 dB steps

Intermodulation

-25 dBc, with 2 equal carriers at 3dB total power back off from rated power (PSAT -3dB)

10MHz Reference

0dBm ± 5.0 dB - External via IF / (Internal 10MHz reference optional)



@ 100 Hz

@ 1 KHz

@ 10 KHz

@ 100 KHz

@ 1 MHz

Phase Noise Requirement

-135

dBc/Hzmax

-140

dBc/Hz max

-143

dBc/Hz max

143

dBc/Hz max



Local Oscillator Phase Noise

-63

dBc/Hz max

-73

dBc/Hz max

-83

dBc/Hz max

-100

 dBc/Hz max

-110

dBc/Hz max

Output Spurious

-55dBc max @PLinear

Harmonics

-50 dBc max @PLinear

VSWR

Input (1:50:1) Output (1.20:1)







INTERFACE

Connectors

Power

M&C (RS232/485/Ethernet)

RF Sample

Redundancy



MS Connector

MS Connector

N-Type Female (optional)

MS Connector

Output Interface

Waveguide, WR75G (Grooved)

Input Interface



N-Type Female,

50 Ohms,

F-Type Female,

75 Ohms (optional)







ENVIRONMENTAL

-40°C to + 55°C (operating);

-40°C to + 75°C (storage)

0 to 100% (condensing)

10,000 ft ASL
