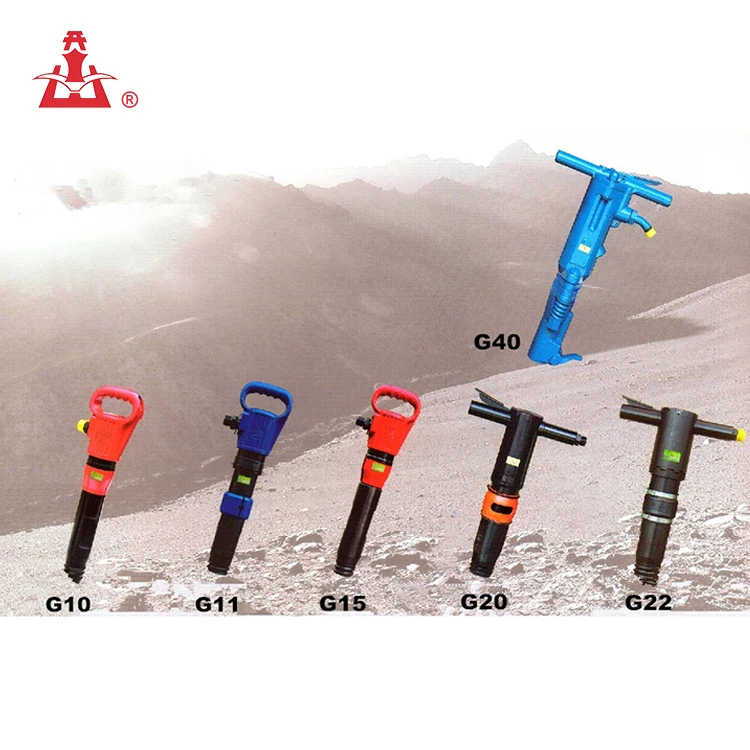

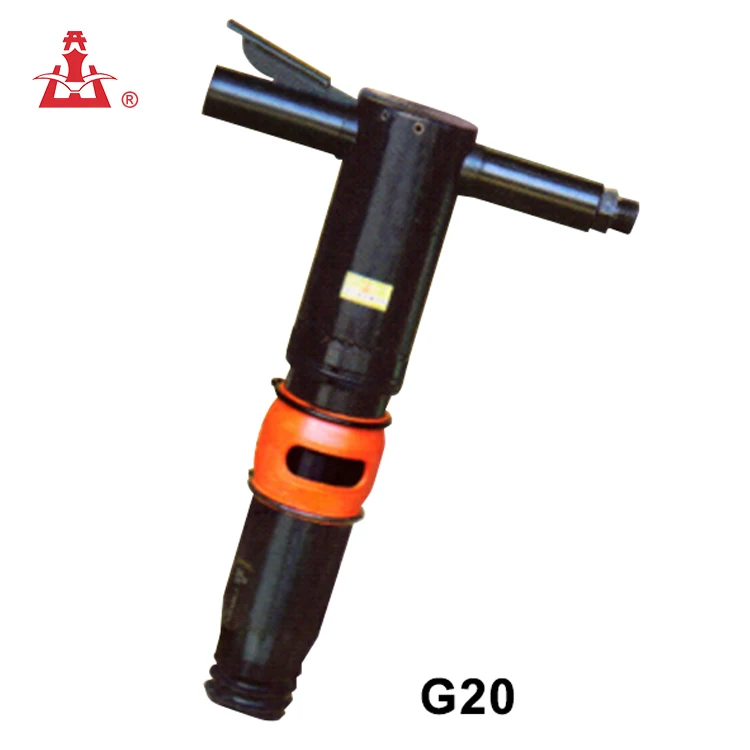

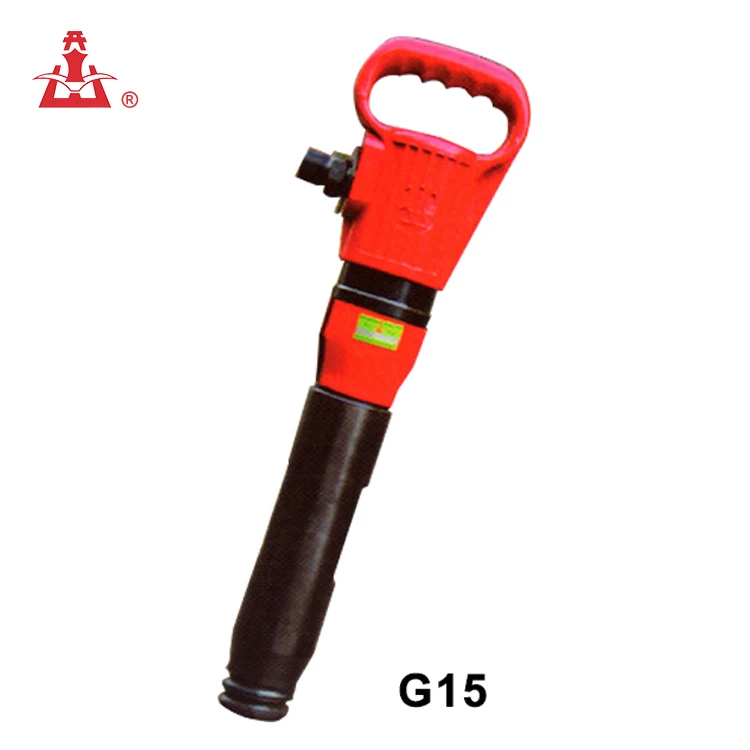

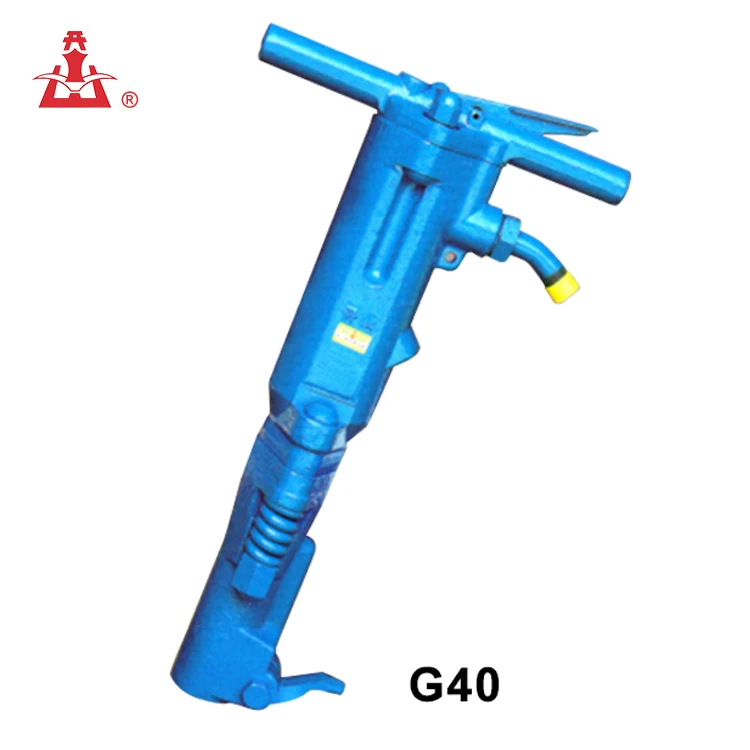

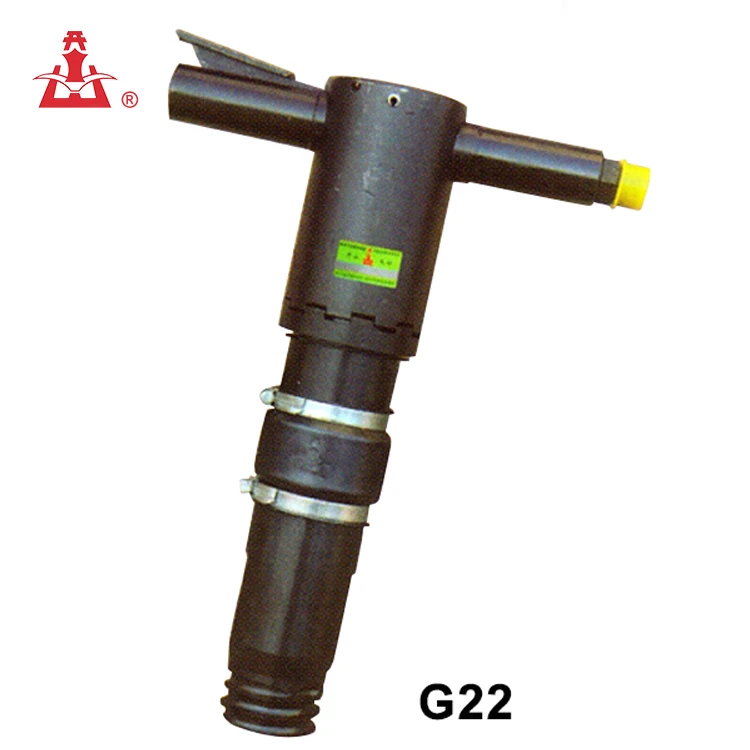

Kaishan G10 Pick Hammer G20 G40 pneumatic pick jack hammer

Product Overview

Description



Kaishan G10 Pick Hammer G20 G40 pneumatic pick jack hammer



Pick Hammer
1.Safe and easy to operate
2.High efficiency and reliability
3.Durable with minimal maintenance.

4.Best product quality control from cutting edge forging process to product completion

5.ISO9001:2008

6.ISO14000



Applications:

This kind of machine is designed for block secondary splitting or squaring specially, it can be instead of the dynamite blasting or traditional manual splitting device completely. It can be widely used for reinforced concrete breaking or removing, such as the construction building part demolition, bridge dismantling, demolishing underwater etc.

Features:

This air pick hammer is tools with compressed air as its power.

The compressed air is distributed alternatively through the distributing valve into either end of the cylinder assembly .

The hammer inside is made to carry on a reciprocaql motion which impacts the shank of the steel chisel by the tappet .

Advantages:

1. high quality materials

2. scientific forging

3. heat treatment

4. safty and economy

5. ISO9001:2008, ISO14000



Technica Parameters:

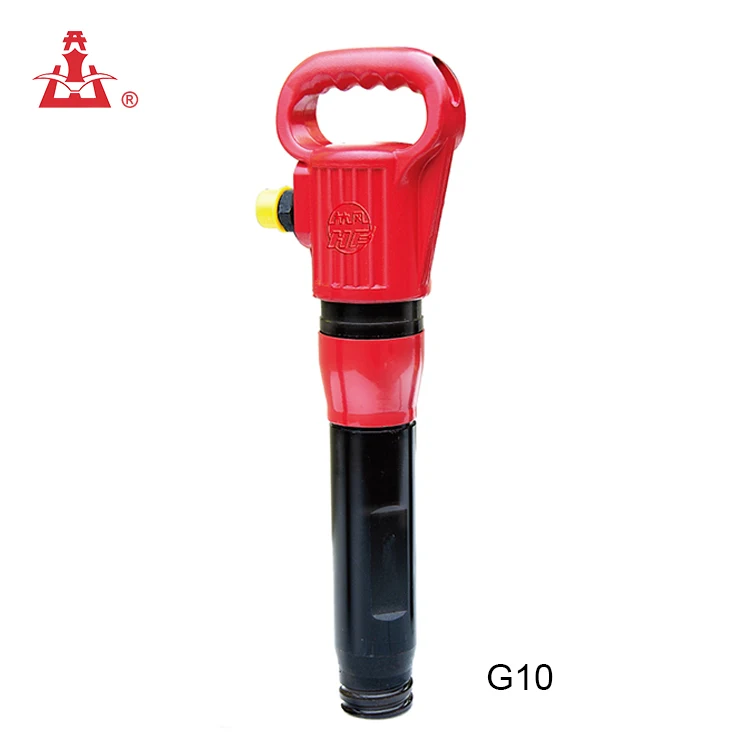

Pick Hammer(G10)
Working Pressure(Mpa)	0.4-0.63
Weight(Kg)	10
Acceptance Pressure(Mpa)	0.5
Impact Frequency(Hz)	≤15
Air Consumption(L/s)	≤20
