99% Recovery Nelson Gold Concentrator Hot Sale in Senegal Alluvial Gold Mine (STLB80)

Product Overview

Description



Model	STLB80  nelson gold concentrator
Capacity(t/h)	30-40
Fluidization water required(t/h)	20-30
Feeding size(mm)	0-6
Cone bowl rotation speed(rpm)	400
Power(kw)	11
Dimension(mm)	2000*1800*1900
Weight(kg)	2200





99% Recovery Nelson Gold Concentrator Hot Sale in Senegal Alluvial Gold Mine (STLB80)

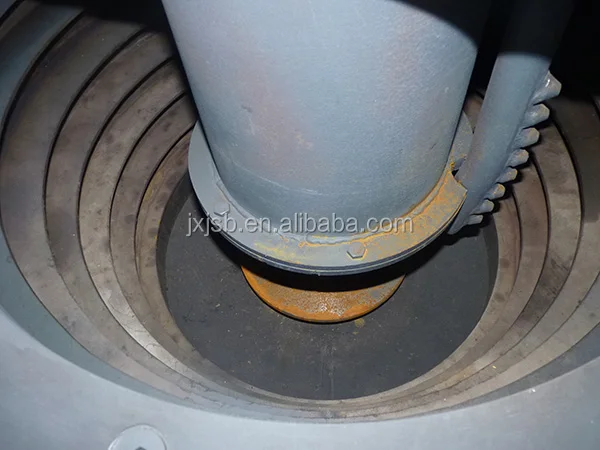

 The nelson gold concentrator, which is also called centrifugal concentrator is usually used for roughing separation during the gold separation flowchart to recover most of the useful minerals and get rid of most of the barren rocks.

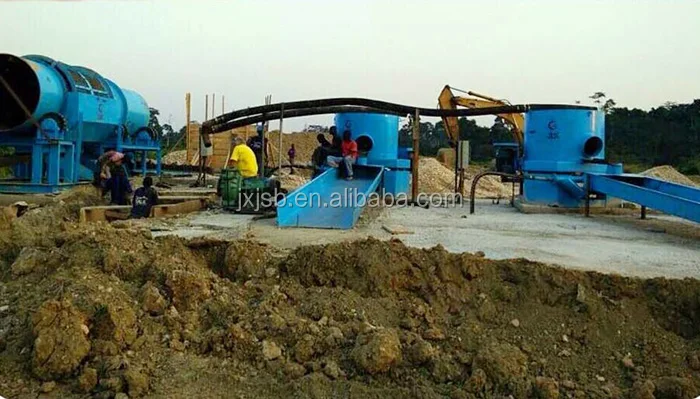

General flow for placer/river/alluvial gold mining:







1. Description of nelson gold concentrator



The nelson gold concentrator is a new type of gravity concentration equipment for concentrating gold and other high density minerals. The centrifugal machine gets many competitive advantages compared with other concentration machines which create high returns for the investors.



2. Application of nelson gold concentrator

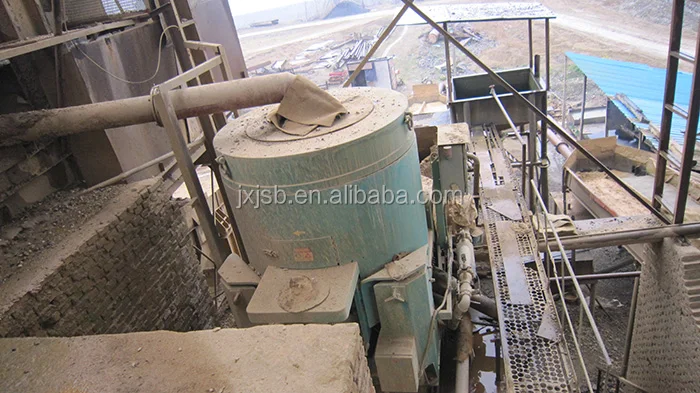

STLB nelson gold concentrator is kind centrifugal concentration equipment. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.



Since 1985, three models of nelson gold concentrator have been developed. Application shows that the recovery can be as high as 99%, especially for the case in recovering the natural gold in lode ore with 65% of the ore having a milling size of-0.074mm, the recovery for the natural gold is expected up to 98%. For that natural gold of 0.004mm in particle size, the recovery is 97%. The cleaning up cycle is 1~4 hours. And the upgrade ratio is up to 1,000 times.



3. Features of nelson gold concentrator





High recovery rate: Through our test, the recovery rate for placer gold can be 98% or more, for rock gold, the recovery rate could reach 97% when the feeding size is below 0.04mm.



High efficiency: STL60 nelson gold concentrator has a capacity of 10-20TPH, and STL100 nelson gold concentrator has a capacity of 50-80TPH. Only one machine could give you such a high capacity and high recovery rate. It's the most efficient concentration equipment in our factory.

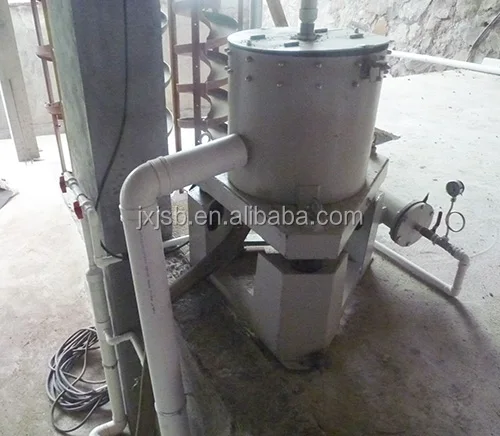

Easy to install: only a small leveled place required. It's a complete machine, before starting it, only need to connect the fluidization water and power.



Easy to adjust: there are only 2 factors that will affect the recovery result, they are water pressure and feeding size. By giving proper water pressure and feeding size, you could get the best recovery effect.



Easy to operate:  after finishing the water pressure and feeding size adjust, what U have to do is to fetch the concentrates every 2-4 hours. (Depending on the grade of the mine)



No pollution: this machine only consumes water and electric power, and exhaust tailings and water. Low noise, no chemical agent involved.

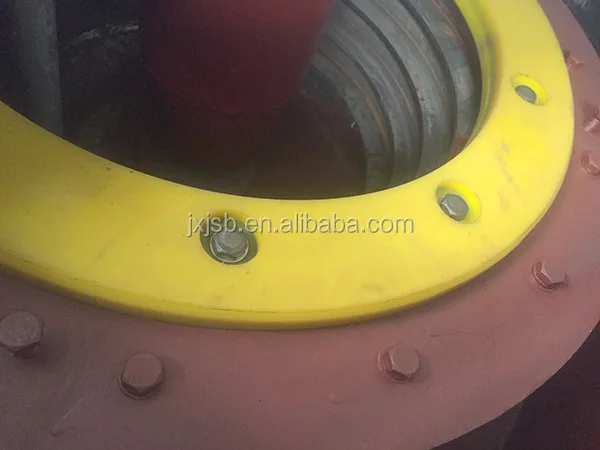

Reliable:  this nelson gold concentrator gets a simple & tough structure, the main body is made by strong steel, and the concentrate cone is made by stainless steel. And the bearing is greased to keep it running well.

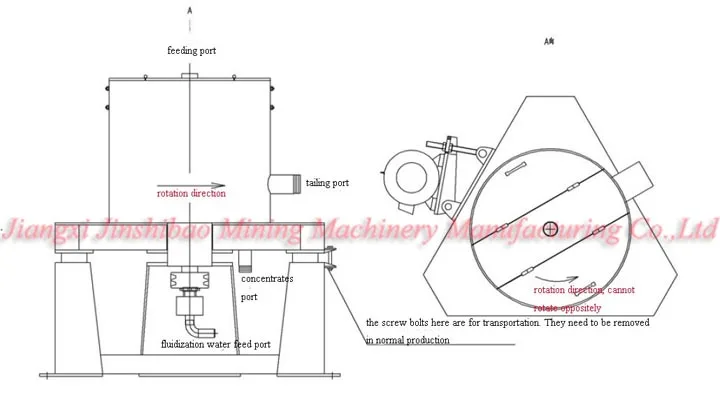

4. Structure of nelson gold concentrator











5. Technical specification of nelson gold concentrator



Model		STLB20	STLB30	STLB60	STLB80	STLB100
Feeding Capacity	T/H	1-2	2-3	10-20	30-40	50-80
Fluidization Water Required	T/H	1-2	4-6	10-15	20-30	17-25
Pressure water	Mpa	0.05-0.1	0.1-0.2	0.1-0.2	0.1-0.2	0.1-0.3
Feeding Density	%	10-50	10-50	10-50	10-50	10-50
Feeding Size	mm	0-4	0-4	0-5	0-6	0-6
Bowl Cone Rotation Speed	r/min	800	600	480	400	360
Concentrate Weight	Kg	2-3	10-20	25-40	45-60	70-80
Motor Power Requirements	KW	0.75	1.5	4	11	18.5
Approximate Weight	Kg	160	600	1400	2200	3700
Approximate Dimensions	mm	940×700×1000	1200×1250×1250	1850×1550×1600	2000×1800×1900	2300×2000×2300











Thanks for taking time to browse our nelson gold concentrator. We JINSHIBAO company  supplies not only the single equipment but also the whole processing line equipments for different minerals' mining. If you have any questions or comments, pls feel free to contact us.



Application of  nelson gold concentrator











Now we have our newest improved type nelson gold concentrator. The models STLB60, STLB80, and STLB100 are all automatical discharge configured with the control pannel. The models STLB20 and STLB30 have manual discharge type and automatical discharge type. You could choose according to your request!





Other series of nelson gold concentrator

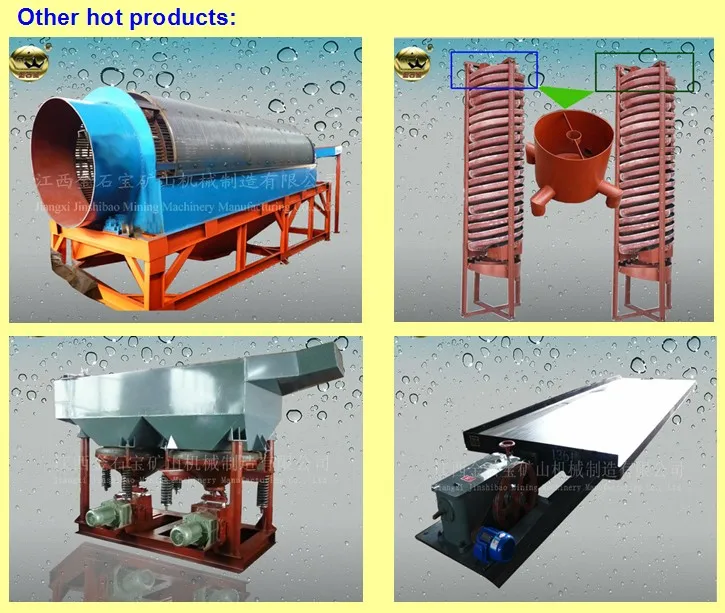

Below are respectively the trommel screen, spiral separator, jigging machine, and shaking table. All of them could be applied as gold ore wash equipment.
