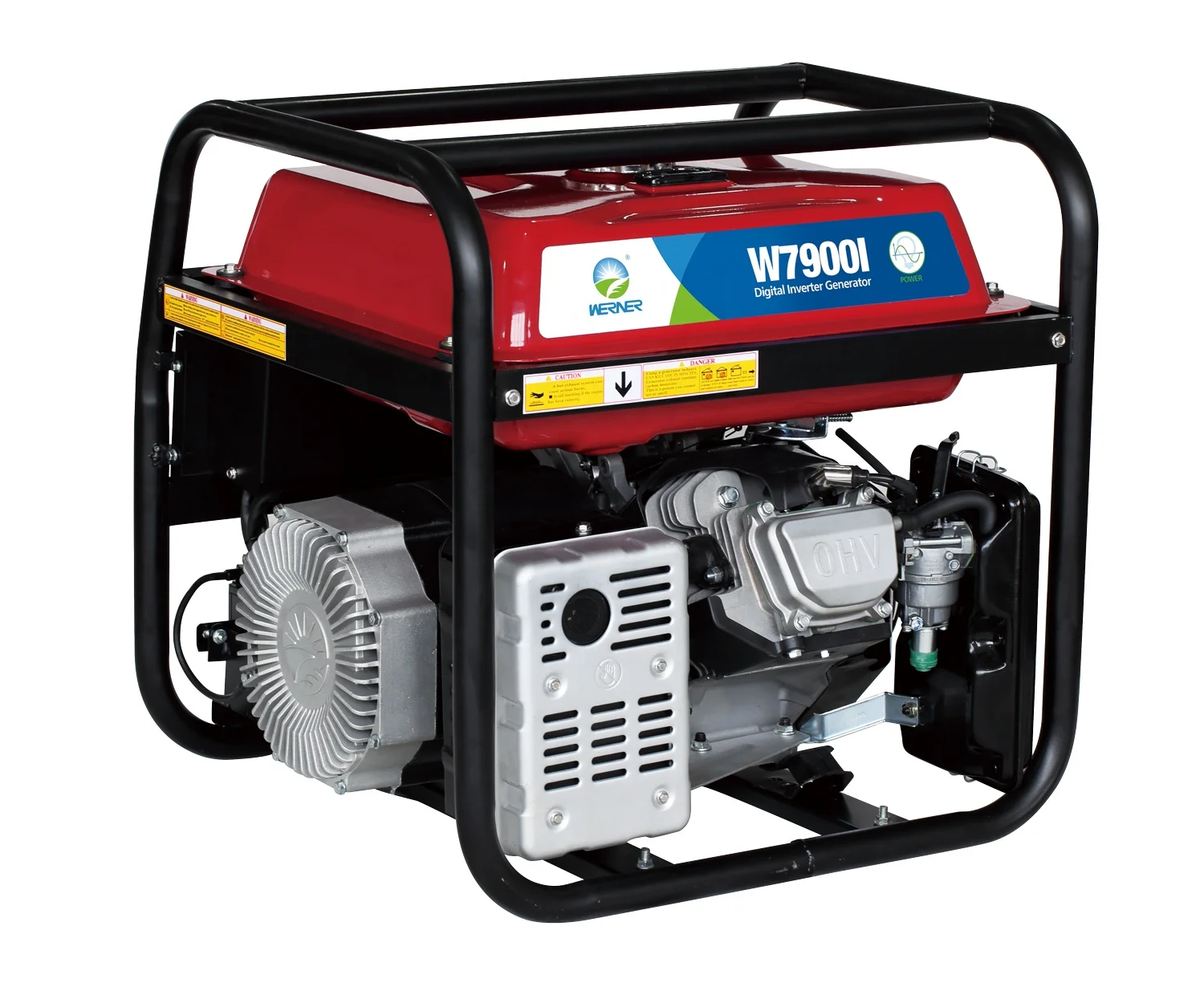

8kw gasoline digital inverter generators

Product Overview

Description

Advantages

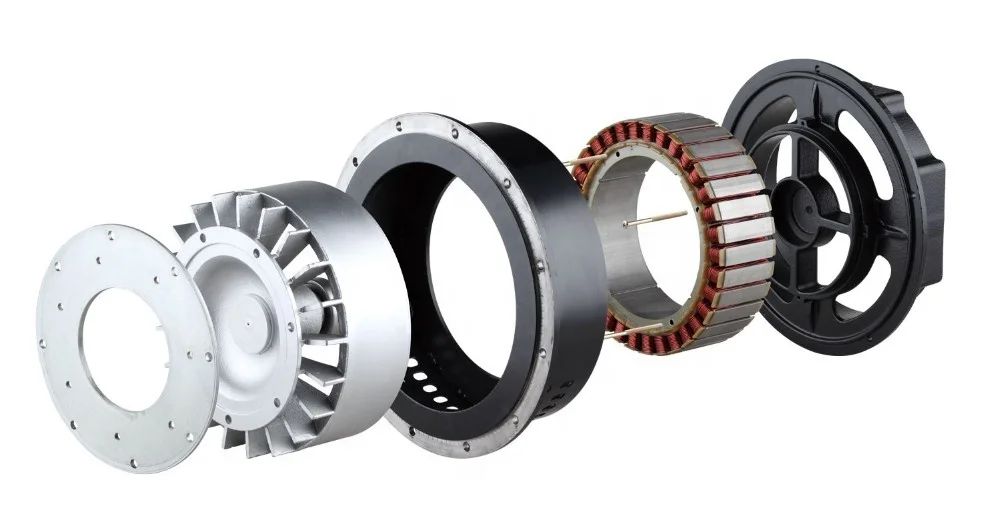

PERMANENT MAGNETIC ALTERNATOR:We choose permanent magnetic alternator which is brushless with inverter electronic control system.

DIGITAL INVERTER SYSTEM: Pure sine wave and THD less than 1%.High voltage multiphase AC power generated by the alternator and the AC power is then converted to DC. Finally the DC power is converted back to AC by the inverter unit. The inverter unit also smoothes and cleans the power.

HIGH QUALITY POWER OUTPUT:  A sinewave inverter that guarantees commercial-quality electricity – making it ideal for use with frequency sensitive electrical equipment such as computers, TV sets, air condition and so on.

HIGH FUEL EFFICIENCY:  As coupled with the inovation of alternator,this digital inverter generator can save 20% fuel consumption than other home use genset.

POWERFUL 4-STROKE OHV GASOLINE ENGINE: Compact size, high power, simple mechanism and easy starting.

Genset
Model Name	W5600I	W5800I	W5900I	W5900I	W7900I	W9900I
Rated AC output	3KW	4KW	5kw	6KW	8KW	10KW
Max transient power	5KW	6.8KW	8.5	10.2KW	13.6KW	17KW
Frequency	50/60HZ
Voltage	220V/230V/240V
DC output	12V   5A
Output waveform	Pure sine wave
Efficiency	≥90%
Voltage rate	±2%
Total Harmonic Distortion	≤5%
Phase	single phase
Fuel Tank(L)	12	12	17		36	28
Dimension(mm)	500×470×470mm	500×470×470mm	600×550×550mm		620×590×620mm	630×580×770mm
NG.(KG)	38KG	40KG	65KG	65KG	73KG	117KG
ENGINE
Engine	170F	170F-2T	190F-T	190F-T	192F-2T	2V80F
Engine Type	4-stroke, OHV, single cylinder, cylinder inclined, air cooled,petrol,OHV					4-stroke, OHV, 2cylinders, cylinder inclined, air cooled,petrol,OHV
Displacement	212ml	223ml	420ml	420ml	459ml	744ml
Compression	9:01	9:01	9:01	9:01	9:01	8.5:1
Rated rev	Constant speed
Ignition system	T.C.I
Start system	Recoil hand-operated, electric system
Engine Rated  output	4KW	4.4KW	8.8KW	8.8KW	11KW	16KW
Fuel comsumption	≤370g/kw.h	≤370g/kw.h	≤370g/kw.h	≤370g/kw.h	≤370g/kw.h	≤370g/kw.h
Lube Oil capacity	0.6L	0.6L	1.1L	1.1L	1.1L	1.4L
Alternator

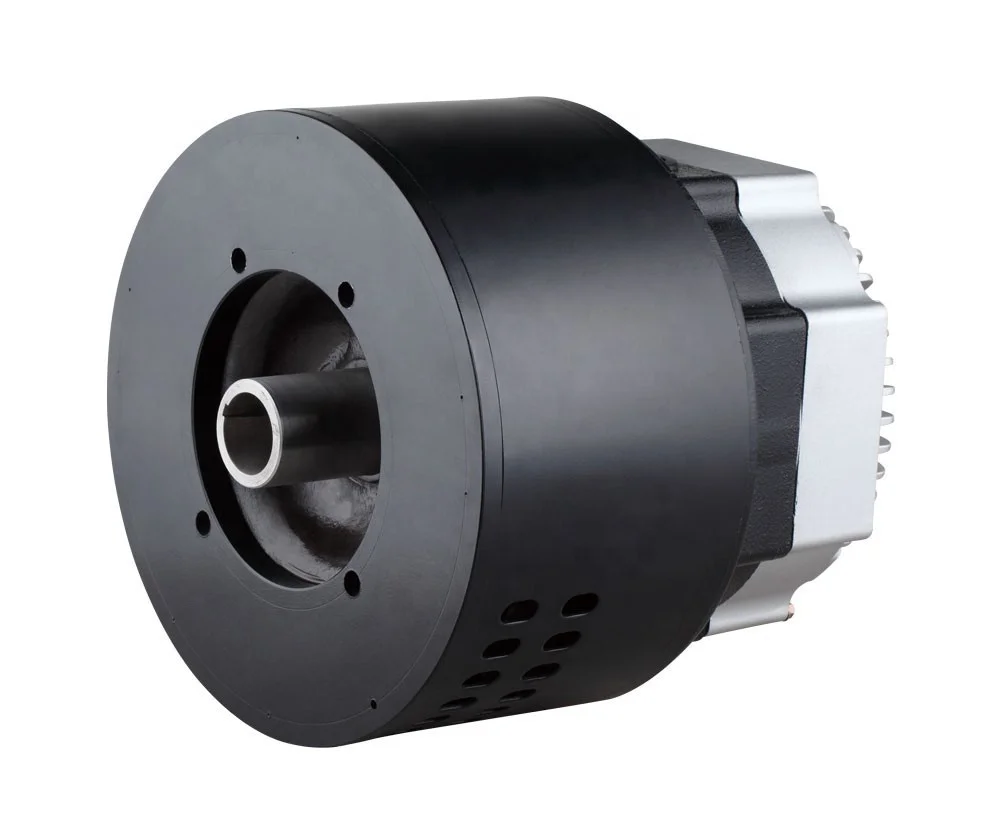

Alternator	PMG type inverter alternator
Model Name	W5600ID	W5800ID	W5900ID	W6900ID	W7900ID	W9900ID
Rated power	3KW	4KW	5kw	6KW	8KW	10KW
The electronic control	Inverter
Phase	single phase







100% copper winding

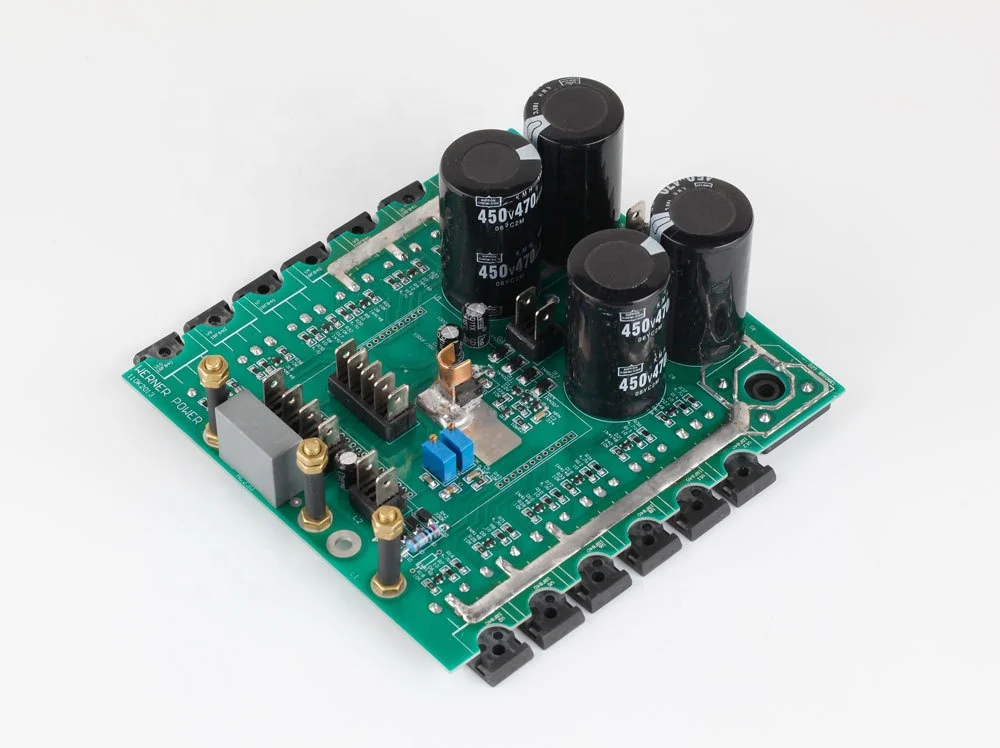

Digital Inverter
