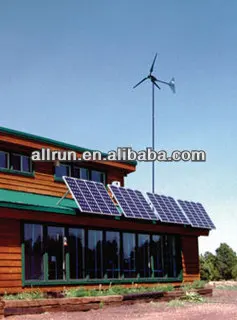

High efficiency 5kw 10kw 15kw 20kw off grid hybrid solar wind power system
- Category: >>>
- Supplier: Qingdao Allrun New Energy Co. Ltd.Qingdao Ltd.
Share on (1651390040):
Product Overview
Description

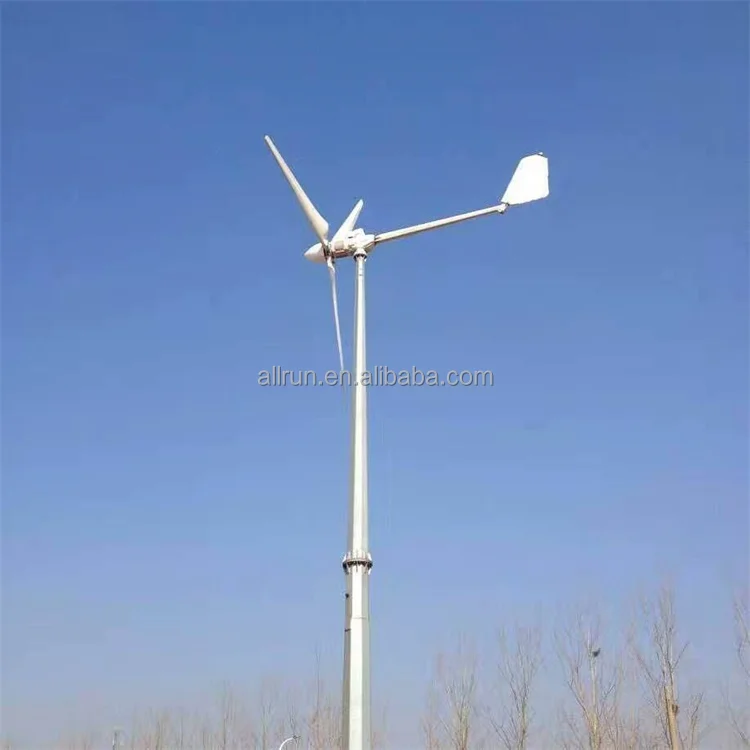

Horizontal-axis wind turbine | Horizontal-axis wind turbine | |
Blade form | Propeller | |
Blade number | 3 pieces | |
Balde material | Glass fibre reinforced plastic | |
Type of generator | Permanent-magnet 3 phase AC | |
Type of tower | Guy wire or free standing | |
Power | 5kW | |
Blade diameter | 6m | |
Rated rotor speed | 200r/min | |
Rated speed | 8m/s | |
Rated power | 5kW | |
Max power | 7kW | |
Output voltage | 48/96/220V | |
Start up wind speed | 3m/s | |
Work speed | 3-30m/s | |
Security wind speed | 50m/s | |
High of tower | 6/8/9/12m | |
Top quality except tower | 310kg | |
Tower Steel tube model | φ250mm | |
Speed regulation | Leaning tail + electric brake | |
2. Generator:The overload strong bearing,long-lasting lubrication without maintenance.The rotor is made of permanent magnet (NdFeB),so it generates electricity when the rotating impeller drives generator rotor rotating.The wind is different from
ordinary electric motor,which is the ultra-low-speed motor,100 --- 400 per minute to switch that is able to meet the design power (depending on model),while such a low speed of the motor is unable to pronounce with ordinary electricity.
ordinary electric motor,which is the ultra-low-speed motor,100 --- 400 per minute to switch that is able to meet the design power (depending on model),while such a low speed of the motor is unable to pronounce with ordinary electricity.
A: Grid TIE System
B: Off Grid System
Features
1.Low speed permanent magnet generator.
2.Low starting torque,High generating efficiency.
3.Glassfibre high efficiency blades.
4.Neodymium magnets and bearing with high performance.
5.Yaw motor system(optional).
6.Designed for minimal maintenance and easy install.
7.Aerodynamic brake & manul brake.
2.Low starting torque,High generating efficiency.
3.Glassfibre high efficiency blades.
4.Neodymium magnets and bearing with high performance.
5.Yaw motor system(optional).
6.Designed for minimal maintenance and easy install.
7.Aerodynamic brake & manul brake.
8.WIFI APP function is optional.
Micro-computer intelligence controller
2.have the auto-protection function of the batteries Reverse protection, anti-disconnect battery protection, battery damage protection.
3.when the charge current is high in strong wind,controller can load the wind turbine automatically. And charging the battery with low current.
4.The wind turbine brake automatically when the battery bank voltage get to rated voltage 125%; and stop charging the batteries.
5.the wind turbine get back charging the batteries when the the battery bank voltage get to rated voltage 108%
6.Controller with a manual emergency brake switch, users can use depending on the circumstances. Using this switch, the wind turbine will be brake.
7.Big LCD LED to show ral data , WIFI APP function is optional.
Pure sine wave inverter
2.Use integrated circuit, less wire connection.
3.Adopting micro-processor technology, improving system integration.
4.Excellent protection includes over voltage shutdown, under voltage shutdown, over load protection, short circuit .protection, over thermal protection, etc.
5.Be able to work in wind power or wind&solar hybrid system.
6.With high efficiency transformer instead of high frequency e-circuit design.
7.Automatic regulate voltage.
8.LCD display operation status.
9.High running stability and reliability.
10.True sine wave form power output.
11.High efficient transformer isolation.
12.Buzzer alarm while over-loading/voltage, high-temperature.
13.Users can adjust the data upon the local real working situation.
1. Household wind motor
2. Wind turbines for parks
3. Offshore wind turbine
4. Grassland Wind Turbine
Our company Qingdao Allrun New Energy co., ltd, is specialized in producing wind products and solar products, such as wind power system, solar panel , and other solar products. The company also owns an independent research on wind energy products of multiple power levels from 150W to 500KW, which have been widely used in independent off-grid wind power system, on-grid wind power system, wind-solar hybrid street light system, wind -solar hybrid home power system, wind-diesel hybrid system and etc.And welcome you to visit our website: www.qdallrun.cn to know more about our company and the products! We have about ten years in this area ,not only can products our own brand products, but also can design the system to the requirement from our clients. We have a 10 personed r&d team to do the development to meet the requirement from the market. Customers from Europe, America, Australia, Canada, New Zealand, South Africa and Asia. have already established reliable cooperation ship with us, and appreciated for our good service, fast delivery, honest communications, good quality and combative price. This is also the reason we can stand here so many years. And also hope you can cooperate with us in long term because of our advantage. Thanks!
Please feel free to contact me if there is any further question about it.
Please feel free to contact me if there is any further question about it.
Q1:What size do you produce?
A1:Allrun can produce from 150W to 300KW wind turbine, can supply parts or whole unit.
Q2:Which style do you produce?
A2:Allrun can produce both on grid and off grid, horizon style and vertical style. we can adjust to what you need.
Q3:What the warranty?
A3:Allrun can offer 20 years warranty.
Q4:What about the delivery?
A4:Allrun can delivery goods in 7days after payment , and also we can help you ship all over the world, you know we have our own shipping forwader.
A1:Allrun can produce from 150W to 300KW wind turbine, can supply parts or whole unit.
Q2:Which style do you produce?
A2:Allrun can produce both on grid and off grid, horizon style and vertical style. we can adjust to what you need.
Q3:What the warranty?
A3:Allrun can offer 20 years warranty.
Q4:What about the delivery?
A4:Allrun can delivery goods in 7days after payment , and also we can help you ship all over the world, you know we have our own shipping forwader.
