CATV cheaper and better 870MHz diplexer/mixer/diplexer mixer

Product Overview

Description

CATV cheaper and better diplexer/mixer/diplexer mixer





1 technical characteristics:



PARAMETER	BANDWIDTH	SPECIFICATIONS
PLC-OUT Port Return Path Insertion loss	5-42MHz	1.0dB(typ)/1.2dB(max)
IN-OUT Port Forward Path Insertion loss	54-870MHz	1.0dB(typ)/1.2dB(max)
Return Loss	5-42MHz                54-870MHz	18dB(typ)/16dB(min)
IN-OUT Port Forward Path Rejection Band loss	5-42MHz	50dB(typ)/45dB(min)
PLC-OUT Port Return Path Rejection Band loss	54-870MHz	50dB(typ)/45dB(min)
Impedance	75ohm
Connector Type	5/8"-24
Current Capacity	15Amps,60VAC
Doimensions	122*152*84mm
Weight	530g





2 Our Advantges:



1.Careful Quality assurance and good after-sale service.



2.Safe Packing: All the producuts were packaged in standard export carton to make sure long transportation

   safety.



3.Certificates:CE



4.Delivery Details:Professional delivery team.

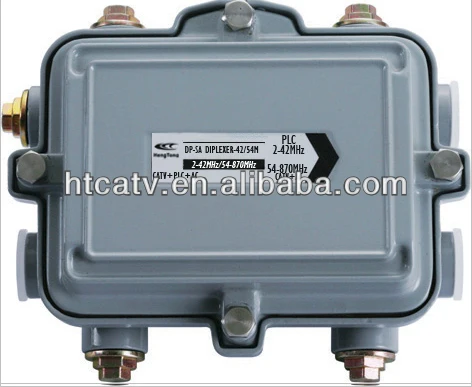

3 Photos:



Please do not hesitate to contact us if you have any question , we will do our best jobs for you.
