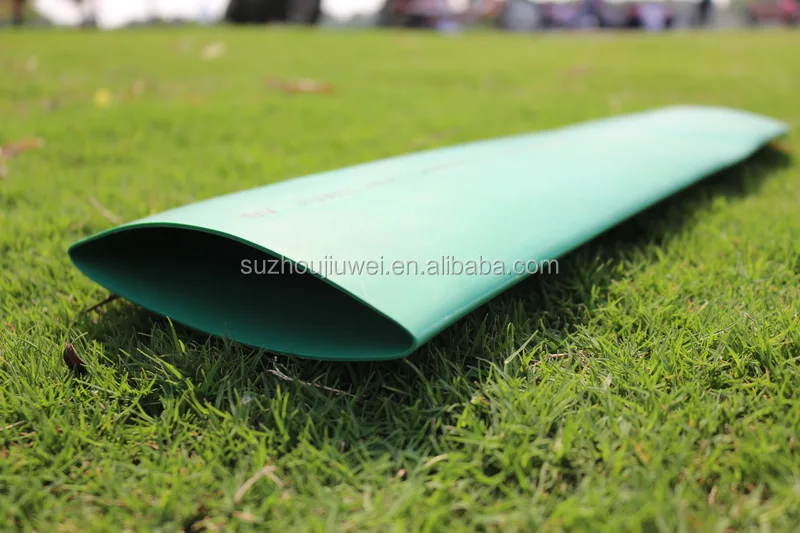

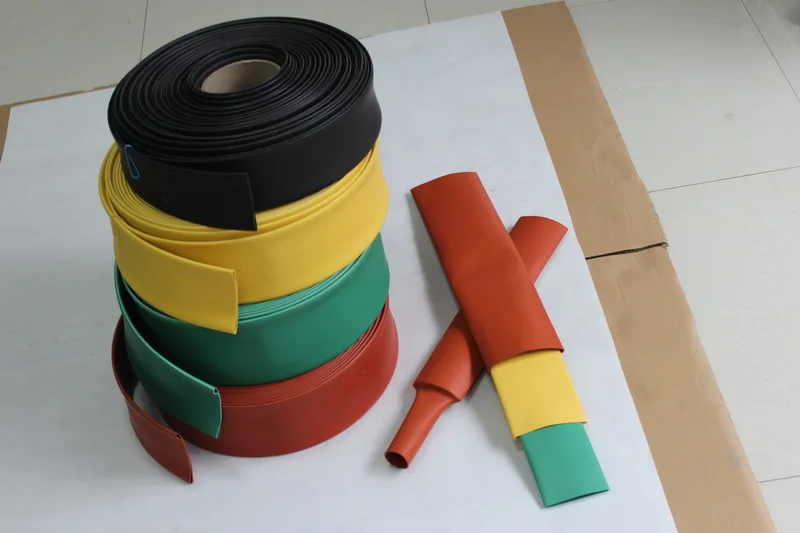

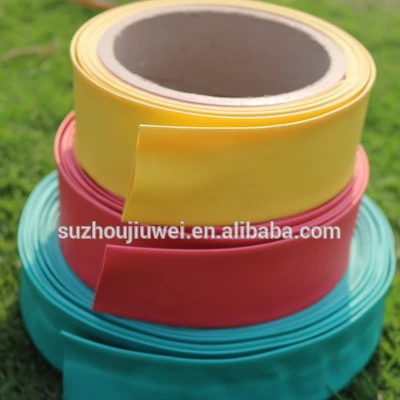

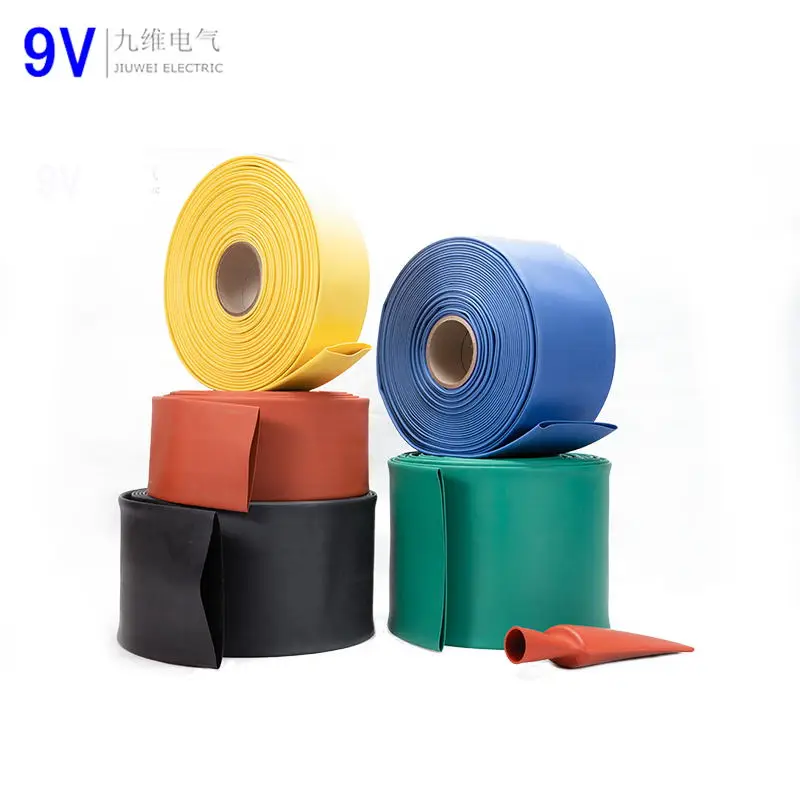

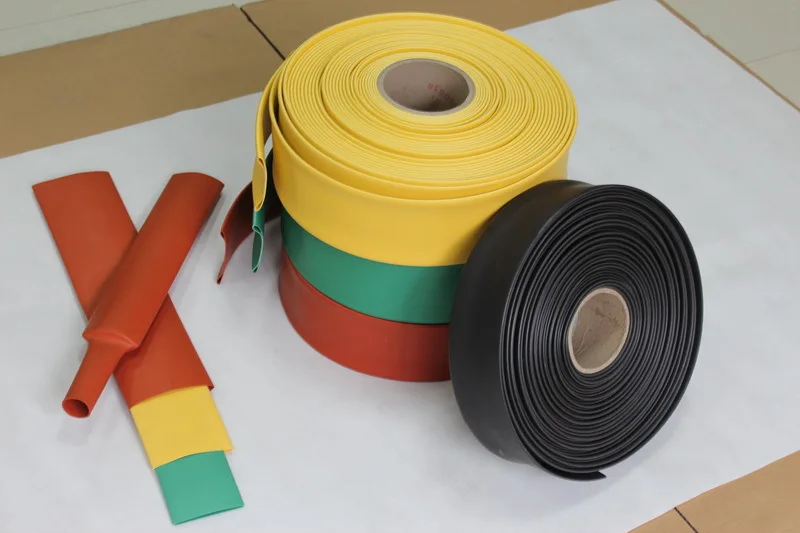

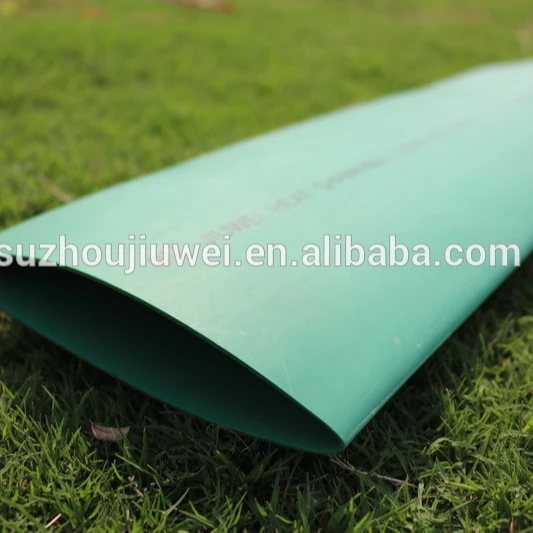

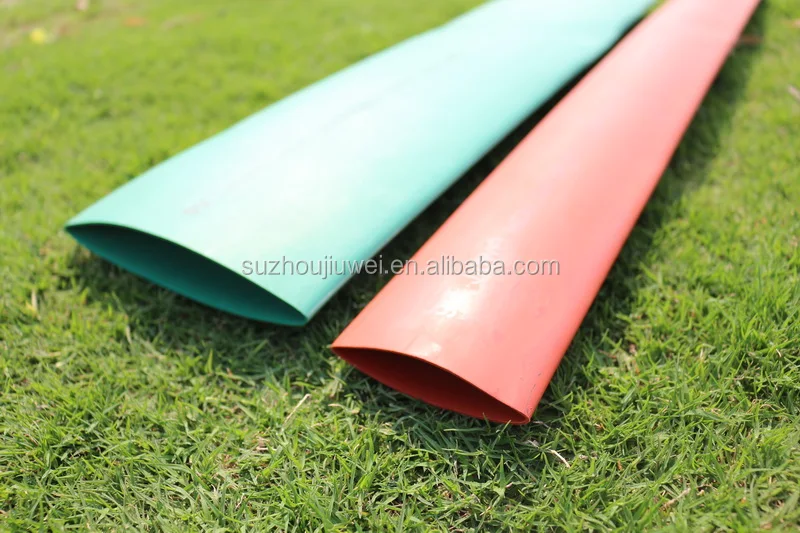

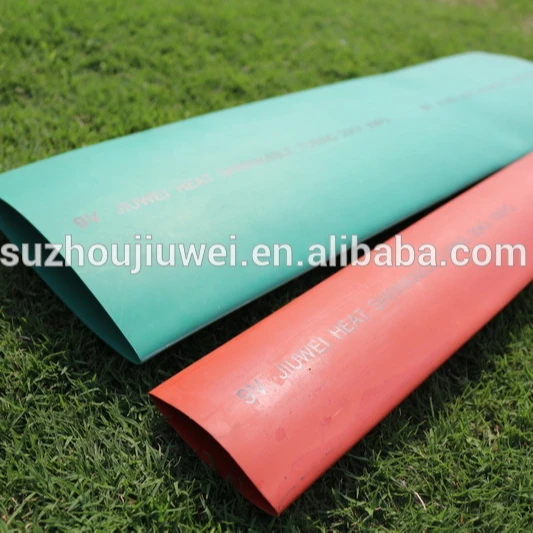

Busbar Protection Casing 10kv Pvc Electrical Heat Shrink Tube Various Kind Heat Shrinkable Sleeve

Product Overview

Description







  10kv eletrical heat shrink busbar sleeve ,VMPG Busbar Protection Casing is a good insulation resistance,aging resistance of the heat shrinkable tube,widely used in highvoltage swith gear,powerplant,substation busbar insulation protection,you can play against small animal short circuit,preventing maintenance personnel strayed into electrically charge space,to prevent condensation flashover,increased white insulation,effectively reduce the bus rowthe distance between phase,and on the ground to extend the life of bus row.

feature

10kv eletrical heat shrink busbar sleeve
Used Widely,Safe and reliable
Certification authority
Long-life material
Services Thoughtful

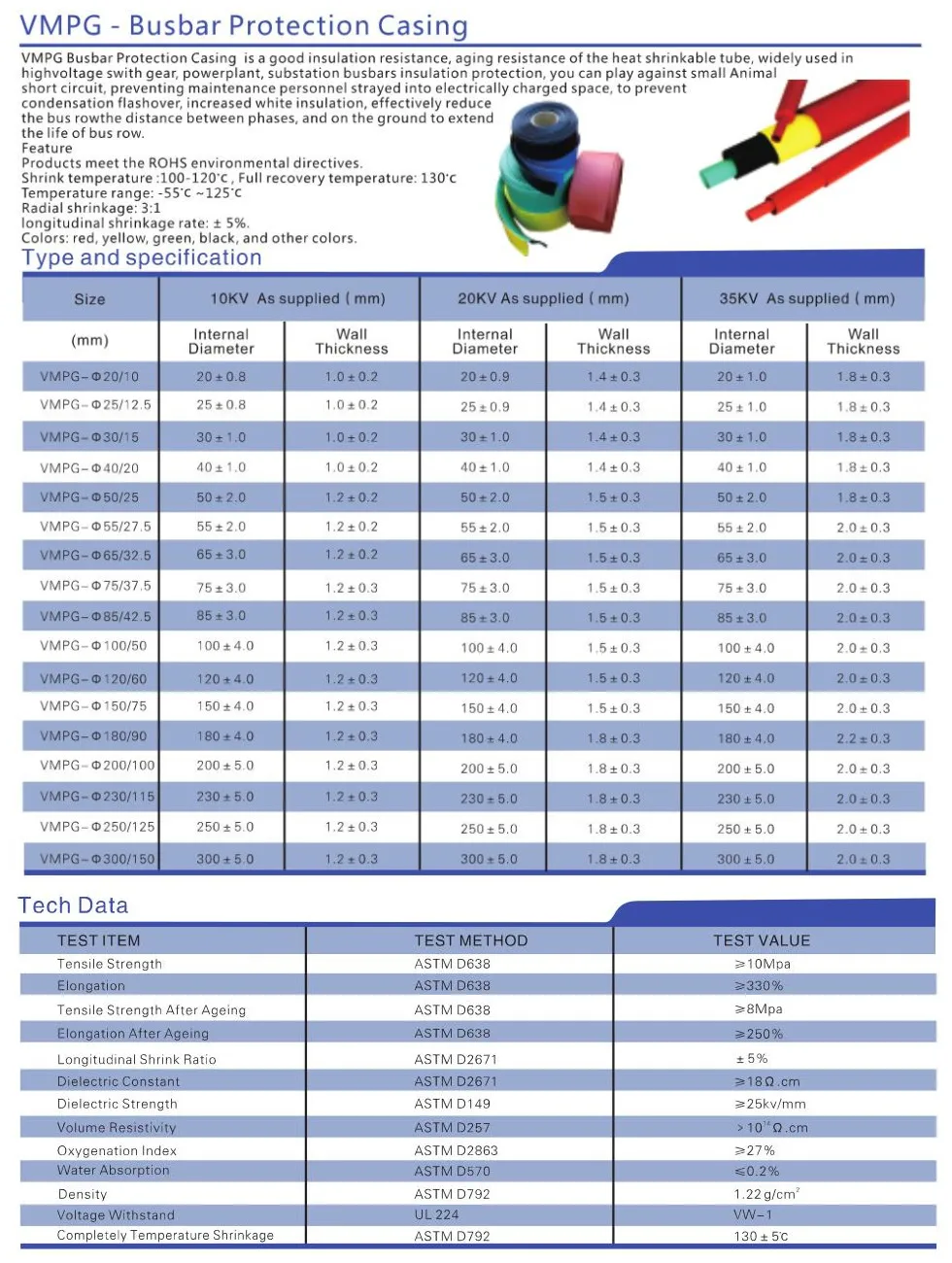

size&spec

Size	10KV As supplied(mm)		20KV As supplied(mm)		35KV As supplied(mm)
(mm)	Internal Diameter	Wall Thickness	Internal Diameter	Wall Thickness	Internal Diameter	Wall Thickness
VMPG-Φ20/10	20±0.8	1.0±0.2	20±0.9	1.4±0.3	20±1.0	1.8±0.3
VMPG-Φ25/12.5	25±0.8	1.0±0.2	25±0.9	1.4±0.3	25±1.0	1.8±0.3
VMPG-Φ30/15	30±1.0	1.0±0.2	30±1.0	1.4±0.3	30±1.0	1.8±0.3
VMPG-Φ40/20	40±1.0	1.0±0.2	40±1.0	1.4±0.3	40±1.0	1.8±0.3
VMPG-Φ50/25	50±2.0	1.2±0.2	50±2.0	1.5±0.3	50±2.0	1.8±0.3
VMPG-Φ55/27.5	55±2.0	1.2±0.2	55±2.0	1.5±0.3	55±2.0	2.0±0.3
VMPG-Φ65/32.5	65±3.0	1.2±0.2	65±3.0	1.5±0.3	65±3.0	2.0±0.3
VMPG-Φ75/37.5	75±3.0	1.2±0.3	75±3.0	1.5±0.3	75±3.0	2.0±0.3
VMPG-Φ85/42.5	85±3.0	1.2±0.3	85±3.0	1.5±0.3	85±3.0	2.0±0.3
VMPG-Φ100/50	100±4.0	1.2±0.3	100±4.0	1.5±0.3	100±4.0	2.0±0.3





1.About Sample.

 Less than 50USD,We won't charge you the samples fee,you Just offer your express number or pay for the express fee.

Within 2-3days normally, special products( custom-made ) maybe 7 days.

2.About Order.

Time of delivery is 15-20days based on your Qty,Special products maybe 20-25days.Jan,Feb,The before and after of Chinese New Year ,Maybe need longer time.

3.About Payment.

Payment,.First time,T/T 30% pre-payment and 70% paid off before shipment.

And if we cooperate for a long time,We can make the  contract of  Quarter settlement Or Haf-year settlement.

4.About Service.

Technical Support.If need  Technical personnel on-site guidance,You just need pay for the traveling allowance.

If the products have quality problems,We will  replacement double Qty for you with your next order.But if the problem is caused by yourself,we won't be  responsible for that.

5.About Worktime.

Beijing time  From 8am- 23pm * 5 .12am-1pm 5pm-8pm is out. You can leave message or email 24 hours.
