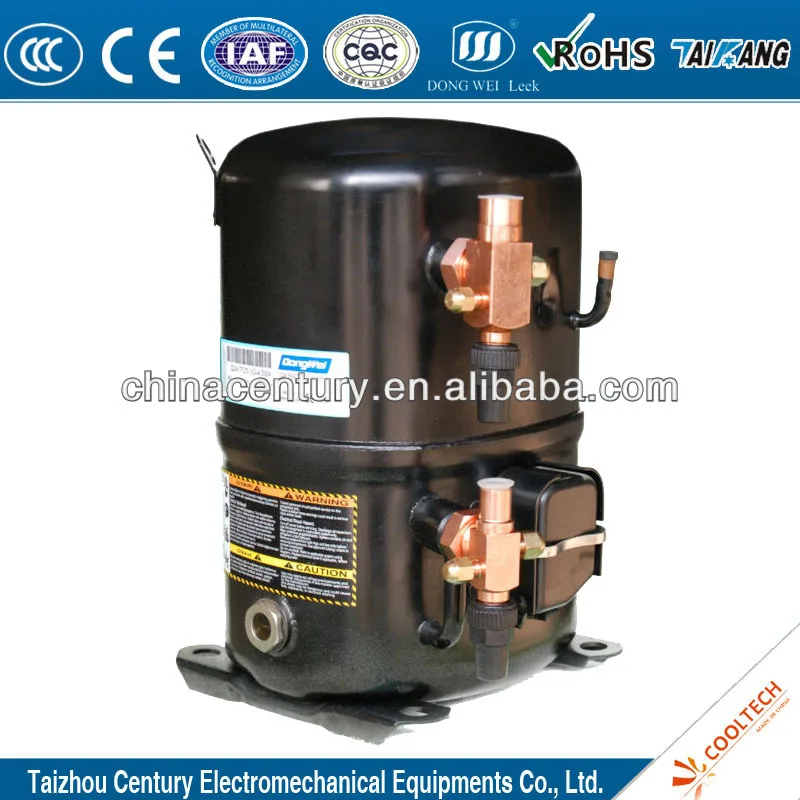

Tecumseh R22 TK4517 1.25HP 1PH220V/50HZ Industrial Refrigeration compressor

Product Overview

Description

Tecumseh R22 TK4517 1.25HP  1PH220V/50HZ Industrial Refrigeration compressor

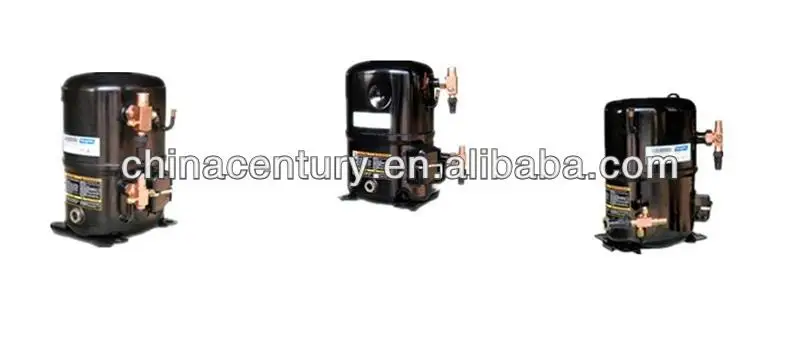

Main features



DONGWEI/TAIKANG series compressor is available for R22/R404A ,being suitable mainly for air condition,commercial refrigeration machine and other medium and large refrigeration machine.



The structure is adopted hermetic crank-connecting rod,double bearing and reciprocating piston,This series compressor is characterized by high efficiency,high reliance ,low vibration level and low sound level.



For air condition,this series is available in 1.5 to 15 HP application ranges .For commercial refrigeration,this series is available in 2 to 7 HP application ranges.And customers could select the brass connecting and thread connecting with their demands and choose the parallel connecting compressors in some models.



WORKING RANGE FOR COMPRESSORS



Refrigerant                                                 R22



Evaporating Temp.               -25~0°C



Max.Comdensing Temp.             60°C



Winding Resistance Temp.       130°C



Max.Ambient Temp.                    43°C



Oil Brand                                 SR-32A



NOMINAL CONDITION



Evaporating Temp.	7.2°C
Condensing Temp.	54.4°C
Ambient Temp.	35.0°C
Subcooling	0K
Superheat	11K

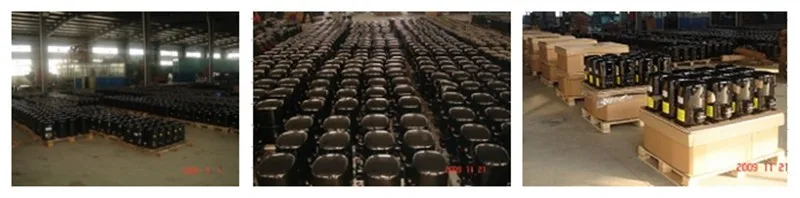

warehouse





The figure using



Model		Nominal Power(H.P)	Displacemert(cm³/rev)	Power	RLA(A)	Oil Charge(cm³)	Weight(kg)	Run Capacitor
Q-24.1F18.4G-2.0	TK4517	1 1/4	27.0	1PH220V/50HZ	7.2	1200	26	25
	TK4519	1 1/2	33.5		8.0	1200	26	25
	TK4522	2	41.4		10.6	1200	27	30
	TK4527	2 1/2	49.8		11.3	1200	27	30
	TK4531	3	58.4		13.5	1200	28	40
	TK4522S	2	41.4	3PH380V/50HZ	3.2	1200	27
	TK4527S	2 1/2	49.8		3.8	1200	27
	TK4531S	3	58.4		4.9	1200	28
Q24.7F17.4G-2.2SA	TK4532	3	61.9	1PH220V/50HZ	13.8	1600	38	40
	TK4542	3 1/2	79.6		18.5	1600	39	50
	TK4546	4	90.4		22.2	1600	39	50
	TK4532S	3	61.9	3PH380V/50HZ	4.6	1600	37
	TK4542S	3 1/2	79.6		6.5	1600	38
	TK4546S	4	90.4		7.5	1600	38
Q34.5F25.9G-5.0S	TK4561S	5	113.2	3PH380V/50HZ	9.6	1980	48
	TK4568S	6	125.2		10.6	1980	48
	TK4573S	6	134.0		11.5	1980	49
