High Speed Pipe End Beveling Machine

Product Overview

Description

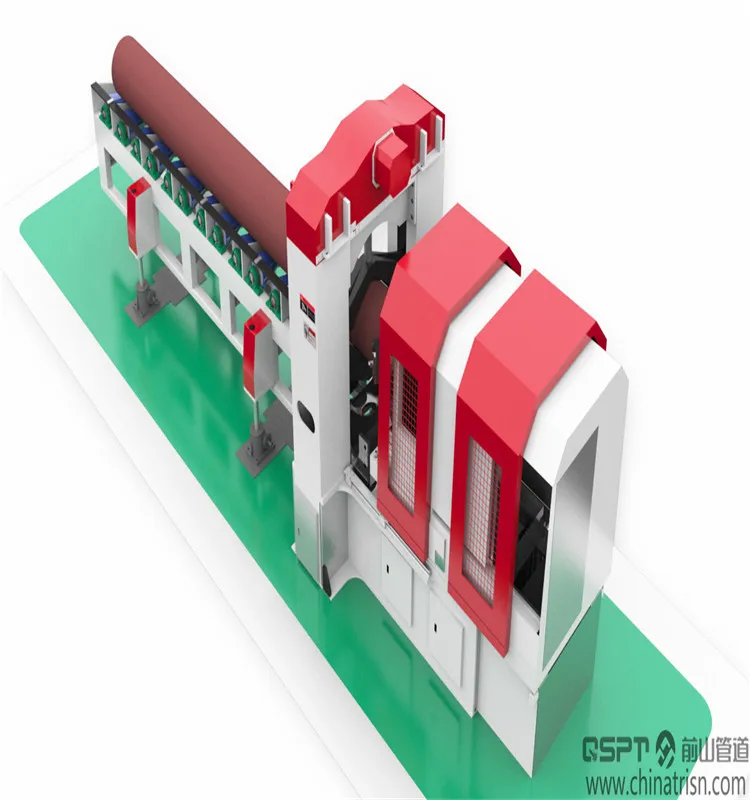

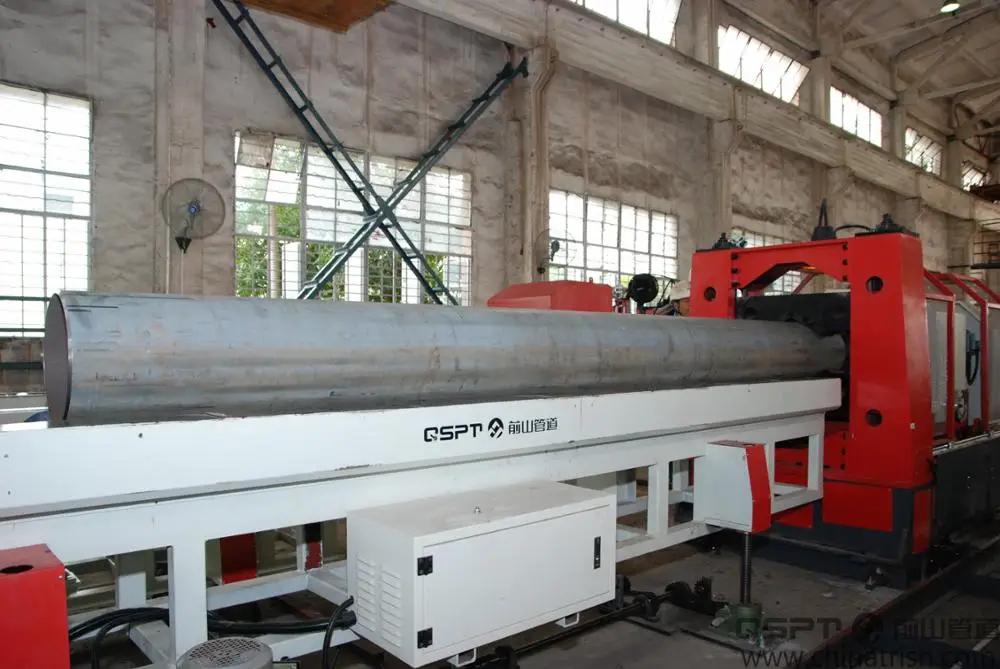

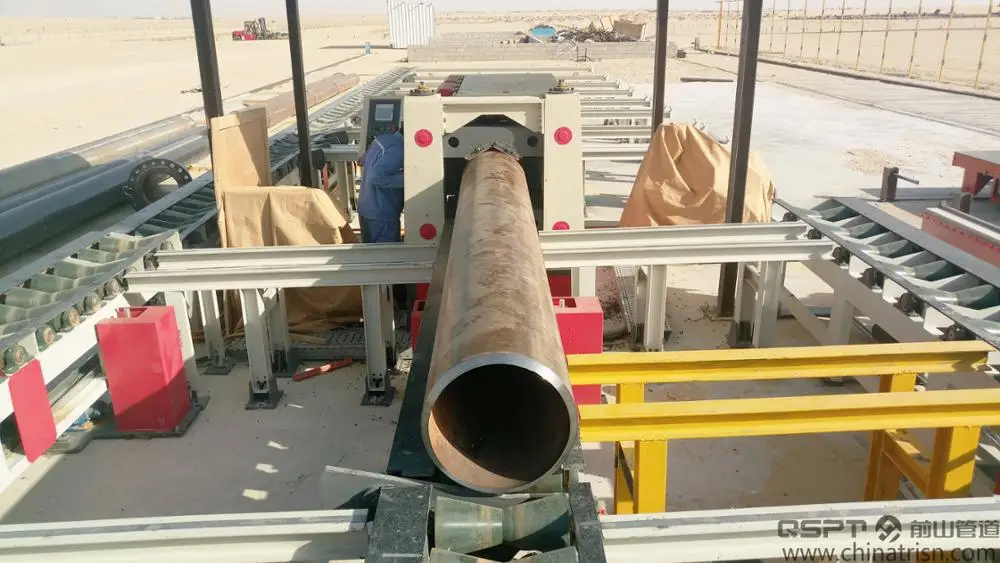

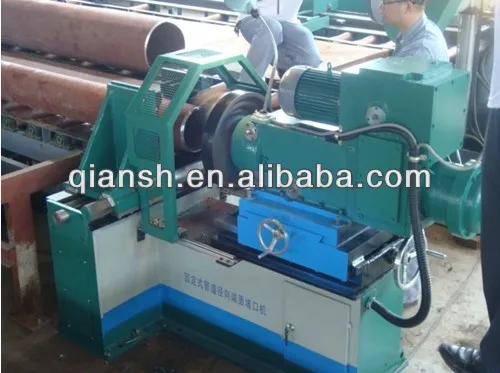

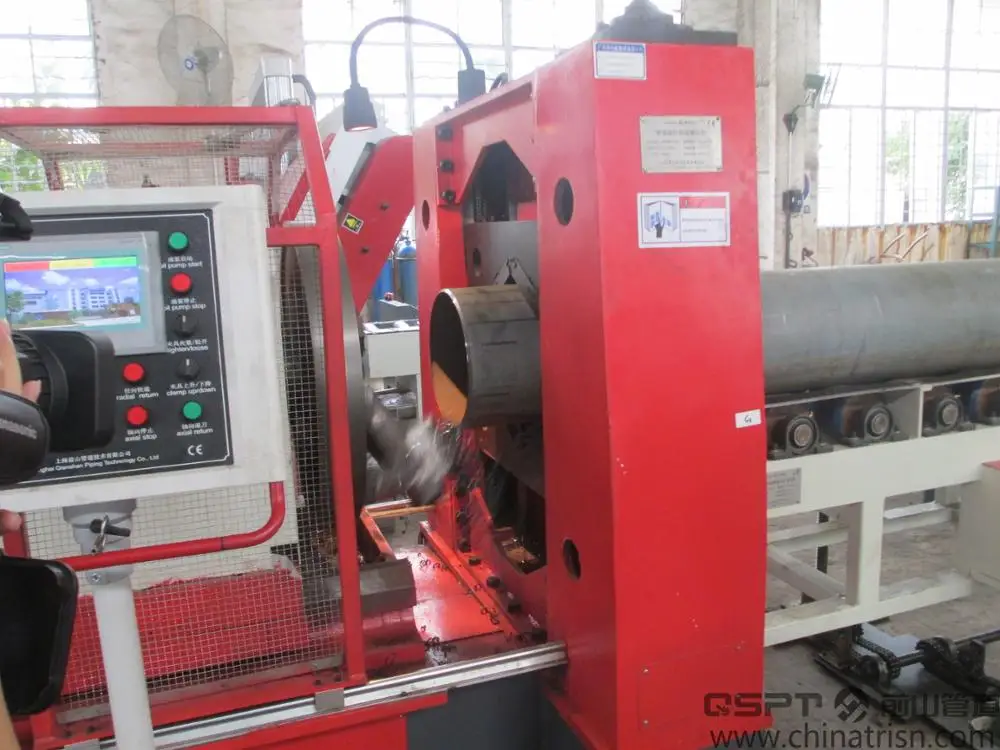

1. High Speed Pipe End Beveling Machine

u  Model No.:FPEBM-16Aa;FPEBM-24Aa; FPEBM-32Aa

u  Performance Features:

• The pipe end beveling machine consist of machine body, power unit, profile cutting mechanism, electric lifting mechanism, hydraulic unit, radial feed mechanism, axial feed mechanism, electric controls etc; The machine body welding by steel plate, impacteds structure; Electric Motor using to top brand of China; Operator panel in both of Chinese and English;


• On-line performance: good (designed as per online equipment of production line)


• Bevel efficiency ≤3Min/pipe bevel(DN200 SCH80, V type bevel )


•








  4.0


  Bevel cutting: cutting off pipe with another equipments such as band saw m/c and then machining bevel for each pipe

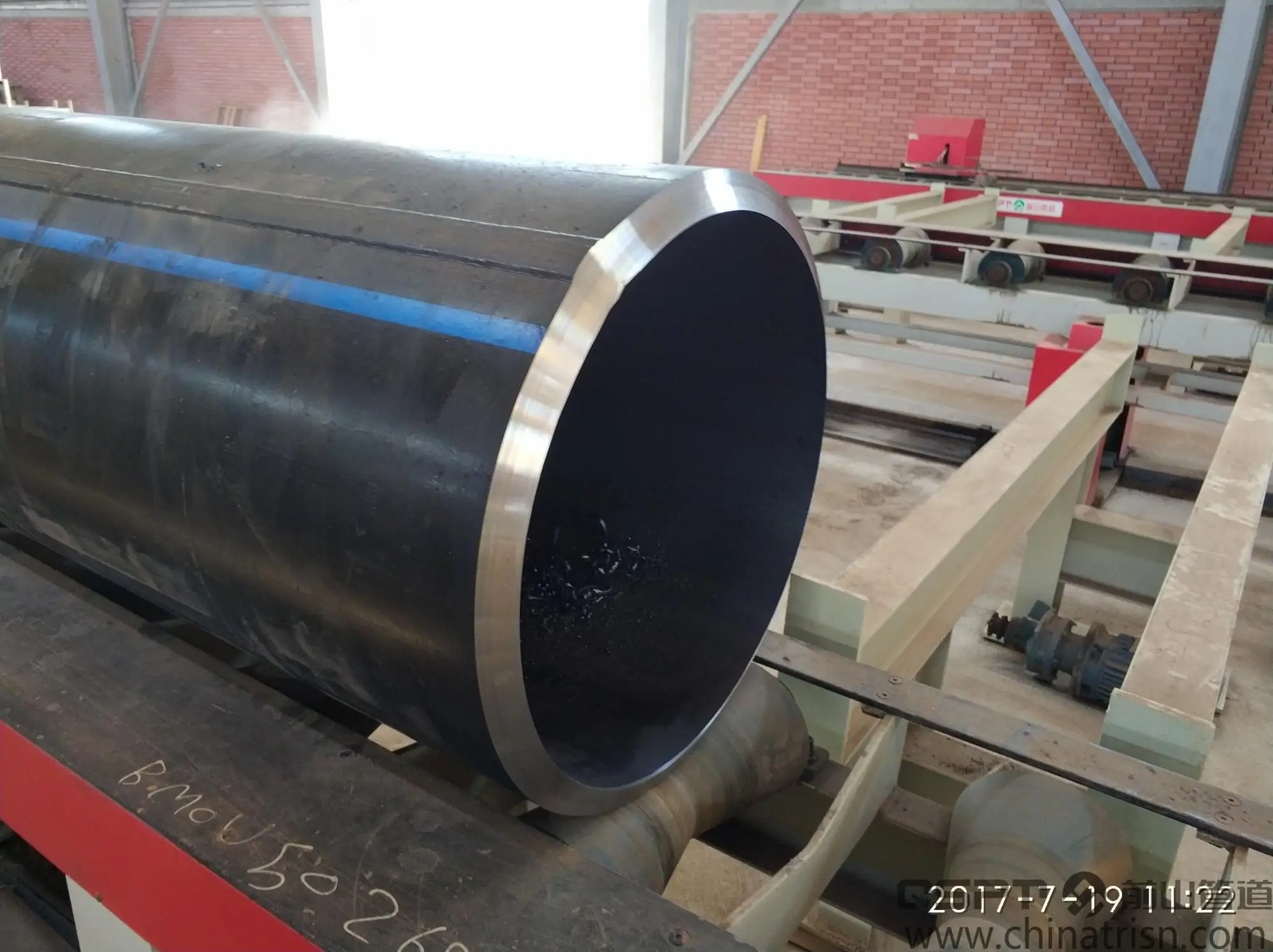

• Bevel quality: very good, surface finish quality up to above


• Error of perpendicularity after beveling φ325~630:≤1.0mm;


• Suitable for heavy wall thickness pipe, especially for S.S, A.S etc with U, V and double V type bevel etc processing.


• Pass CE Certificate

u  Technical Parameters:

• Pipe Dia: DN50-400 (φ 57-426mm ); DN100-600mm(φ114-630 mm); DN200-800(φ219-830)


• Wall thickness: 4-90MM; 6-180MM


• Material Applicable: carbon steel, alloy steel, stainless steel and cryogenic steel, ect.


• Bevel shape: I, V, U, X, J, double V etc


• Cutting feed: radial automatic differential cutting feed or axial semi-automatic motor cutting feed


• Cutting Retract: radial automatic motor retracting or axial semi-automatic motor retracting


• Driven By: electric motor


• Clamping system: Work piece Both sides centering clamping by hydraulic; work piece is clamped by hydraulic cylinder automatically


• Bracket system: Nil if equipped for conveyor (or screw lifting adjustable)


• Rev of the principal axis: 3 shifts (67-123 RPM); 9 shifts (34-304 RPM)


• Axial displacement: 80MM (principle axis) ; 100 MM (machine head); 150MM (principle axis) ; 300 MM (machine head)


• Widthwise displacement : ±50mm; ±100MM


• Bevel angle of tool rest: 0°~37.5°adjustable ; 0°~30°adjustable and more than 30 °by frequency control.


• Control system:gear shift for main shaft, VF speed change for axial direction movement and manual control


• Overall dimension : 2200*1500*1550mm; 2200*1700*2000mm; 2400*1700*2300mm


• Gross weight : 2500KGS±5%; 4500KGS±5%; 5000KGS±5%


• Input voltage : 3ph power supply 380/415V/440V-3Ph-50/60Hz(As per request)


• Mechanical aligning: be equipped for pipe roller conveying system with auto lifting (jacking) system & auto turning around device at the end of beveling machine, so as to adjust the center elevation of the pipe mechanically if necessary, and accommodate to bevel machining for different pipe diameter.

uPower Unit:

• Power Of Dynamic Head Motor: 4 KW ; 7.5 KW, N=1450 RPM, 380V/415/440V


• Rev. of main shaft: 67-123 RPM (3 shifts variable speed) ; 34-304 RPM (9 shifts variable speed)


• Tool rest differential feed rate: S= 0-0.28mm/R, selection as per profile tool post, the max cutting 3-6mm (4-8mm for 16Aa)

uCutting Head:

²  Dia of cutter head: Ø 450mm; Ø 650mm; Ø830

²  Bevel Angle: 0-30°(adjustable), Adjust bevel angle up to 37.5 °by frequency conversion control (Differential Cutting feed)

²  Float rate for floating tool holder: ±5 mm (Axial workpiece)

²  Center Height of Machine Tool

uHydraulic System (for FPEBM-16Aa/24Aa/32Aa)

²  System Rate Working Pressure: 10 Mpa

²  Max Pressure: 14 Mpa

²  Rev. rate working of Motor: 57 RPM

²  Rate working torque: 250 N.m

²  Max Torque: 330 N.m

²  Power of Hydraulic Pump Motor : 1.5 KW

²  Capacity of hydraulic tank: 80 L
