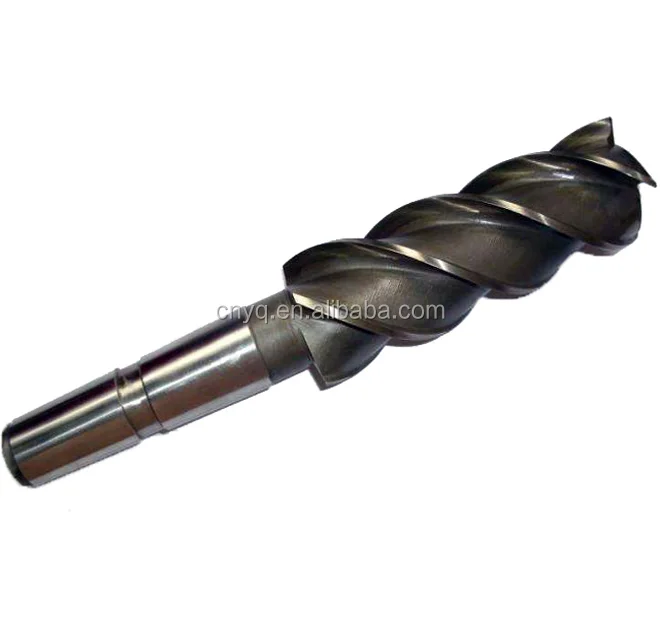

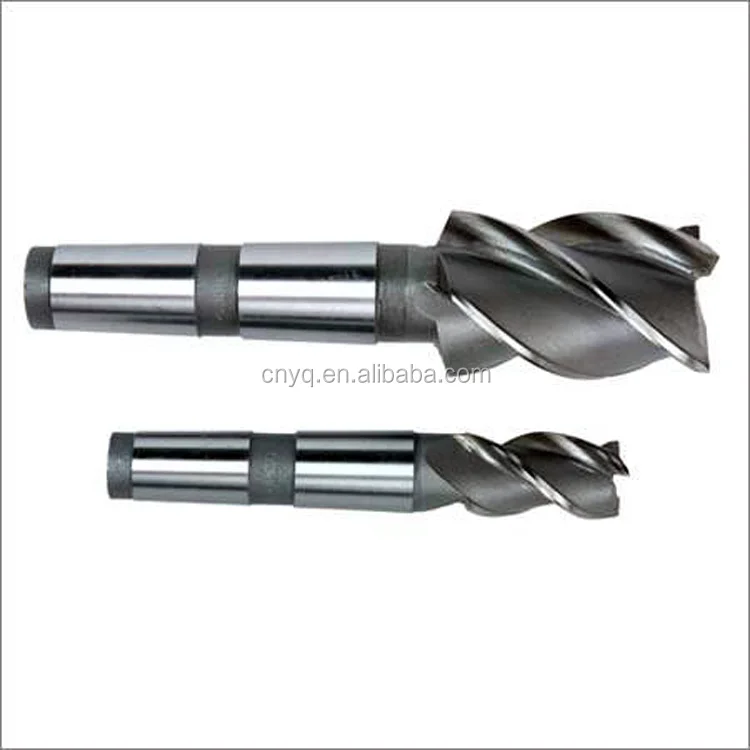

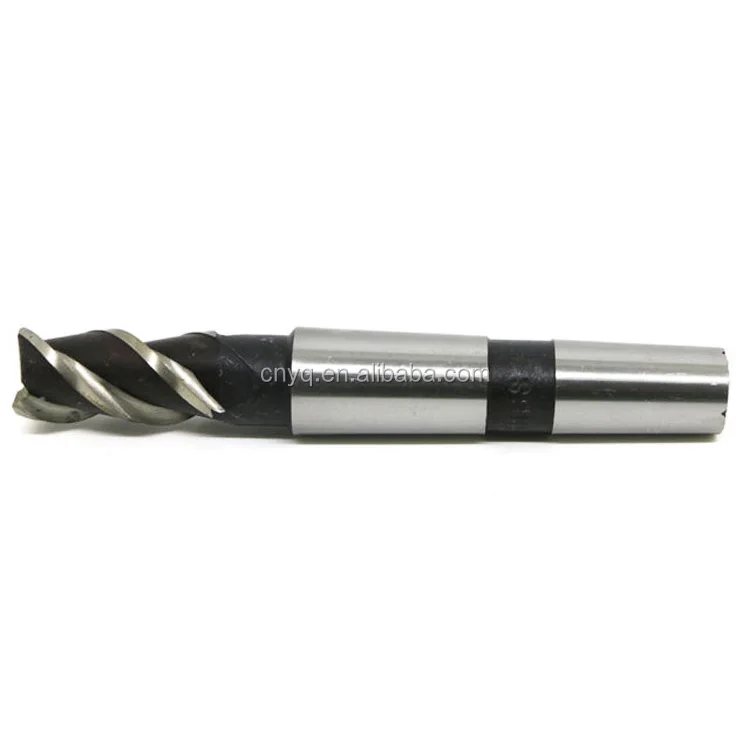

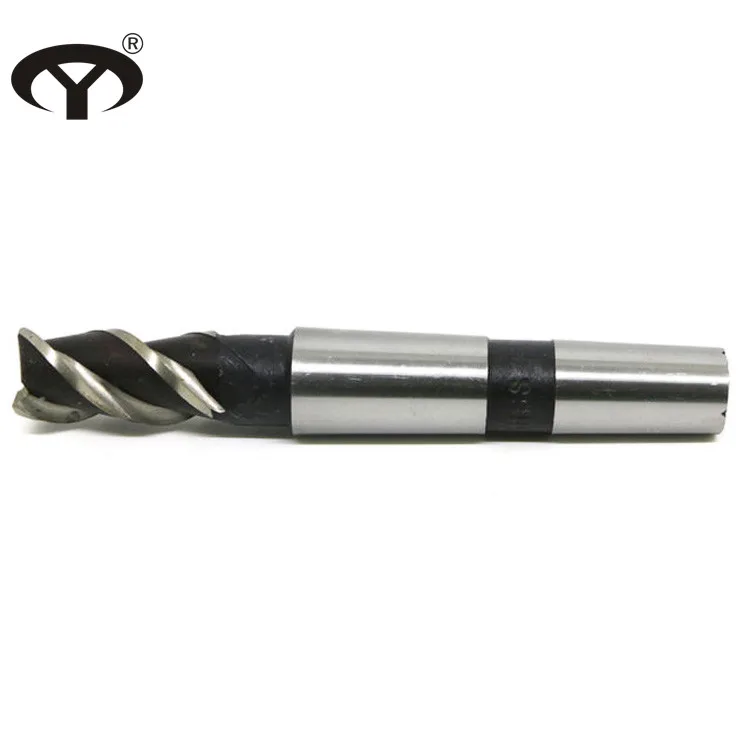

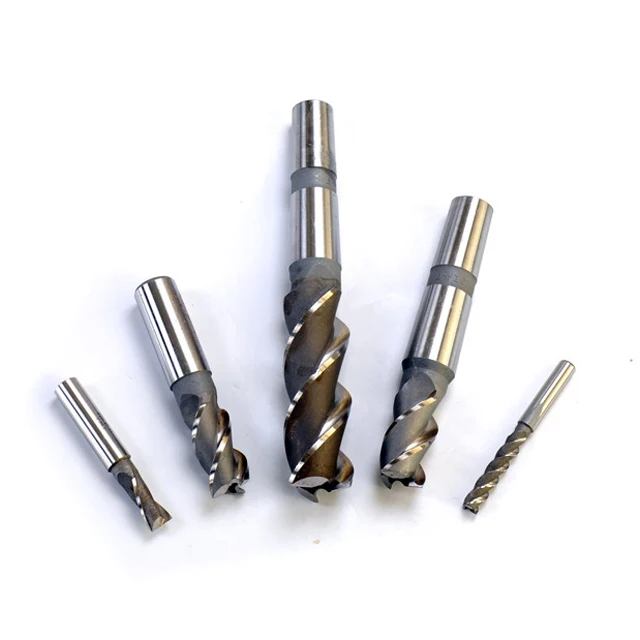

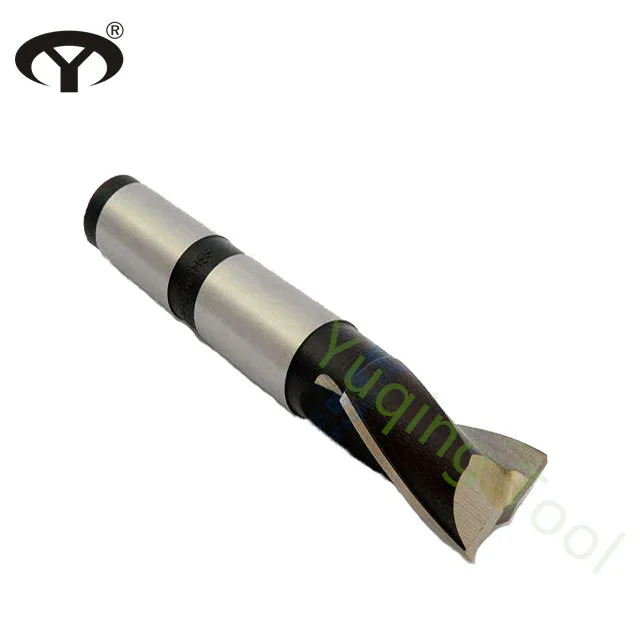

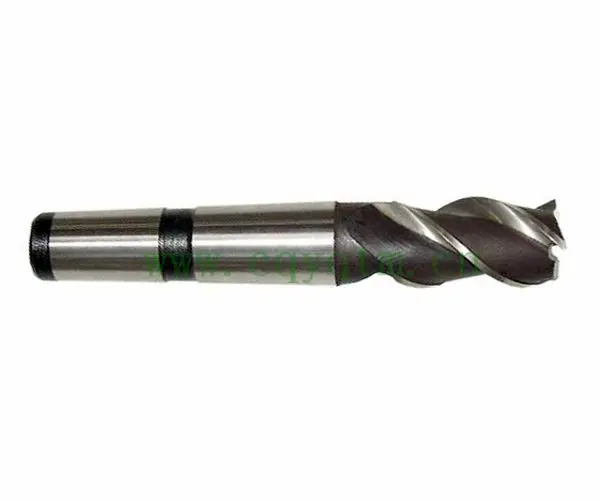

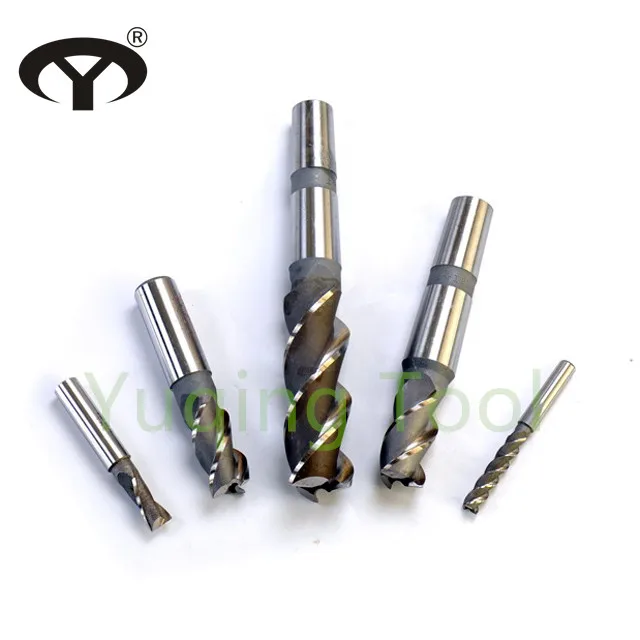

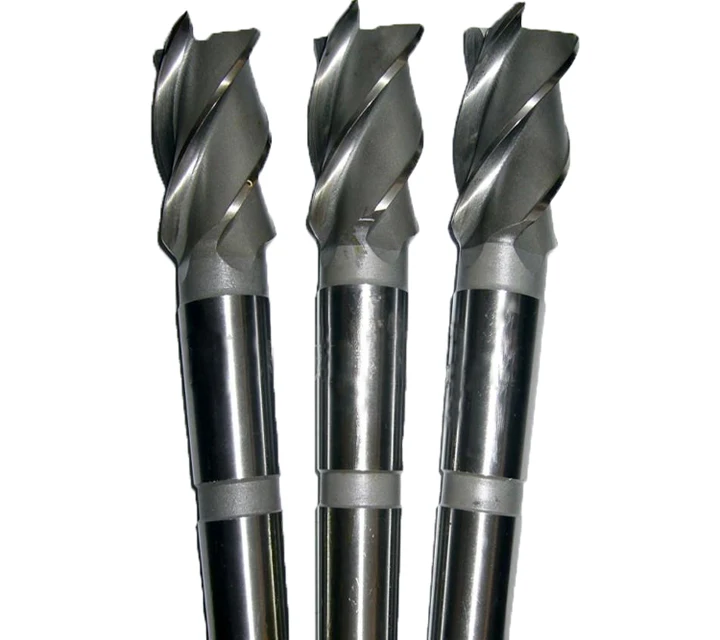

HSS GB/T6117.2 1996 Taper Shank End Mills with Fine Teeth

Product Overview

Description

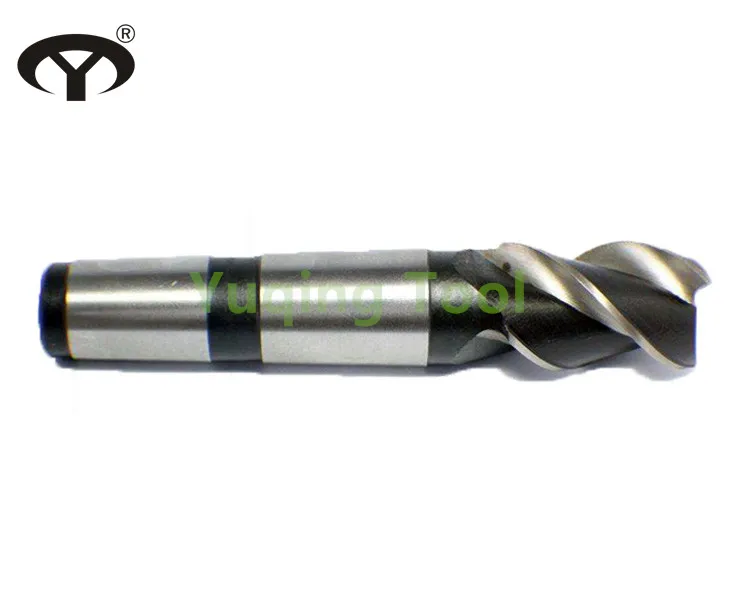

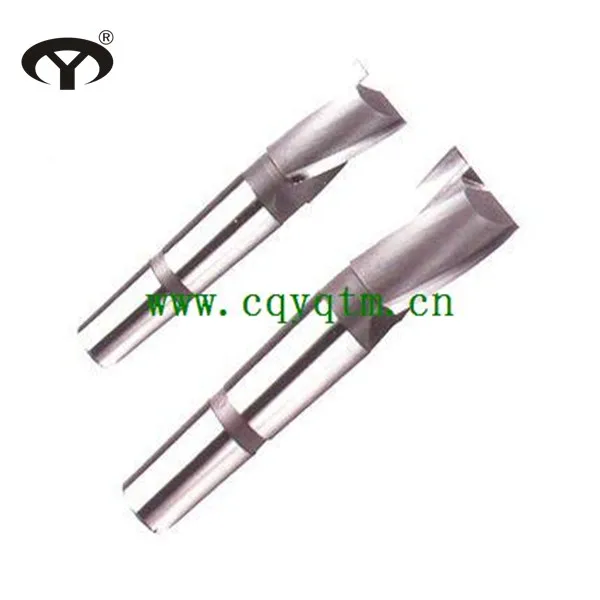

HSS GB/T6117.2-1996 Taper Shank End Mills with Fine Teeth



Specification : (mm)



Order NO#	Flute dia	OAL(L)	Flute length(l)		Teeth	M.T.NO.
	(D)		Standard	Long
YQ-D001	10	92	22		4	1
YQ-D002	10	115		45
YQ-D003	12	96	26
YQ-D004	12	123		53
YQ-D005	14	111	26			2
YQ-D006	14	138		53
YQ-D007	16~18	117	32
YQ-D008	16~18	148		63
YQ-D009	20~22	123	38
YQ-D010	20~22	160		75
YQ-D011	25~28	147	45			3
YQ-D012	25~28	192		90
YQ-D013	32~36	178	53			4
YQ-D014	32~36	231		106
YQ-D015	40~45	188	63
YQ-D016	40~45	250		125
YQ-D017	50	233	75			5
YQ-D018	50	308		150























Production process of HSS M2 morse taper shank end milling cutter







Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance



W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
