Tobacco Cellophane Wrapping Machinery

Share on (1654526505):


Price:

Quantity:


Product Overview

Description



Product Description



Uses:

Tobacco Cellophane Wrapping Machinery is widely applicable to automatic film packaging various single boxed articles with a gold tear tape for easy opening, such as medicine, health-care products, foodstuff, cosmetics, stationery and audio-visual products.



Features:
1. Functions: Anti-false and moisture-proof.
2. Adjustable to different sizes.
3. Speed Adjuster, temp. adjuster.
4. hopper feeding, Tear-tape device.


Performance Characteristics:

1. The machine integrated with electrical ,pneumatic, mechanical , working stable and reliable ,three cams design is the newest innovative and had patent and CE approved .

2. Quality product with imported components ,such as Omron temperature controller ,NSK bearing. And all frame are made by SS 304.

3. Uses inverter to control the speed, so could adjust according to the operation need.

4. The mould change easy ,without dismantle drive chain ,hopper .save time greatly .

5. New type double safeguard construction , won’t broke machine parts for any incident .

6. One way hand wheel prevent from backward operation, and protect worker’s safety when the machine operates for still hand wheel .

7. New type dual cutting knife replace traditional single knife, so could use for very long time without reshape.





Main Technical Parameters:

Packing Material

BOPP film and a gold tear tape

Packing Speed

40~80 packs/minute

Packing Size

(L)240*(W)120*(H)60mm

Electric Supply & Power

220V 50Hz 5kw

Weight

500kgs

Overall Dimensions

(L)2000*(W)700*(H)1400mm



Reference of photo:

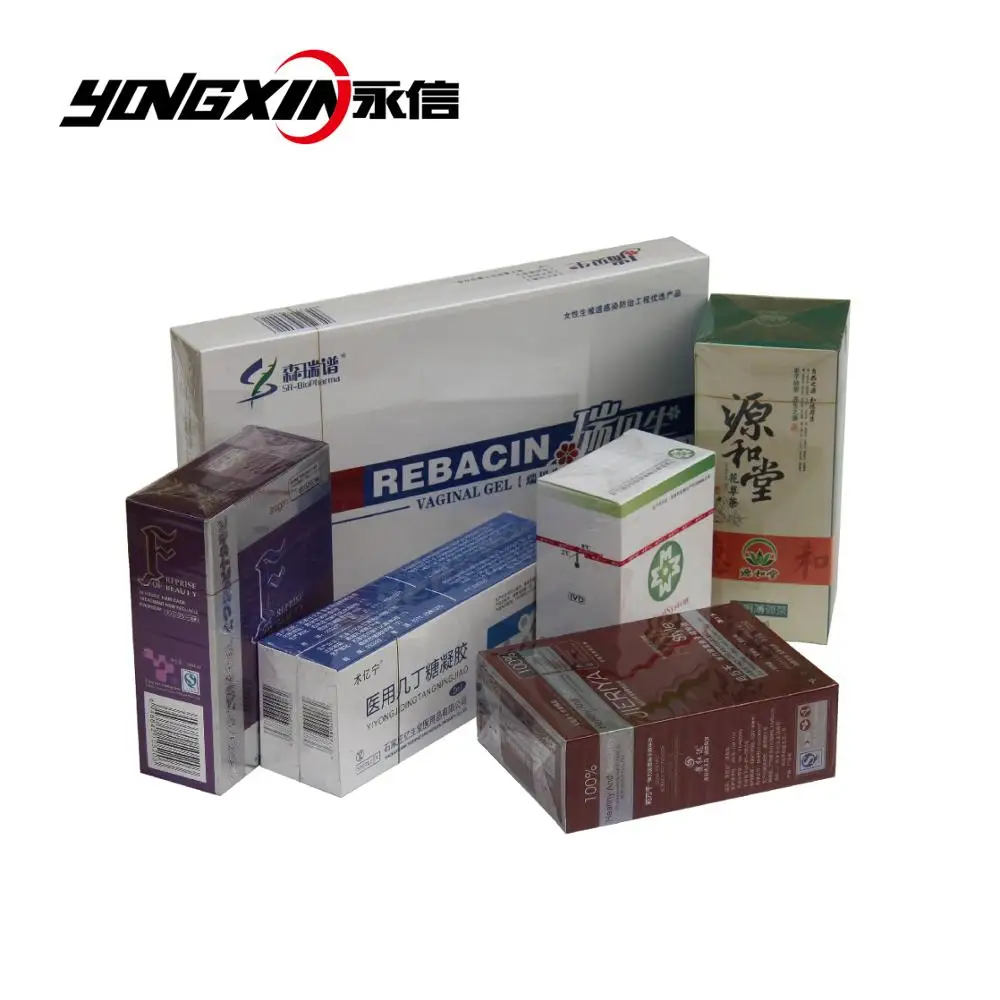

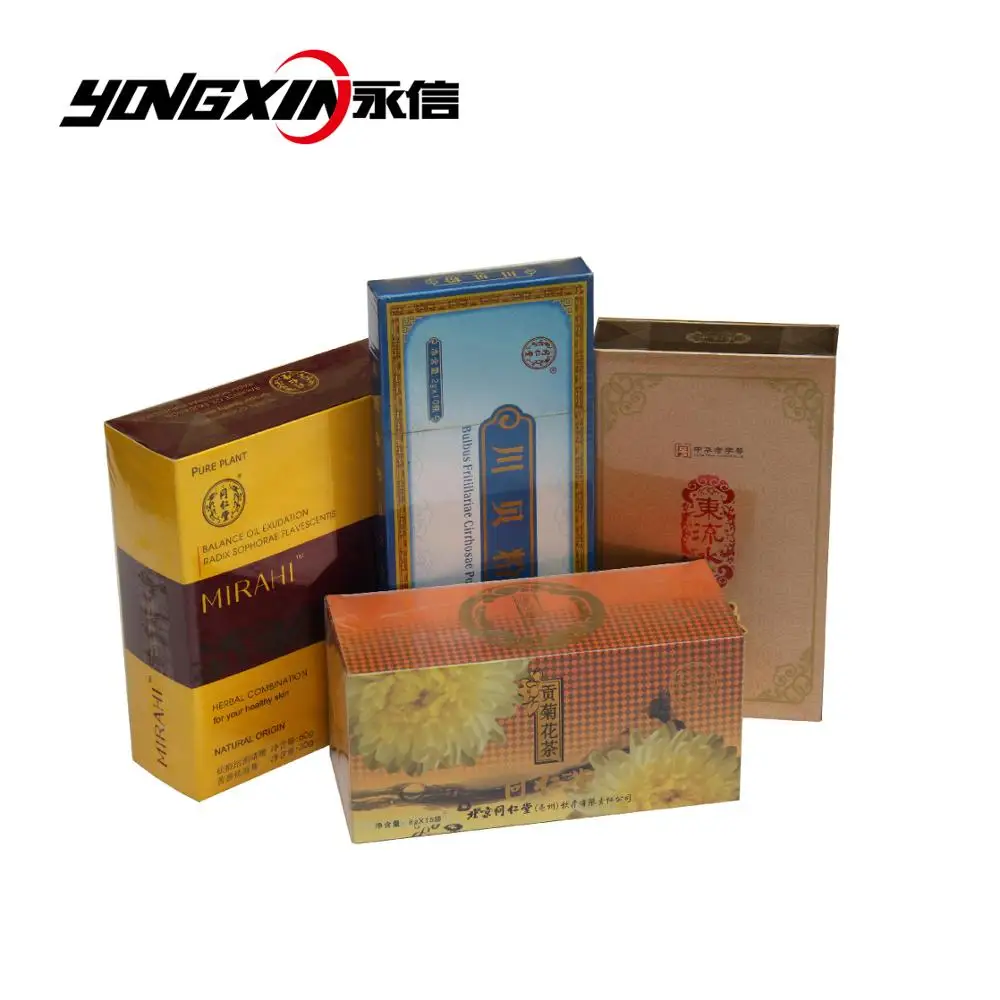

Detail of packing result:

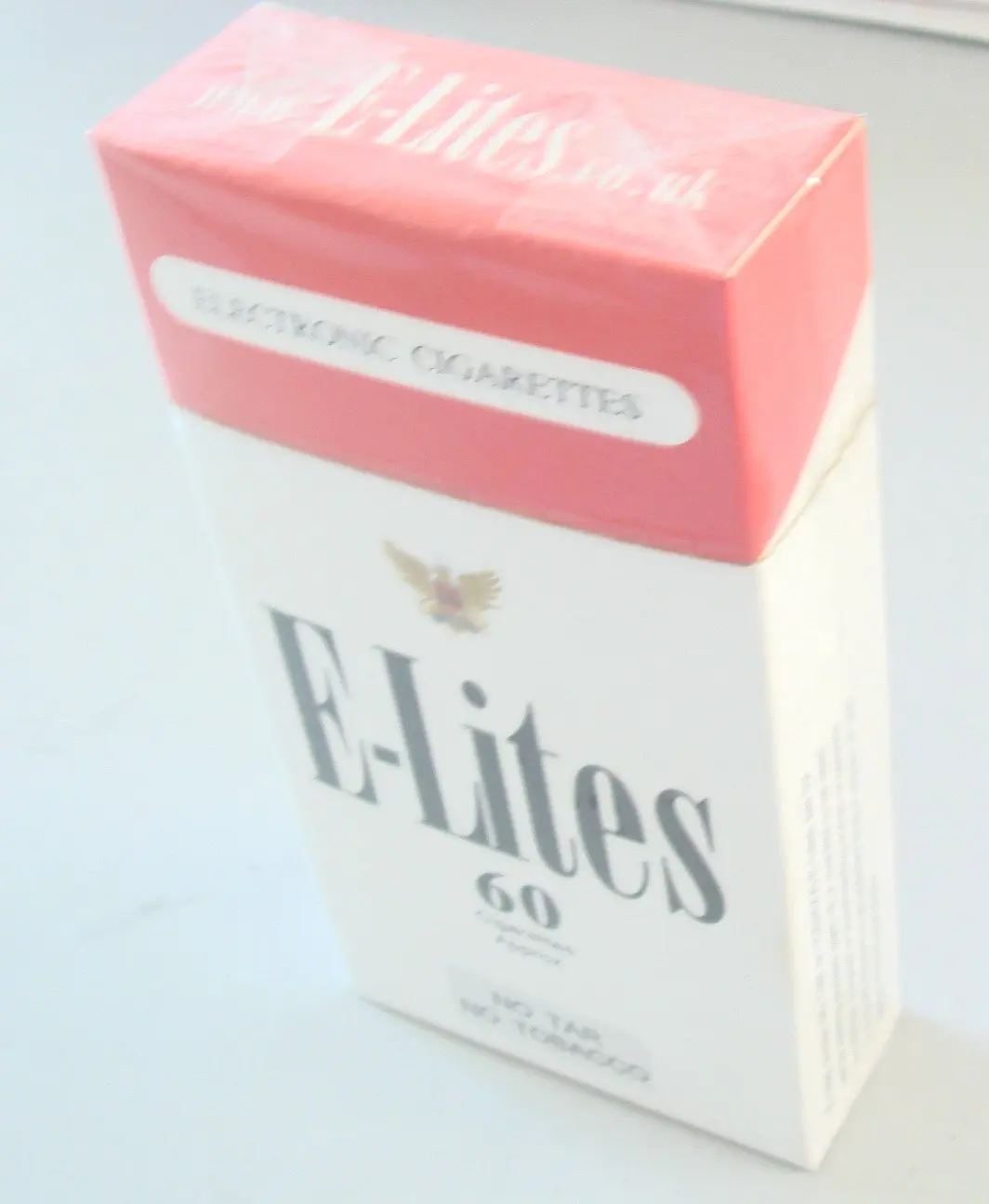

For example

Detail of Tobacco Cellophane Wrapping Machinery:


Patent of  Tobacco Cellophane Wrapping Machinery:



Company Information

Yongxin Machinery Factory:
