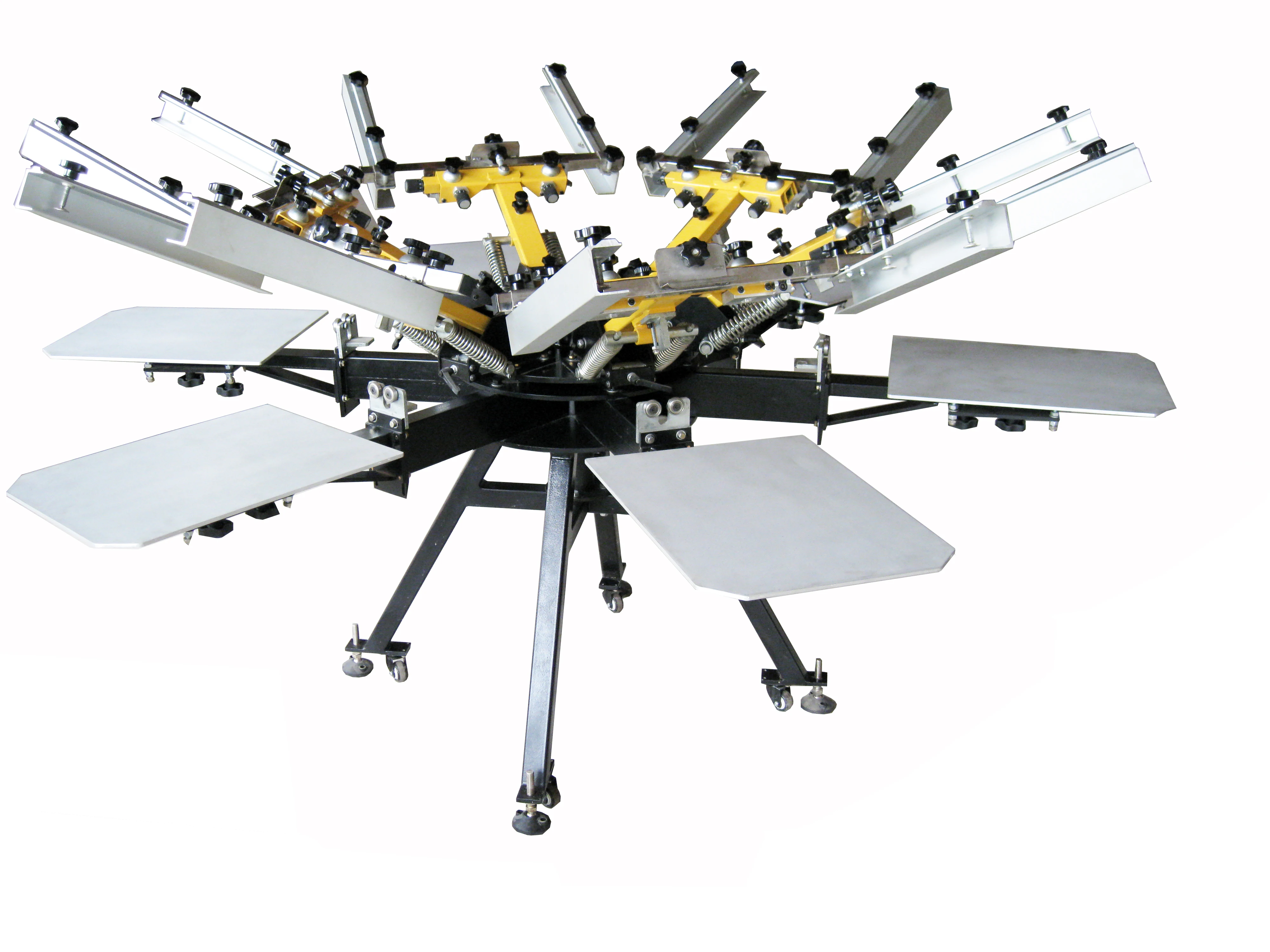

K Ring Manual 10 color/10 station silk screen printing machine

Product Overview

Description

Manual 10 color/10 station silk screen printing machine with micro registration KR10100C:



Application:

This manual rotary screen printer is for textile/garment screen printing industry, such as garments, T-shirts and sport cloths, bags, PVC sheet, Umbrella, balloon and so on.The machine is suitable for printing products in bulk.



Features:

1)10 Color steel press with 10 stations.

2)Rotating base

3)Consistent front, back, left, right, high and low makes it easy to use for multiple color prints.

4)There is literally no maintenance.

5)The head comes assembled & ready to attach to the base.

6)Location lock that helps lock the arm in place while in the printing position.

7)All Tubular Steel Construction.

8)Adjustable Screen Tension Hold Down



Specification :

Model :KR-10100C

Brand :K-RING

Printing color:    10 color

Worktable size :  500*600 mm

Mesh frame size : 550*650mm

Max Printing area:500*600mm

Dimension:   3200*3200*1400mm

Automatic grade :manual

Printing surface:Flat surface

Substrarte diameter/height(mm):1-12mm

Adjusting Worktable size :1-20mm

Suitable material:       cloth

Suitable products:   cloths ,trappings

Net weight :       550kg

Manual rotary screen printer
Printing color	4 color	6 color	8 color
Automatic Grade	Manual	Manual	Manual
Printing speed(pc/h)	800-1000	800-1000	800-900
Max printing area	500*600mm	500*600 mm	500*600mm
Worktable size(mm)	500*600mm	500*600mm	500*600mm
Max mesh frame size(mm)	550*650mm	550*650 mm	550*650mm
Substrarte height(mm)	1-12mm	1—12mm	1-12mm
Dimension(mm)	2800*2800*1400mm	2800*2800*1400mm	3000*3000*1400mm
Package size	1400*1400*1300mm	1420*1420*1350mm	1500*1500*1400mm
Net weight	300kg	350kg	450kg
Gross weight	350kg	400kg	500kg
Appliance	Material ,Clothes ,	Material ,Clothes ,	Material ,clothes,
	T-shirt ,Textiles	T-Shirt ,Textiles	T-Shirt ,Textiles



Packaging Detail: wooden case of international standard.



Delivery Detail: 15 days after receive the deposit.



After –sale service:one-year warranty for parts,and provide the technical support for ever .

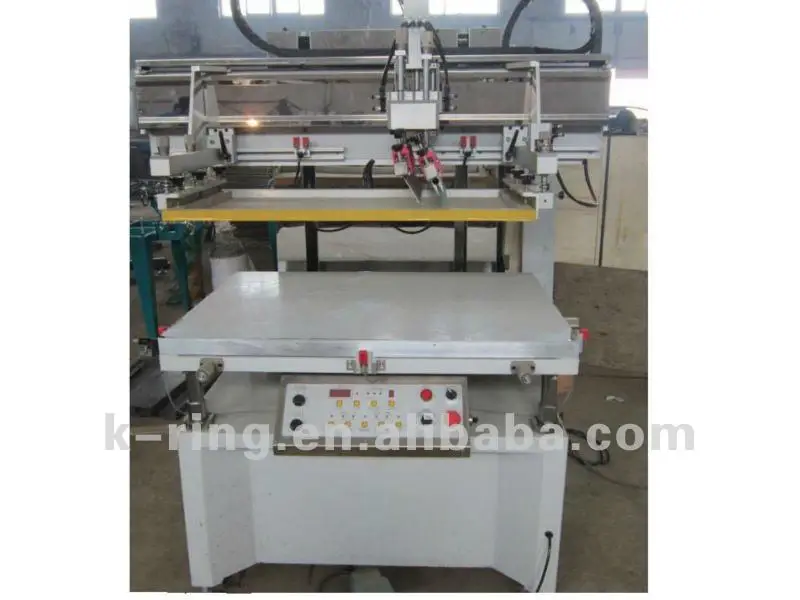

Semi automatic flat screen printer specification

Model	KRS-4060	KRS-5070	KRS-6090
Color printing	Single color printing
Printing face	Flat face
Auto grade	Semi-automatic	Semi-automatic	Semi-automatic
Max printing area	400*600mm	500*700mm	600*900mm
Worktable size	500*700mm	600*800mm	700*1000mm
Printing speed	1150pcs/h	1050pcs/h	950pcs/h
Max mesh frame	600*930mm	700*1000mm	800*1330mm
Substrate height(mm)	0-30mm	0-30mm	0-30mm
Plate precision(mm)	±0.05	±0.05	±0.05
Overprint precision(mm)	0.01	0.01	0.01
Printing pressure kg/ cm2	0.6-0.8	0.6-0.8	0.6-0.8
Voltage/power	380/2.1	380/2.1	380/2.5
Net weight	450kg	500kg	550kg
Appliance	Flat surface of materials such as paper,plastic,circuit board,ceramic,glass,non-woven fabric ect
