Yuton KT A/C Superior High Quality Axial Blower Fan exhaust extractor air mover dust remover fume aspirator

Product Overview

Description





1.0  GENERAL

A.  Fans is KT-A/C Axial Fan(adjustable aluminum blades).as manufactured by Guangdong Gaoze Ventilation Equipment Ltd Co.,of Shunde, Foshan,China.and of the size and capacity as indicated on the following specifications.

B.  Fans got CCC & CE & ISO 9001 approval.and shall be tested before shippment.

C.  All motor and blades,housing are also supplied.

D.  Fans has the profermance of High Volume and High Pressure.



2.0  FAN HOUSING

A.  Fans shall be made of superior steel by welding with enough strength and Rigidity

B.  Fans housing shall adopts flanging workmanship, that makes the noise lower and air volume larger.

C.  Air receiver could be installed on the side of fan. Could be installed in duct to ventilate or Wall mounted after removing the legs.



3.0  FAN IMPELLER

A. Fan impeller shall be made of be angle adjustable die-casting aluminum.

B. Fan impeller shall be adjustable pitch construction to maximize air performace. Blade pitch angles shall be factory set.

C. As the fan blades are made of aluminum which contain low magnesium, fans have the performance of explosion-proof, after equipped the explosion-proof motor



4.0  FAN MOTOR AND DRIVE

A.  Motor shall be 100% copper.

B.  Voltage, Frequency & Materials could be customized.

C.  Horsepower & RPM as indicated on the following specifications.

D. Fan can offer direct drive-A type fan(impeller and motor drive directly) or belt drive-C type fan(V-belt drive that the belt pulley is in between two bearings).

E. Fan could be equipped with explosion-proof motor.



5.0  APPLICATIONS

a.General Ventilation     b.Process ventilation     c.Contaminated Air Streams

d.Mining Ventilation      e. Air-conditioner          f.Fumes duct or smoke removal etc







Voltage,frequency&Materials can be customized



KT-A Series Axial Fan(Direct Drived, Adjustable Aluminum Blades)



Model       (No.)	Size	Voltage	Power	Revolution	Air Flow		Pressure	Product Size	G.W
		(V)	(KW)	(rpm)	(m3/h)		(Pa)	(CM)	(KG)
KT4A-2	16"	380/50Hz	1.5	2800	8370		250	46X40X50	40
KT4A-4	16"	220/50Hz	0.75	1450	4000		153	46X40X50	31
		380/50Hz	0.75	1450	4000		153	46X40X50	31
KT5A-2	20"	380/50Hz	3	2800	10728		260	46X40X50	50
KT5A-2	20"	220/50Hz	1.5	1450	7000		128	57X44X61	47
		380/50Hz	1.5	1450	7000		128	57X44X61	47
KT6A-2	24"	380/50Hz	7.5	2800	19590		476	67X55X71	88
KT6A-4	24"	380/50Hz	3	1450	16000		260	67X55X71	55
KT7A-4	28"	380/50Hz	4	1450	32500		330	77X55X77	60
KT7A-2	28"	380/50Hz	2.2	960	25600		245	77X55X77	55
KT8A-4	32"	380/50Hz	5.5	960	36500		380	87X57X87	70
KT8A-6	32""	380/50Hz	3	960	28500		233	87X57X87	65



KT-C Series Axial  Fan(Belt Drived, Adjustable Aluminum Blades)



Model       (No.)	Size	Voltage	Power	Revolution	Air Flow		Pressure	Product Size	G.W
		(V)	(KW)	(rpm)	(m3/h)		(Pa)	(CM)	(KG)
KT4C-2	16"	380/50Hz	1.5	2800	8370		250	46X40X50	40
KT4C-4	16"	220/50Hz	0.75	1450	4000		153	46X40X50	31
		380/50Hz	0.75	1450	4000		153	46X40X50	31
KT5C-2	20"	380/50Hz	3	2800	10728		260	46X40X50	50
KT5C-2	20"	220/50Hz	1.5	1450	7000		128	57X44X61	47
		380/50Hz	1.5	1450	7000		128	57X44X61	47
KT6C-2	24"	380/50Hz	7.5	2800	19590		476	67X55X71	88
KT6C-4	24"	380/50Hz	3	1450	16000		260	67X55X71	55
KT7C-4	28"	380/50Hz	4	1450	32500		330	77X55X77	60
KT7C-2	28"	380/50Hz	2.2	960	25600		245	77X55X77	55
KT8A-4	32"	380/50Hz	5.5	960	36500		380	87X57X87	70

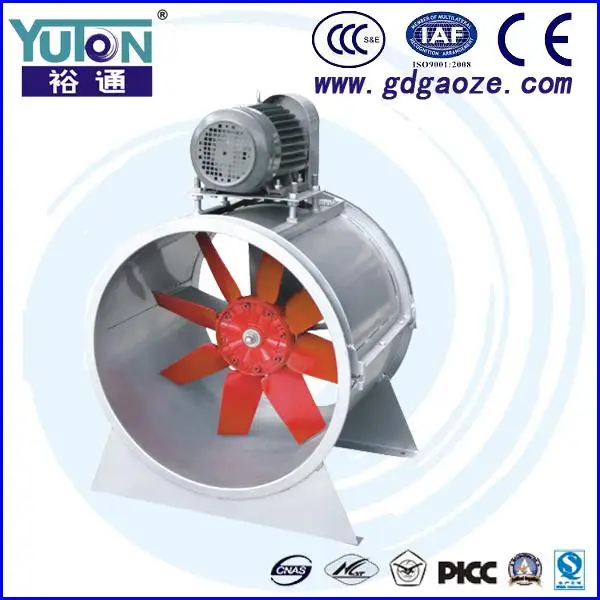

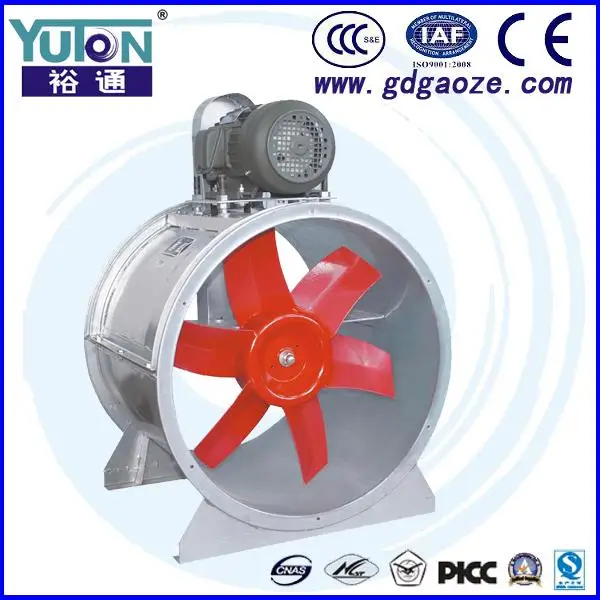

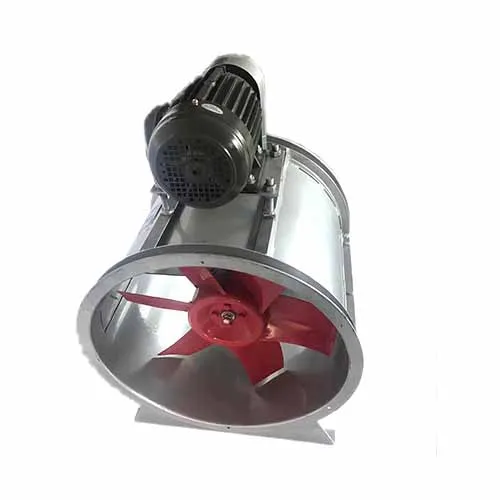

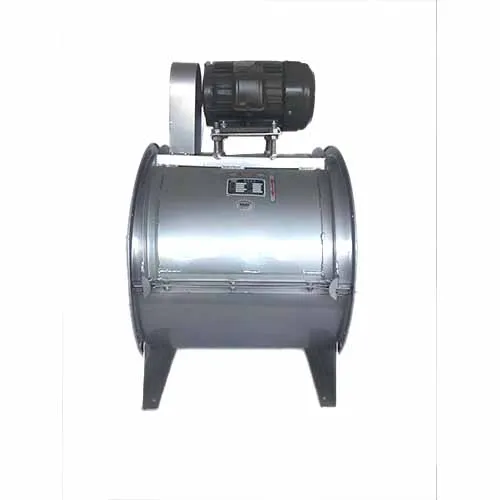

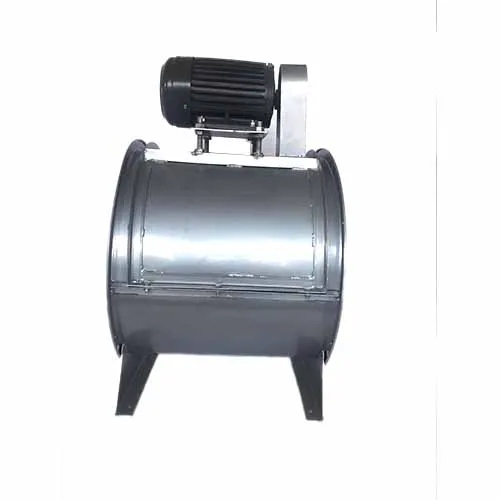

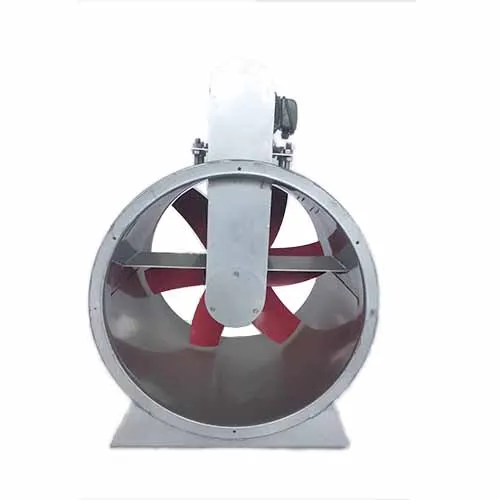

KT-C Type:The impeller of fan adpots cantilever support design,it is V-belt drive that the belt pulley is in between two bearings

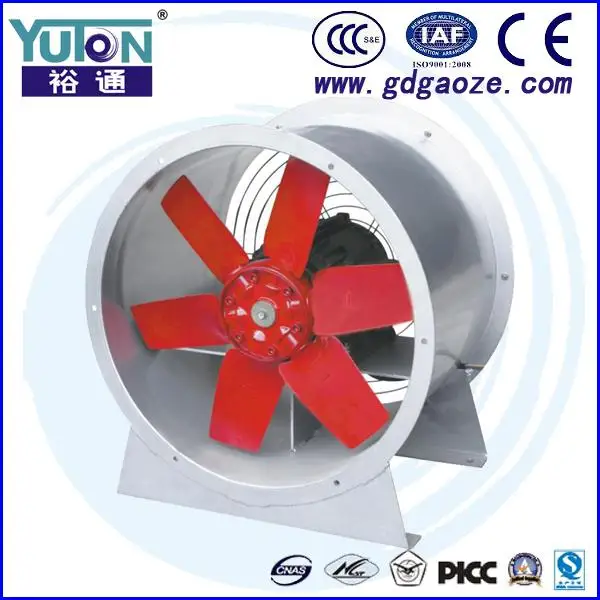

KT-A type:The fan is not appended bearing support,impeller and motor drive directly.
