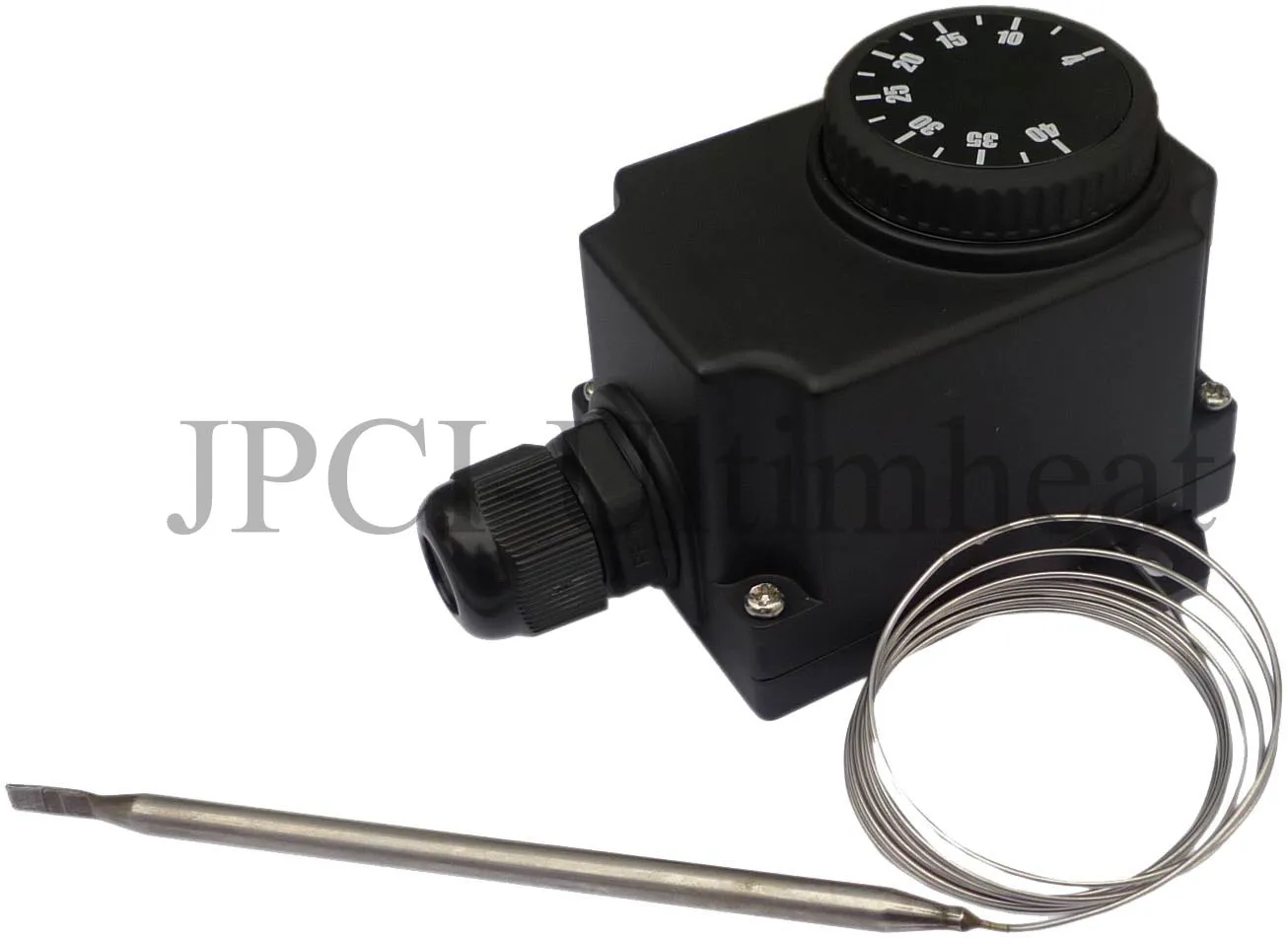

Type Y03 IP44 housing Bulb and capillary thermostat
- Category: >>>
- Supplier: Jpci Controls (foshan Gaoming) Co. Ltd.
Share on (1655483057):
Product Overview
Description
Main features: SPDT contact, external knob, liquid filled bulb, distance measurement with capillary.
Adjustment ranges: -35+35°C (-30+95°F), 4-40°C (40-105°F), 30-90°C (85-195°F), 30-110°C (90-230°F), 50-200°C (120-390°F), 50-300°C (120-570°F)

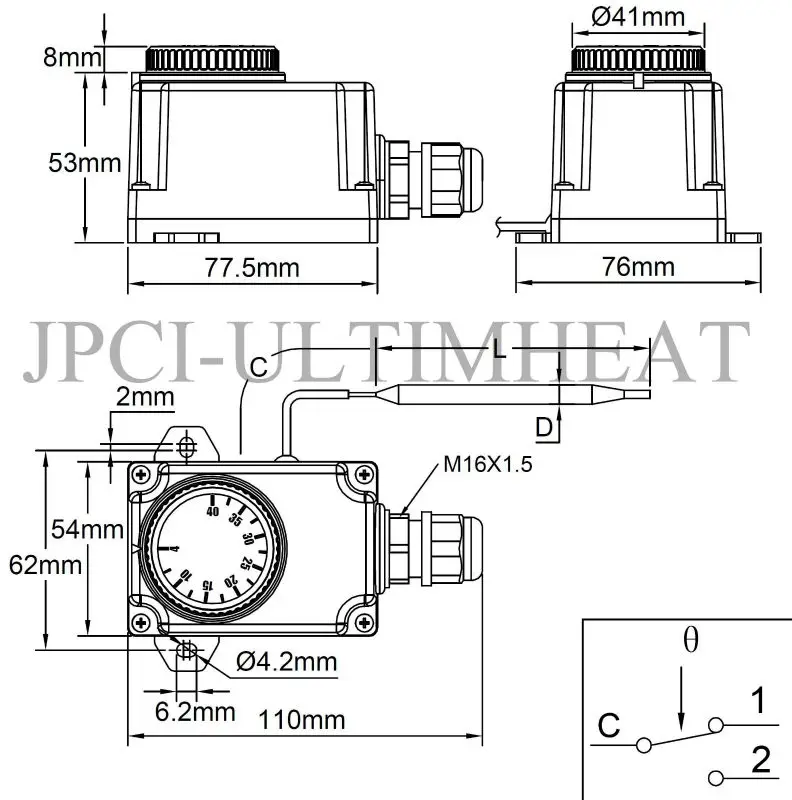

Mounting: Wall mounting, by two side lugs with holes for dia.4 mm screws, 62 mm distance.
Housing: IP44, 77,5 x 54 x 53 mm, (Knob and cable gland not included), black PC-ABS, UL94V0. High impact and UV resistance. 2 removable
wall mounting lugs.
Electrical input: M16 cable gland.
Temperature Adjustment: With °C printed knob.
°F printed knobs available in option
Sensing element: Liquid filled bulb, distance measurement with capillary.
Capillary length: 1.5 m
Electrical connections: screw terminals
Contact: SPDT
Electrical rating:
- Open on temperature rise contact (C-1) 16A(2.6) 250VAC
- Close on temperature rise contact (C-2) 6A(0.6) 250VAC
- Electrical life >100.000 cycles.
Cannot be used in 400VAC
Reference
°C | °F | Bulb diameter (D, mm | Bulb length (L, mm) | Differential°C (°F) | Max temperature on bulb °C (°F) | ||
References (°C) | Temperature ranges (°C) | References (°F) | Temperature ranges (°F) | ||||
Y038GA-35035AO6J | -35+35°C | Y038GA-35035AO6K | -30+95°F | 6 | 98 | 3±2 (5.5±4) | 55 (130) |
Y038GA004040AO6J | 4-40°C | Y038GA004040AO6K | 40-105°F | 6 | 140 | 3±2 (5.5±4) | 60 (140) |
Y038GA030090AO6J | 30-90°C | Y038GA030090AO6K | 85-195°F | 6 | 87 | 4±3 (7±5.5) | 120 (250) |
Y038GA030110AO6J | 30-110°C | Y038GA030110AO6K | 90-230°F | 6 | 93 | 5±3 (9±7) | 150 (300) |
Y038GA050200AO6J | 50-200°C | Y038GA050200AO6K | 120-390°F | 6 | 59 | 8±5 (14±9) | 250 (480) |
Y038GA050300AO3J | 50-300°C | Y038GA050300AO3K | 120-570°F | 3 | 165 | 10±5(18±9) | 350 (660) |
