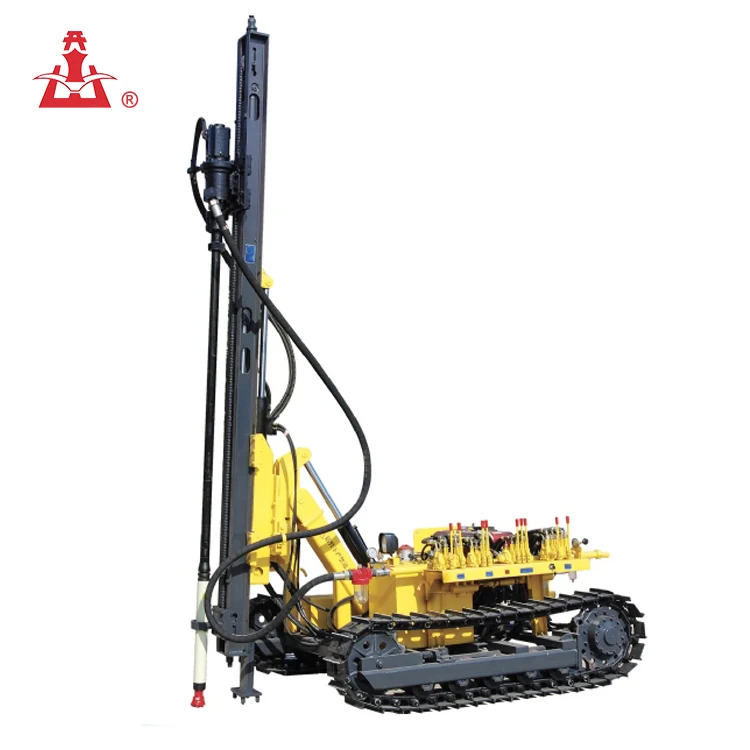

KAISHAN Brand KG910A Crawler Hydraulic Rock Drill for Stone Quarry Plant/Mini Rotary Drilling Rig
KG910A type open-air drill rig retained KY100J type drill rig the characteristics of simple structure and stable performance, optimize and upgrade the hydraulic system, working components and gyrator,faster rotary speed and advancing speed, longer motor service life,better reliability.
| KG910A Open-air drilling rig technical parameters: | |||
|---|---|---|---|
| Rock hardness | f=6-20 | Weight | 3100kg |
| Drilling diameter(mm) | Φ80-105mm | Dimension(mm) | 4100x2030x2020 |
| Economic drill deep(m) | 25m | Guide Tilt | 23.5° up, 118.5°Down |
| Rotation speed | 0-105r/min | Guide Swing | 11.5° right, 36.5° left |
| Rotation torque | 980N·m | Traveling Speed | 0-2.0km/h |
| Max. Feed Force | 15000N | Carriage compensation | 900mm |
| Push Way | Cylinder.Chain | Engine Model | ZS1125GM(20.2kW 2200r/min) |
| Feed stroke | 2000mm | Drill rod | Φ60x2m |
| Traveling speed | 0-2.0Km/h | Working Pressure | 0.7-1.4 MPa |
| Climb Capacity | 30° | Capacity | 9-13m³/min |
| Ground clearance | 254mm |
Hot Sale
Company Profile
Our Certificates
Clients & Exhibiton

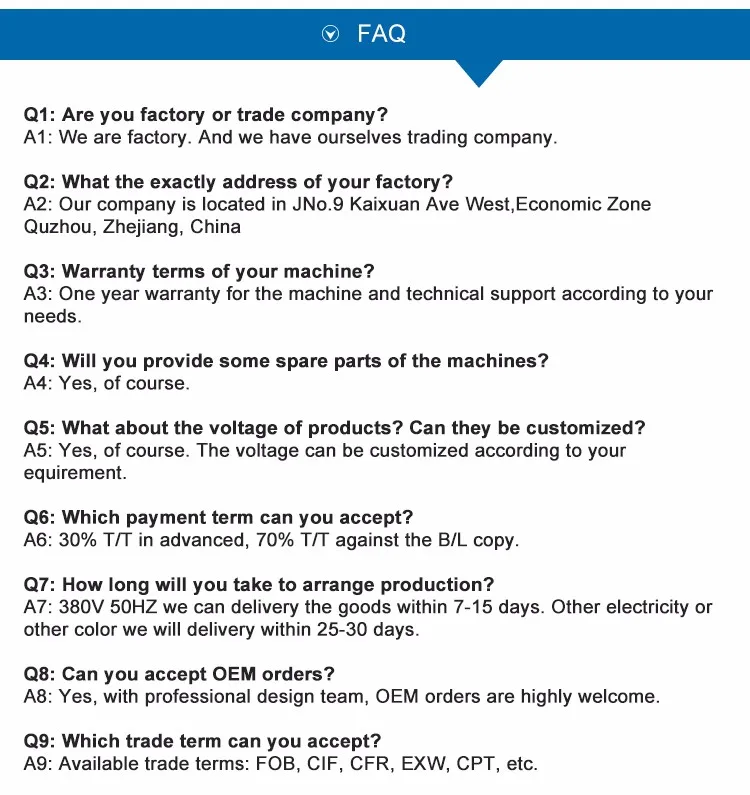

FAQ
