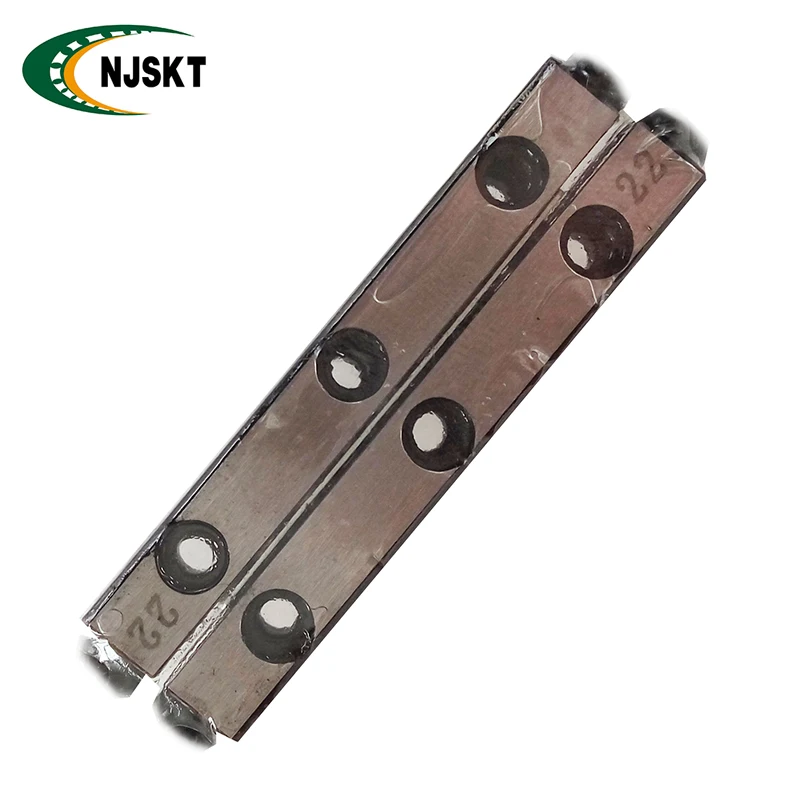

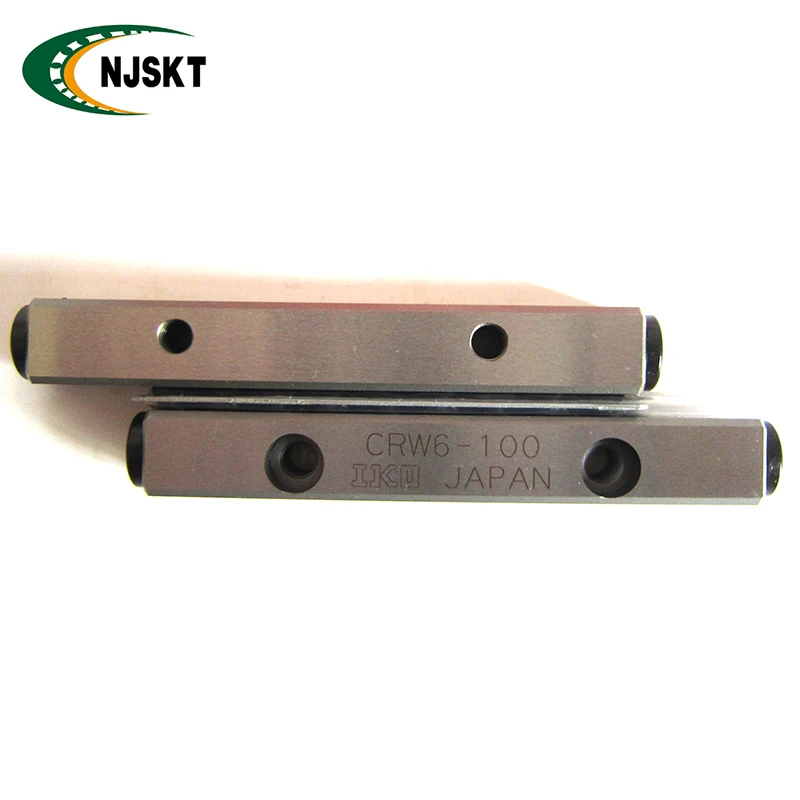

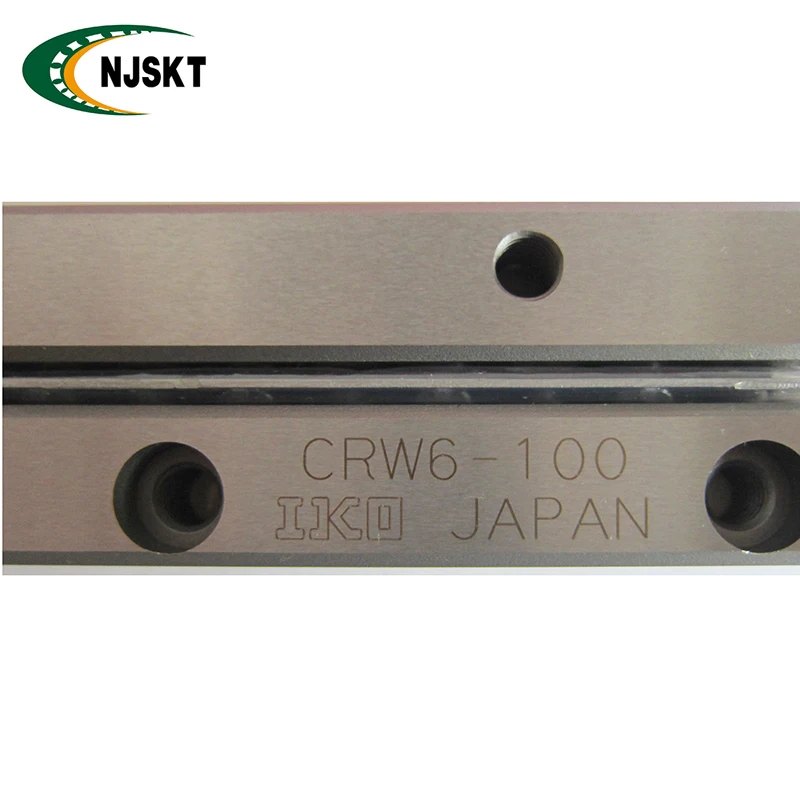

 compact design cross ball guide CRW18-800,roller guide with V rail

• CRW crossed roller way is a linear motion rolling guide incorporating a roller cage between two ways hose two V-shaped surfaces are used as track groove.arrangement of cylindrical rollers by orthogonalizing them alternatey allows receiving of loads in any direction and executes extremely high -accuracy and smooth linear motion


• CRW  series Anti-Creep Cage Crossed Roller Way is the product with a cage creep proof function using a rack and pinion mechanism originated from Crossed Roller Way, featuring smooth linear motion with super high accuracy.

Structure of the Linear Guideway

There are two types in the CRW:

one is standars type of using four ways and two roller cage in combination as a set and the other is module type of integrating two internal ways in a single structure



Description of Cross roller Linear Guideway



Item	Cross Roller guide/Linear Guideway,cross roller linear guideway
Linear Guideway Material	Stainless steel Aluminium, Alloy, Aluminium SUJ2, S45C,SUS304,SUS440C
Linear Guideway Standard	Din, AISI JIS
Linear guideway Hardeness	Depens on material
Tolerance	0.002
MOQ	1 PCS
Linear Guideway Plating	According to your request, could be Tin, Tinc, Chrome
Engraving Surface	According to your request
Market	Worldwide
Machine Type	Factory automation parts,Textile Machine
Sample Time	Within 7 Working days

CRW Series Cross Roller Linear Guideway

• CRW18-300,CRW18-400,CRW18-500,


• CRW18-600,CRW18-700,CRW18-800,CRW18-900


• CRW18-1000,CRW18-1100,CRW18-1200

Model No.	Mass (kg)		Diamension
	Block	Roller Cage	A	H	L(n*F)	E	Dw	R	Z	P	e	W	g	M	d1	d2	h	t
CRW15-300	8.75	273	71	36	300(2*100)	50	15	261	11	23	15.5	33	14	M12	10.5	16.5	10.2	5
CRW15-400					400(3*100)			330	14
CRW15-500					500(4*100)			422	18
CRW15-600					600(5*100)			491	21
CRW15-700					700(6*100)			583	25
CRW15-800					800(7*100)			652	28
CRW15-900					900(8*100)			744	32
CRW15-1000					1000(9*100)			813	35
CRW15-1100					1100(10*100)			905	39
CRW15-1200					1200(11*100)			974	42
