Energy Saving Complete Aluminium Profile Extrusion Press Line Plant
- Category: >>>
- Supplier: Jiangsu Giant Ally Imp&exp Co. Ltd.
Share on (1658060670):
Product Overview
Description
Energy Saving Complete Aluminium Profile Extrusion Press Line Plant
Product Description
Since each Aluminium Extrusion Line is customized according to customer's requirements, if any question, please contact with us.
Project Case:
1000T Aluminum Extrusion Line Technical Parameters(For your reference)
General Information | ||||
1 | Billet diameter | 5'' | ||
2 | Max billet length | 650mm | ||
Press basic technical data | ||||
1 | Norminal Extrusion force | 1000MT | ||
2 | Working pressure | 250 kg/cm2 | ||
3 | Extrusion speed | 0.2--15mm/s | ||
4 | Main pump | Rexroth | ||
5 | Main motors | 2 sets of 90KW induction motor | ||
6 | Dead cycle | less than 19 seconds | ||
7 | Main mechnanical components | standard or as per customer requests | ||
8 | PLC , HMI and other electrical components | Siemens or similar brand | ||
Billet heater with hot log shear | ||||
1 | Billet length | 6000mm | ||
2 | Max capacity | 800 kgs/h | ||
3 | Billet storage table | Max 15 pcs | ||
4 | Heating mode | direct heating | ||
5 | Temperature uniformity | ±10 degrees | ||
6 | Heating time | 25 mins for rapid billet heater/3 hrs for multi-billet heater | ||
7 | Hot log shear | 300-700mm | ||
8 | Billet conveyor to press | to be defined | ||
9 | Max heating tempearture | 550 degrees | ||
10 | Highlight of the furnace | durable and energy saving | ||
11 | With optimum airflow design and perfect refractory material | |||
Die oven | ||||
1 | Heating chamber | dimensions to be confirmed | ||
2 | Heating mode | electric heated | ||
3 | Energy saving | |||
4 | Door | Auto controlled | ||
5 | Die quantity per batch | approx 6 pcs | ||
6 | Complete built with refractory fiber | |||
Profile handling table | ||||
1 | Overall dimensions | customized as per customer's requests | ||
2 | Belt width | 80mm | ||
3 | Belt driving | motorized | ||
4 | Stretcher | 30T, hydraulic controlled | ||
5 | Finish saw | High precision, with chip collector | ||
6 | Cut-into-length system | manual/auto controlled | ||
Puller | ||||
1 | Max pulling force | 80 kgs | ||
2 | Max pulling speed | 60m/min | ||
3 | Max return speed | 180m/min | ||
4 | Track length | as per customers' requests | ||
5 | Driving unit | frequency motor controlled or servo motor. | ||
6 | Puller head | 1,2 or 3 as per customer requests | ||
7 | Hot saw | cooperate with press working | ||
8 | Communication between puller heads | busbar or wifi | ||
Aging oven | ||||
1 | Max capacity | 6 baskets, approx 4-6 tons per batch | ||
2 | Basket dimensions | 6000*800*600mm | ||
3 | Door lock | pneumatic locked | ||
4 | Door | 1 or 2 doors as per requests | ||
5 | basket carriage | as per customer requests | ||
6 | Max profile length | 6000mm | ||
7 | Temperature uniformity | ±5 degrees, after holding 30min | ||
8 | Heating time | within 90m | ||
9 | Max temperature | 250 degrees | ||

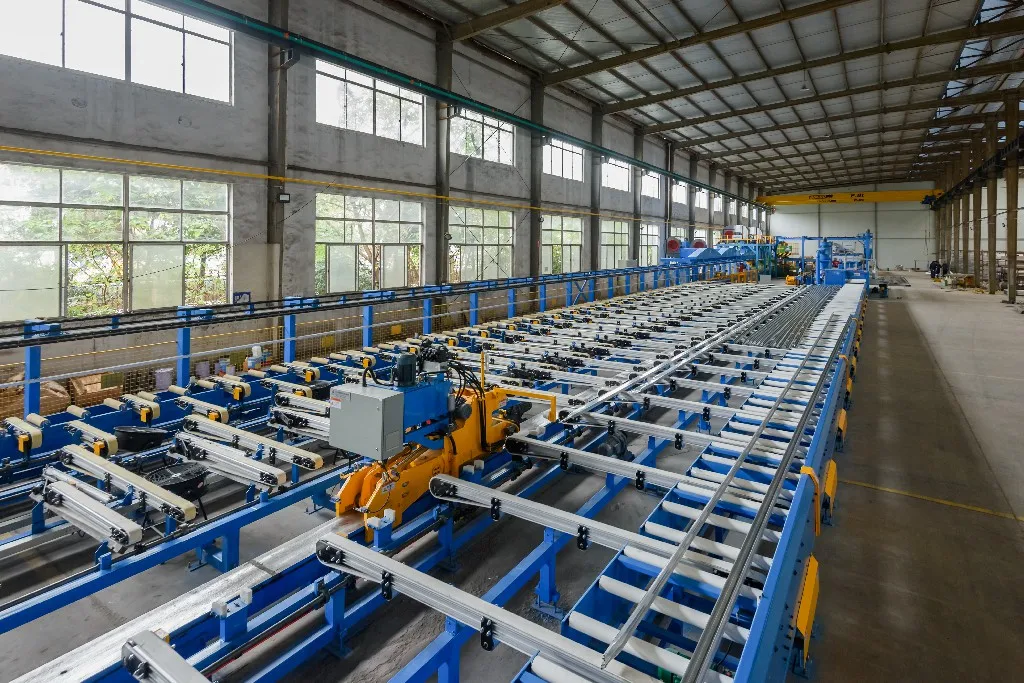

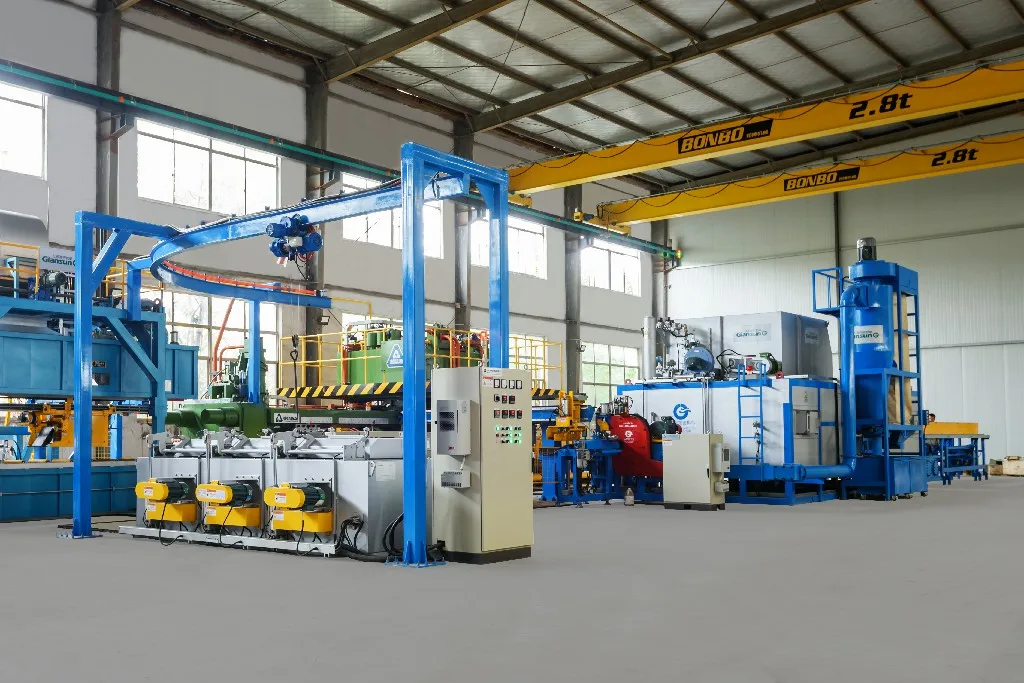

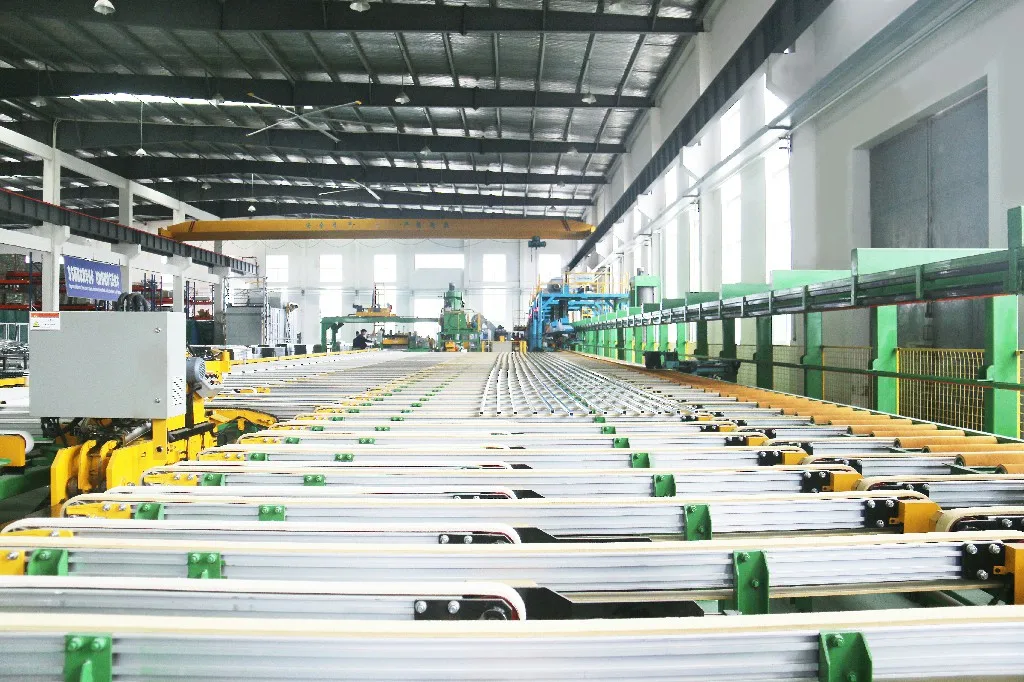

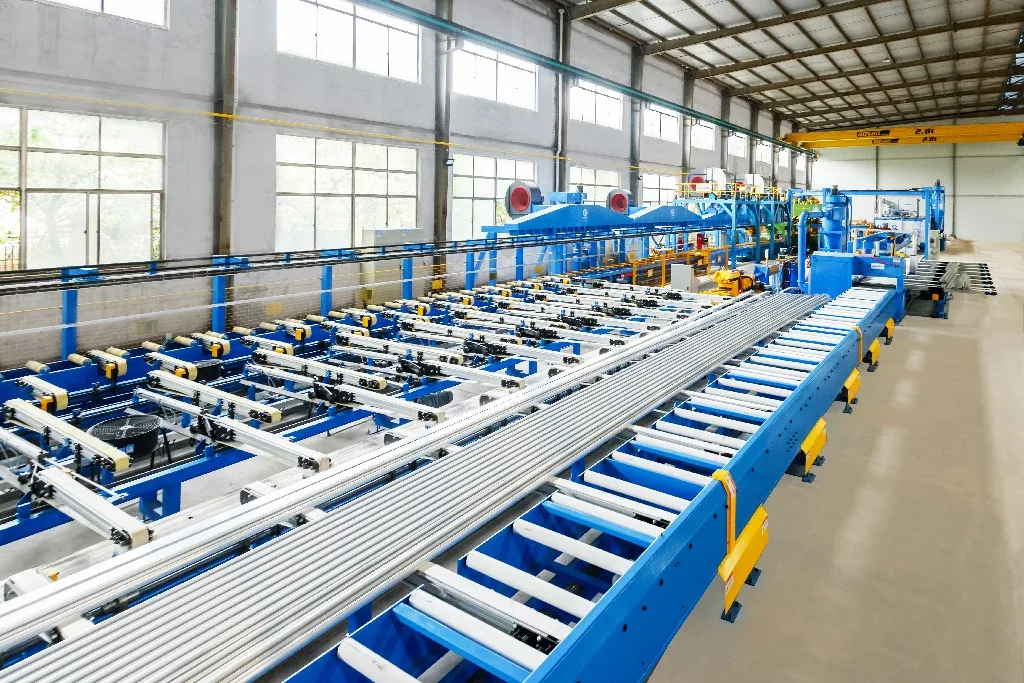

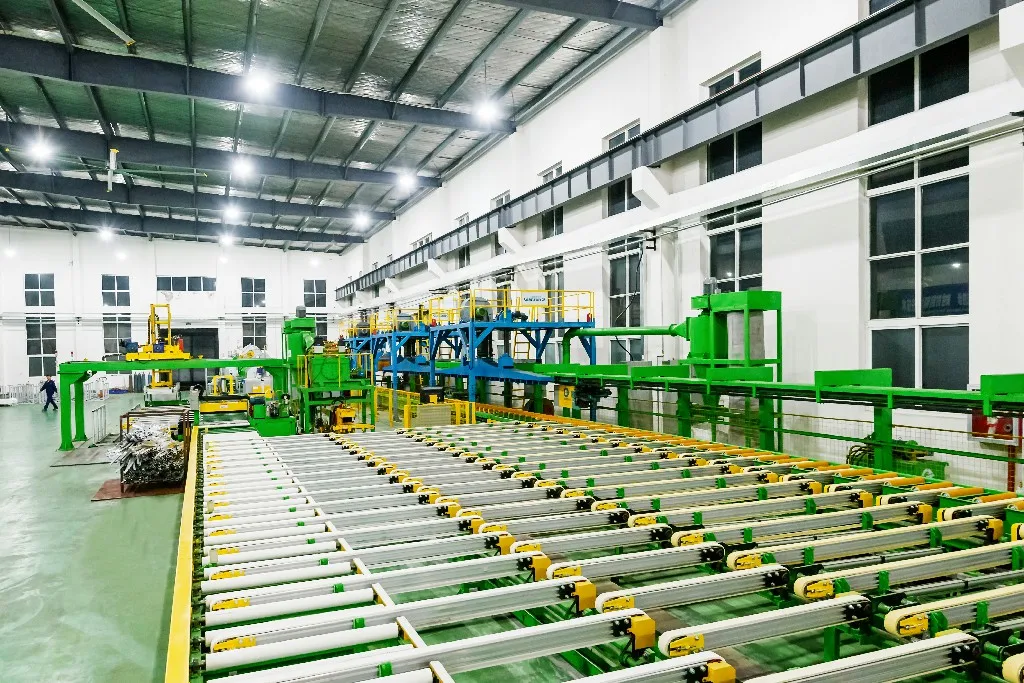

Product Images
After-Sale Service
Provide the best factory building support and machine design technical support,
and after-sale support machine usage guide instruction, and field video guide.
If necessary we can send professional technicians there.
and after-sale support machine usage guide instruction, and field video guide.
If necessary we can send professional technicians there.
Company Profile
Jiangyin Giansun Aluminum Profile Complete Plant Manufacturing Co., Ltd., which belongs to Giansun Group, is a professional
manufacturer of aluminum profile production machine and equipment related to aluminum profile produce. Based on large market share
and widely ranged customers, the product made by our factory, such as log/billet furnace body, mould die oven, aging furnace,
profile saw, remainder disposal machine, single/double puller, cooling system, etc. and press machine part like container, press
rod and hole punching needle, is reputed at home and abroad.
manufacturer of aluminum profile production machine and equipment related to aluminum profile produce. Based on large market share
and widely ranged customers, the product made by our factory, such as log/billet furnace body, mould die oven, aging furnace,
profile saw, remainder disposal machine, single/double puller, cooling system, etc. and press machine part like container, press
rod and hole punching needle, is reputed at home and abroad.
FAQ
1. What's the delivery time of your aluminum extrusion machine?
For ordinary small-sized machine such as saw, 30 days;
middle-sized machine such as heating furnace, 45-50 days, for big-sized machine such as cooling system/profile handling system, 60
days. We could also design and make the whole production line for our customer, around 3-6 months.
middle-sized machine such as heating furnace, 45-50 days, for big-sized machine such as cooling system/profile handling system, 60
days. We could also design and make the whole production line for our customer, around 3-6 months.
2. What’s your ordinary shipment method?
We can deliver the machine by land, or by ocean.

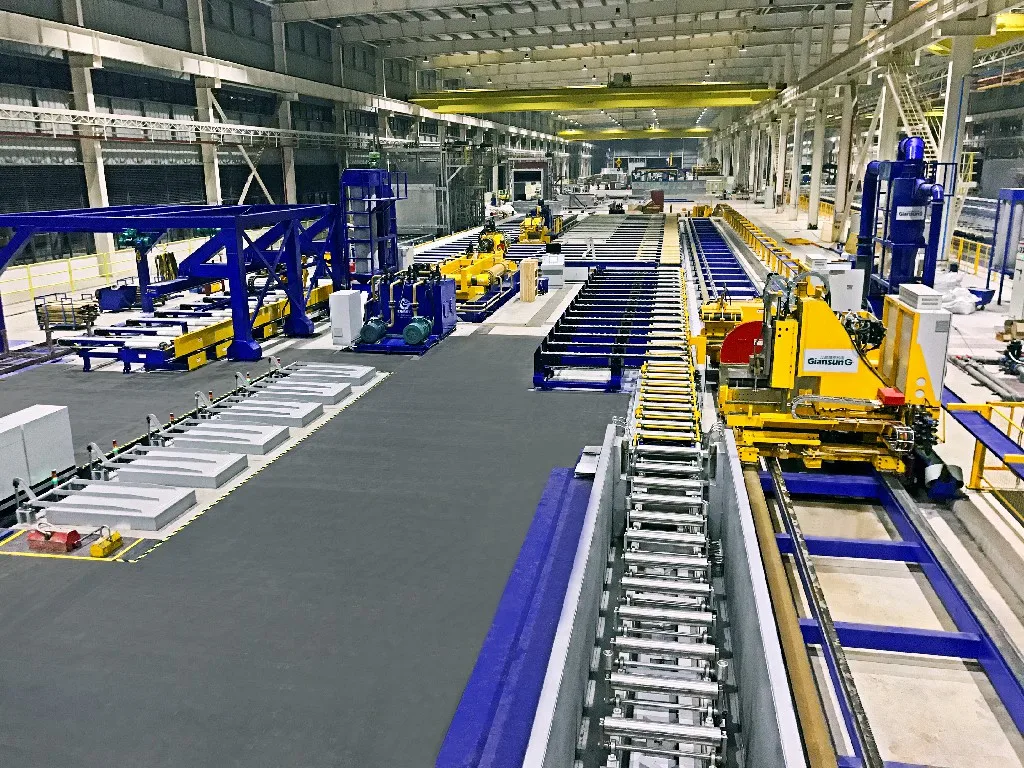

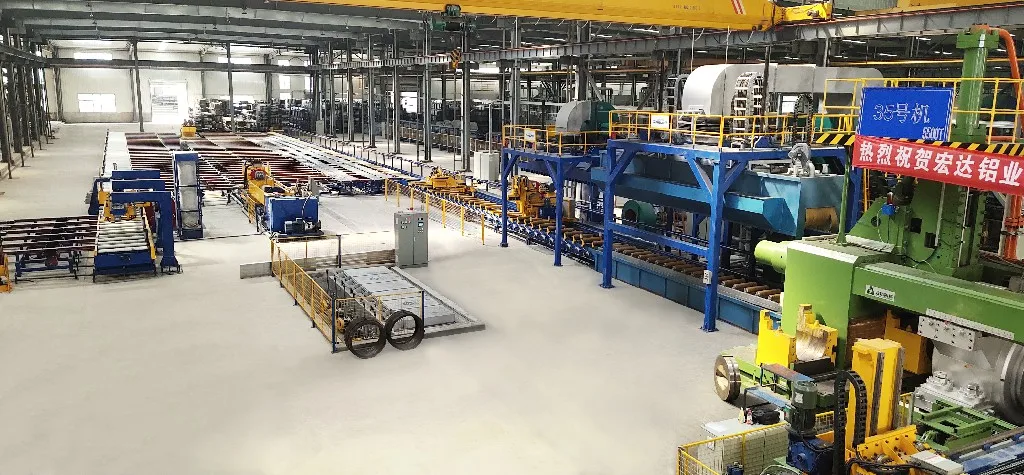

The Whole Extrusion Line
