Горячий экспорт 1000 мм 1200 мм машина для подъема труб

Product Overview

Description



1. Realtop has more than 10 years experience on manufacturing Pipe Jacking Machinery(TBM),

2. Remote-controlled Slurry Balance Pipe-Jacking Machine is a new advanced non-digging-equipment with high technology.

3. It combines multi-disciplinary technologies in one, such as the machinery units, hydraulic system, electric controller   (including PLC), Laser system, measuring device, etc.

4.  Besides the high efficiency, it also has effect on the traffics on surface. Furthermore, it is good for the environment, and can lower the cost of the construction.

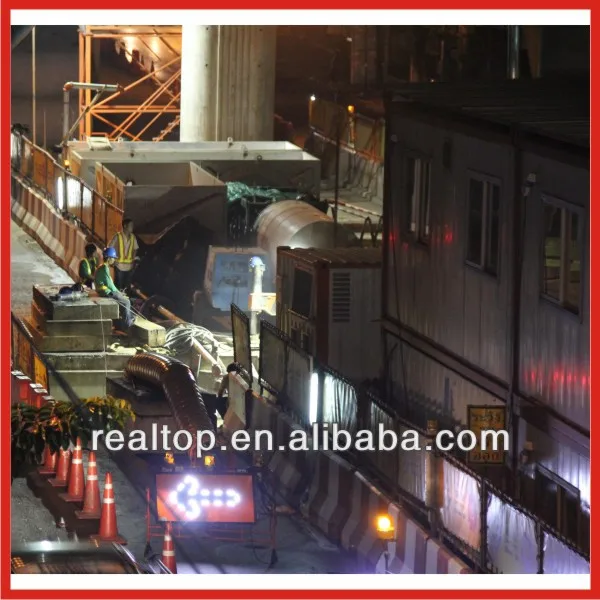

5.  Projects in Singapore,Thailand,Hongkong,etc.. Export to Singapore from 10years ago;



1. On site service support;

  we could supply pipe jacking machine model from DG250mm to DG5000, not only for round shape and rectangle shape.

 DG 1200-QNP specs as following



Dimension	Inner diameter  (mm)	1000	1200
	Outer diameter (mm)	1220	1470
	Total Length  (mm)	3800	3800
Main drive	Rated Power  (kW)	37
	Max. torque  (kN·m)	67
	Revolution  (r/min)	5.25
Steering	Steering cylinders	4	4
	Force per cyl. / oil pressure  (kN)	800
	Stroke per cyl.  (mm)	80
	Steering angle (°)	±2	±2
Indside hydraulic system	Rated power  (kW)	1.5	1.5
	working pressure  (MPa)	25	25
Slurry system	Rated Power of Water Supply Pump (kW)	22	22
	Rated Power of slurry-out Pump (kW)	37	37
	Side-Slurry line diam.	100	100
Main Jacking system	Rated Jacking Speedmm/min	0--80	0--80
	Work Pressure  (MPa)	31.5	31.5
	Rated Jacking ForcekNm	2000×4	2000×4
	speed-regulation mode	Frequency control	Frequency control



 Click Following Links for more model examples:

1)    ID600mm Pipe Jacking Machine / Tunnel Boring Machine

2)    ID800mm Pipe Jacking Machine / Tunnel Boring Machine

3)    ID1000mm Pipe Jacking Machine / Tunnel Boring Machine

4)    ID1200mm Pipe Jacking Machine / Tunnel Boring Machine

5)    ID1400mm Pipe Jacking Machine / Tunnel Boring Machine

6)    ID1500mm Pipe Jacking Machine / Tunnel Boring Machine

7)    ID1600mm Pipe Jacking Machine / Tunnel Boring Machine

8)    ID1800mm Pipe Jacking Machine / Tunnel Boring Machine

9)    ID2200mm Pipe Jacking Machine / Tunnel Boring Machine

10)  ID2500mm Pipe Jacking Machine / Tunnel Boring Machine

11)  ID250mm~5000mm Pipe Jacking Machine/Tunnel Boring Machine

     Customer-built during 250mm~5000mm available







As  below the loading photos for sea shipments
