White iron chocky bar CB90 duablock wear block

The unique, formable design of Hyster-Wear chocky bars are available in various lengths, grades and sizes and can also be customized as per the clients specific need. Applications for Chocky Bars are wide and varied, ranging from specific wear protection on buckets for loaders, excavators and draglines machines, or for weld-on hammer tips for the re-cycling industry, or chute linings and rock box edges.

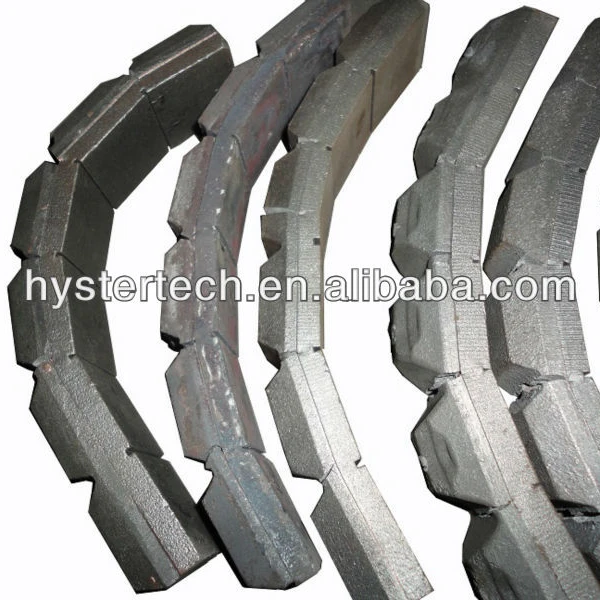

They are easy to use and install. They can be bent, cut and formed to suit different surfaces.

The standard is 23mm thick, length is 240mm, width could be from 25mm from 150mm. We can also produce according to your special requests .

Type: Notched type and Non-notched type

**Other dimension is also available against your inquiry.**

Packing Material:

 Option 1. Poly-wood crates, Poly-wood pallets and Oil film, fastening belt.

 Option 2. Carton, PVC, fastening belt.

Packing Photos:

Delivery term:

 1) FOB Shanghai/Ningbo/Shenzhen/Guangdong, China. Other ocean port is also available.

 2) CFR/CIF ocean delivery to destination port.

 3) Express delivery such as DHL, UPS, TNT, FedEx.

 4) Ex-Work Changsha warehouse.

Hyster offer our clients a wide range of wear products and professional wear solutions. We also welcome custom made one off's and consumables.

Some of our products and services:
  --Wear plates, wear liners-Nihard wear liners, white iron wear liners, bimetallic wear liners

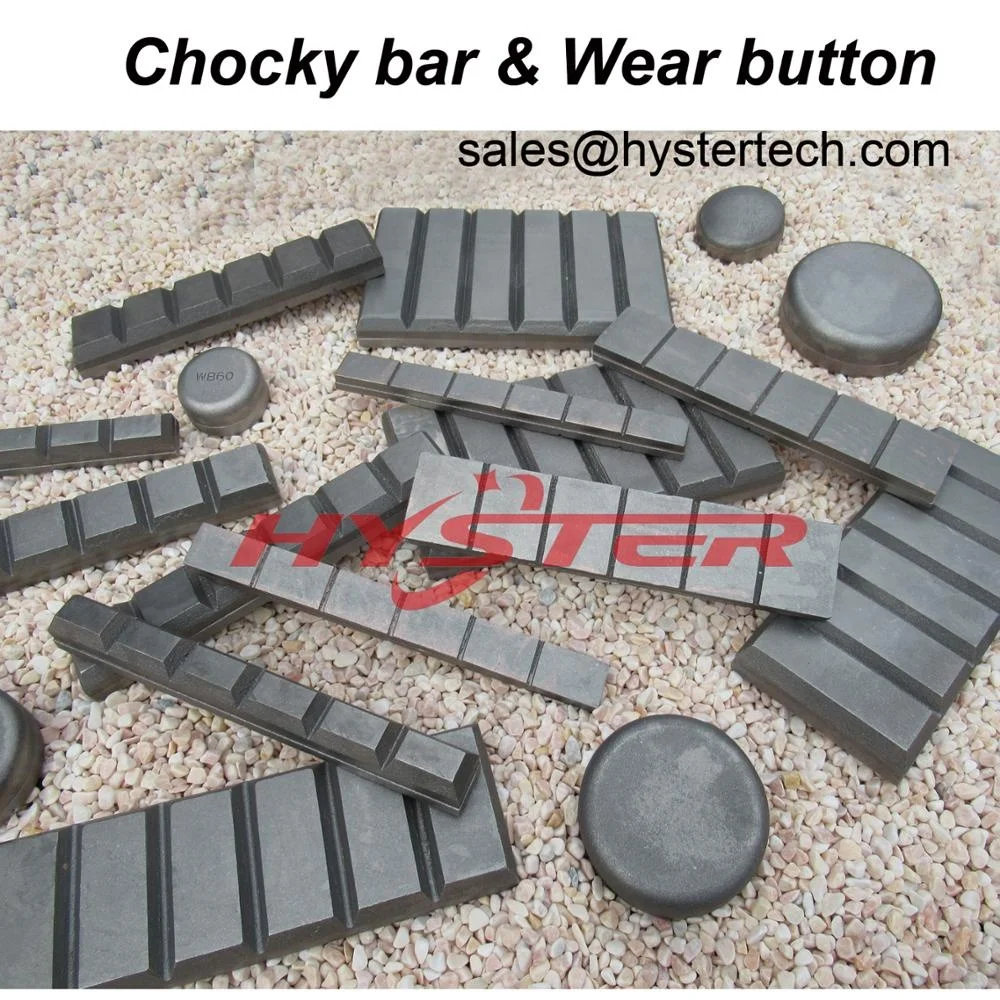

  --Chocky bars and wear buttons
  --Wear blocks, wear bars
  --Custom made wear liners
  --Bucket repair and protection
  --Full Fabrication services
  --Sugar mill hammer tips
  --Drilling, milling or machining
  --Casting/Investment casting
  --Fast service and timely delivery

Main Products

1. HST Bimetallic Wear Materials

Laminated wear blocks---the most common types are:

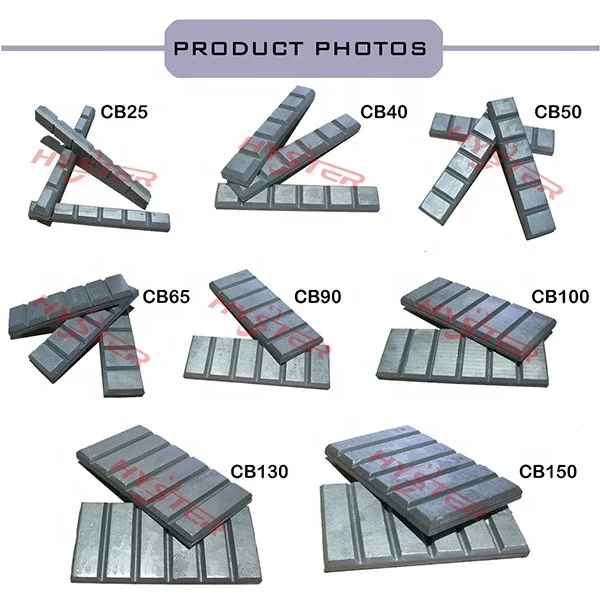

  1) Chocky bars (CB 25. CB40, CB50, CB65, CB80, CB90, CB100, CB130. CB150)
  2) Standard wear bars (DLP201A, DLP 125, DLP184, DLP528, DLP619, DLP451, DLP450, DLP2230, DLP2017, DLP4, DLP919, DLP1191, DLP515, DLP200, DLP271, DLP270, DLP508, DLP115, DLP337, DLP1101, DLP343 )
  3) Shaped wear bars
  4) Wear buttons& donuts(WB60, WB75, WB90, WB110, WB115, WB150, DLP1920, DLP1921, DLP1994, DLP2196)
  5) Shredder/Grinder hammer tips (DLP1654,90X90X50mm; DLP653,90X90X45mm; DLP1927, 90X90X55mm)
  6) Bi-metallic wear plates
  7) Knife edges(DLP1065-22, 203X22X50MM; DLP1265-22,305X22X50MM; DLP1065A-16, 203x16x50mm, DLP1065A-25, 203x25x62mm; DLP1265A-25, 305x25x56mm)
  8) Skid bars, skid blocks(DLP412, 250x150x45mm; DLP413, 200x150x45mm; DLP414, 250x250x45mm)
  9) Wafer strips, WS25, WS40, WS50, WS65;
 10) Elbow wear blocks
 11) Other sizes and shapes
 12) Multi-function gradient cutter tooth
 13) Rockbox liners
 14) Micro-ledges

2. HST Hard Surfacing Wear Materials

 1) Standard sheet size 1500x3000mm / 1200x2400mm / 1480x3050mm

 2) Thickness available: 4+4(8mm), 6+4(10mm), 6+6(12mm), 8+5(13mm), 8+6(14mm), 10+5(15mm), 10+9(19mm), 10+10(20mm), 12+12(24mm), 12+17(29mm), 20+10(30mm)

 3) Hardness: 58-62HRC and 62-65HRC

3. HST Cast Wear Material

--White Iron Wear Blocks/Plates

--Nihard Wear Plates/Billets

--Other High Chromium Wear Castings

--Other Metallic Wear Castings

We also produce Chromium Carbide Overlay wear plates:

 1) Standard sheet size 1500x3000mm / 1200x2400mm / 1480x3050mm

 2) Thickness available: 4+4(8mm), 6+4(10mm), 6+6(12mm), 8+5(13mm), 8+6(14mm), 10+5(15mm), 10+9(19mm), 10+10(20mm), 12+12(24mm), 12+17(29mm), 20+10(30mm)

 3) Hardness: 58-62HRC and 62-65HRC

Quality Guarantee

Quality Report to be submit ahead of delivery: include Metallographic Analysis & Hardness & Chemical Composition Analysis & Welding Quality(UT) & Dimensions & G65 Dry Sand/Rubber Wheel Abrasion Test. 12 month warranty on quality.

The company has passed ISO9001:2015 quality management system certification, ISO14001:2015 environmental management system certification, and ISO45001:2018 occupational health and safety management system certification. The company has been recognized as a high-tech enterprise and a new material enterprise, with strong research and development capabilities, and has established good cooperative relationships with multiple research institutes for talent exchange, product development, and other aspects. We also have a dedicated R&D team that can tailor various products with special requirements (such as wear resistance, corrosion resistance, impact resistance, heat resistance,etc.) and provide professional wear resistance solutions. Since its establishment, the company has carried out a lot of experiments on improving the wear resistance and composite bonding strength, various heat treatment technology on different products, and the selection of wear-resistant alloys under different working conditions. The production process and product performance are continuously optimized. As of now, the company has 7 invention patents and 11 utility model patents.
