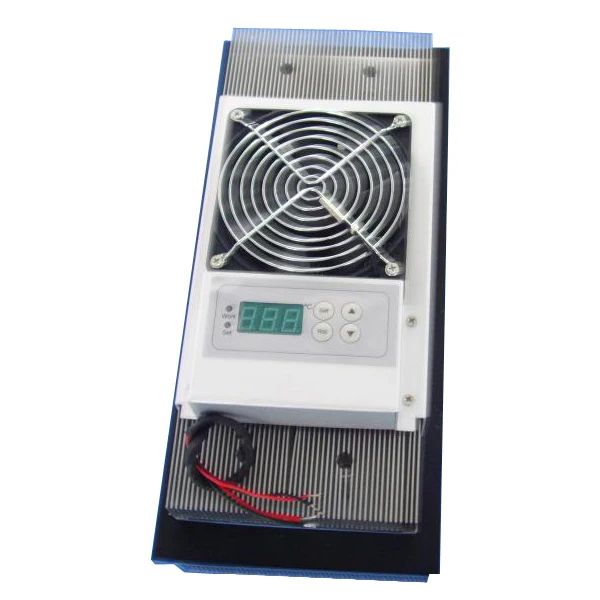

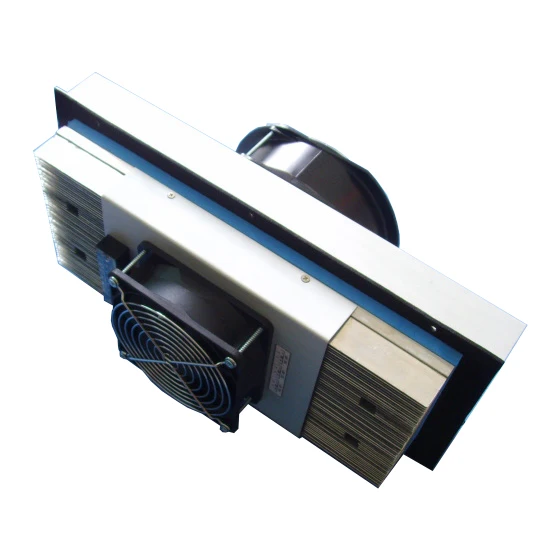

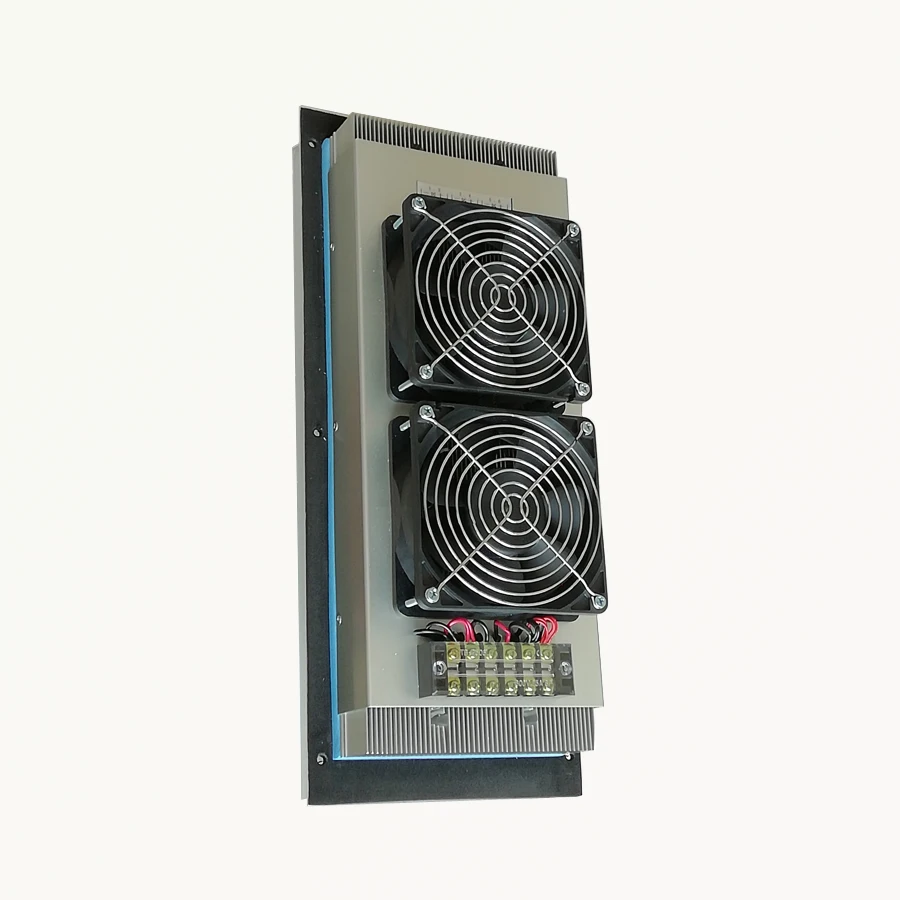

300W Peltier air conditioner for cabinet semiconductor air conditioner

Product Overview

Description

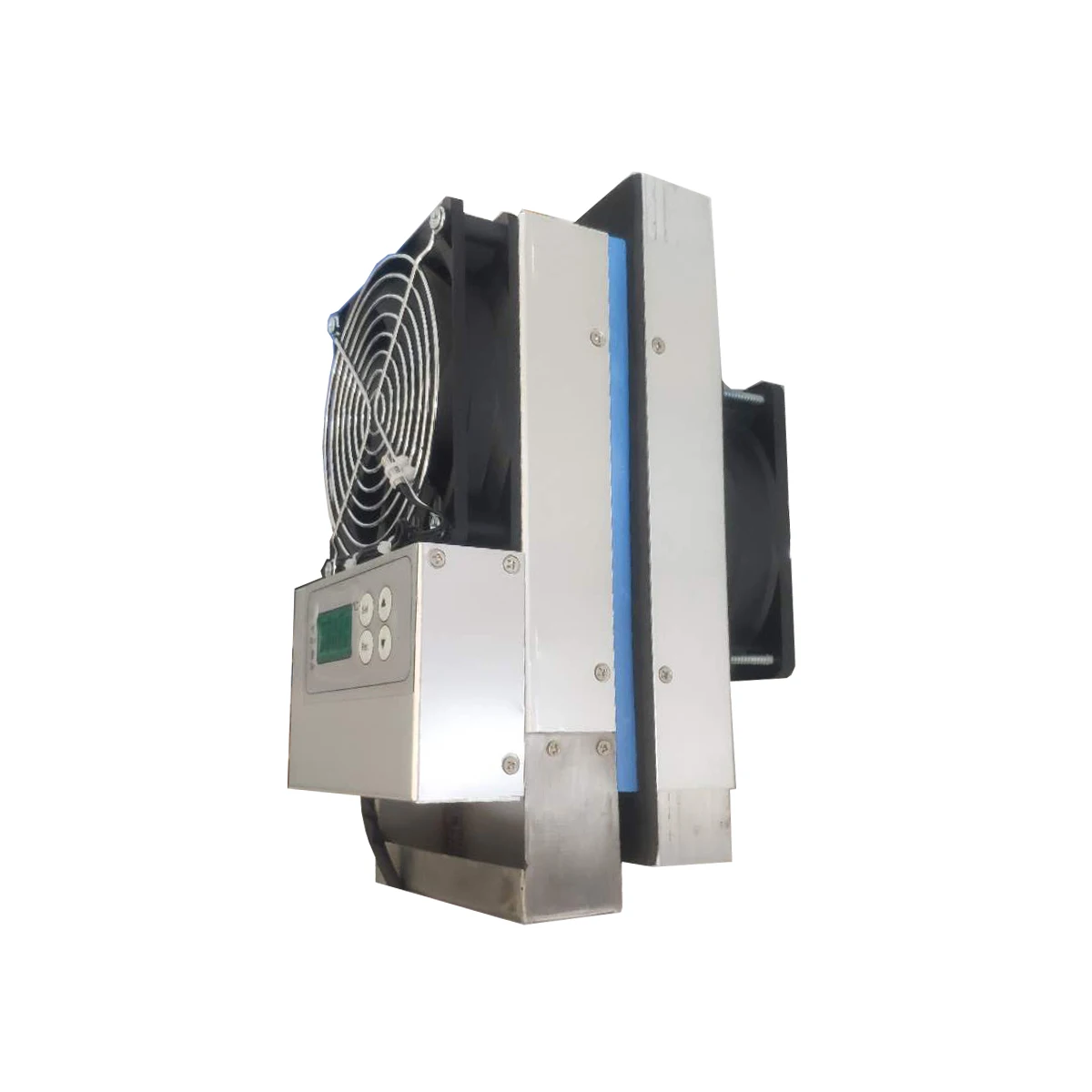

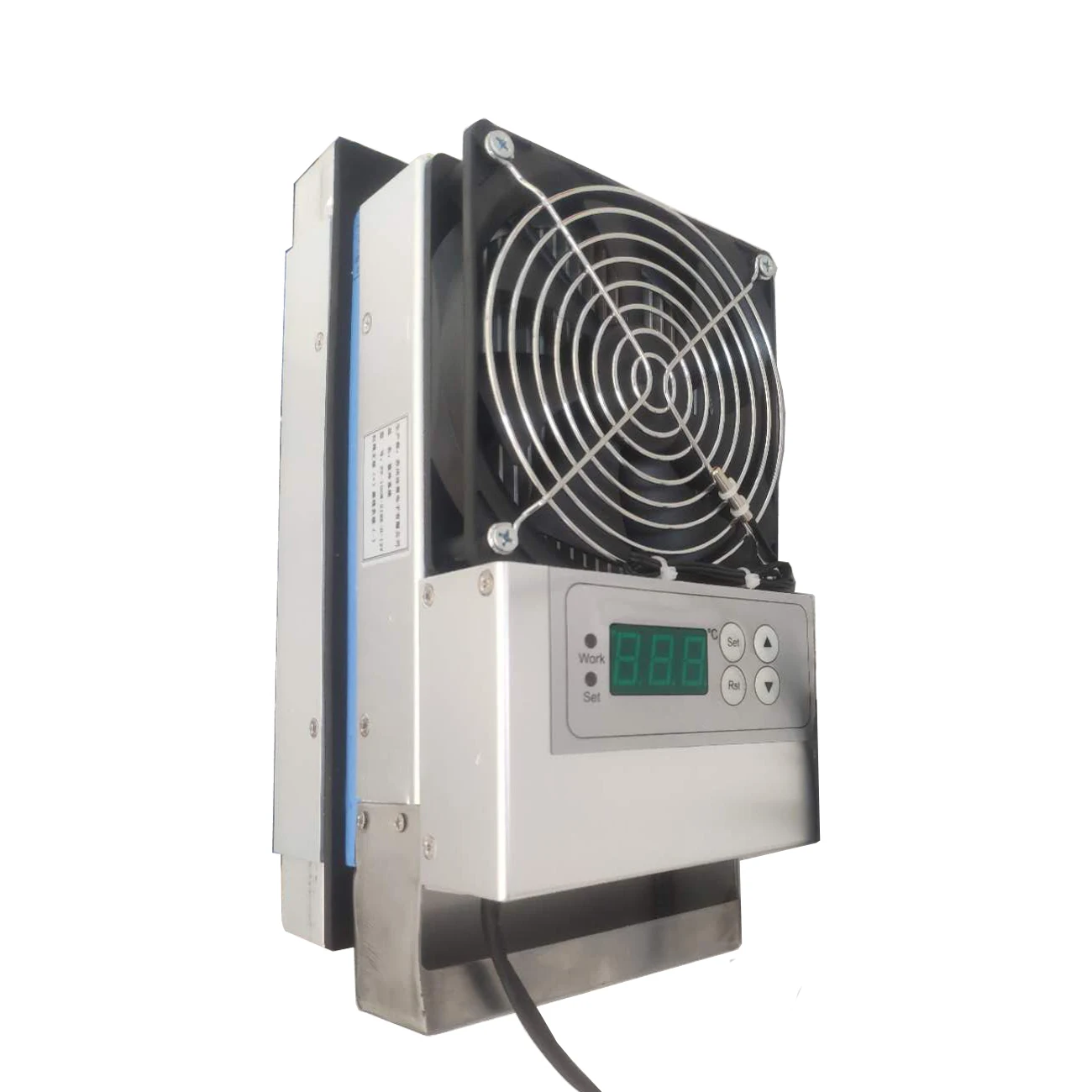

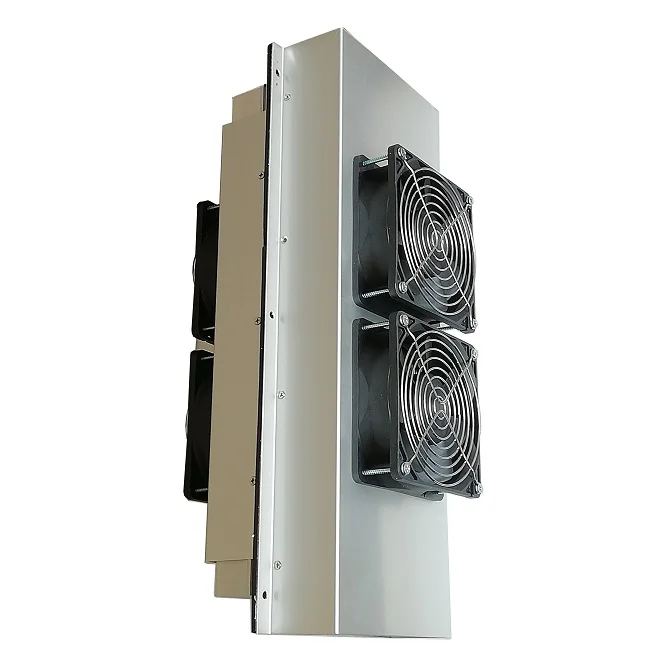

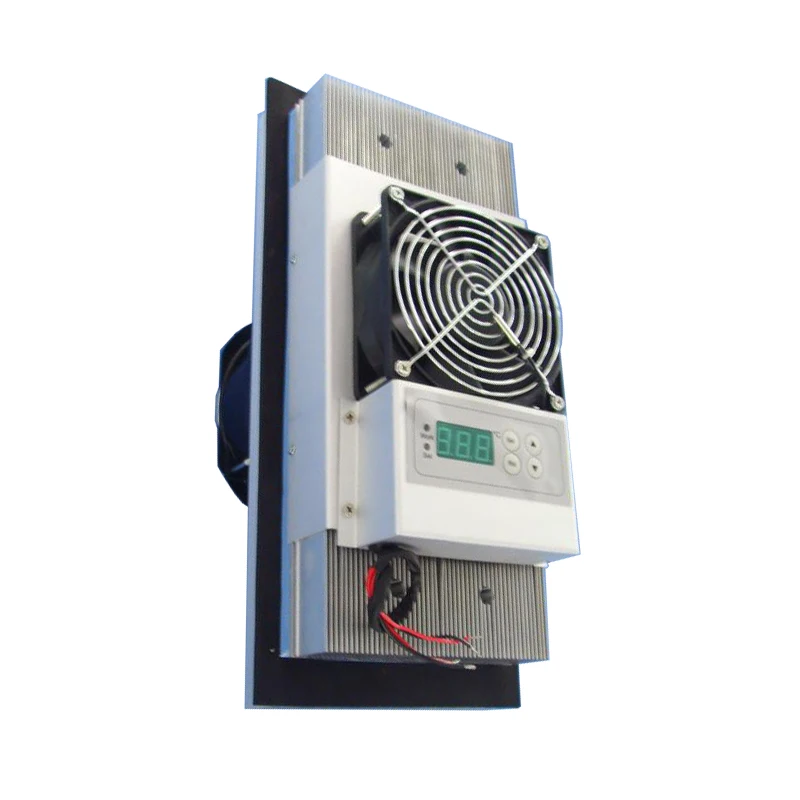

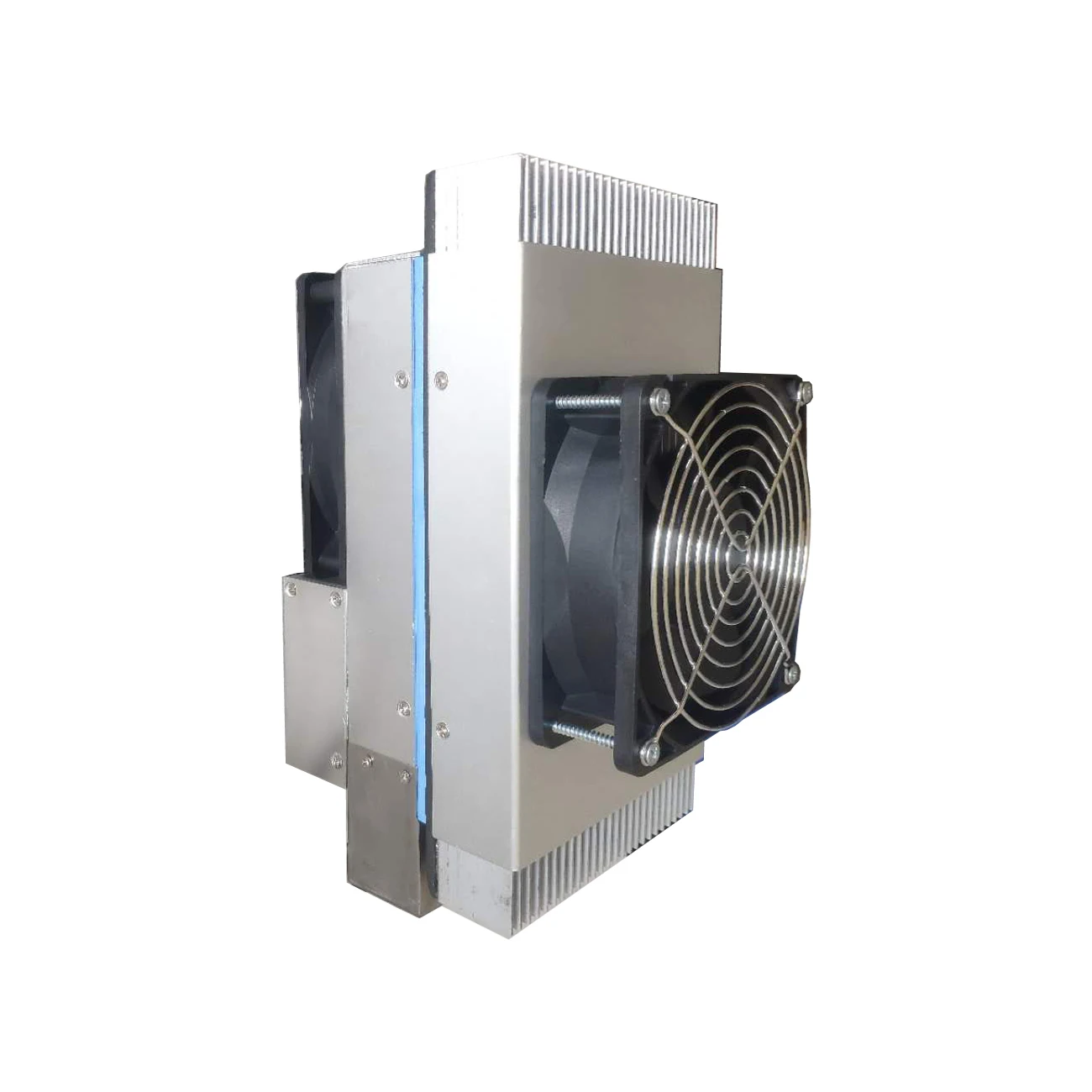

300W Peltier—Thermoelectric Cooler

FEATURES

Ø Using semiconductor electronic cooling, small

volume, light weight.

Ø No compressor, no Freon, no pollution, no

vibration, no leak.

Ø Using no pollution material ,compliance RoHS

Ø Free mounting,applicable to a variety of places.

Ø Working ambient temperature:-10℃~+70℃

Ø Welded fin-heat sink,high efficiency heat.

Ø High-dense foam insulation between heat sink

and cold heat sink.

Ø Hot-side heat sink overheat protection

temperature setting +75℃±5℃





SPECIFICATIONS

MODEL	NOTES*	COOLING POWER W	VOLTAGE VDC	CURRENT AMPS	TEMP CONTROL	OPERATING TEMP ℃	WEIGHT kg
FF-200W-24C	Cool only	195	24	13.2	NONE	-10~+70	7.1
FF-200W-24HC	Heat/cool	195	24	13.2	NONE	-10~+70	7.1
FF-200W-48C	Cool only	195	48	6.7	NONE	-10~+70	7.1
FF-200W-48HC	Heat/cool	195	48	6.7	NONE	-10~+70	7.1
Note*: Cool only, Using a overheat protector on the bittom of heat sink.       Heat/Cool, Using two overheat protectors both cooled sink and heat sink
