China automatic voltage regulator TDR 3000VA
- Category: >>>
- Supplier: Zhongshan Dianxing Electrical Appliance Industry Co. Ltd.
Share on (1659375147):
Product Overview
Description
Specification
| Model | TDR-3000VA | |
| Power | 3000VA | |
| Technology | CPU based Digital Circuit+C.R.G.O Transformer | |
| Input | Input Voltage Range | 140-260Vac/80-145Vac |
| Input Frequency | 50/60Hz | |
| Output | Output Voltage | 220/230/120Vac |
| Output Precision | ±10%/6.5% | |
| Efficiency | 98% | |
| Phase | Single Phase | |
| LED Digital Display Status | Input Voltage/Output Voltage | |
| LED Display Status | Green LED | Device on |
| Yellow LED | Delay in progress | |
| Red LED | Output suppressed,Input voltage out of range and overheating | |
| Protection | High Voltage Protection | Yes |
| Low Voltage Protection | Optional | |
| Overload Protection | Yes | |
| High Temperature Protection | Yes | |
| Circuit Protection | Air break switch | |
| Smart Cooling System | N/A | |
| Safety Standards | CE | |
| Operating Conditions | Operating Temperature | 0-40 |
| Storage Temperature | -15-45 | |
| Operating Relative Humidity | 10%RH-102%RH,Non-condensing | |
| Dimension | Inner Box(mm) | 525*415*300 |
| Unit Weight(kgs) | 9.7kgs | |

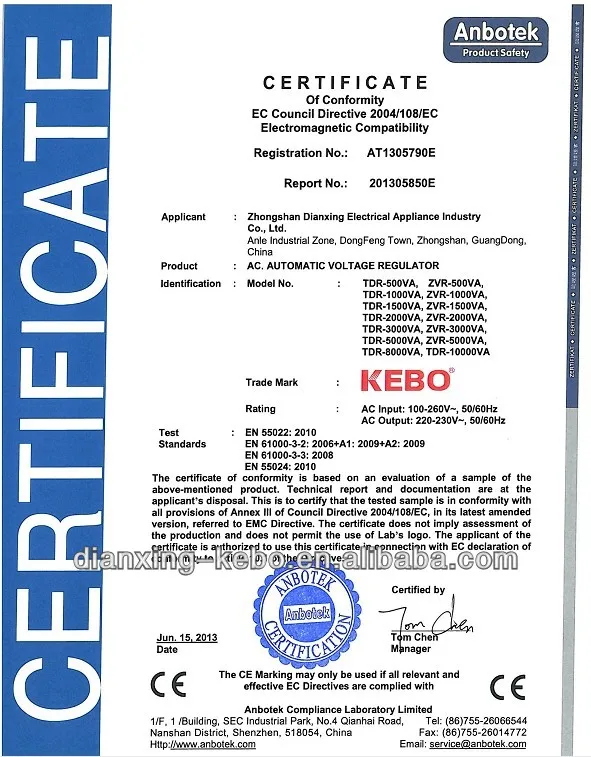

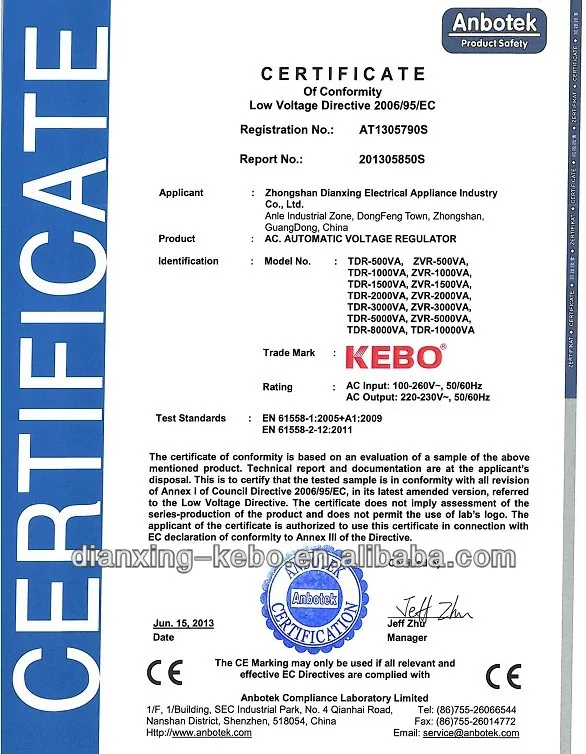

Product Certification:
