CE approved Simple operation SP 10 spirometer lung function meter

Product Overview

Description

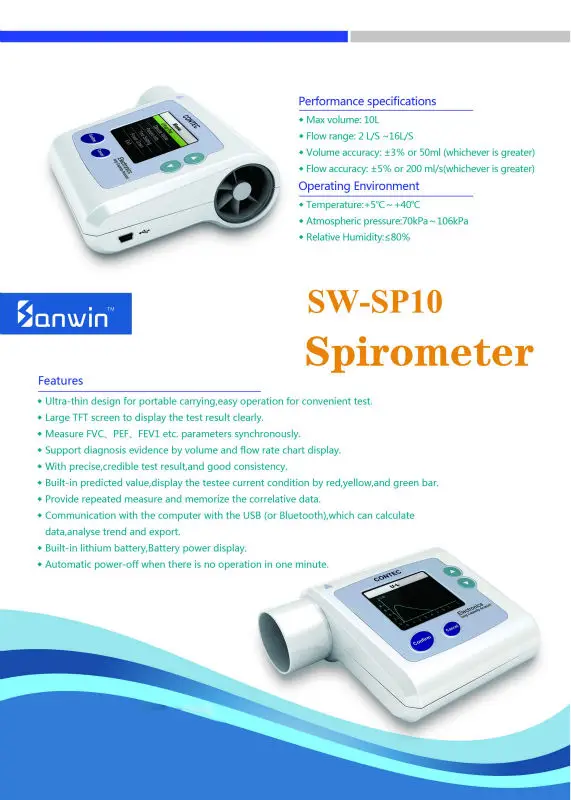

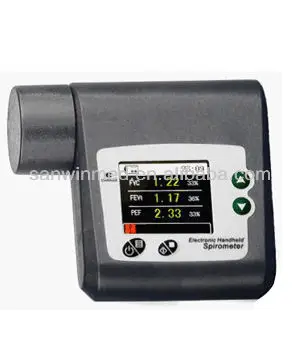

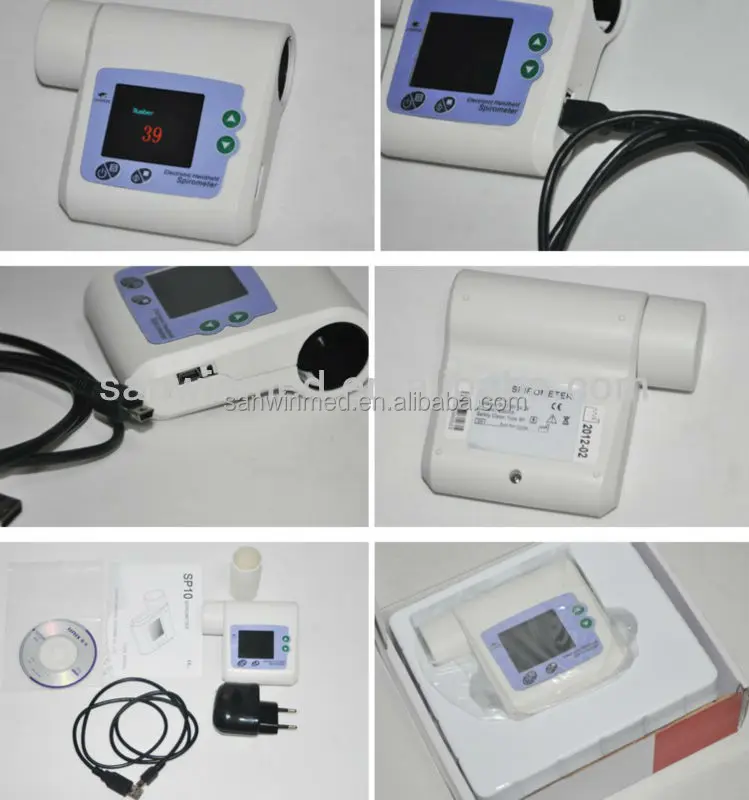

 CE approved Simple operation SP 10 spirometer lung function meter











SPIROMETER is a hand-held equipment for checking lung conditions, adopts the mode of

infrared interruption for measuring relative items, and be applicable for hospital, clinique, family for routine test.



Features:





♥Forced Vital Capacity (FVC), Forced Expired Volume in one second (FEV1), the ratio of FEV1 and FVC (FEV1%), Peak expiratory flow (PEF), 25% flow of the FVC (FEF25), 75% flow of the FVC(FEF75) and average flow between 25% and 75% of the FVC(FEF2575) can be measured. Besides, the testee condition can be shown by the ratio of the measured value and the predicted value.





♥Flow rate-volume chart, volume-time chart display.





♥Taking on the functions of data memory, deleting, uploading and reviewing.





♥Wireless transmission (be applicable for SP10W)





♥Display trend curve.





♥Scaling(Calibration)





♥Information prompts when volume or flow goes beyond the limits.



♥Automatic power off when there is no operation in one minute.





♥Rechargeable lithium battery and with charging tips.





♥Battery power display.



Performance:



Display mode	1.8'' color LCD
Display resolution	160*128
Volume range	0~10L
Volume accuracy	±3% or 0.05L (whichever is greater)
Flow range	1 L/S ~16L/S
Flow accuracy	±10% or ±0.3L/s(whichever is greater)
Working current	≤60 mA
Power supply	DC3.7V rechargeable lithium battery
Safety classification	internally powered equipment, type BF applied part
