Product Overview

Description


Our Company

Beijing Tongyizhong Specialty Fiber Technology and Development Co., Ltd.


Beijing Tongyizhong Specialty Fiber Technology & Development Co., Ltd. (BJTYZ) is a National High-tech Enterprise and specialized in R&D, production and sales of Ultra High Molecular Weight Polyethylene (UHMWPE) Fiber and its composites.

BJTYZ is subordinated to State Development Investment Corporation (SDIC) and held by SDIC International Trade Co., Ltd.

In 1999, BJTYZ was established with a registered capital of 80 million RMB. Through 20 years development, BJTYZ has become a world-famous UHMWPE supplier with 500 employees and a large plant area over 50000 square meters.

Now, there are 50 technicians in the R&D center, including nearly 30 postgraduates. Their achievements have won the second prize for National Science and Technology Advance in 2009, also their inventive patents have achieved China Patent Award of Excellence for 3 times.

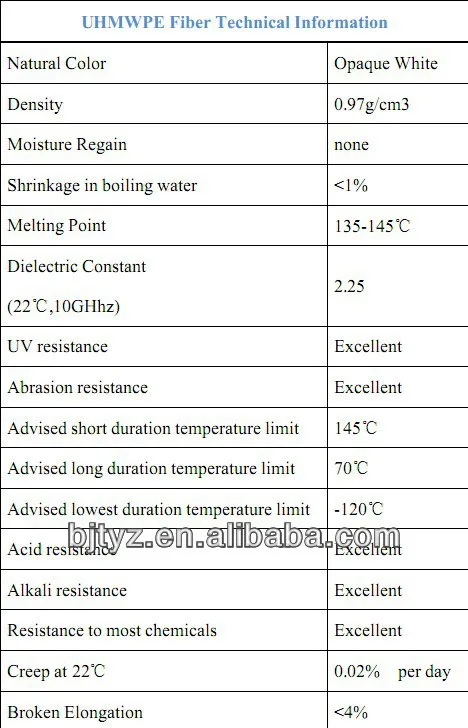

Product Description

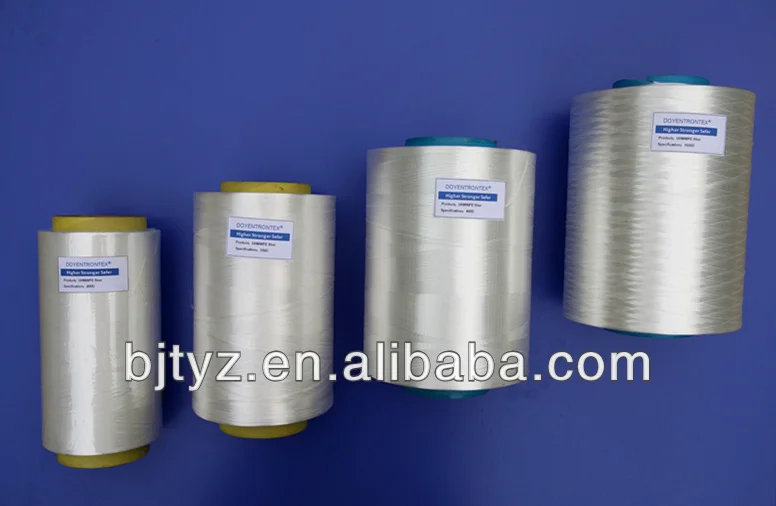

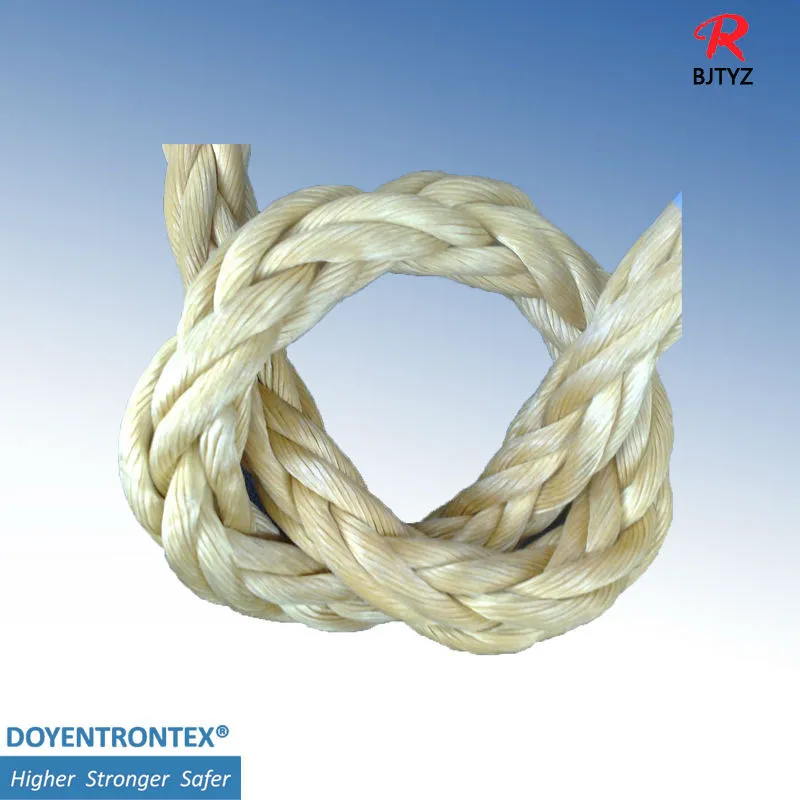

DOYENTRONTEX fiber is UHMWPE (Ultra High Molecular Weight Polyethylene) fiber developed by Beijing Tongyizhong Specialty Fiber Tech. & Dev. Co., Ltd. DOYENTRONTEX fiber has a unique combination of properties. The density is slightly less than 1 g/cm3, so the fiber floats on water. Meanwhile, the tenacity of the fiber is the highest in the world and can be up to 15 times that of a good quality steel. The modulus is very high and second only to that of special carbon fibers grades. Elongation at break is as low as for other high performance fibers, while the energy to break is very high due to  high tenacity. Nowadays, DOYENTRONTEX fiber has been widely used in anti-cut gloves, fishig lines, marine ropes, etc.

\t
SPECIFICATION
\t
TENACITY
\t
MODULUS
\t
ELONGATION
\t
30D
\t
≥ 37 g/den
\t
≥ 1300 g/den
\t
< 4.0 %
\t
50D
\t
≥ 37 g/den
\t
≥ 1300 g/den
\t
< 4.0 %

\t
75D
\t
≥ 37 g/den
\t
≥ 1300 g/den

\t
< 4.0 %

\t
100D
\t
≥ 37 g/den
\t
≥ 1300 g/den

\t
< 4.0 %

\t
200D
\t
≥ 36 g/den
\t
≥ 1300 g/den

\t
< 4.0 %

\t
400D
\t
≥ 36 g/den
\t
≥ 1200 g/den

\t
< 4.0 %

\t
800D
\t
≥ 34 g/den
\t
≥ 1180 g/den

\t
< 4.0 %

\t
1200D
\t
≥ 34 g/den
\t
≥ 1180 g/den

\t
< 4.0 %

\t
1600D
\t
≥ 34 g/den
\t
≥ 1180 g/den

\t
< 4.0 %

\t
2400D
\t
≥ 34 g/den
\t
≥ 1180 g/den

\t
< 4.0 %

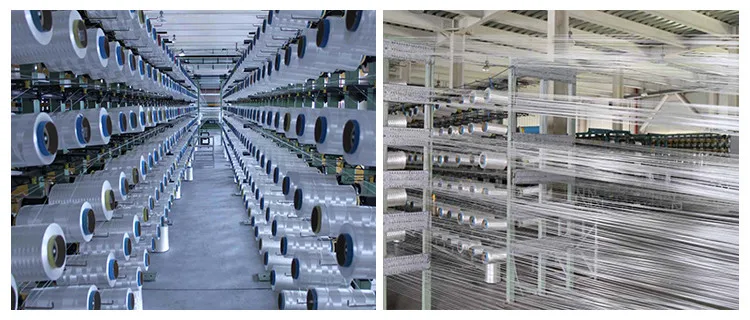

Production Line.

The Third Generation Line developed in 2016. With more than 30 kinds of specifications, the annual production capacity is more than 2,000 tons.

Product Description

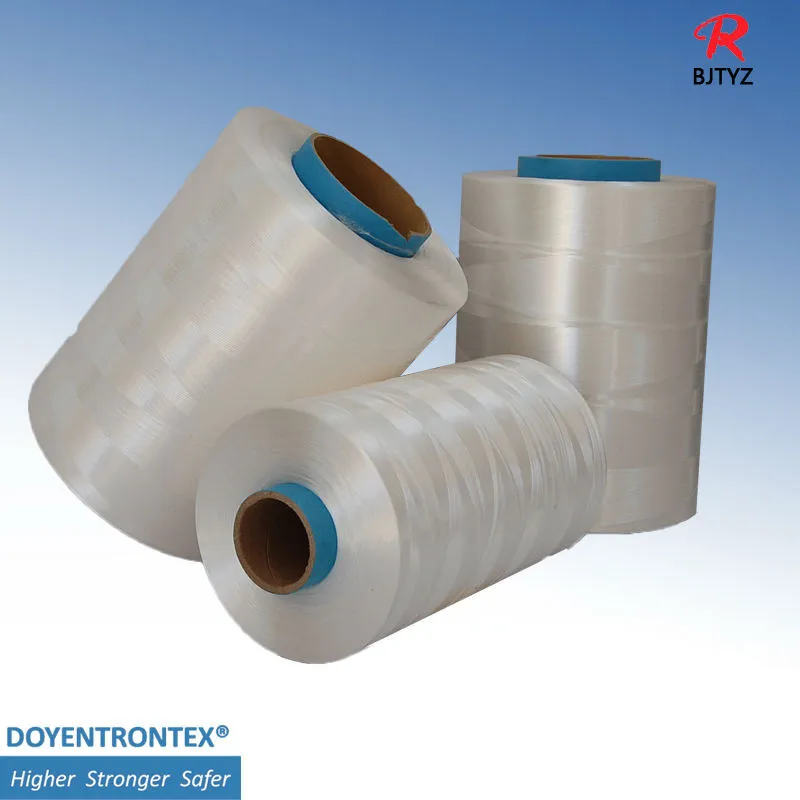

DOYENTRONTEX fiber is UHMWPE fiber developed by BJTYZ about 20 years ago. It has a unique combination of properties
The density is slightly less than 1g/m3，so the fiber floats on water. But the tenacity is the highest in the world and can be
up to 15 times that of a good quality steel. The modulus is very high and is second only to that of special carbon fibers
grades. Elongation at break is as low as for other high performance fibers， but due to the high tenacity the energy is high.
Nowadays DOYENTRONTEX fiber has been used in lots of applicaiton areas.
Advantages
* High strength and high modulus.
* Corrosion and sea water resistance.
* Abrasion and fatigue  resistance.


Quality Control
Certifications

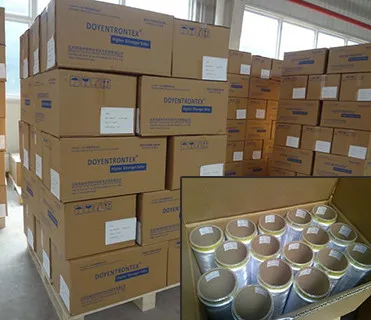

Packing & Delivery

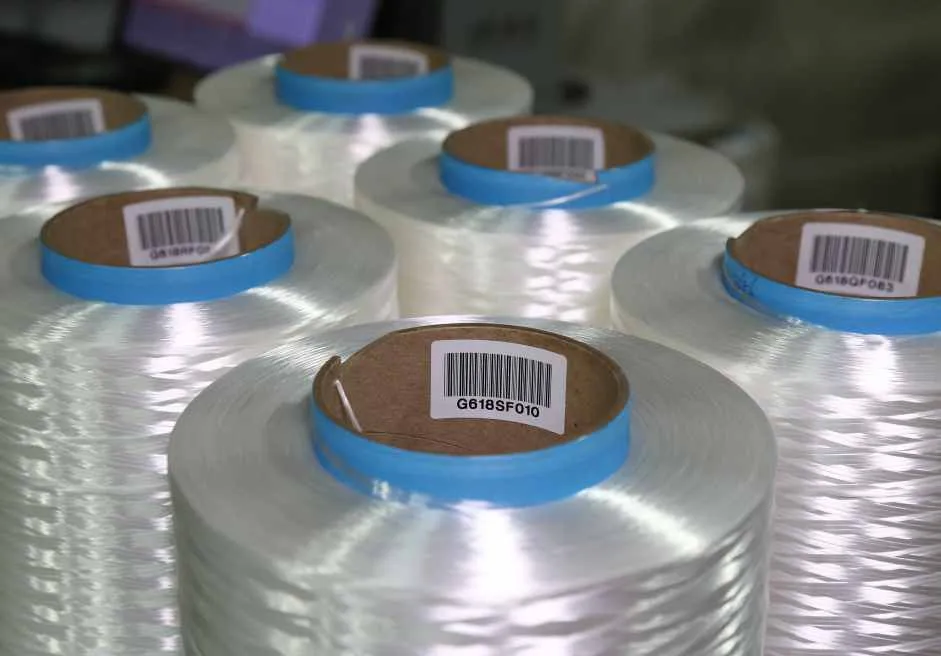

Bar Code.

Each bobbin of our UHMWPE fiber has a bar code inside, throught which we could track the data record on central computer and learn all the property, producing date, spinning date, machine status, etc. This code is the "ID card" of each bobbin of fiber throughout its life.

Usually our trademark would attached togher with the bar code, while if neutral packing is needed, trademark would be removed depending on customer's choice.

\t
SIZE
\t
DESCRIPTION
\t
Bobbin
\t
Inner diameter: 96mm
Height: 280mm
\t
Carton
\t
60×40×30cm
As much bobbins as possible.
\t
Pallet
(by air)
\t
1.20×1.10×1.40m - 20 cartons
Generally bulky cargo.
\t

Pallet
(by sea)
\t
10 pallets -  20ft container
Generally bulky cargo.
\t
21pallets - 40ft container
Generally bulky cargo.


- Port of loading:

   Beijing, Tianjin and Shanghai port.

- Transportation:

   By sea, air, Express including TNT, FedEx, DHL, UPS, etc.

- Forwarder:

   We could accept your forwarder to arrange the delivery.

   While if needed, we could recommend forwarder to you.

Related Products
FAQ

 1.  Q: Are you a manufacturer or trade company?

      A: We are a manufacturer of UHMWPE fiber and bulletproof products.

 2.  Q: What port can we choose?

      A: Beijing, Tianjin and Shanghai port.

 3.  Q: What payment term can we choose?

      A: T/T in advance, L/C, Western Union.

 4.  Q: What is the MOQ of your product?

      A: It would depand on different specification you choose, please feel free to contact with us directly.
