3v lithium button cell CR1220 battery with 2 pins / VE type

Product Overview

Description

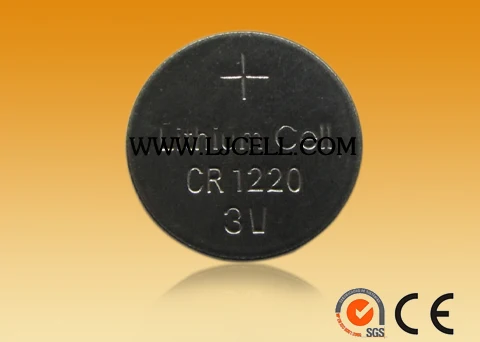

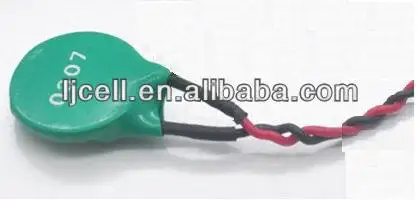

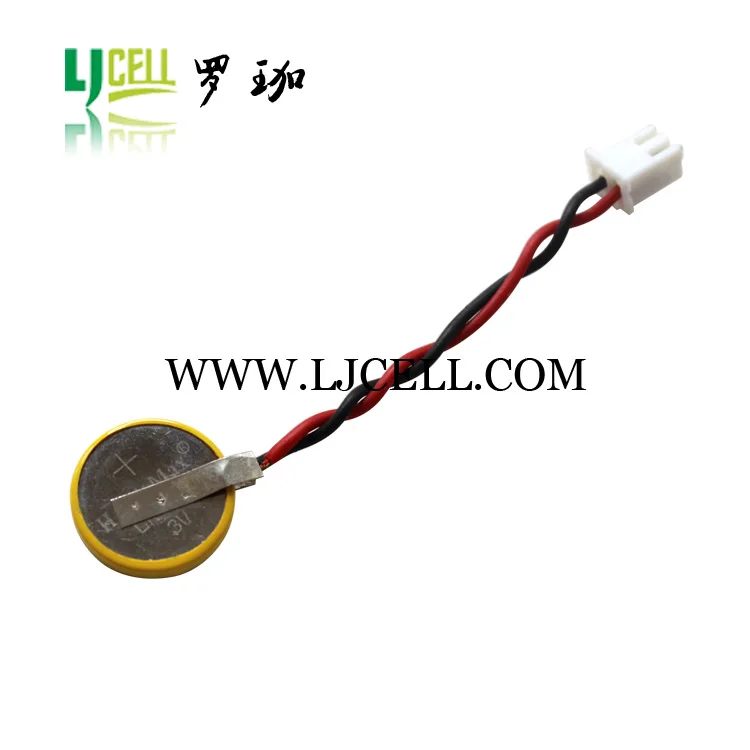

3v lithium button cell CR1220 battery with 2 pins / VE type



Specifications:



Model	CR1220
System	Manganese dioxide-Li/Organic Electrolyte
Nominal Voltage(V)	3
Nominal Capacity(mAh)	36
Nominal Discharge Current(mA)	0.1
Temperature Ranges(deg.C) Operating	Min..		Max.
	-20		+85
Weight(g)**	0.8

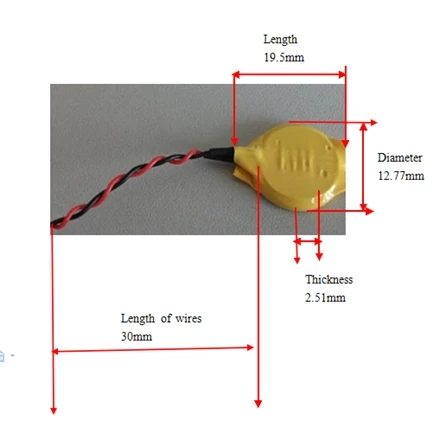

Dimensions	Diamater	Height		Negative Cap Diameter
	12.5	2.0		8.2



Advantages:



1.No mercury and cadmium added, environmentally-friendly, greenery.

2. High performance of leakage-proof.

3.Certification: CE and SGS certified.

4.Package: industrial packaging and card packaging ( 5pcs on per card )



5. Stable and reliable discharge voltage



6. Excellent storage characeristics



7. Low self discharge rate of less than 2 percent



8. Long shelf life



9.Excellent fast pulse discharge characteristics



10. Wide operating temperature range from -20°c to +85°c
