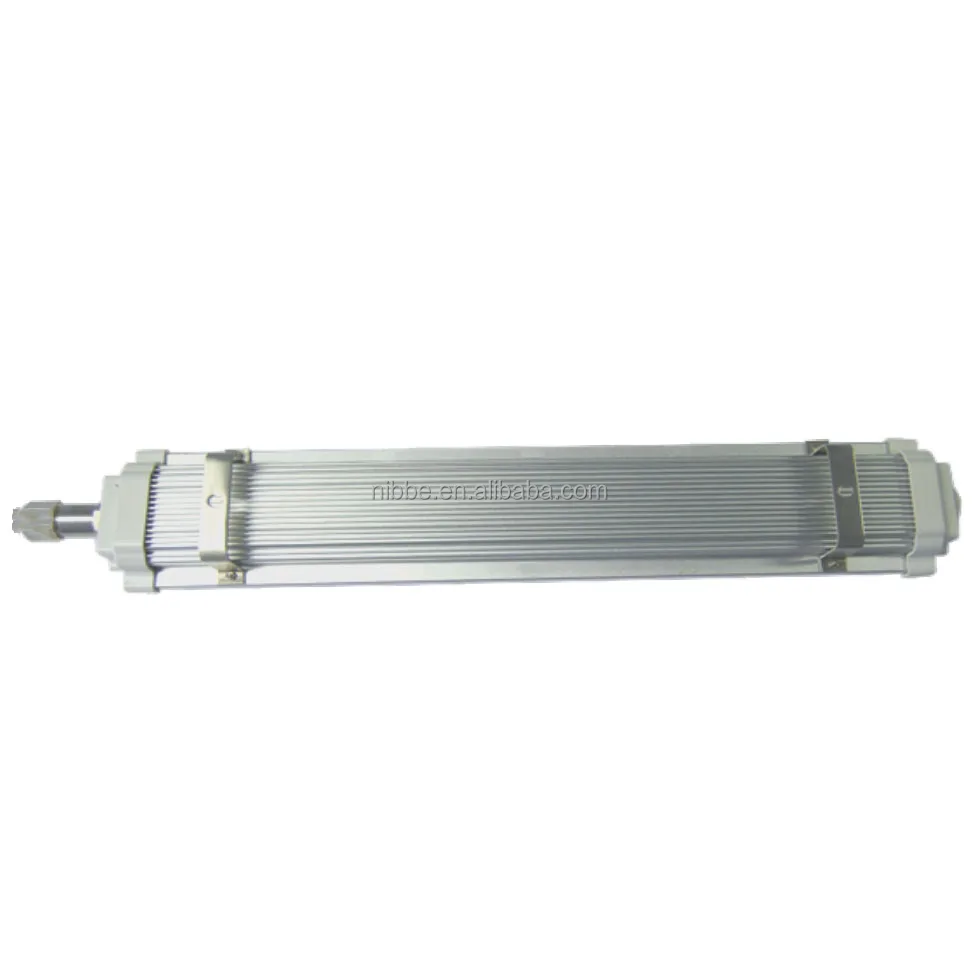

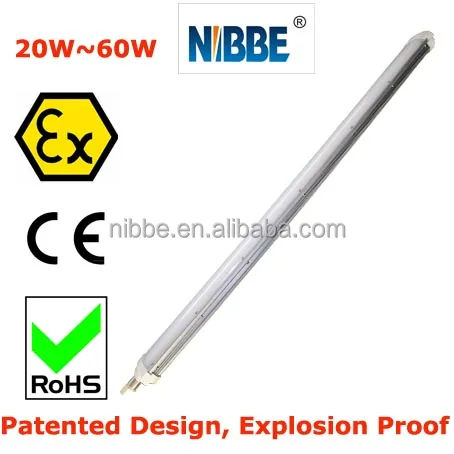

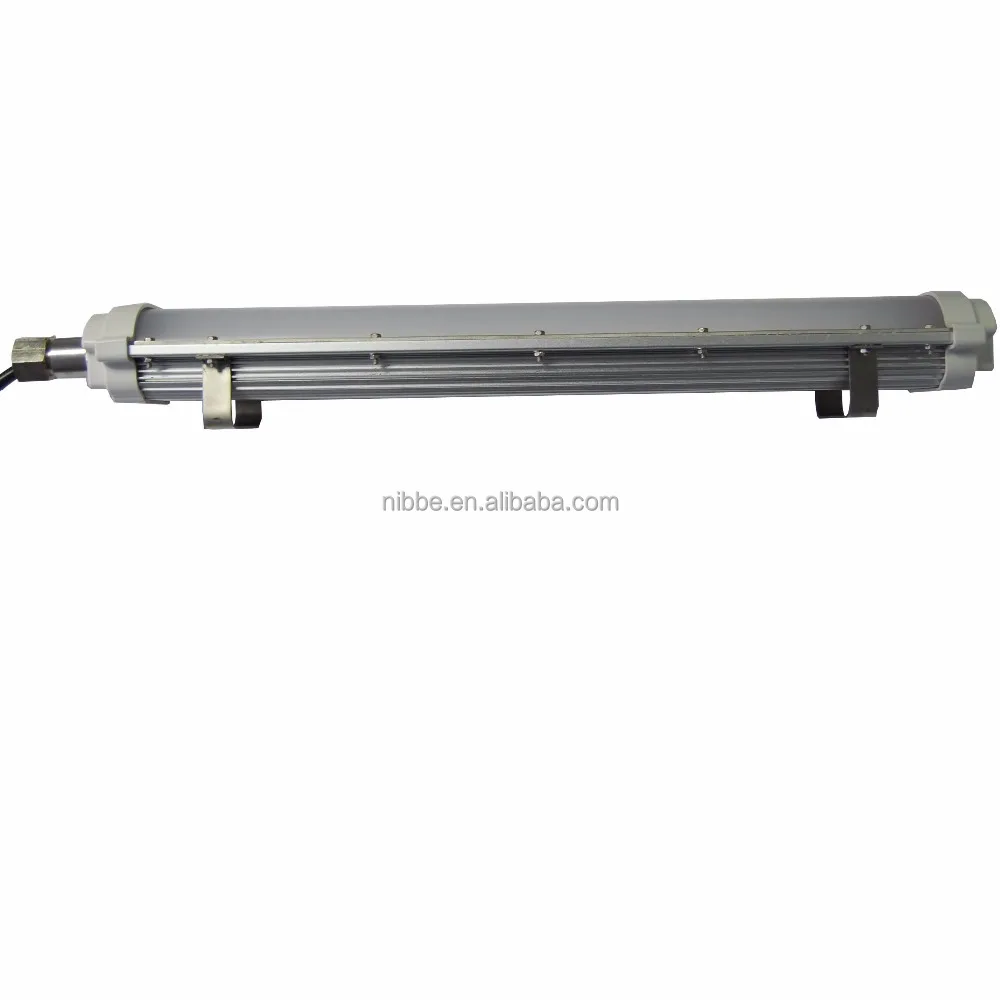

IP66 60W ATEX explosion proof led linear tube light lamp

Product Overview

Description





1. industrial explosion proof led tube dimension 1295×136×91.5mm.

2. cover made of PC have high strength,impact-resistance,heat-resistance,corrosion-resistance.

3. Application: IP66, explosion proof  and can be used in oil fields,oil refineries,offshore oil platform,power plant,gas station,oil tanks,wharf,tunnel,pumping station,substation,the military base.

4. hight safty since chamber of light source and chamber of power supply are separated.

5.SMD LED stick and long lifetime.

Many choices of Rated power 20W,30W,40W, 50W or 60W explosion proof led tube.

If you need similar products or need more details, please feel free to contact me or visit our company website www.nb-led.com

Technical Parameters:

Power Consumption	20W	40W	60W
Input Voltage	220V AC(applied for 95-265V)
Frequency	50Hz/60Hz
Explosion-proof Grade	Ex dnAIIBT6
Corrosion-proof Grade	WF2
IP Grade	IP66
Light Effect	≥80lm/W
Beam Angle	120°
Power Factor	≥0.90
Cable Entry	Φ8~Φ10mm
Installation Height	2~3m	3~5m	3~6m
Illuminance at 3m	70LX	141 LX	182 LX
Ambient Environment	Temperature:-30°C-55°C;Humidity:10-90%RH(25°C)
Storage Temperature	-40°C-60°C
Lifespan	>50000Hs
Material	Aluminum Alloy&PC
Dimension	L1295*W136*H91.5mm
Net Weight	6.4Kg
