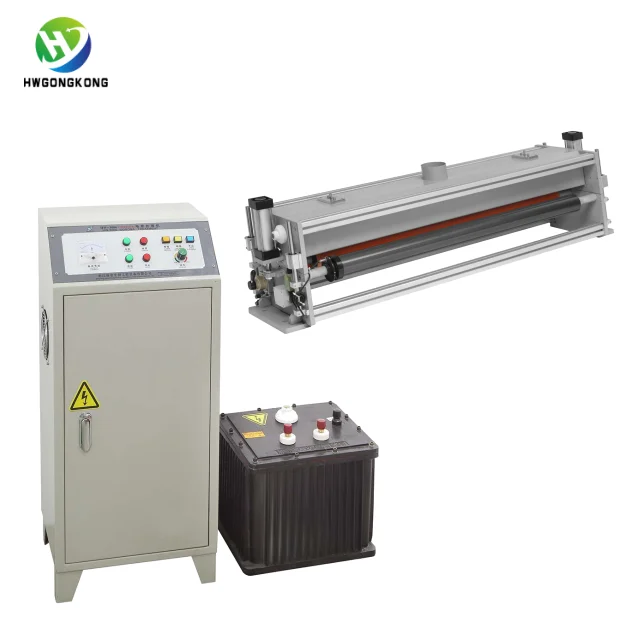

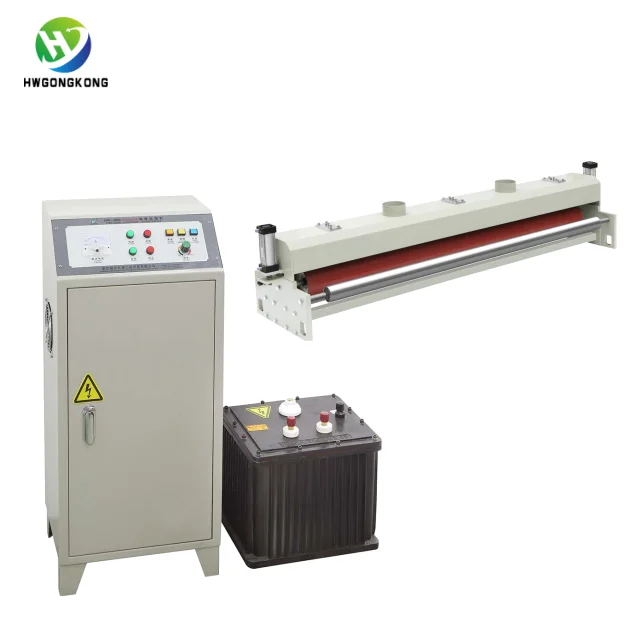

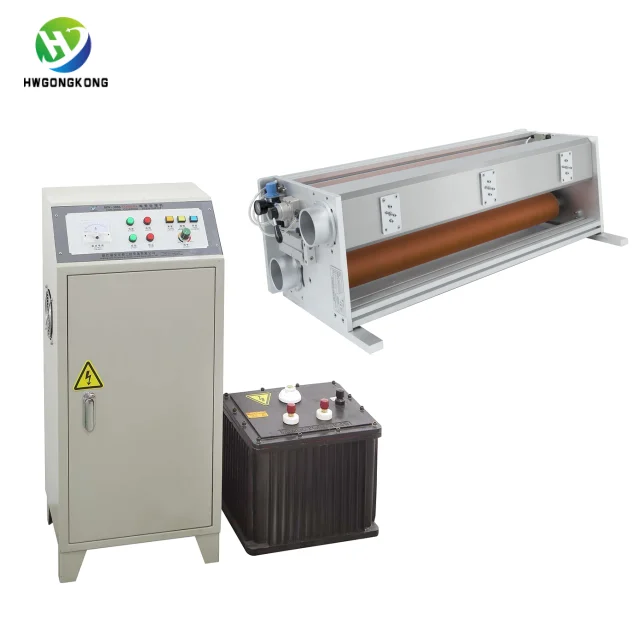

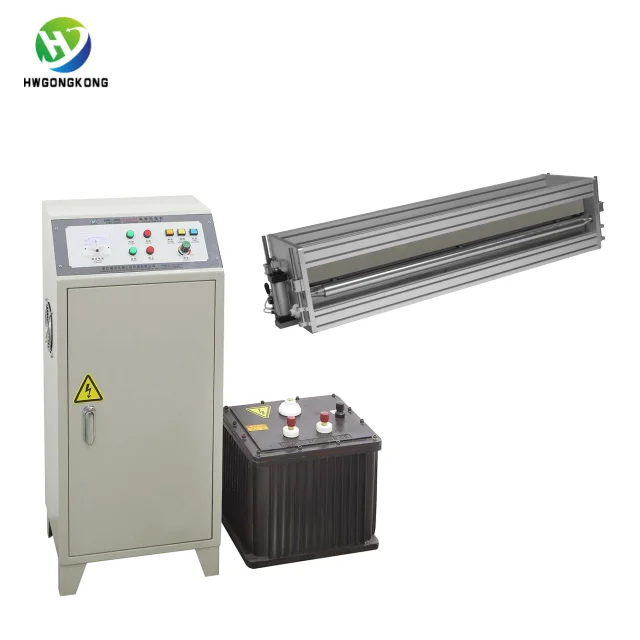

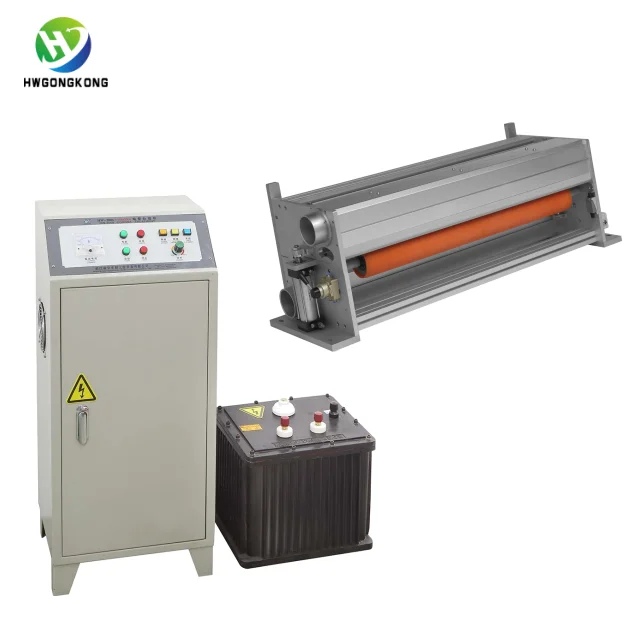

High Power Corona treating,Corona Treater Machine,Plastic Film Surface Corona Treatment Machine

Product Overview

Description

 High Power Corona treating,Corona Treater Machine,Plastic Film Surface Corona Treatment Machine



Features of corona generator:

  1. It adopts high voltage fast-switching power transistor as power conversion device

  2. High efficiency, high operating frequency.

  3. Power output is continuous adjustable.

  4. Electronic protection and low speed automatic off.

  5. Server in the film production, printing, gelatinize, and complex unit.

  6.Uniform treatment through out the web width

Technical Specification:

Item	HW3006
Power supply	AC380V±10%/-15%
Mains frequency	50 Hz ± 5 %
Line speed	80-150m/min
Output frequency	19 Khz
Max.output power	6.0 Kw
Corona output	a. Constant at same speed b. No influence of supply voltage
Dynes level	38-46Dynes/cm
Treated side	Singel side or Double side
The max treated width	1500mm
Treated material	PP,PE,PS etc plastic film,Metal film
Packing size(Wooden case)	46*37*96CM   50KG(Generator)                                                                                              45*45*50CM   60KG(High voltage transformer)
		Environment temperature	-10°C ~ +40°C
Environment humidity	20%~93% no condensation
Application	Film blowing machine,printing machine ,laminating machine etc
Corona treatment station	Avalible as customer's requirements



Benifits:



  1.Easy to install

  2.Accurate output power

  3.Small, compact and economical design

  4.Low maintenance

  5.User friendly

  6.Maximum operator saftey

 Optional value added features:

   1.Pneumatic operated treater station.

   2.Zero speed switch to protect silicoan sleeve.

   3.Ozone extraction system efficiently remove ozone and cool the electrode.

   4.Steel corona station frame with painting anti-rust.



Please contact us for more machine technical datails and proposal.

 We can send you machine video for clear understanding.
