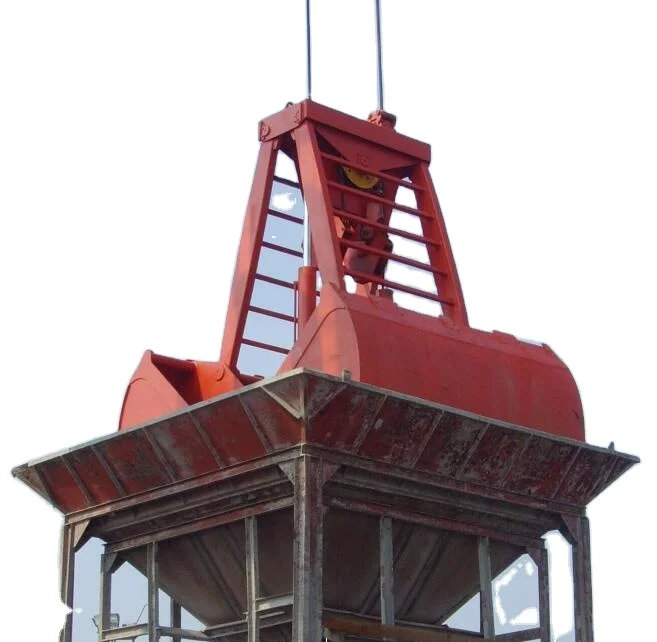

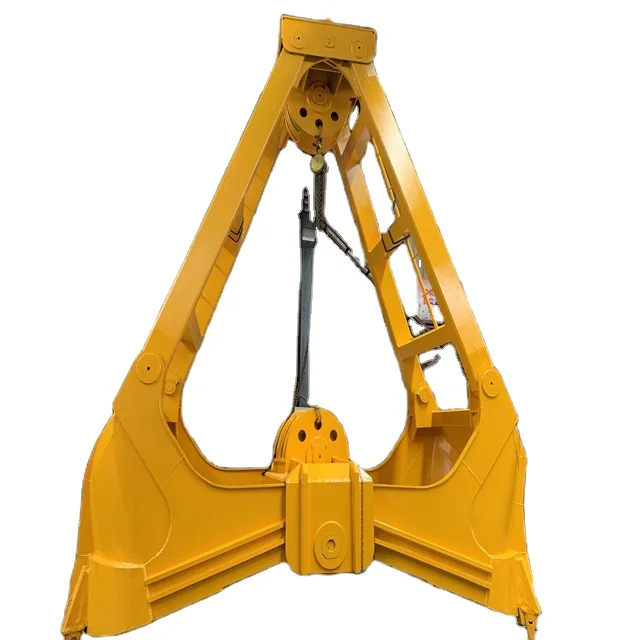

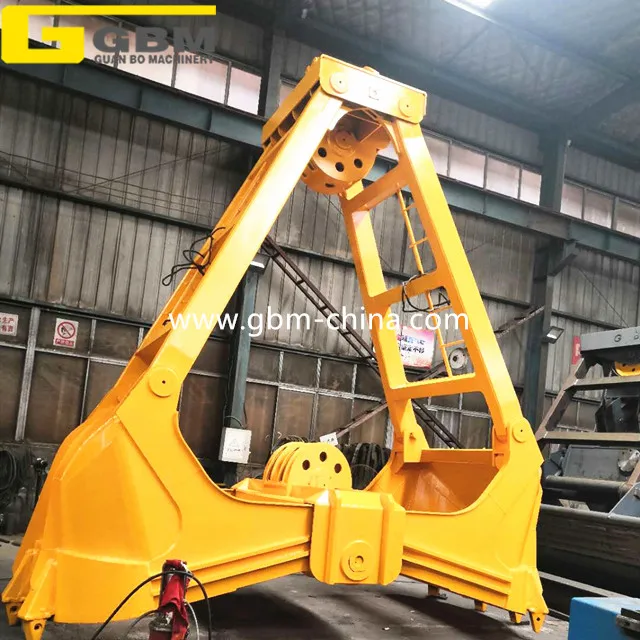

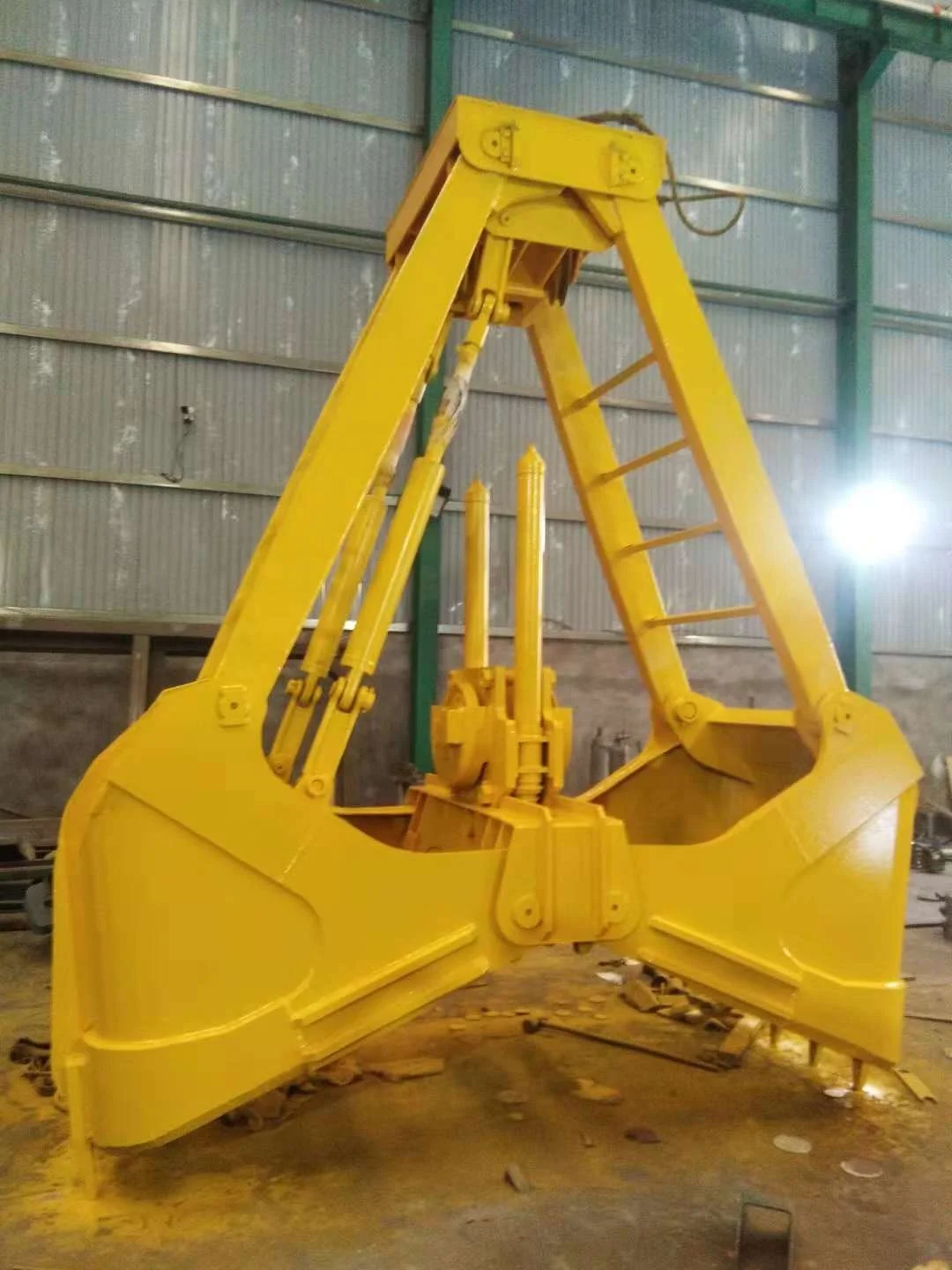

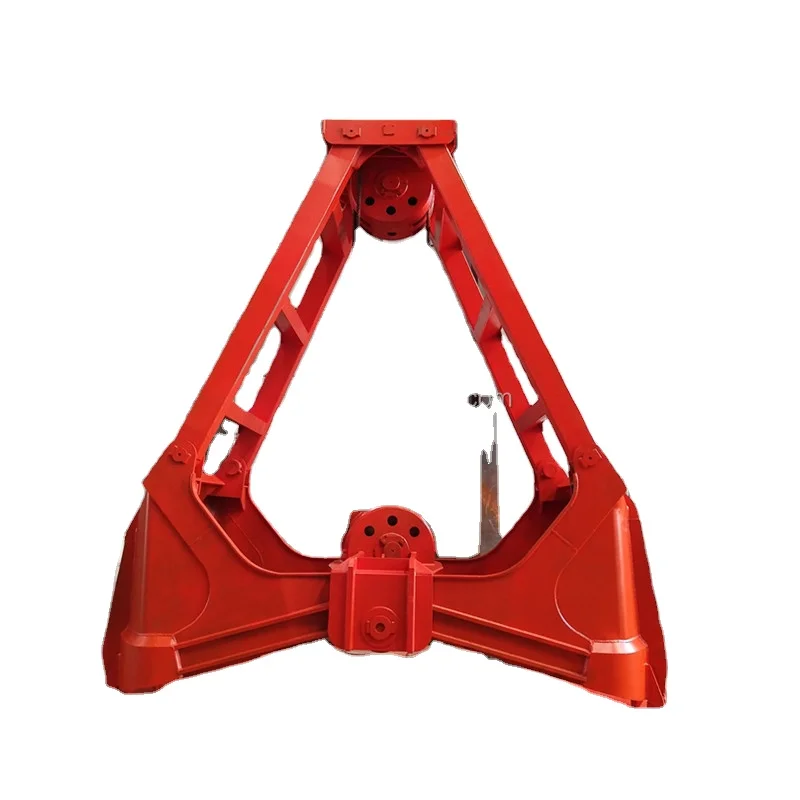

Four rope mechanical grab GBM

Product Overview

Description

 Product Description





Four rope mechanical grab features:

With its extremely efficient design, the four rope mechanical grab combines a favourable distribution of forces in the construction with the advantages of easy operation.

Itstand out thanks to their excellent digging and filling capabilities, extremely short cycle times, long life expectancy and very low maintenance costs.

While designing the grab,

we took extreme working conditions and high occupancy degree of the installation into account.



Grabs are available with every possible kind of opening direction and with diverse cable patterns: longitudinal,

tranversal and diagonally opening in relation to the crane. To combat the emission of dust, the grab can also be fitted with environmentally friendly shells.

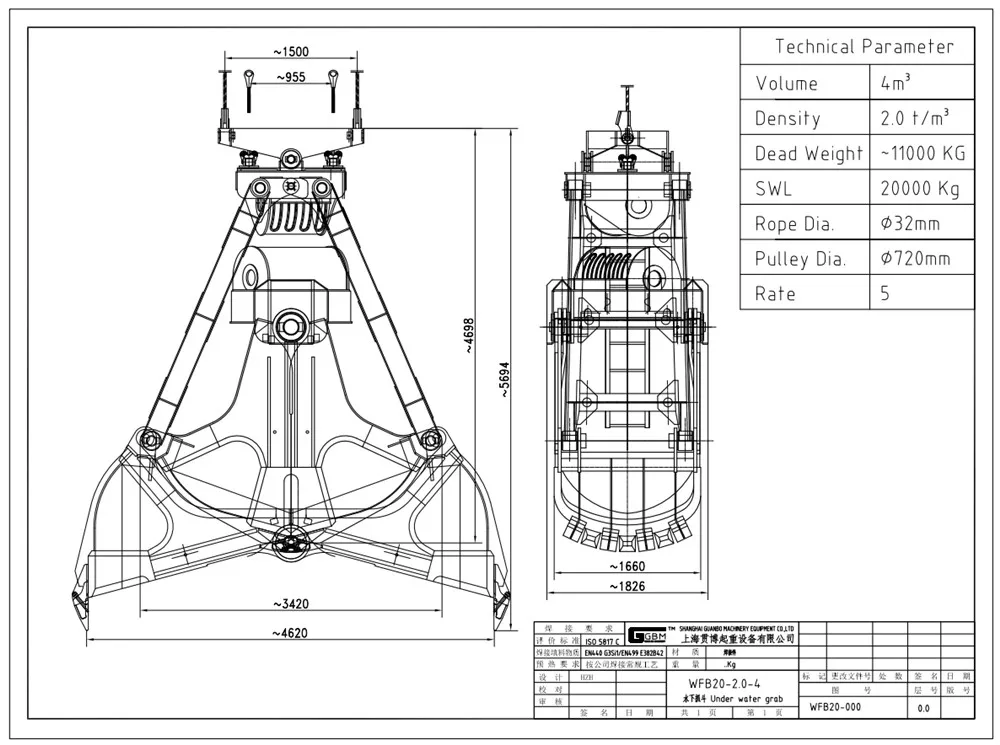

Drawing

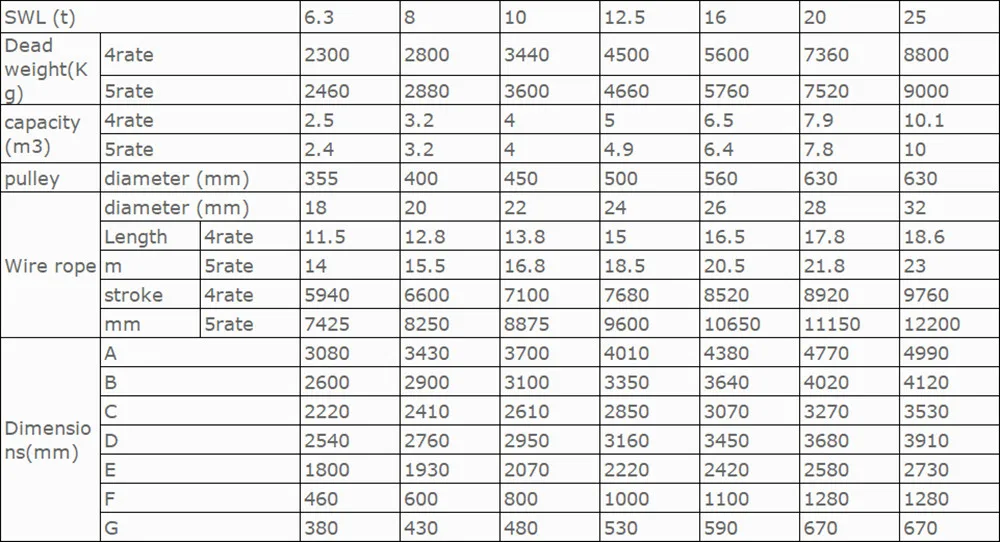

Technical Parameter



FAQ



Q1. Can the grabs be customized?
Yes, every customer’s working condition is different, all of our products can be customized depend on customers’ requirements.
Please give us the information as clear as you can, so we can give our best design to suit for your demands.

Q2. Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...
Q3: In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:
1. Where is the grab installed? Overhead cranes, gantry cranes excavators or other equipment?
2. What is the main lifting material?
3. What is the grab volume required?
