Grater Rasper Best Price Machinery For Wire Free Rubber Mulch

Product Overview

Description

Best Price Machinery For Wire Free Rubber Mulch   :

The Grater/Rasper:

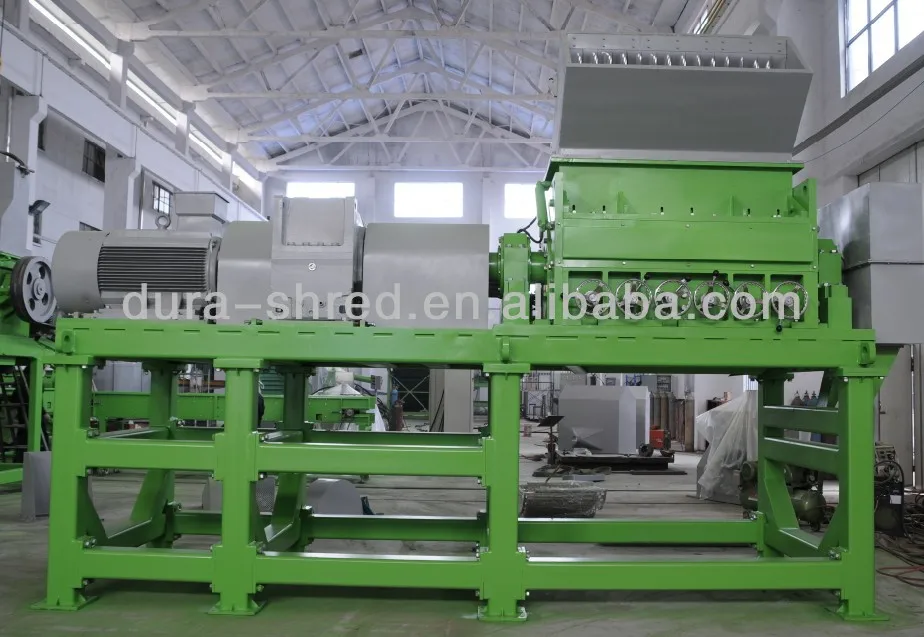

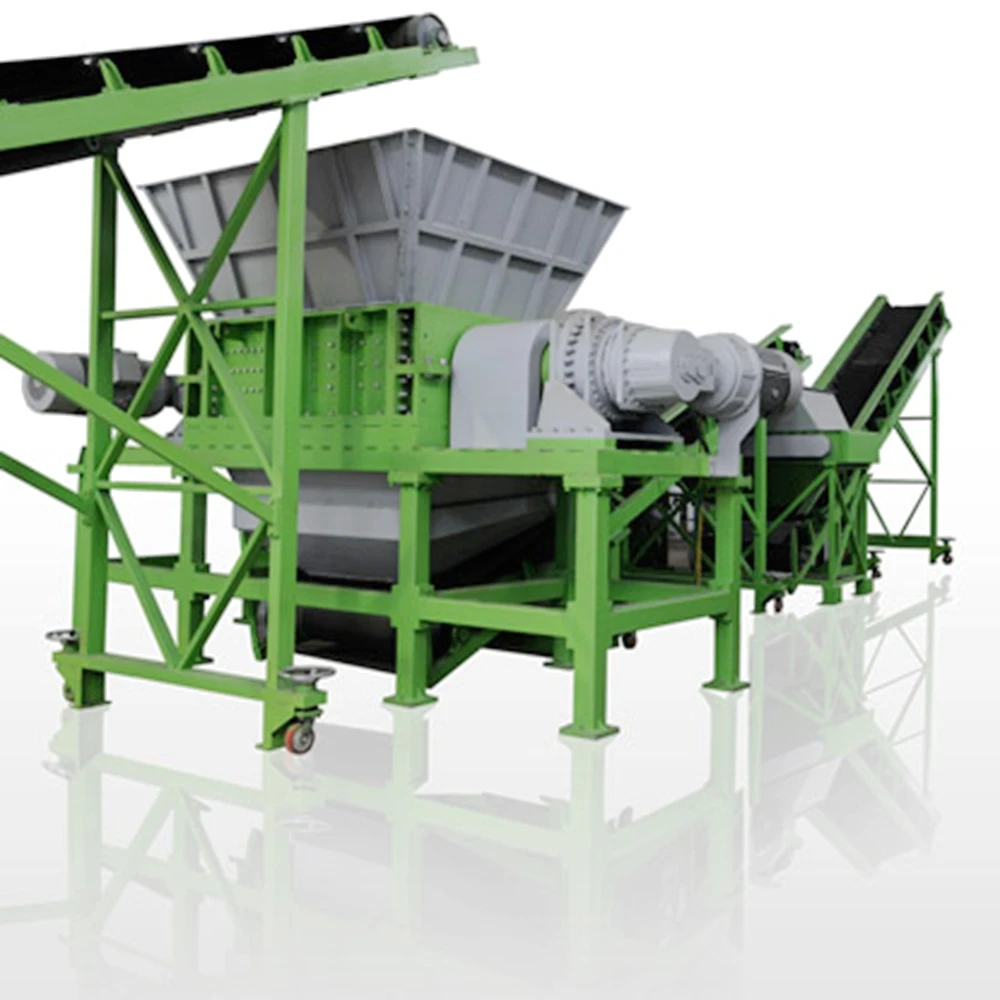

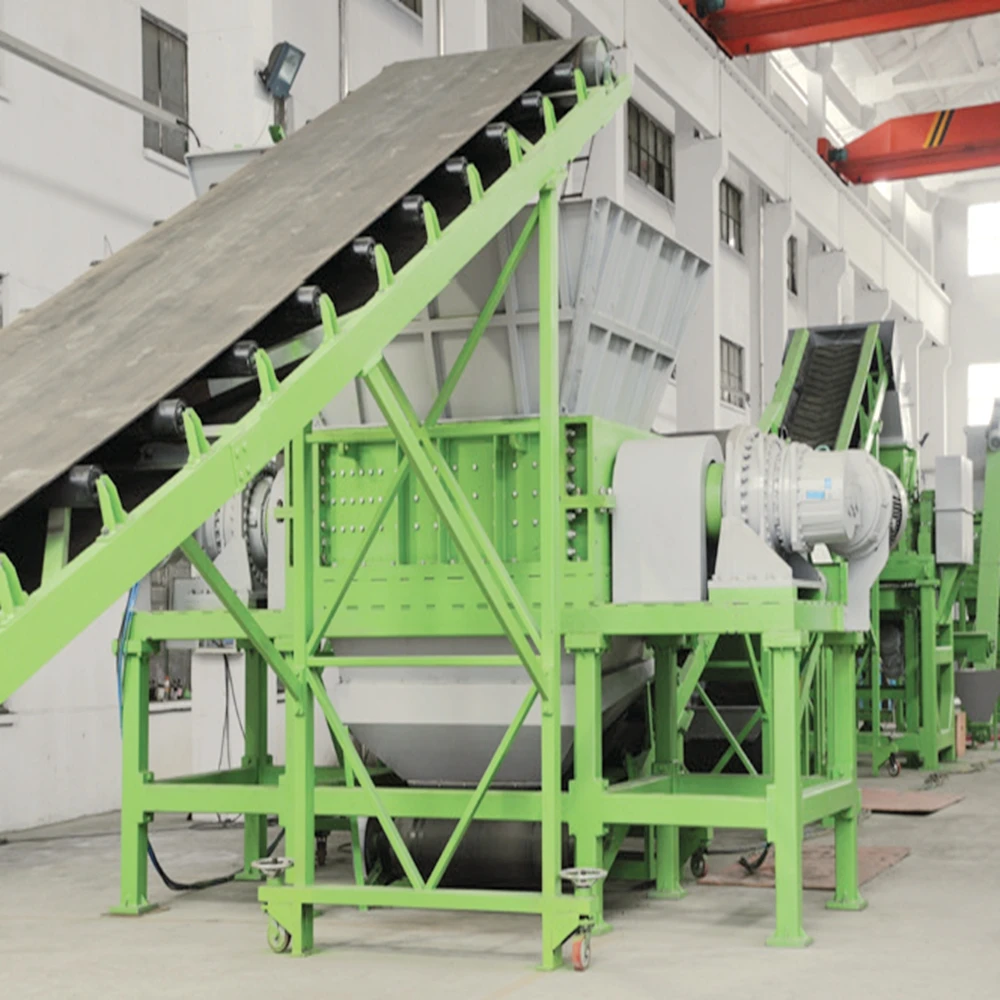

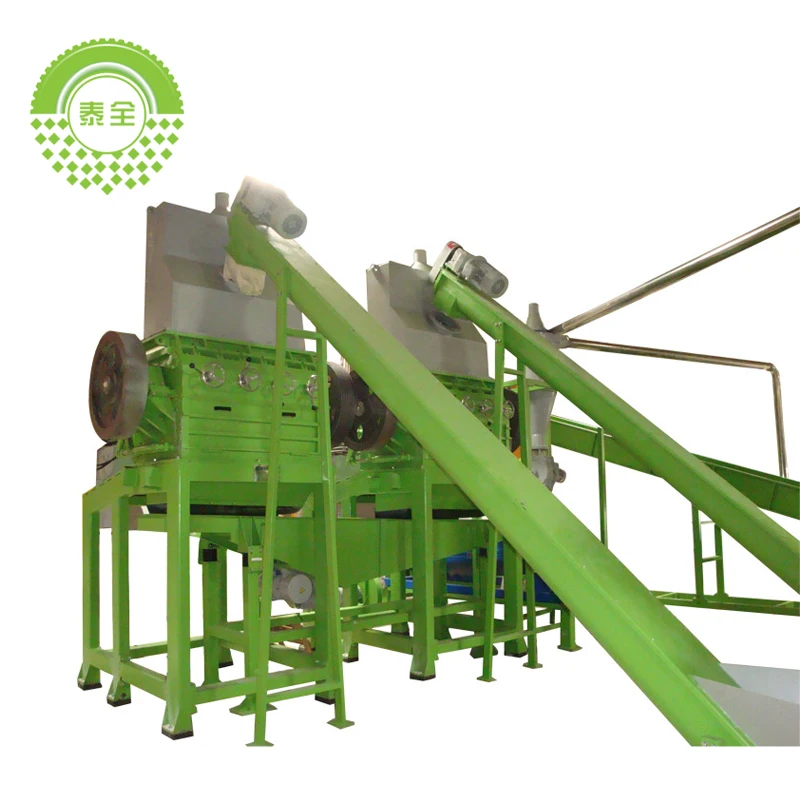

       Dura-Shred Grater:The Grater/rasper is the ultimate machine for mid-stream grinding and steel separation. It is specifically designed to take pre-shredded tires chips and produce between 30-10 mm (1.5” and 0.5”) wire free rubber chip. The Grater and can process up to 6 tons of input per hour. The main rotor housing is equipped with replaceable wear plates to increase the durability and longevity of the cutting chamber. Another unique feature of this machine is the ability to turn the knives once before having to send them to be sharpened or replaced, minimizing operating costs.



      The Grater/rasper takes the TDF rubber chips(50-150mm) from tire shredder machine and reduces them to 10mm-30mm. At this point 99.9% of the steel has been stripped and is removed with our magnet belt as the rubber mulch is transported to the vibratory conveyor for separation. For crumb rubber steel free mulch will be sent via conveyor to the Granulators for further processing



Equipment specification



	TR2663	TR2147	TR1740	TR1732	TR1332	TR1324
Motor Specification	Electric	Electric	Electric	Electric	Electric	Electric
Number of Motors	1	1	1	1	1	1
HP/KW range	315Kw	132Kw	90Kw	75Kw	55Kw	45Kw
Voltage	as per customer request	as per customer request	as per customer request	as per customer request	as per customer request	as per customer request
Cutting Chamber Dimension	697 x 1562	742 x 1200	550 x 1000	550 x 800	450 x 800	450 x 600
Equipment Dimensions L x W x H	6217 x 2168 x 3561	2010 X 2562 x 4110	2095 x 2180 x4105	1995 x 1980 x4105	1720 x 1730 x 2316	1400 x 1200 x 2260
Equipment Weight	24000KG	6100KG	4200KG	3500KG	1850KG	1700KG
Hopper Opening L x W x H	1726 x 877 x 906	1412 x 902 x 1410	1182 x 700 x 1255	982 x 700 x 1255	922 x 580 x 916	722 x 580 x 916
Capacity	3-6 T/hr	1.5-3 T/hr	1-1.5 T/hr	700Kg-1 T/hr	500Kg-700Kg /hr	300Kg-500Kg /hr
Product Size Range	25mm-12mm	25mm-12mm	25mm-12mm	25mm-12mm	25mm-12mm	25mm-12mm





Pictures





Proven Design and Technology.

A quality system with at an affordable price!

Fully Automated via 1 centrally located touch screen control panel.

Backed with one of the best Warrantees in the industry



FAQ:

1 Warranty: 1 year warranty for main parts, 20 years for the heavy duty machine.

2 After sale service: 2 or 3 engineers will be sent to help install the machines.



3 Turn-Key service, available to handle all the work including shipment, customs clearance, etc.



4 Modern European and American technologies (Eldan, Granutech) supported by our engineers who ever worked in German company for 5 years, and 17 years in this industry.



5 Customized solutions: we design by your requirements, until you are satisfied.

6 Super great quality control system: SIEMENS, ZWZ, FAG..., details can be guaranteed in the contract!

7 After sale: Profits can be shared if you introduce new client to us from your market! Long-term cooperation is our target!



8 Price: at the same quality level, with our 17 years experiences, we promise you the lowest price!



Please contact me for any questions or detailed informations !
