Splicing Screen Ingscreen Ultra Thin Bezel Tv Lcd Smart Big Panel Video Wall
US $488.00-$533.00
49inch panel 3.5mm narrow bezel UHD resolution lcd video wall monitor 0.88 mm Commercial LCD Screen Display
- Category: Splicing Screen >>>
- Supplier: Shenzhen Yaxunda Lcd Display Equipment Co. Ltd.
Share on (1662266171):
Product Overview
Description
49inch panel 3.5mm narrow bezel UHD resolution lcd video wall monitor 0.88 mm Commercial LCD Screen Display
Features:
Adopt the Original Samsung, LG or Sharp Panel directly from Korea.
Full Metal panel shell design, high disturbance resistance, support 7days 24hours continuously playing.
10-bit LCD panel driver a better over-color, smooth vivid. with LED backlight.
PIP(picture in picture) function.

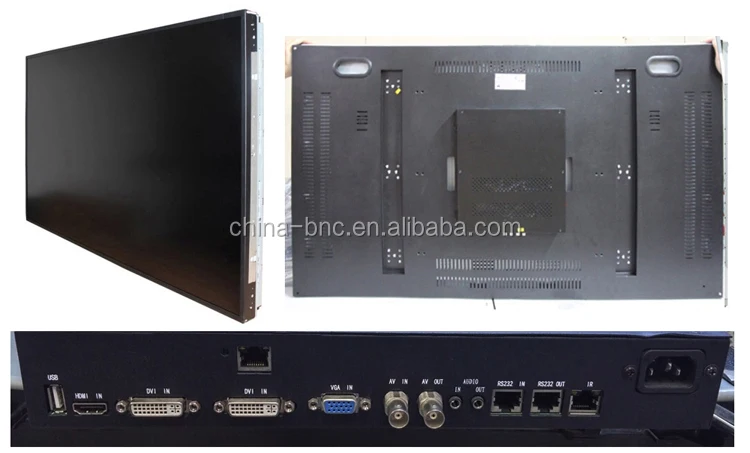

many interfaces to transmit signal ( 1xHDMI,1xVGA, 2xDVI, 1xAV ).
Automatic backlight adjustment , convenient for initialization setting.

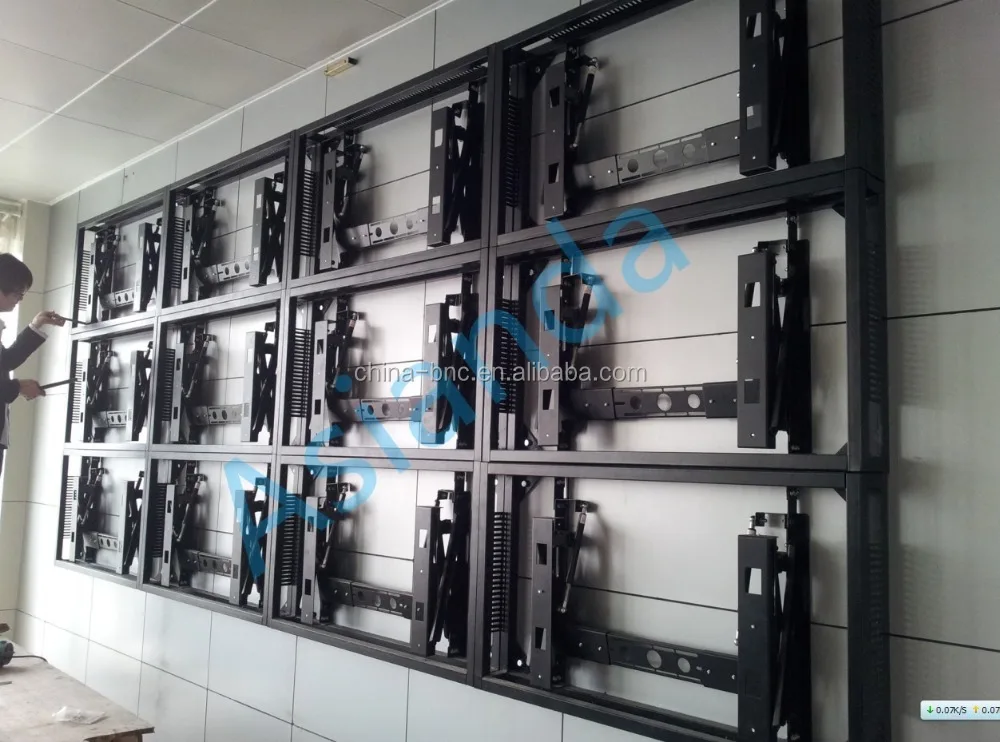

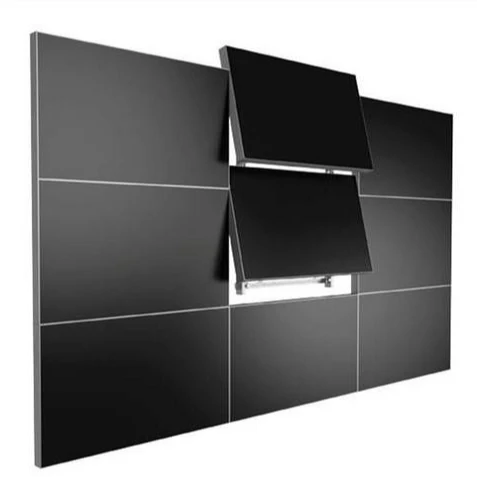

Easy installation, only fixed them together by metal bracket, wall mount and cabinet can choose.
Use life is over 5000hours.
Specification:
Model No. | PJ-B461P-6S/F | PJ-B461P-6M | PJ-491P-6S | PJ-B551P-6F | PJ-B551P-6F/K | PJ-B551P-6E/G |
View Area(L*H) (mm) | 1018.08 x 572.67 | 1074*604.2 | 1209.6*680.4 | |||
outer case Size(mm) | 1021.98 x 576.57 x 155 | 1044.9*590*110 | 1215.3*684.3*123 | |||
Packing size (mm) | 1170*440*720 | 1170*440*720 | 1448*253*935 | |||
G.W | 27.5kgs | 35kgs | 41kgs | |||
Panel specifications | ||||||
Panel Size | 46inch | 49inch | 55inch | |||
Backlight | LED | LED | LED | |||
LCD panel Brand | LG | LG | Sumsung | LG | ||
Brightness | 450cd/m2 | 700cd/m2 | 450cd/m2 | 450cd/m2 | 500cd/m2 | 700cd/m2 |
bezel for combined two panels | 5.3mm/3.5mm | 3.5mm | 3.5mm | 3.5mm | 3.5mm/1.8mm | 3.5mm/1.8mm |
Contrast Ratio | 3500:1 | 1400:1 | 1400:1 | |||
Resolution | 1920*1080 | 1920*1080 | 1920*1080 | |||
Viewing Angle | 178°/178°(H,V) | 178°/178°(H,V) | 178°/178°(H,V) | |||
Color | 16.7M | 16.7M | 16.7M | |||
Response Time | 5ms | 5ms | 5ms | |||
Using life | 50,000(hrs) | 50,000(hrs) | 50,000(hrs) | |||
Video wall controller( Built in each screen) | ||||||
DVI in | 2 or 1 | |||||
HDMI in | 1 or 2 | |||||
VGA in | 1 | |||||
AV in | 1(BNC) | |||||
AV out | 1(BNC) | |||||
Audio in | 1 | |||||
Audio out | 1 | |||||
USB | 1 | |||||
Control signal input and loop out | RS232(RJ45-8) | |||||
Control interface | remote controller or RS232 | |||||
Video system | ||||||
Color system | PAL/NTSC/SECAM | |||||
3D comb filter and video comb filter | Yes | |||||
OSD Language | English Chinese; (to be available in multiple languages) | |||||
Power | ||||||
Power supply | AC100V-240V, 50/60Hz | |||||
Max Power consumption | 200W | 300W | 300W | |||
Standby power consumption | <=3W | |||||
Temperature | ||||||
Working temperature | 0 ℃ ~ 60 ℃ (no condensation) | |||||
Working humidity | 10% ~ 90% (no condensation) | |||||
Accessories | ||||||
User Manual ,power cable,, RJ45 cable, IR receiver, remote controller, HDMI/DVI cable, USB-RS232 converter, RS232 to RJ45 converter | ||||||
