self adhesive VHB double sides tape log roll automatic slitter machine cutting machine
- Category: >>>
- Supplier: Shenzhen JCD Machinery Co. Ltd.
Share on (1662395920):
Product Overview
Description
Product Description

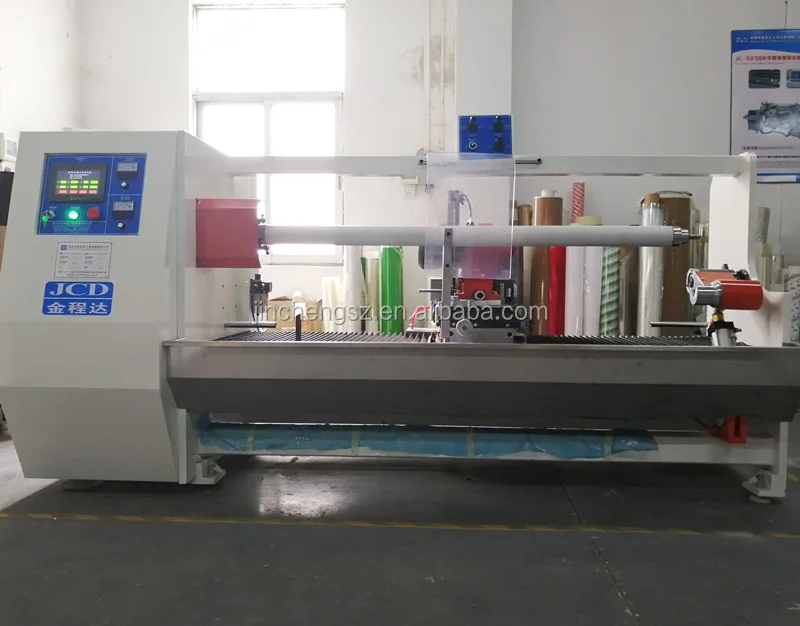

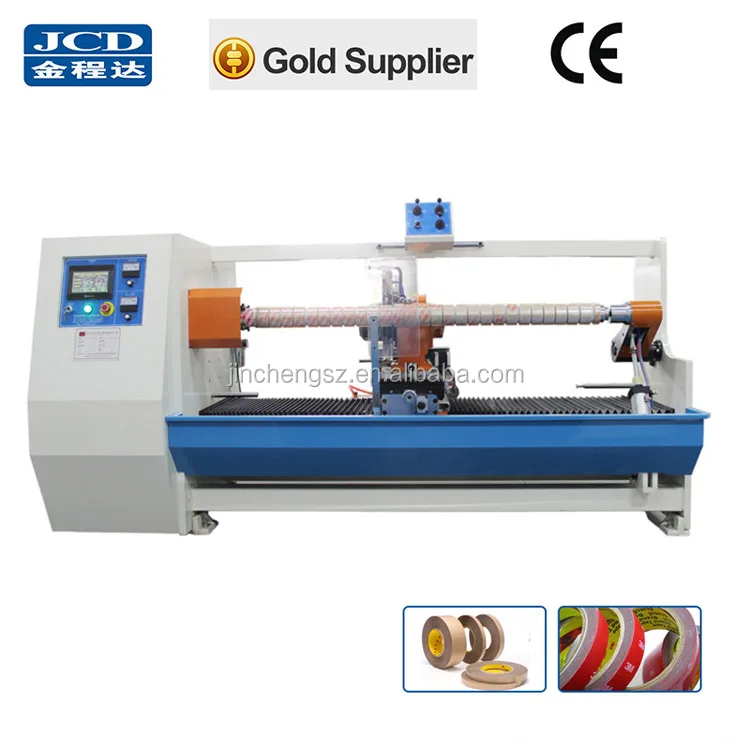

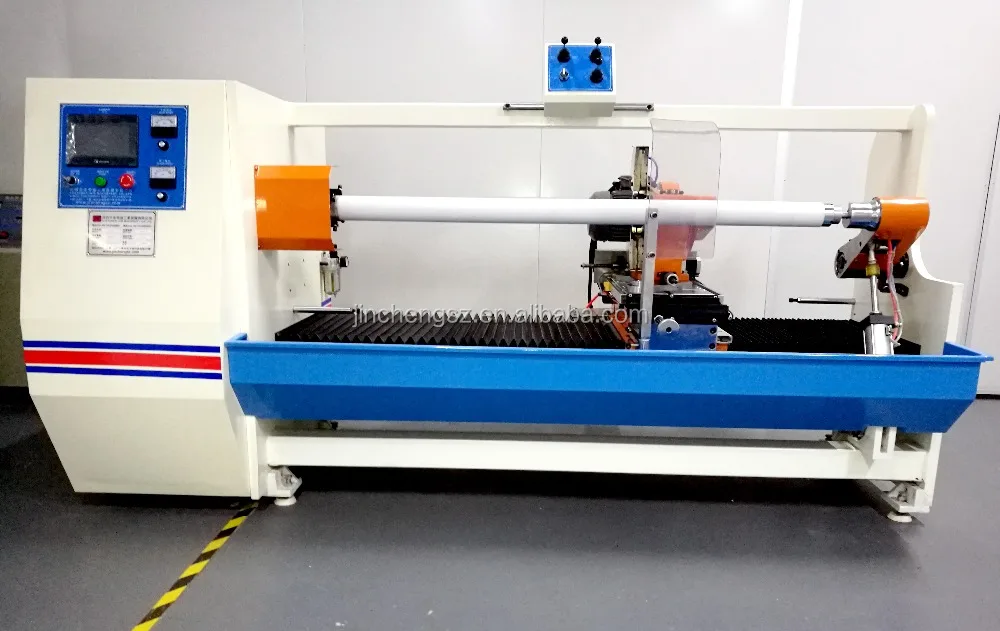

***Automatic Single shaft cutting machine***
Suitable material: Foam tape, PVC electrical tape, cloth tape, PET tape, double sides tape, PET tape, masking tape, paper tape, medical tape and so on.
*** Specification***
Type | JC-C01-1300 | JC-C01-1600 |
Valid width | 1300mm | 1300mm |
Max cutting diamter | 350mm | 350mm |
I.D of paper core | 25-76mm | 25-76mm |
Min Cutting diameter | 1mm | 1mm |
Blade diameter | 200mm, 250mm，350mm | 200mm, 250mm,350mm |
Size | 2800*1250*1300mm | 3100*1250*1300mm |
Weight | 1500KG | 1500KG |

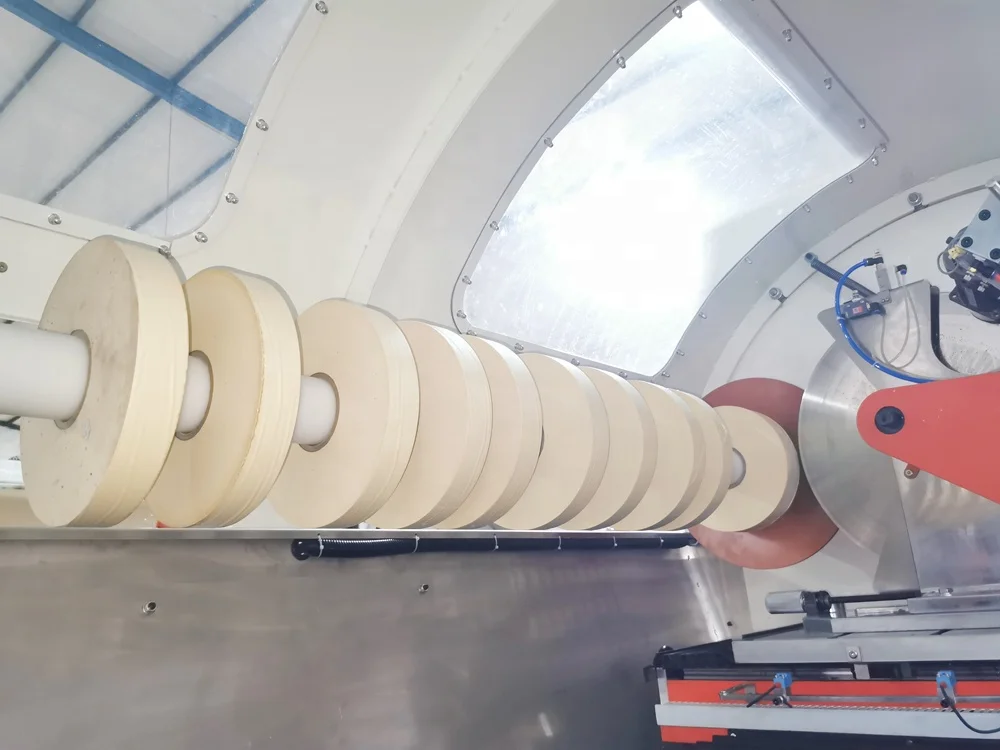

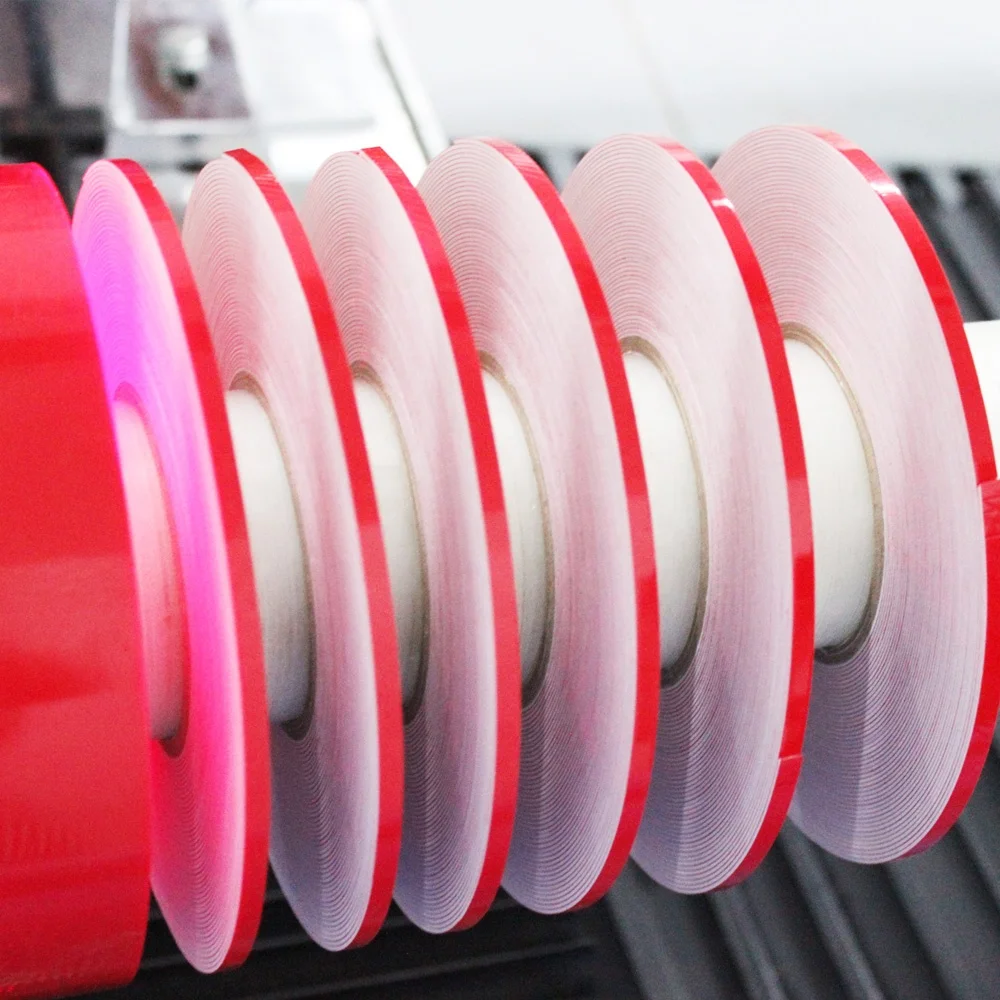

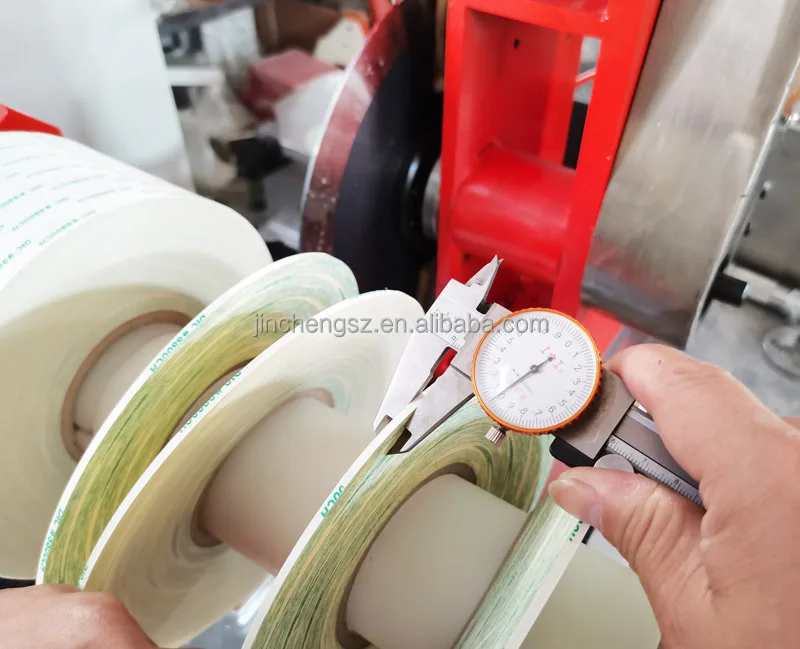

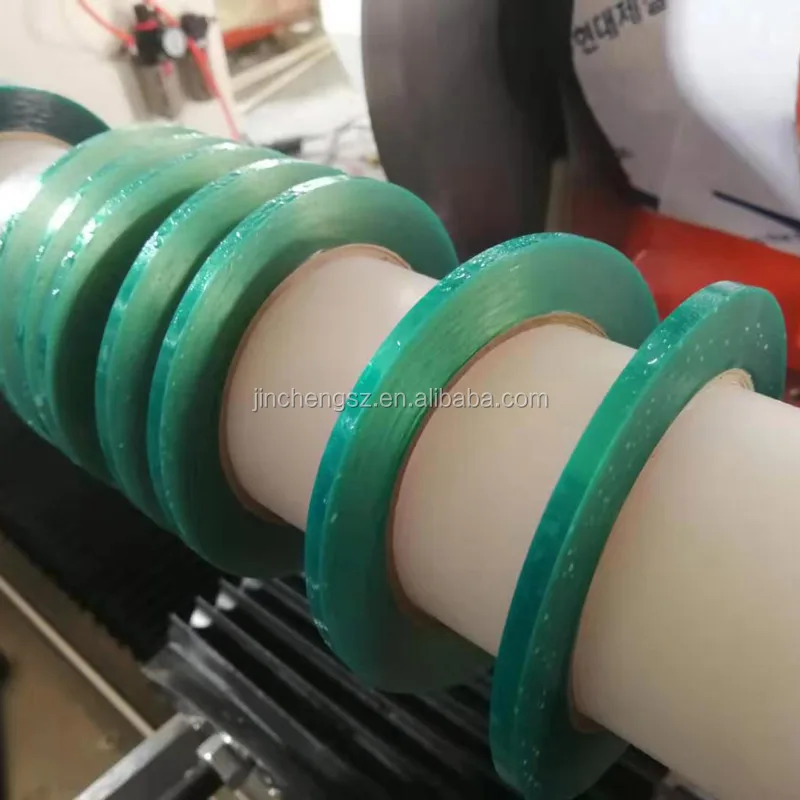

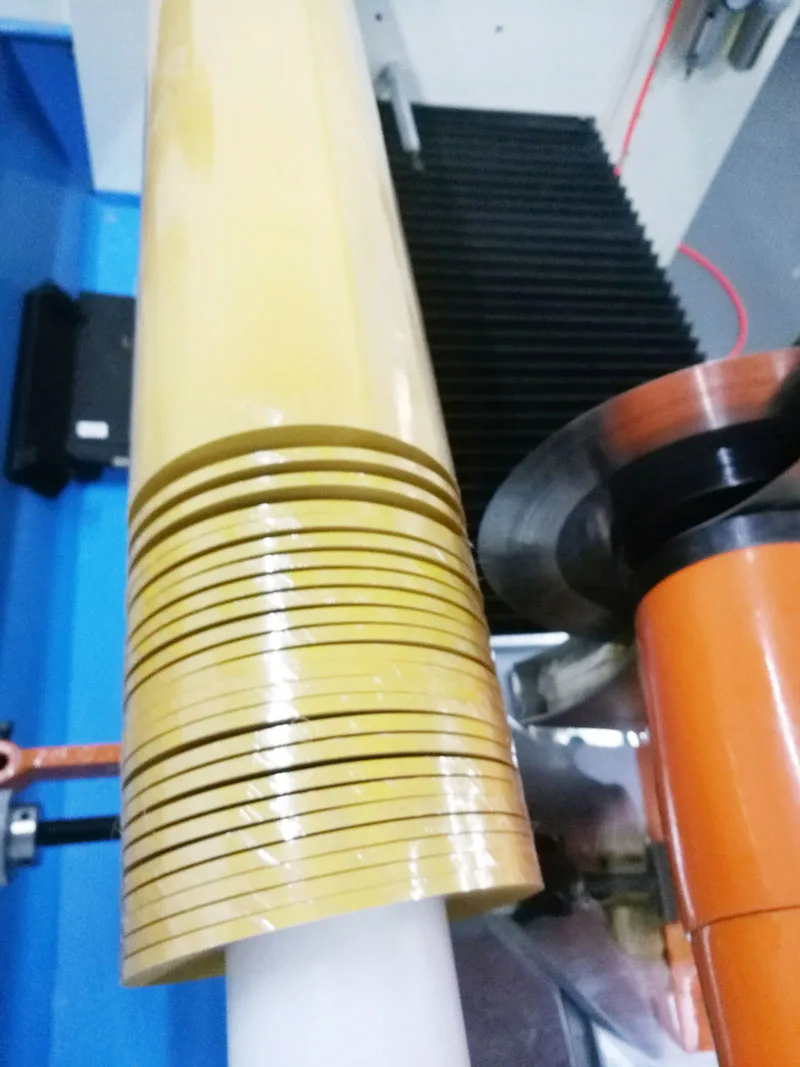

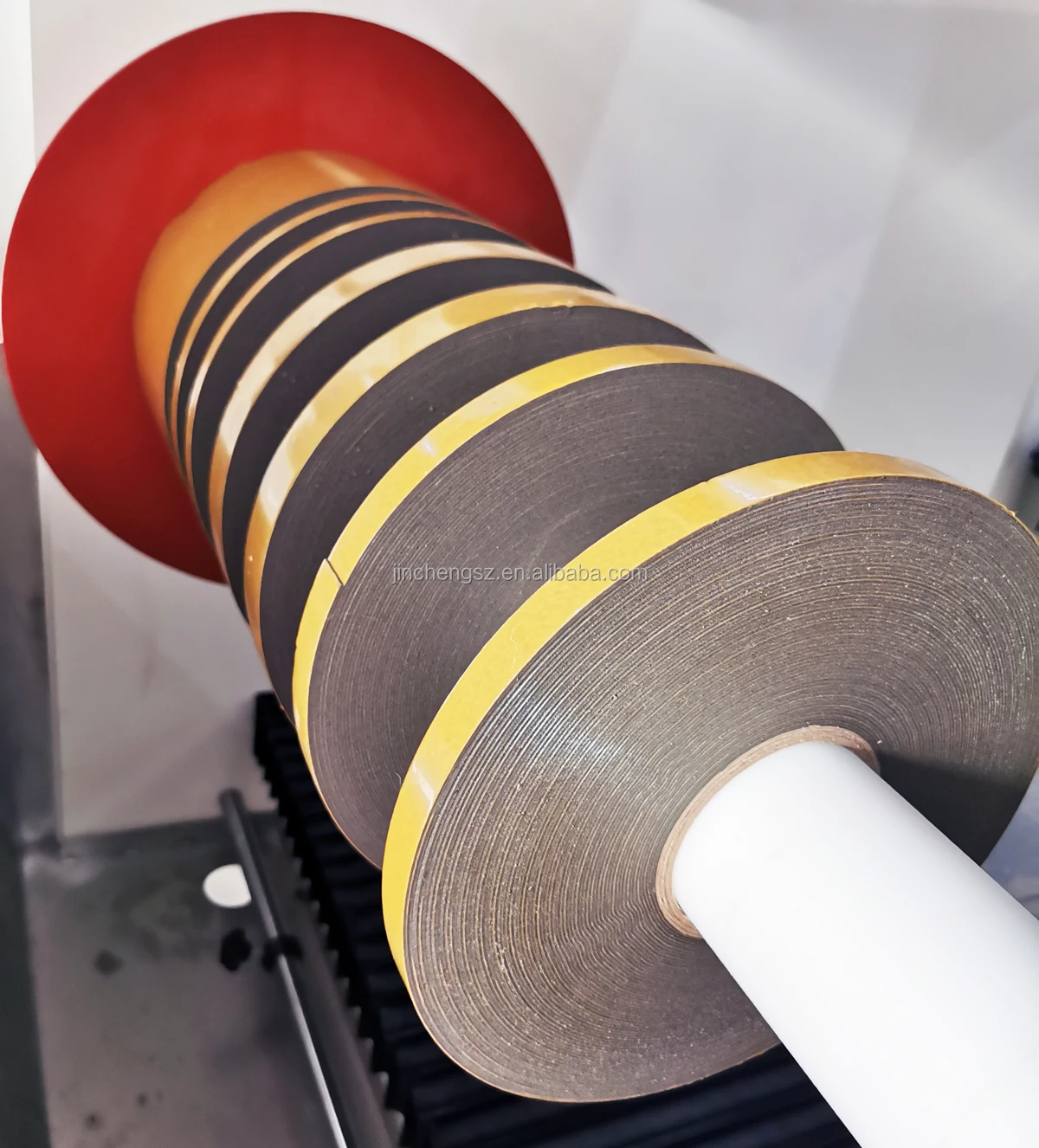

*** More photoes***

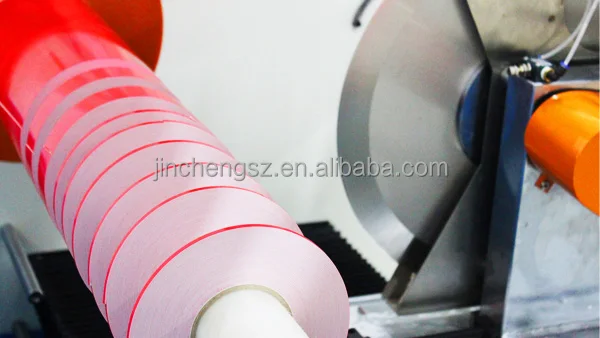

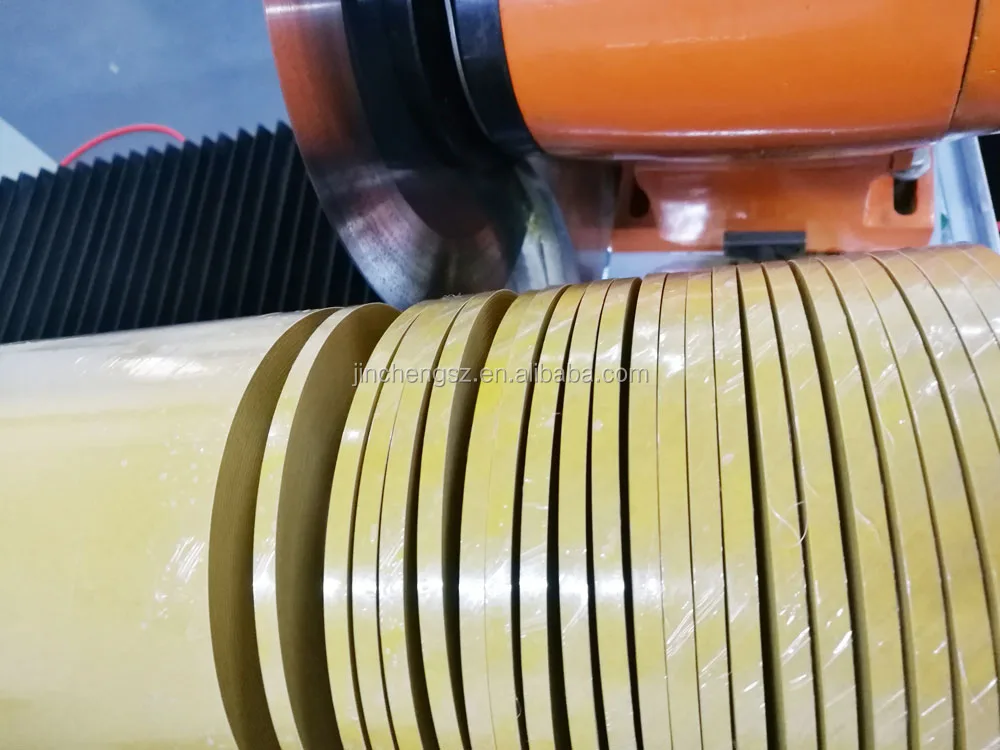

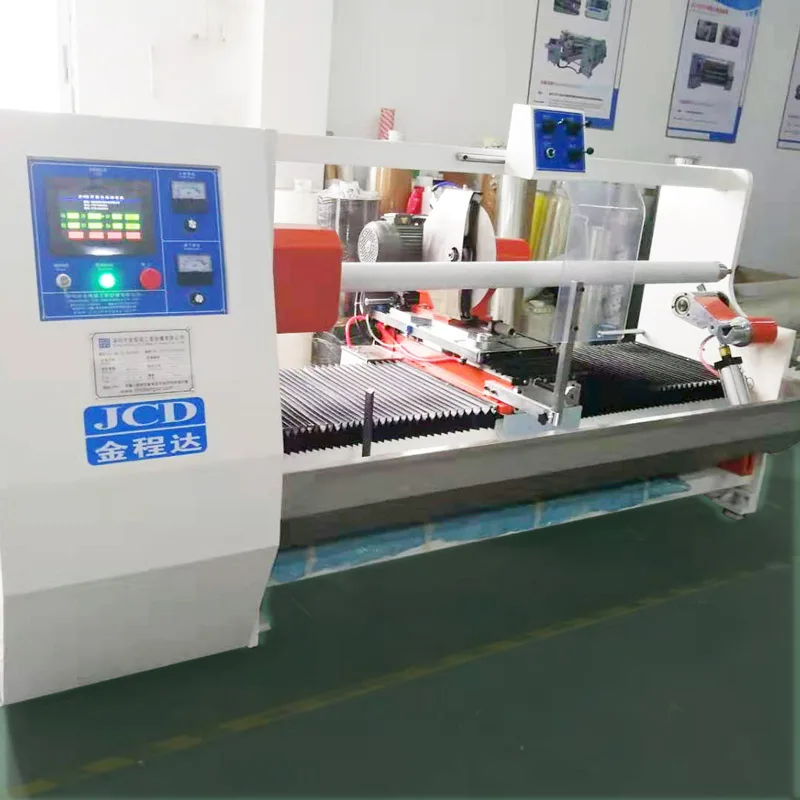

*** Detailed Images***

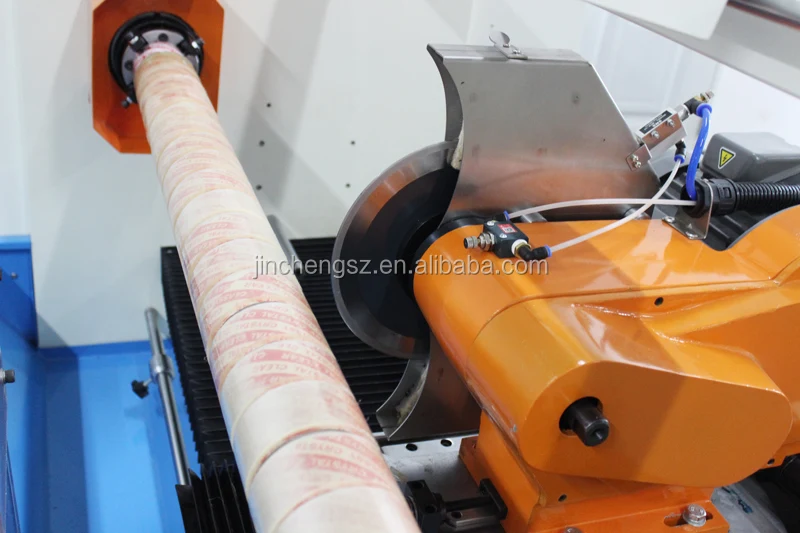

The machine can be controlled by servo motor or hydraulic motor for cutting blade feeding system.

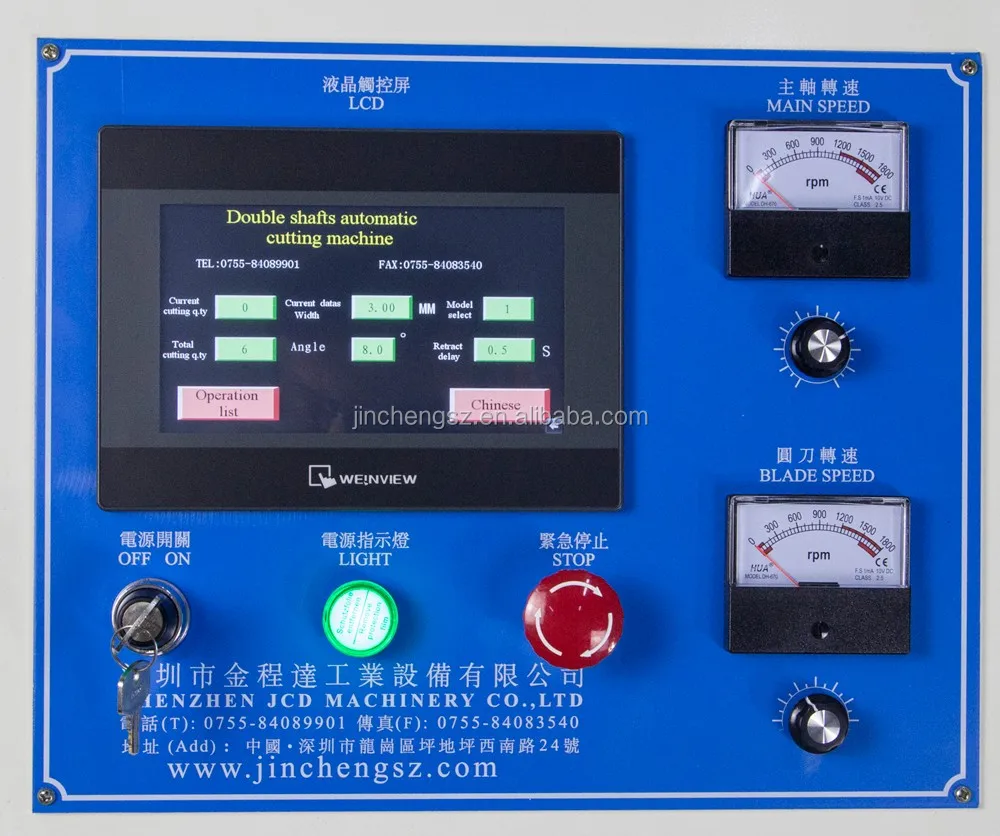

LCD Panel.
Name: LCD panel.
Brand: WEINVIEW/SIEMENS
Original: TAIWAN/JAPAN
Size: 7''/ 10 ''
Language: Normal in Chinese & English.
Other languages are optional, such as Spanish,Portuguese, Russian etc.

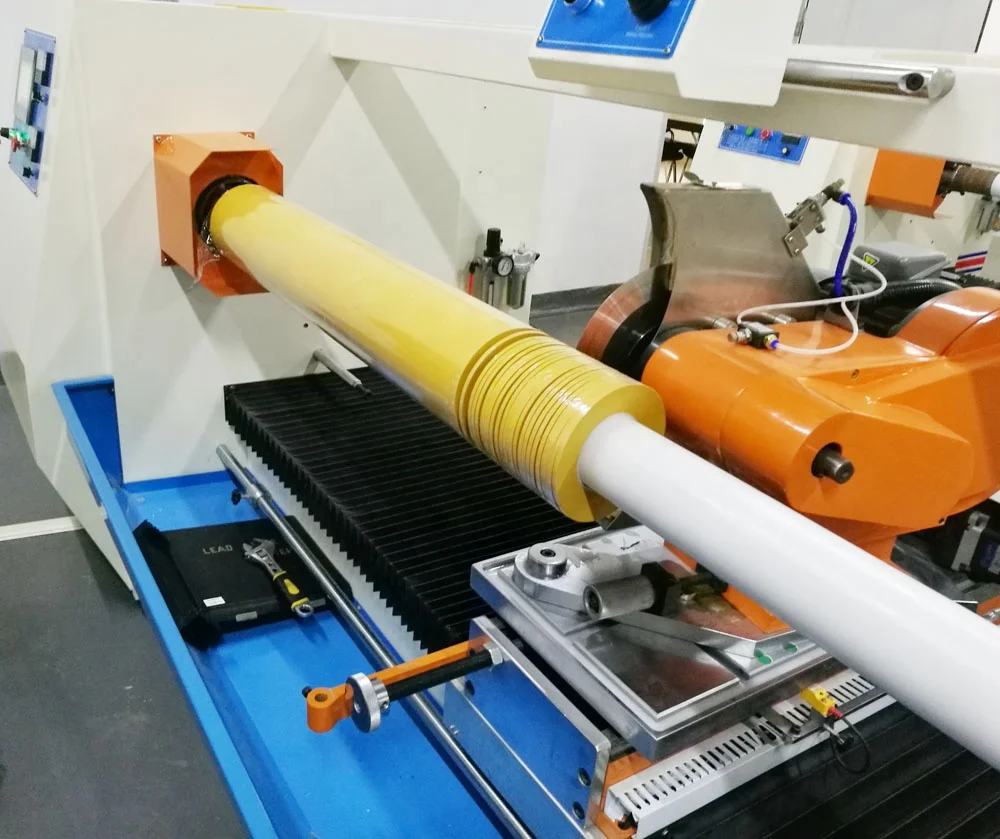

Cutting shaft size:
Standard size : 76mm
Optional size: 25mm, 32mm, 38mm, 50mm etc.
If the shaft size is below 50mm, machine will need the cutting supporter together.

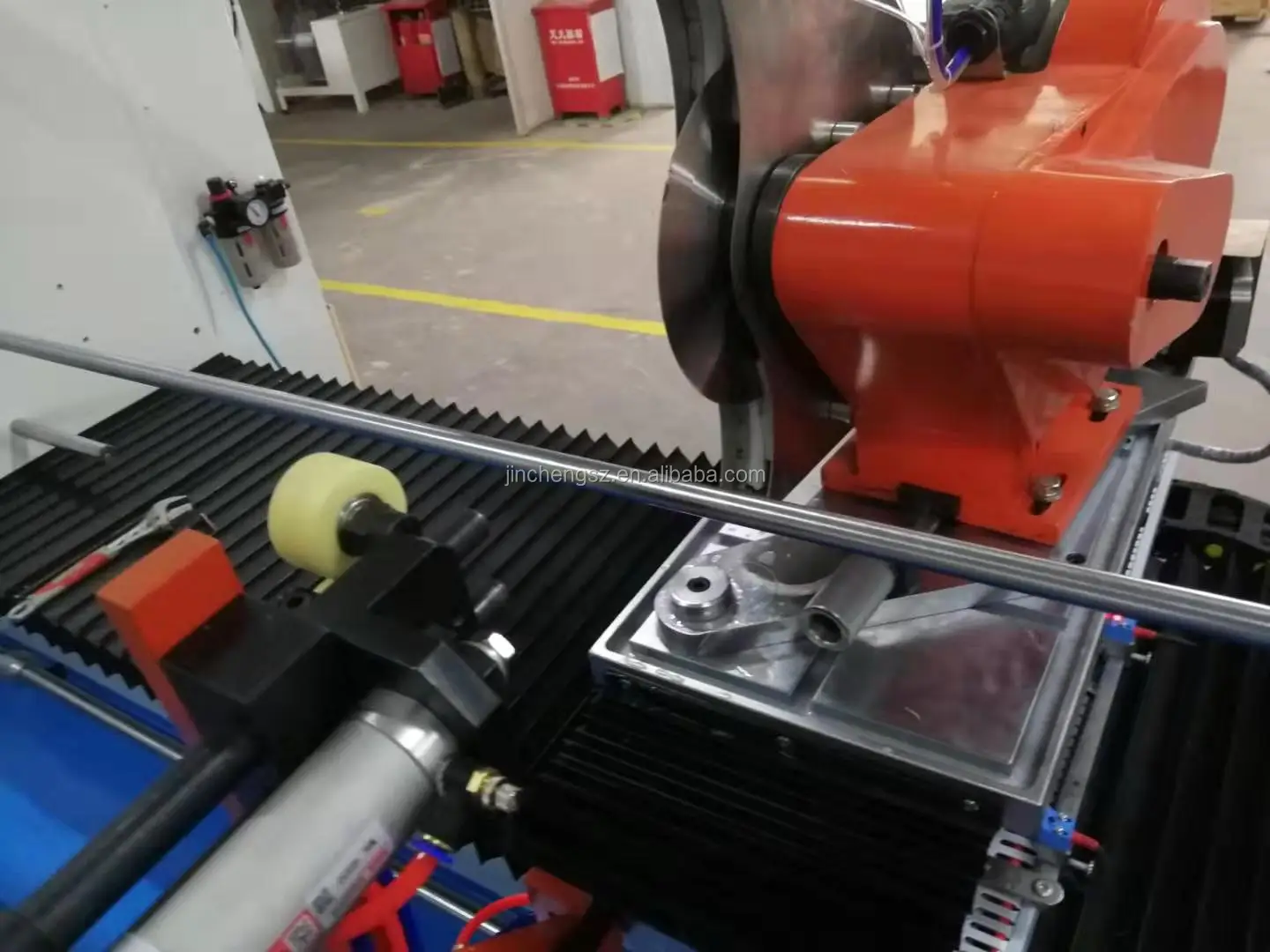

Cutting supporter.
Name: This is special for small sizes cutting shafts.
In case any shake during cutting.
To improve the cutting quality of the products.
We will give 1 pcs cutting blade for free.
The blade size should be O.D=250MM
Or O.D=350MM.
1 | Main driving system | AC motor with frequency inverter. Make sure the steady cutting speed. |
2 | Operating panel | Big size color LCD touched panel with English language.You can set up various cutting mode and monitor the cutting job directly in it. |
3 | Motor control system | The PLC programmable controller. You can cutting various sizes in same log roll. |
4 | Cutting size system | Mitsubishi servo motor and high accuracy ball screw and linear slide rail. To make sure the accurate cutting size. |
5 | Blade feeding system | Mitsubishi servo motor and hydraulic motor for optional. It can be anthropomorphized as three-step feeding speed of the cutter. To improve cutting efficiency and get best quality. |
6 | Blade angle system | Mitsubishi servo motor control. To calculate the blade angle, according to different type materials. No need change blade. (angle range: + / -8° ) .That will increase the production efficiency. |
***Optional Device***
1\tDifferent sizes cutting shafts: Supply according to your core I.D.
2\tCutting shaft supporter: For supporting smaller size shaft.
3\tAuto blade grinding: Keeping blade sharp for good cutting.
4\tSafety cover: To protect operator during cutting, which is accord with the CE regulation.
5\tLaser knife system for feeding position.
6\tDifferent sizes blade for cutting.
7\tFront/rear frame design so that 2 machines face to face: one person can operate both machines for bulk production.
8\tDust proof sliding door.
9. Different operation language.
***Package and Delivery***

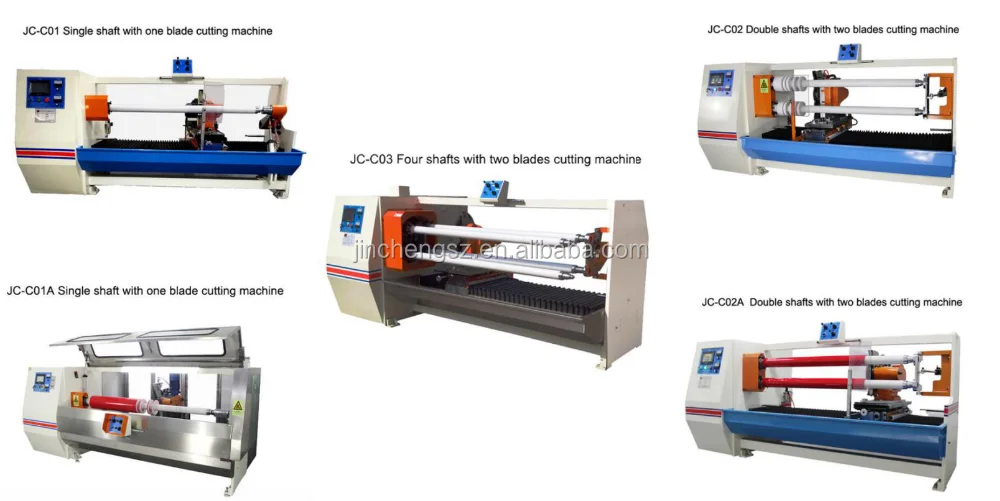

***Other cutting machine you may need***
Model | Type | Max.cut diameter | Blade size | Shaft size |
JC-C01 | 1 shaft with 1 blade | 300 mm | Φ250 mm | 25.4-76mm |
JC-C02 | 2 shafts with 2 blades | 200 mm | Φ200 mm/Φ250 mm | 25.4-76mm |
JC-C02A | 2 shafts with 1 blade | 250 mm | Φ250 mm/Φ300 mm | 25.4-76mm |
JC-C03 | 4 shafts with 2 blades | 200mm | Φ200 mm/Φ250 mm | 25.4-76mm |
JC-C01A | 1 shaft with 1blade | 400mm | Φ500 mm/Φ550 mm | 25.4-76mm |
