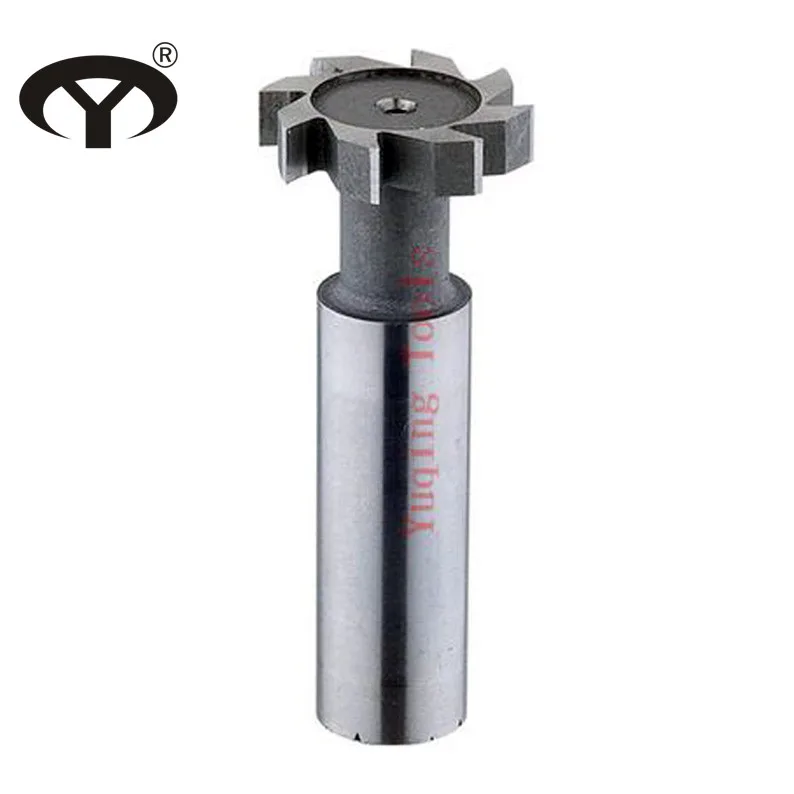

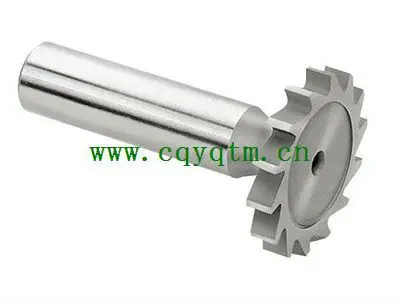

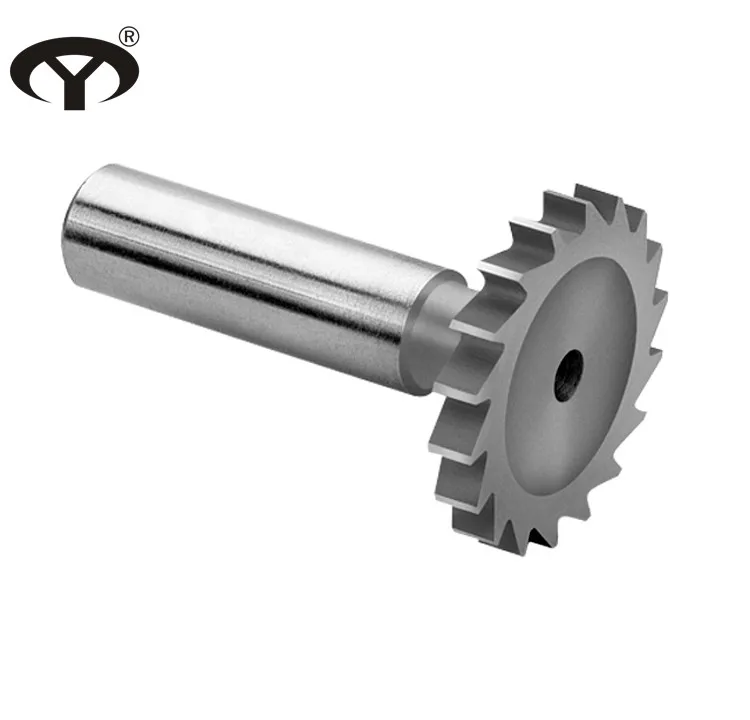

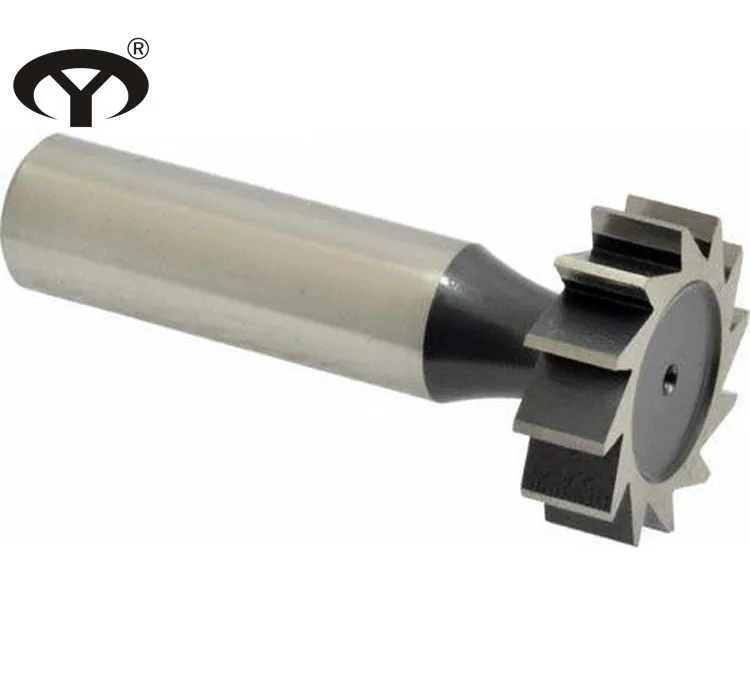

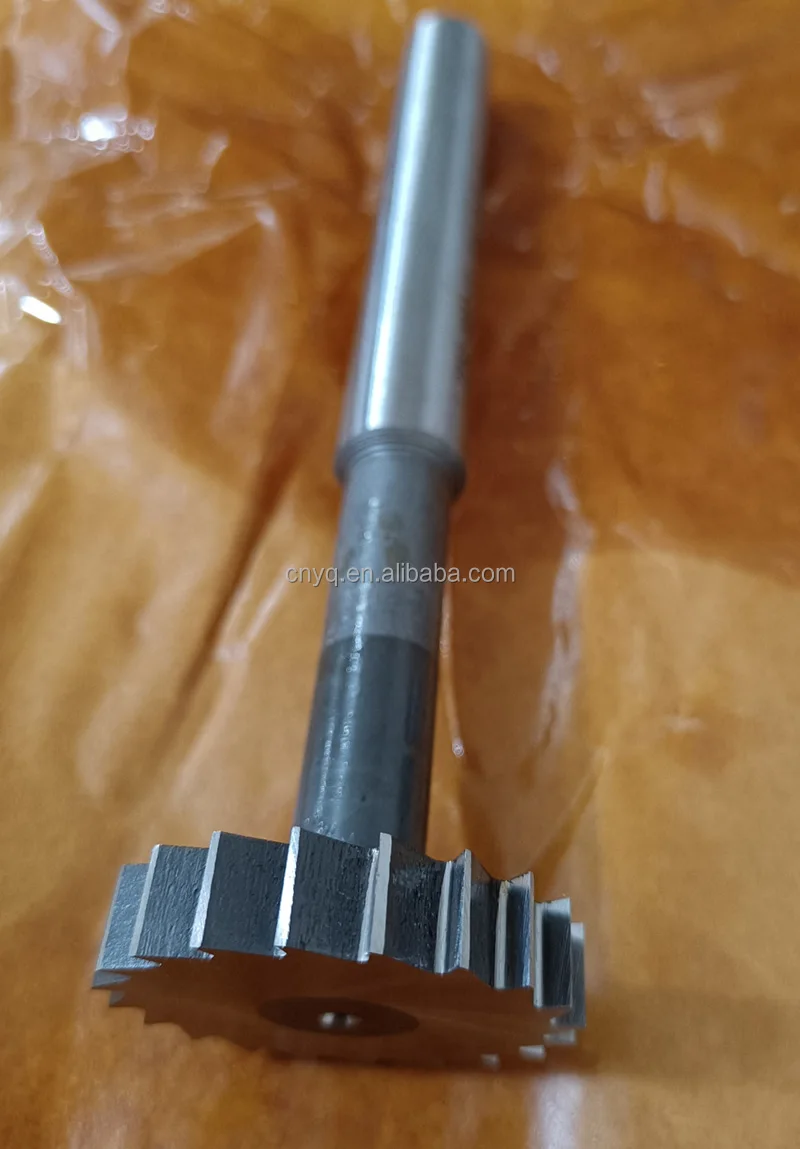

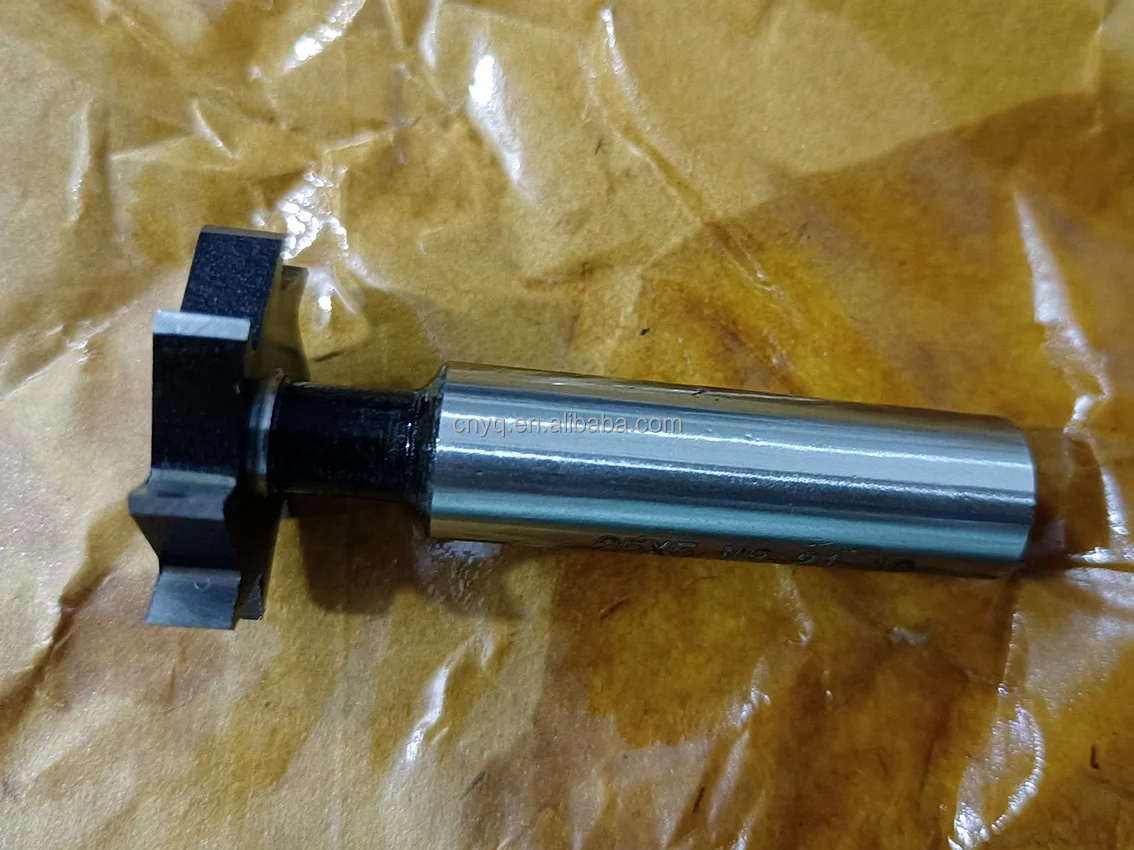

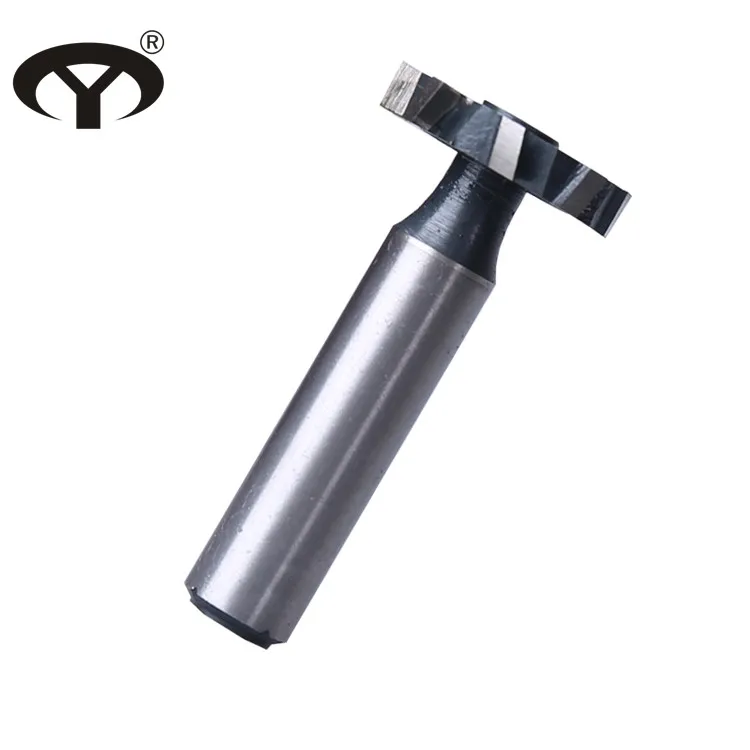

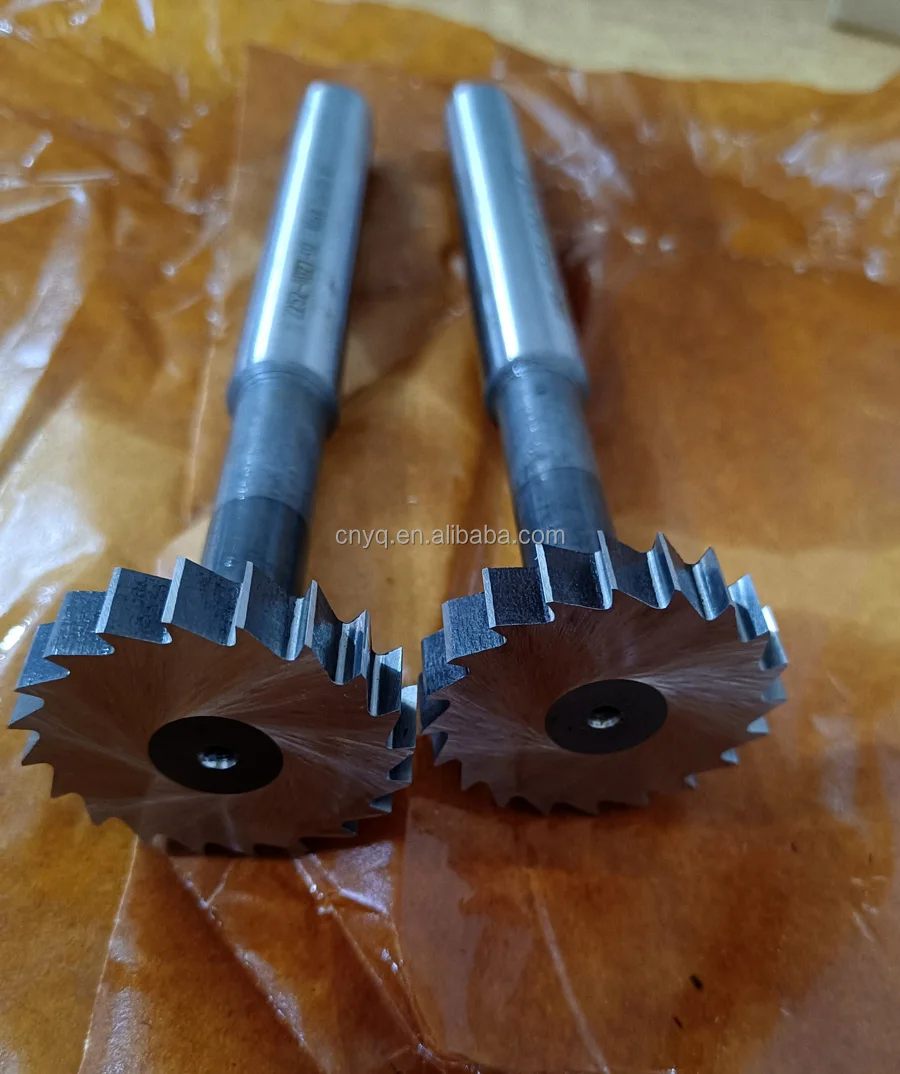

HSS M2 16*5 milling cutter for woodruff keyseat with straight teeth

Product Overview

Description

HSS M2 16*5 milling cutter for woodruff keyseat with straight teeth



TYPEⅠ(STRAIGHT TEETH)

Key Size	Outside Diameter	Width of tooth	Length	Neck Diameter	Suitable neck of shaft
4×1	4.25	1	48	6	>3-7
7×1.5	7.4	1.5	48	6	>4-10
7×2	7.4	2	48	6	>5-14
10×2	10.6	2	50	6	>5-14
10×2.5	10.6	2.5	50	6	>7-18
10×3	10.6	3	50	6	>7-18



TYPEII (STRAIGHT TEETH)

13×3	13.8	3	60	10	>77-18
13×4	13.8	4	60	10	>10-24
16×3	16.9	3	60	10	>77-18
16×4	16.9	4	60	10	>10-24
16×5	16.9	5	60	10	>14-30
19×4	20.1	4	60	10	>10-24
19×5	20.1	5	60	10	>14-30
22×4	23.2	4	60	12	>10-24
22×5	23.2	5	60	12	>14-30
25×5	26.5	5	60	12	>14-30
28×5	26.7	5	60	12	>14-30



TYPEIII (STRAIGHT TEETH)

22×6	23.2	6	60	12	>18-36
25×6	26.5	6	60	12	>18-36
25×8	26.5	8	65	12	>24-42
28×6	29.7	6	60	12	>18-36
28×8	29.7	8	65	12	>24-42
32×6	33.9	6	60	12	>18-38
32×8	33.9	8	65	12	>18-36
32×10	33.9	10	60	12	>30-48
38×6	40.3	6	65	14	>18-36
38×8	40.3	8	60	14	>24-42
38×10	40.3	10	70	14	>30-48
45×8	47.7	8	65	15	>24-42
45×10	47.7	10	70	15	>38-48









































Milling cutter series :   Shank end mill  , keyway milling cutter , shell end mill , angle milling cutter , cylindrical milling cutter, side and face milling cutter , concave convex milling cutter , rack milling cutter , roller chain sprocket milling cutter, T-slot milling cutter, woodruff keyseat milling cutter and dovetail milling cutter.





The production process of HSS M2/M35 milling cutter for woodruff keyseat :





Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
