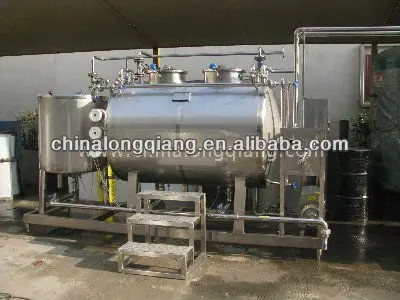

CIP system for clean the machines and pipline

Product Overview

Description



Special Structure

1. Acid tank: SUS304 or SUS306,

2. Alkali tank: SUS304 or SUS306 ,

3. Water tank: SUS304 or SUS306 ,

4. Process pump, return pump, adapter plate, operating platform, pipeline valves.



Applications of small cip system
 It is widely used in food beverage production enterprises which are high mechanical degree such as beverage, dairy, fruit juice, wine and so on.



Technical parameters of small cip system

Model	LTCIP-0.5*3	LTCIP-0.8*3	LTCIP-1.3
Dimension: L*W*H	3.2*1.4*1.6	5*1.8*2	5.5*1.8*2.1
Equipment weight	About 550kg	About 650kg	About 800kg
Basic manually technical parameter	Inner shell:SUS304,δ3mm;Outside shell:δ1.5mm;Pu insulation material, Coil tube to heat, Single circuit, Whole line bracket material:SUS304,Manually controlling, Flow rate:10m3/h;Pump lift:32m.Power:3KW;Operating plate, stainless steel switch board.
Semi-auto basic technical parameter	Inner shell:SUS304,δ3mm;Outside shell:δ1.5mm;Pu insulation material; Coil tube to heat; Single circuit; Whole line bracket material:SUS304;Manually controlling, Flow rate:10m3/h;Pump lift:32m.Power:3KW;Imported temperature controller system from Burkert, German. Operating plate, stainless steel switch board.





CIP system (cleaning-in-place) is a system designed for automatic cleaning by recirculation detergent and rinse solutions without major disassembly and assembly work.



The CIP system can be designed to clean one part of the plant while other areas continue to produce product. The CIP systems provide reservoirs for detergent and rinse solutions as well as pumping and heating capabilities for the solutions.



Computer control handles the programs sequences of washing and rinsing steps. The washing process consists of several cycles in which rinsing material is recycled through the vessels, pumps, valves and other process equipment in the flow system.

The cleaning can be carried out with automated or manual systems, it is a reliable process that meets the stringent hygiene regulations demanded by the food, dairy, beverage, biotechnology and pharmaceutical industries.

Longqiang CIP system has follow advantages:  energy-saving, high efficiency, operator safety and easy to operate and maintain.



We can design products according to customer's requirement. Please feel free to contact us for any question!
