Low profile hydraulic torque wrench

Product Overview

Description

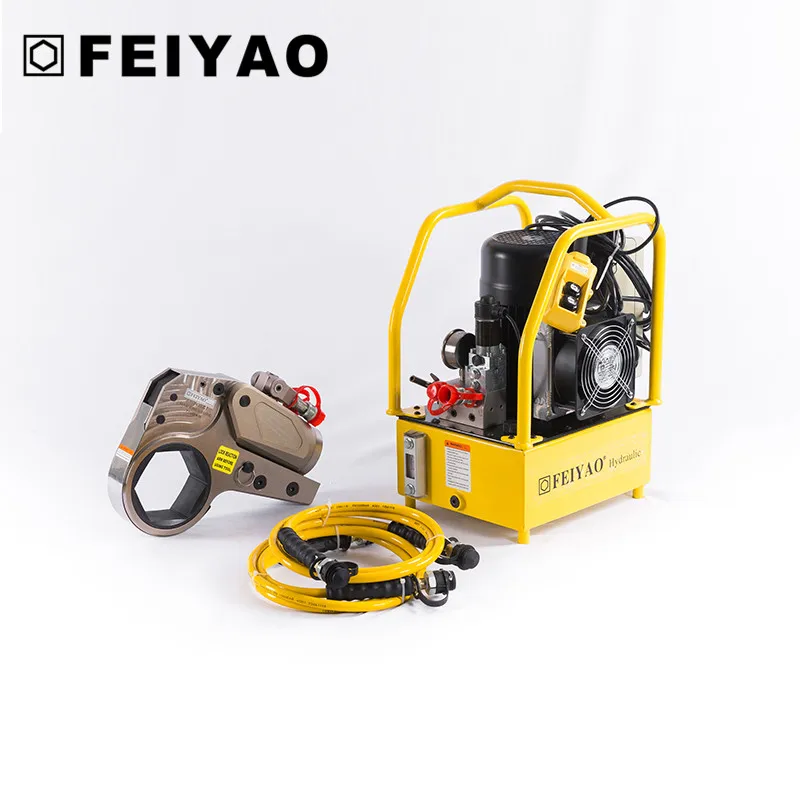

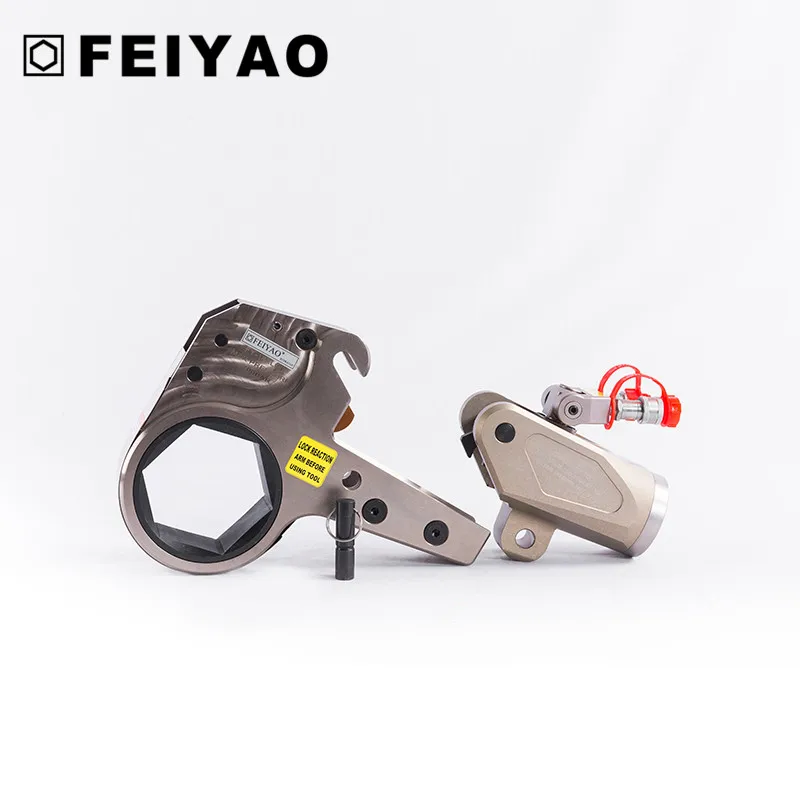

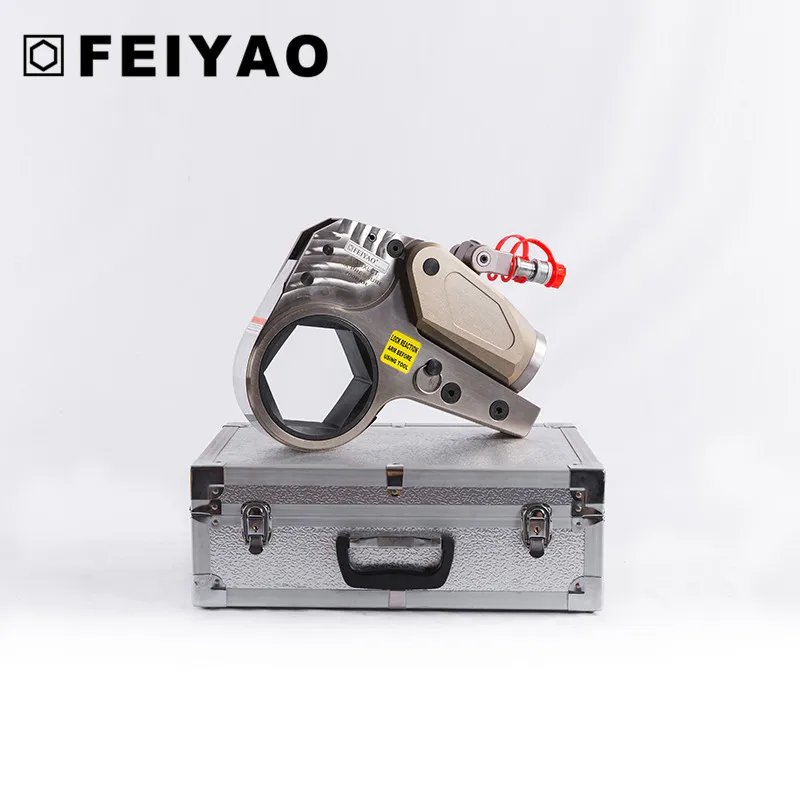

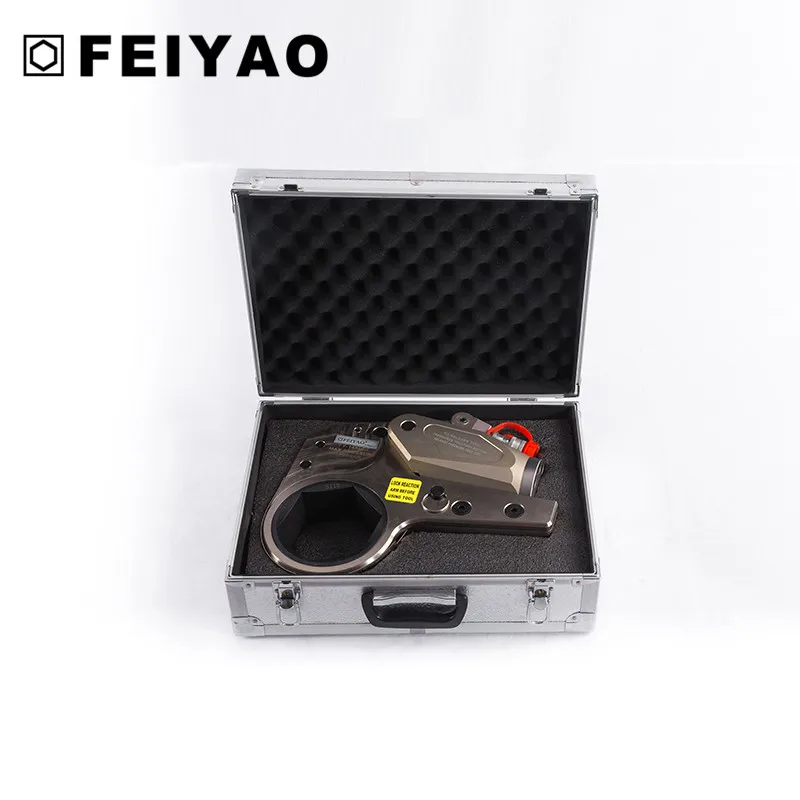

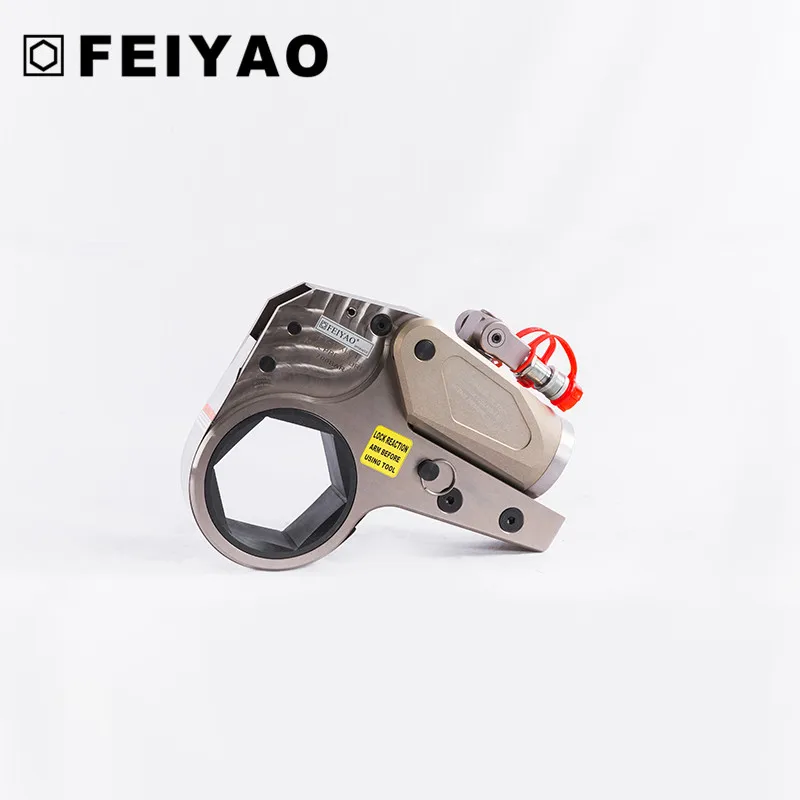

Low profile hydraulic torque wrench

Feiyao offers a variety of controlled tightening tools to best meet the requirements of your application. From mechanical torque multipliers to hydraulically driven square drive wrenches, and low profile torque wrenches. We offer the hydraulic torque tools you need for accurate and simultaneous tightening of multiple bolts

Low profile hydraulic hexagon wrench used in all industries in confined areas.





Features

1.Very high torque-to-weight ratio

2.High speed,double acting operation

3.High degree of rotation angle

4.Never-jam mechanism

5.High repeatability,with accuracy ±3%

6.Slim nose radius and 360 degree swivel hose connection allow easier positioning in confined areas

7.Few moving parts means durability and low maintenance

8.Push button drive release;no tools needed to reverse square or allen key drives for tighening or loosening

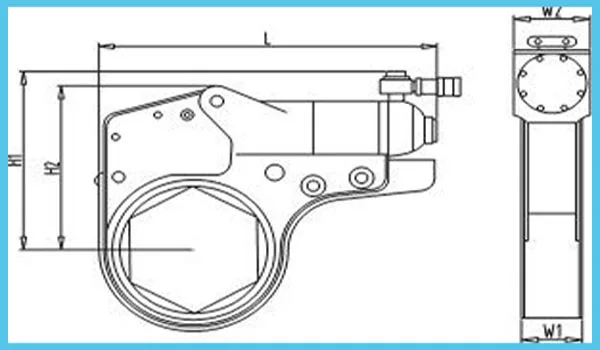

Parameter information

Model	FY-2XLCT	FY-4XLCT	FY-8XLCT	FY-14XLCT	FY-18XLCT	FY-30XLCT
Torque Nm	180~1866	440~5328	892~ 10168	1558~ 17640	2430~ 23708	3528~ 41880
Bolt diameterM(mm)	18-33	18-42	33-60	42-80	48-95	52-110
screwS(mm)	27~50	27~65	50~90	65~115	75~135	80~155
Rotary head Model	2XLCT	4XLCT	8XLCT	14XLCT	18XLCT	30XLCT
Working head model	2XLCTA-50	4XLCTA-65	8XLCTA-90	14XLCTA-115	18XLCTA-135	30XLCTA-
Weight(kg)	2.4	5.0	9.3	16.9	18.6	30.9
L(mm)	160	213	267	321	362	427
H1(mm)	130	183	273	246	278	312
H2(mm)	102	137	170	203	230	272
W1(mm)	32	41	53	64	73	83
W2(mm)	50	66	83	99	110	132

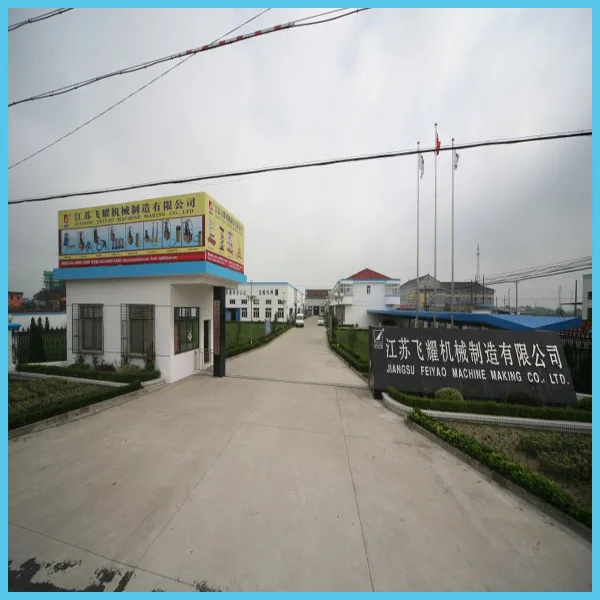

Brief introduction of FEIYAO

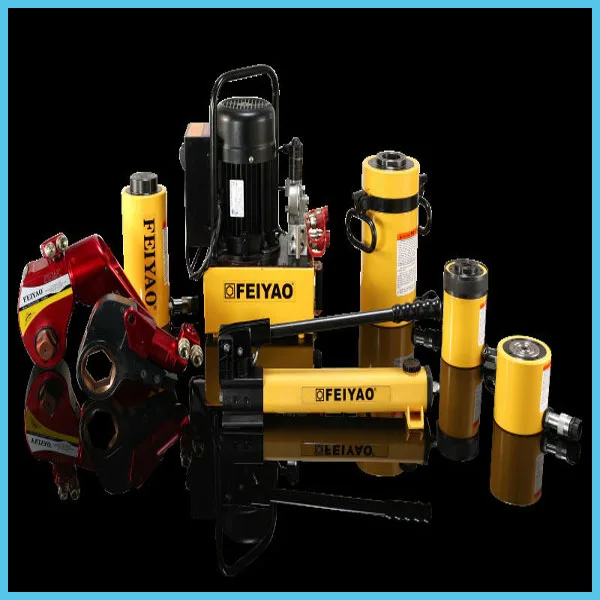

Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.

Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.

Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.

We warmly welcome all overseas customers to talk with us about business or other cooperations.

Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.

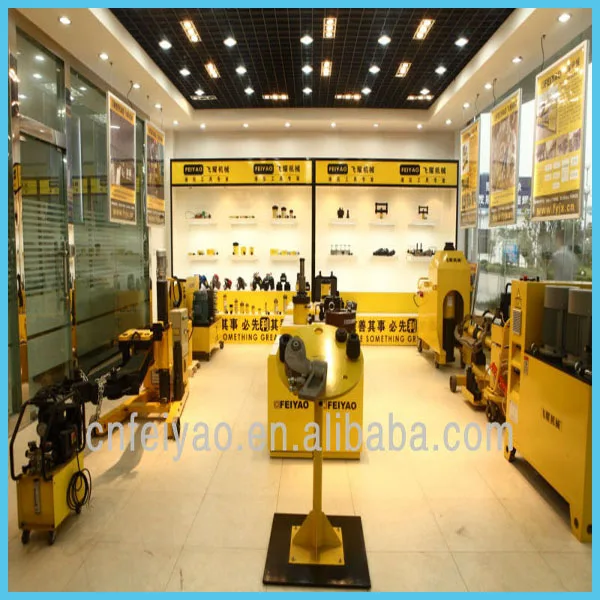

Showroom

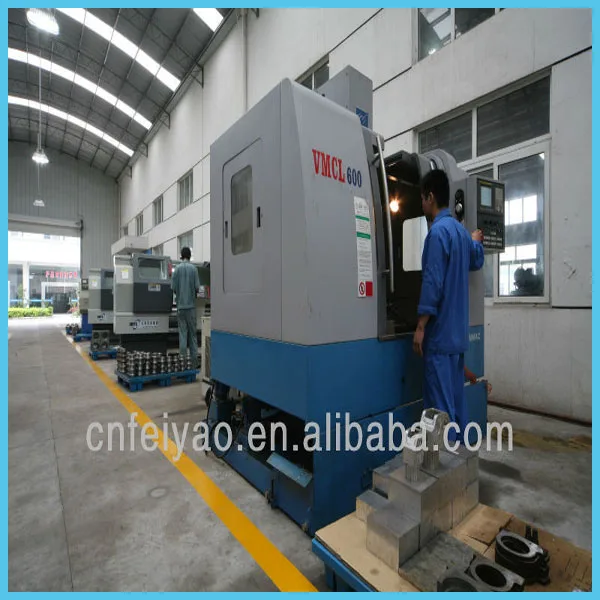

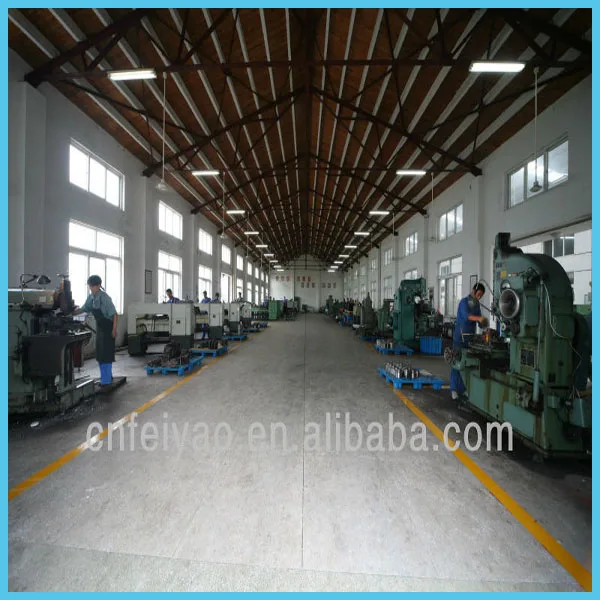

Workshop

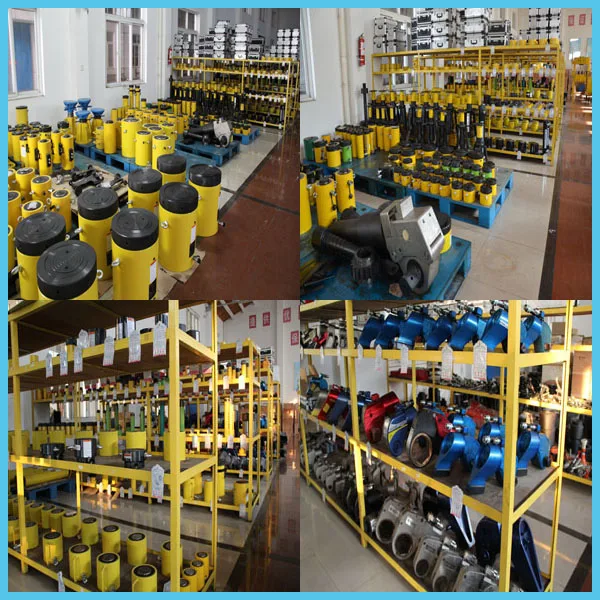

Warehouse
