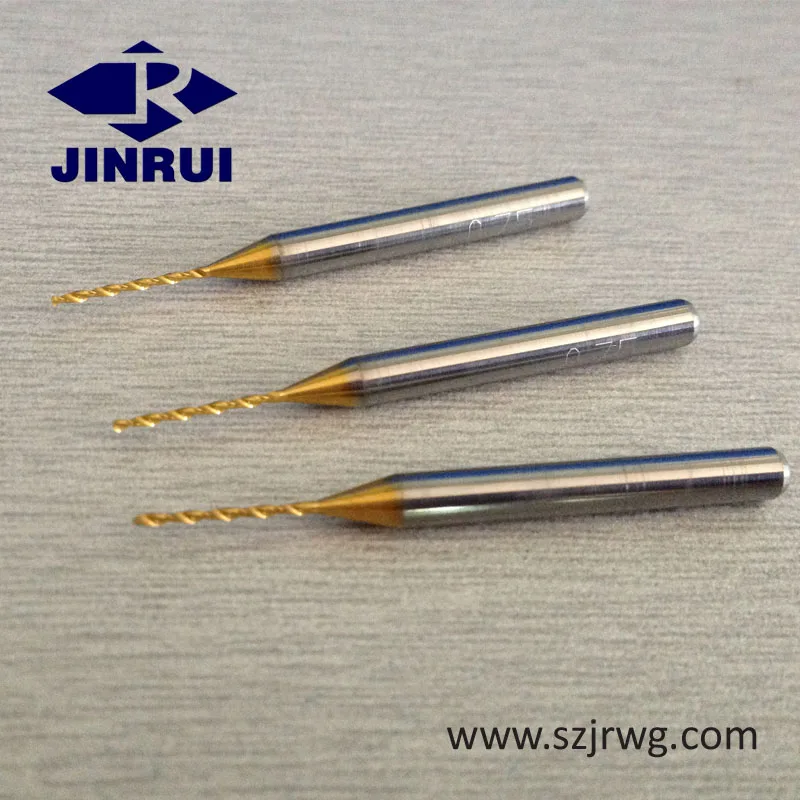

JR129 CNC cutting tool 0.05mm 3.2mm nano coating solid carbide micro drill bits
- Category: >>>
- Supplier: Shenzhen Jinrui Precision Carbide Technology Co. Ltd.
Share on (1664615334):
Product Overview
Description
micro drill bits | carbide micro drill bits | solid carbide mic ro drill bits
Product Description

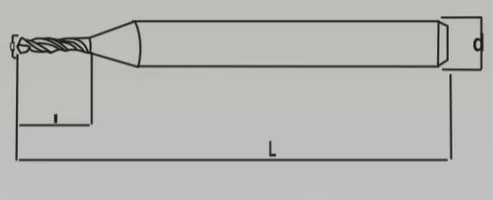

1. Size:
| Description | Item no. | d (mm) | L1 (mm) | d (mm) | L1 (mm) | d (mm) | L1 (mm) |
| solid carbide micro drill bits | JR129 | 0.05 | 0.6 | 1.15 | 10.5 | 2.3 | 12 |
| JR129 | 0.08 | 0.8 | 1.2 | 10.5 | 2.35 | 12 | |
| JR129 | 0.1 | 1.2 | 1.25 | 10.5 | 2.4 | 12 | |
| JR129 | 0.15 | 2 | 1.3 | 12 | 2.45 | 12 | |
| JR129 | 0.2 | 3.5 | 1.35 | 12 | 2.5 | 12 | |
| material: tungsten carbide | JR129 | 0.25 | 4 | 1.4 | 12 | 2.55 | 12 |
| JR129 | 0.3 | 5.5 | 1.45 | 12 | 2.6 | 12 | |
| JR129 | 0.35 | 6.5 | 1.5 | 12 | 2.65 | 12 | |
| JR129 | 0.4 | 7 | 1.55 | 12 | 2.7 | 12 | |
| JR129 | 0.45 | 7 | 1.6 | 12 | 2.75 | 12 | |
| JR129 | 0.5 | 8.5 | 1.65 | 12 | 2.8 | 12 | |
| JR129 | 0.55 | 8.5 | 1.7 | 12 | 2.85 | 12 | |
| JR129 | 0.6 | 9.5 | 1.75 | 12 | 2.9 | 12 | |
| JR129 | 0.65 | 9.5 | 1.8 | 12 | 2.95 | 12 | |
| JR129 | 0.7 | 9.6 | 1.85 | 12 | 3 | 12 | |
| JR129 | 0.75 | 9.5 | 1.9 | 12 | 3.05 | 12 | |
| JR129 | 0.8 | 9.5 | 1.95 | 12 | 3.1 | 12 | |
| JR129 | 0.85 | 9.5 | 2 | 12 | 3.15 | 12 | |
| JR129 | 0.9 | 9.5 | 2.05 | 12 | 3.175 | 12 | |
| JR129 | 0.95 | 9.5 | 2.1 | 12 | |||
| JR129 | 1 | 10.5 | 2.15 | 12 | |||
| JR129 | 1.05 | 10.5 | 2.2 | 12 | |||
| JR129 | 1.1 | 10.5 | 2.25 | 12 |

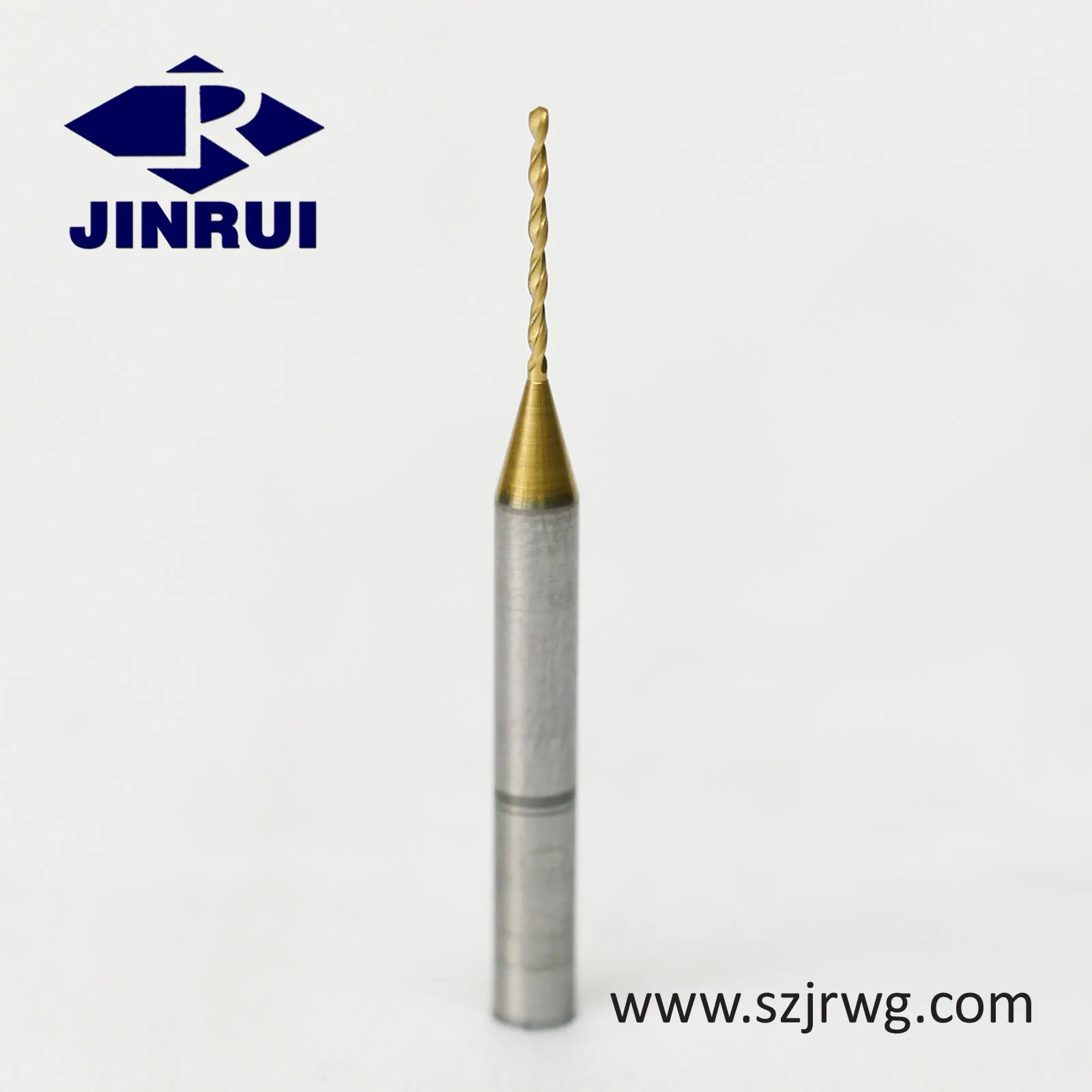

Nano coating solid carbide micro drill bits
micro drill bits | carbide micro drill bits | solid carbide micro drill bits
Production Process

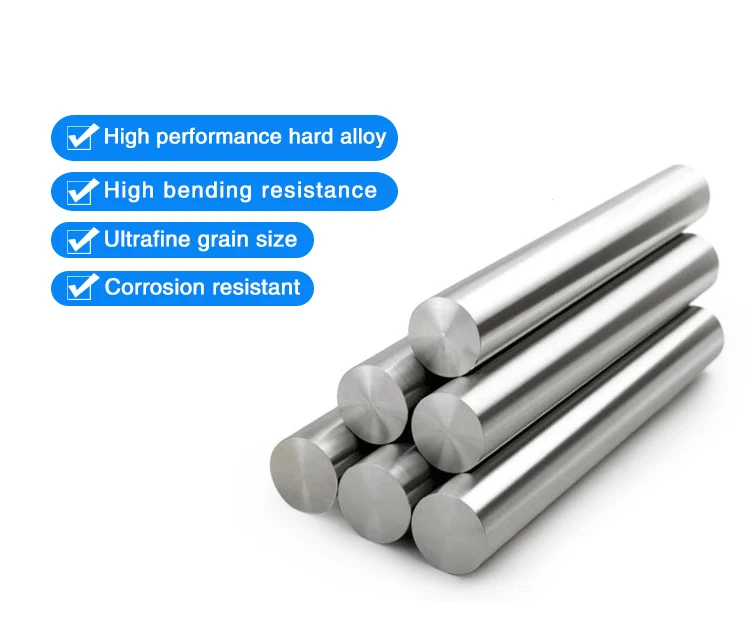

1. Raw Round Carbide Bar
Strict selection of raw materials to ensure the quality of every cutter;
Imported supplier: Cobalt collar Kenner Sumitomo;
Domestic supplier: Taiwan Spring Insurance, Xiamen Golden Egret.

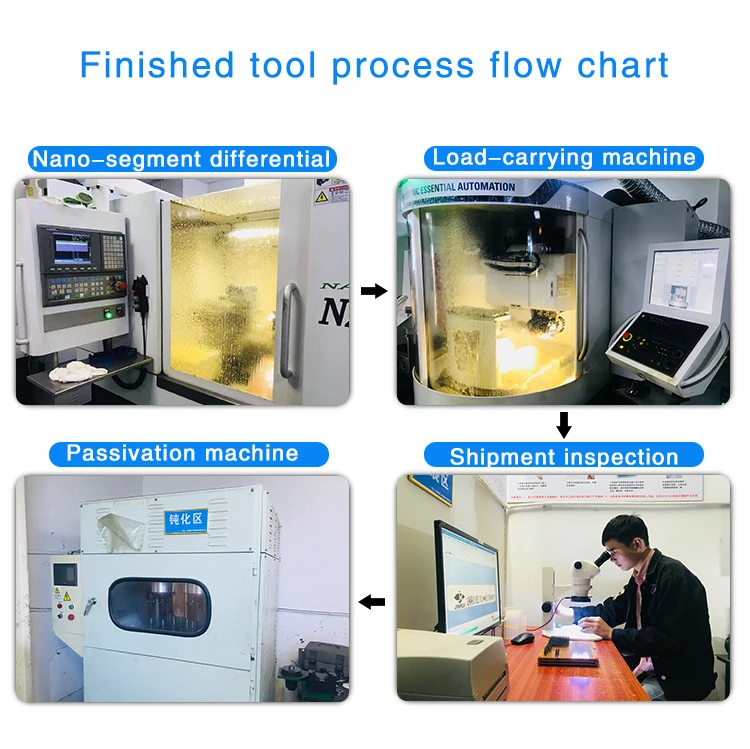

2. Production Line

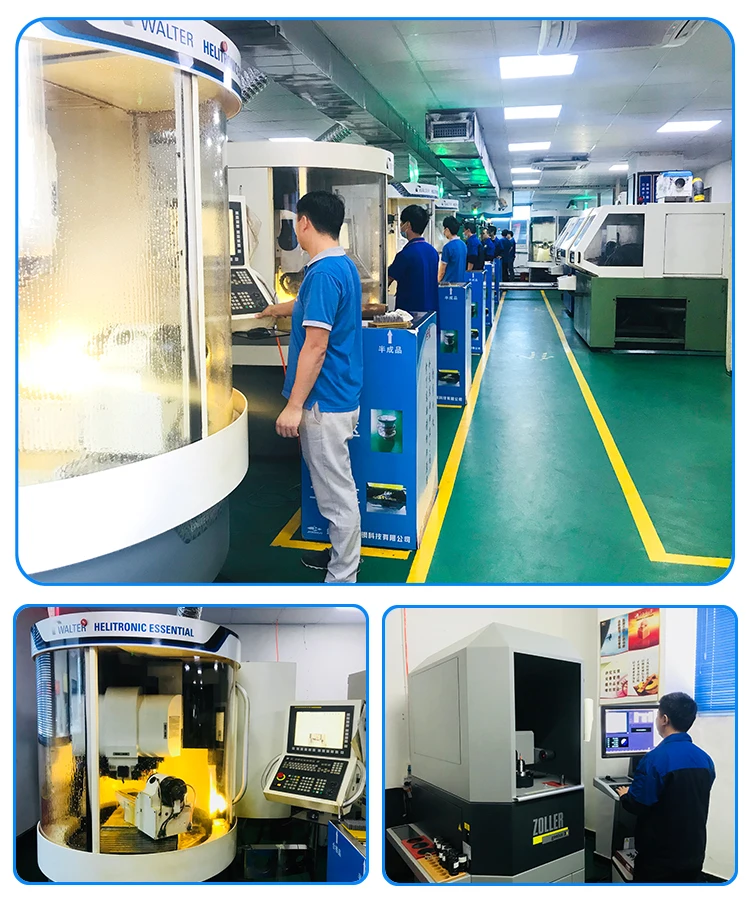

3. Workshop & Machines
These are the machines that we use for processing the tools, most are from Germany.
All the machines to insure that we make the good quality tools to support you, and also 100% test.
Hope you are satisfied with our tools and service, any questions, please free to ask.
Packaging & Shipping
1. We usually use 50 packs 10 packs or single packs, with our logo our your logo on the tag, also shows the detaisl sizes and process material for your reference.
We add the soft plastic in the box to buffer the collision in transit so that the tools you receive are in good condition.
2. About the shipping, we usually use DHL UPS or Fedex, if you have shipping agent or account, please let us know, other shipping way you ask, that is okay;
For the payment, we support T/T or Western Union, Paypal or Alibaba, other one you usually use is also okay, we totally support.
Company Information
1. Certigicates & feedback
So far, we have many partners now, and got many of their comments and feedback, that is the motivation and affirmation for us.
Hope you satisfied with our tools as well as our service, and all in JINRUI glad to serve you.
2.Company & Exhibition
