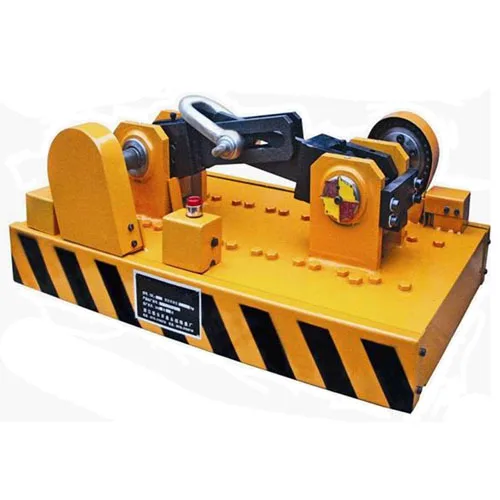

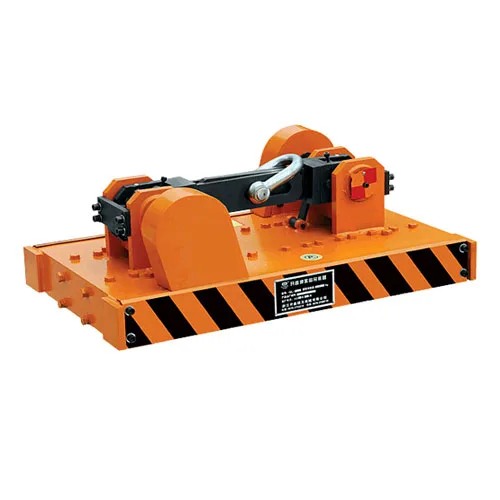

Automatic Permanent 1 Ton Lifting Magnet with Electricity Saving

Product Overview

Description

Automatic Permanent 1 Ton Lifting Magnet with Electricity Saving

--YC2 Series



Introduction:



It is made of high-energy magnetic material adopting scientific magnet circuit theory featuring huge attraction force, compact, light dead-weight and convenient and safe for operation. It is an ideal energy-economizing and more convenient lifter than the electromagnet lifter which must be equipped with complicated link-up units and power supply backup.



Permanent-Magnetic Lifter Series YC2-1 Application:

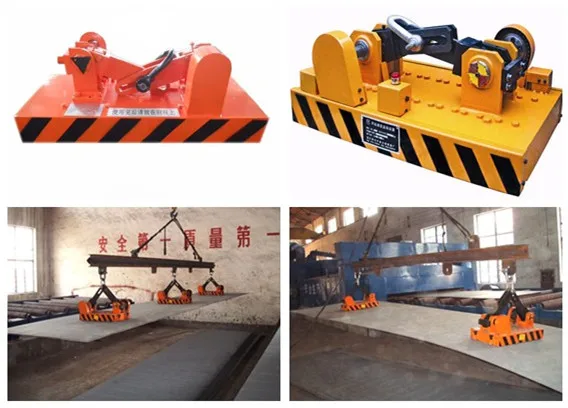

It is used to lift and transfer the normal temperature steel plates in ship-making industry, engineering mechanical industry, automobile industry and so on. There have three series of YX and YC according to their material unloading modes.

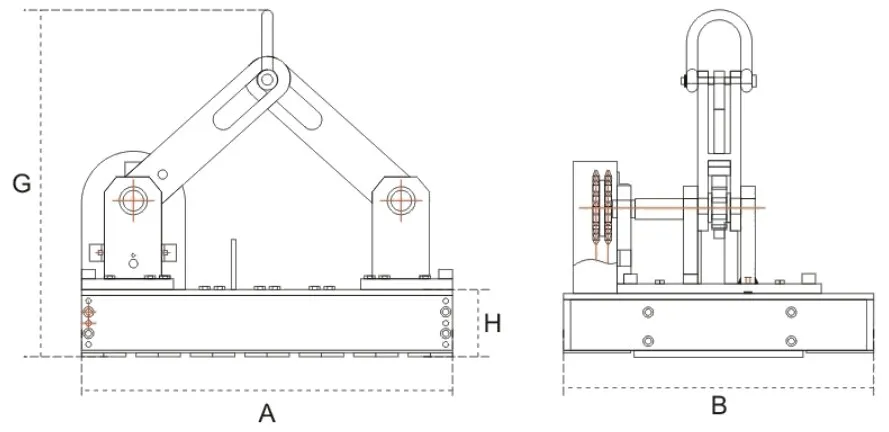

YC-2 Permanent Magnetic Lifter Main Technical Data:



Model	Rated  Lifting  Capacity (kg)		A	B	H	G	Weight (kg)
YC2-1	1000		550	500	105	625	170
YC2-2	2000		644	560	115	695	260
YC2-3	3000		872	520	115	853	320
YC2-5	5000		1060	700	140	1013	600
YC2-10	10000		1200	773	220		1200



For you to get precise cost,may I ask you a few question to learn your demand clearly?

1. Could you inform us steel plate size: length*width*thickness?

2. How many pcs of plate will be handled per time?

3. Do you prefer FOB or CIF price,which is the destination port?
