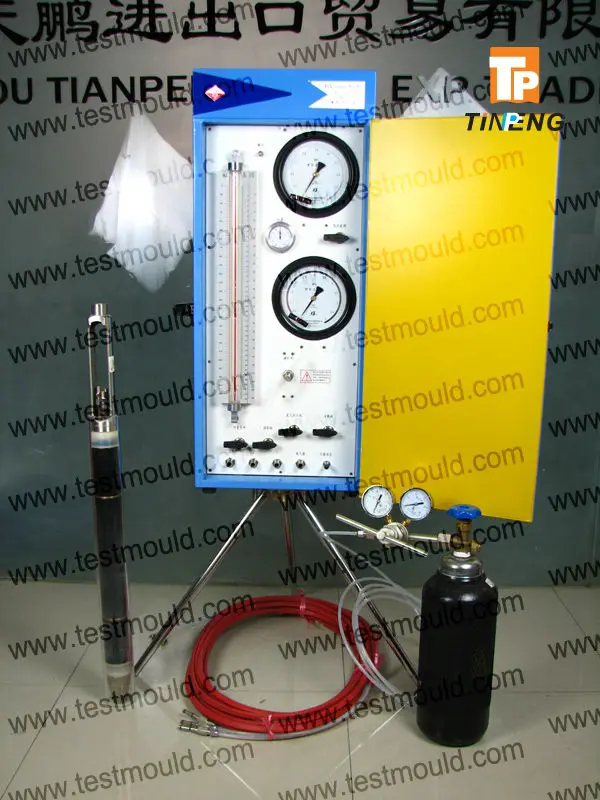

Pressuremeter/Menard pressuremeter:

Pressuremeter test according to EN ISO 22476-4 and ASTM D-4719-00 Standards.

Test Description:

A pressuremeter test is an in-situ stress controlled loading test performed on the wall of a borehole using a cylindrical probe which can expand radially.

For the test readings (volume variation based on controlled pressure), a stress-strain curve can be obtained, in the case of plane deformation, which yields:
-the Menard pressuremeter modulus
-the creep pressure
-the Menard limit pressure





Item	Parameter		Model
			PY-3	PY-4	PY-5
1	Pressuremeter	Nade Nonimal dia.	ø50mm
		Dia.with metal shield	ø55mm
		Measure  chamber length	250mm
		Pressuremeter  length	800mm
2	Measuring  precision	Min.reading of  pressure gauge	0.005Mpa
		Volume meter  effective range	400mm
		Comprehensive  error	≤±1%
		Measurements	Electrical measurement and visual
3	Others	Max.Pressure	2.5Mpa	4.0Mpa	5.5Mpa
		Size	830×360×220mm
		Weight	28kg
		Range	Clay, silt and  other formations	Hard clay, silt, sand  and other formations	Clay, silt, sand, weathered rock,  soft rock strata
