140L 350L electric portable cement concrete mixer machine concrete feed mixer

Product Overview

Description

Concrete mixers CM350 Specifications:

Concrete mixer CM260L

Cast iron drive pinions and gear rings for durablity

High speed roller bearings for durability

Heavey duty large site mixer designed for prolonged site and retail use,build tough to a high specification,ideal for mixing large batches of concrete and mortar





Concrete mixers CM350 Features:

1)Easy operate,portable,towable concrete mixer

2)260L hand-fed concrete cement mixer

3)High mixing performance and long life without maintenance

4)Lockable engine compartment

5)Strong and very stable chassis easy to clean

6)Rigid mixing durm with reinforced rim and high efficiency paddles

7)Multi-position lockable drum

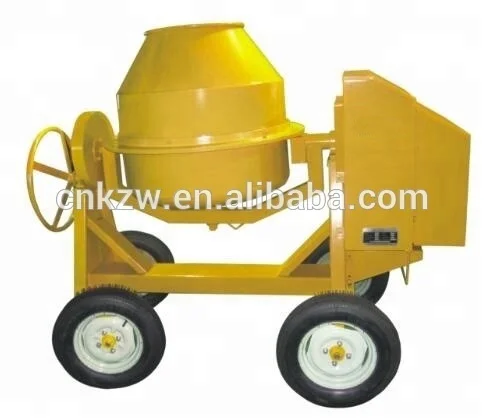

8)Two wheels and four wheels as options





Model	CM-260M	CM-260D	CM-350M	CM-350D	CM-400M	CM-400D
Engine	220V	Air-cooled,4-cycle,sigle cylinder	220V	Air-cooled,4-cycle,sigle cylinder	220V	Air-cooled,4-cycle,sigle cylinder
Engine type	Electric   Motor	Diesel,Kama/Kipor 178F	Electric   Motor	Diesel,Kama/Kipor178F	Electric Motor	Diesel,Kama/Kipor186FS
Power	3.0hp/2.2kw	5.5hp/4.0kw	3.0hp/2.2kw	5.5hp/4.0kw	4.0hp/3.0kw	9.0hp/6.6kw
Operation weight	260kg(572lbs)	265kg(583lbs)	280kg(616lbs)	285kg(627lbs)	320kg(704lbs)	330kg(726ibs)
Feed Capacity	260L(9cu.ft)		350L(12cu.ft)		400L(14cu.ft)
Discharge Capacity	170L(6cu.ft)		280L(10cu.ft)		300L(11.5cu.ft)
Drum Speed	32-36rpm
Production Rate	5-6cbm/h(175-245 cu.ft/h)		8-10cbm/h(280-350cu.ft/h)		11-13cbm/h(385-455cu.ft/h)
Weight	260kgs		355kgs		415kgs
Packing size	185X90X115CM		190X100X115CM		190X100X135CM





1)Guarantee for one years (according to whichever reaches frist)from ex-factory date

2)During the grarantee period,our company will produce the free easy-damaged spear parts for problems caused by our quality of production or raw material

3)after expiration,our company provides cost spare parts maintenance for engines
