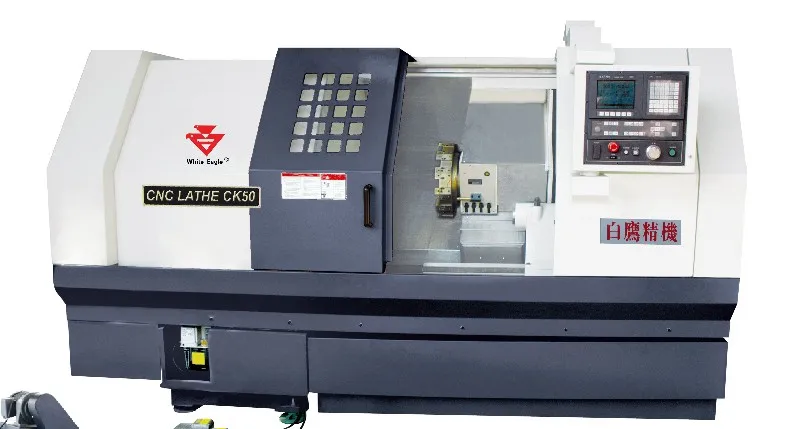

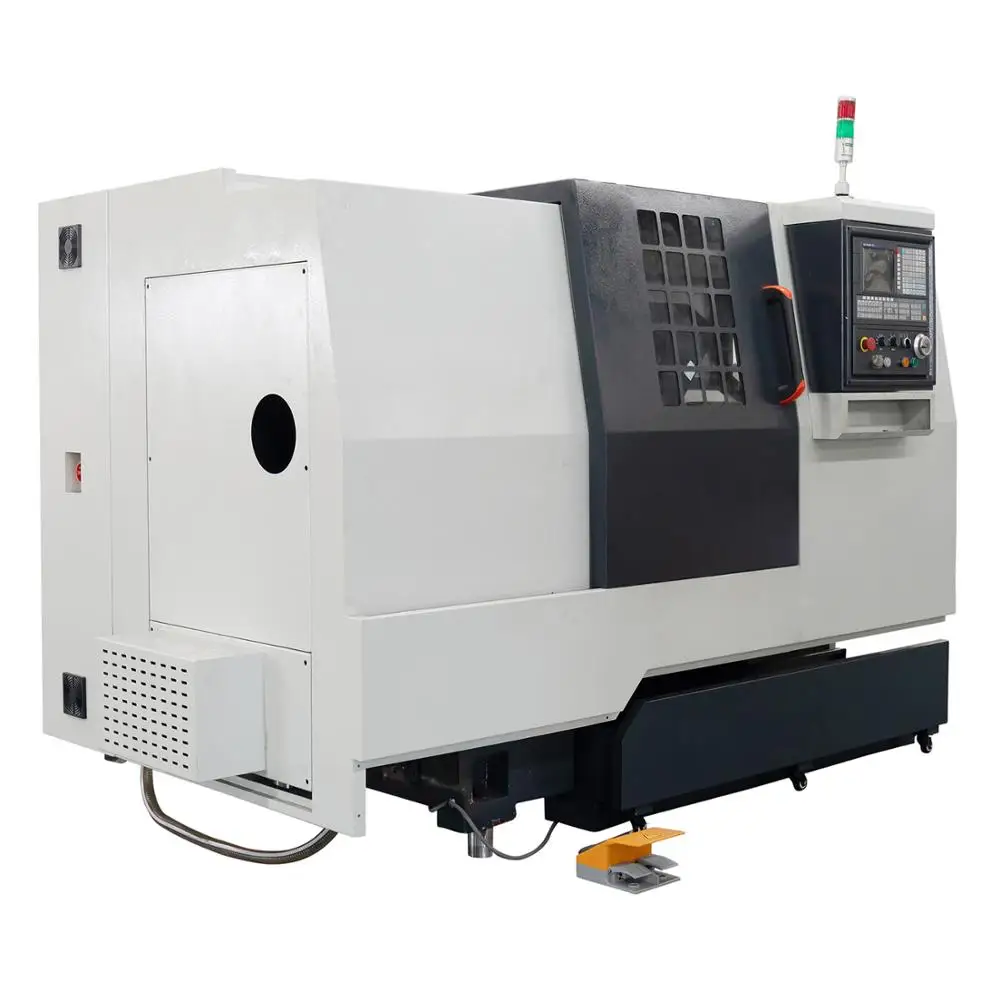

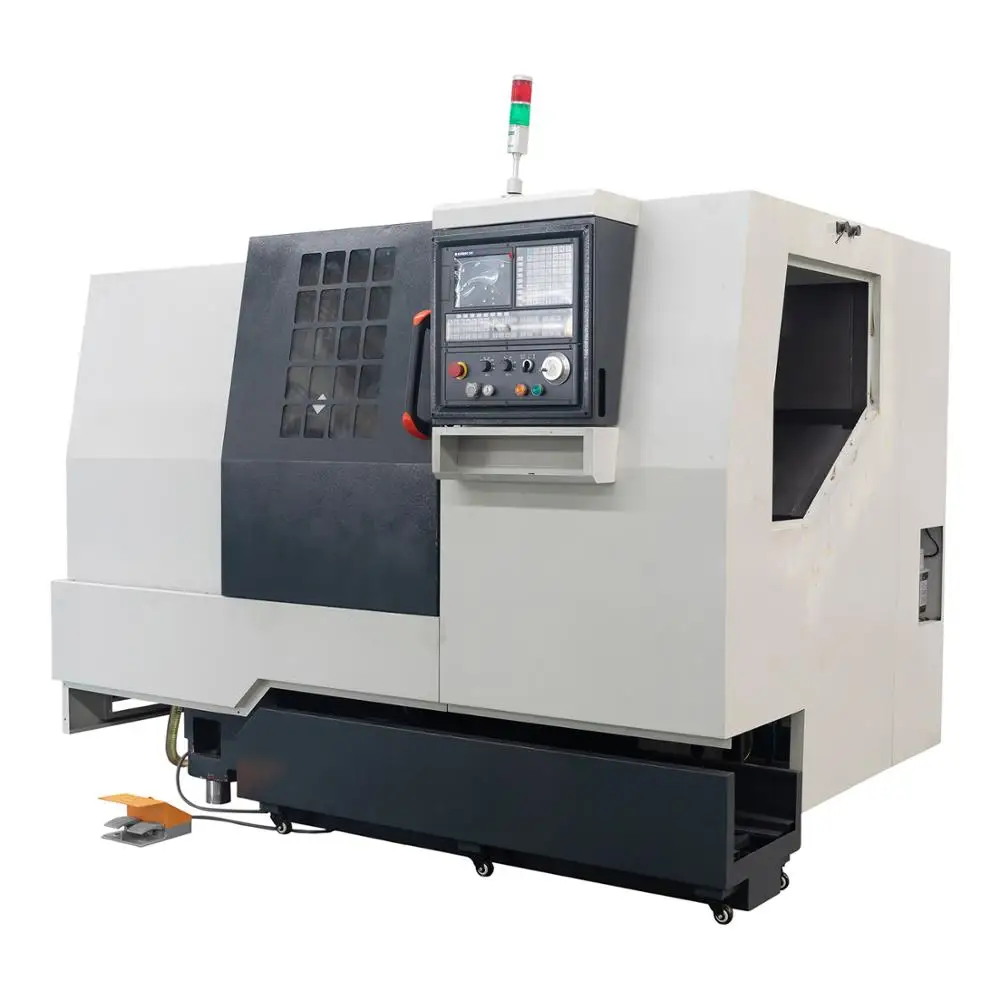

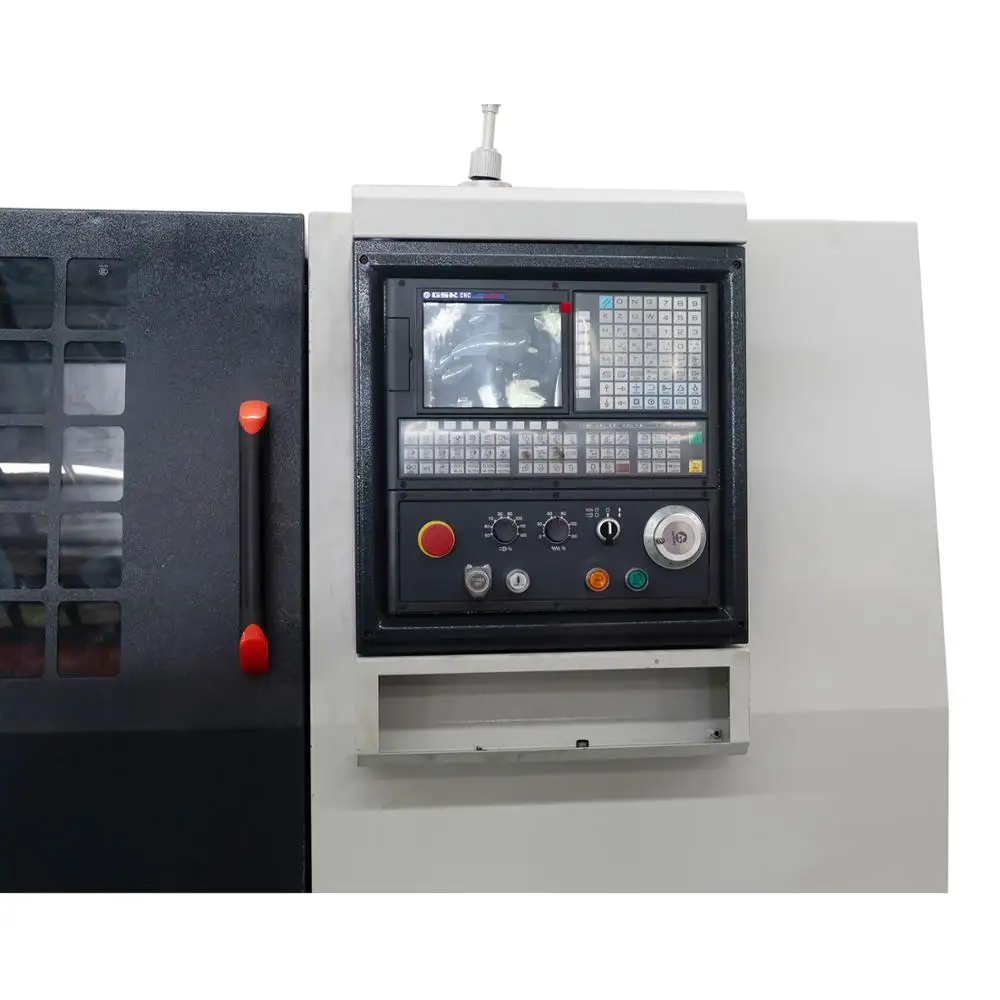

Mini CNC LATHE Machine SLANT BED CK40 CK45 CK50 CK58

Product Overview

Description

SPECIFICATION
ITEM	CK40		CK45		CK50		CK58
Max.swing over bed	Φ400		Φ450		Φ500		Φ580
Max.diameter	Φ300		Φ360		Φ500		Φ580
Max.swing over toolpost	Φ250		Φ300		Φ320		Φ360
Max.machining length	300		400		580		960
Distance between centers	440		750		670		1320
Spindle nose style	A2-5	A2-6	A2-5	A2-6	A2-6	A2-8	A2-8
Hydraulic chuck	Φ160	Φ200	Φ160	Φ200	Φ200	Φ250	Φ250
Spindle motor	7.5-11KW	7.5-11KW	7.5-11KW	7.5-11KW	11-22KW		11-22KW
Max. spindle speed range	4500rpm	3000rpm	4500rpm	3000rpm	4500rpm	2600rpm	2600rpm
Spindle bore dia.	Φ49	Φ57	Φ49	Φ57	Φ61	Φ87	Φ87
Bar auto-feeding bore	Φ39	Φ45	Φ39	Φ45	Φ51	Φ72	Φ72
X/Z axis spec.	2506/3210		3210/4010		3206/4010		4006/5010
Max.travel of X axis	160		165		250		350
Size of X/Z linner guide-way	35		35		45		55
Max.travel of X axis	400		500		620		1120
Rapid traverse rate X	12m/min		12m/min		12m/min		12m/min
Rapid traverse rate Z	16m/min		16m/min		16m/min		16m/min
X-axis	±0.008		±0.008		±0.008		±0.008
Z-axis	±0.012		±0.012		±0.012		±0.012
X-axis	±0.0035		±0.0035		±0.0035		±0.0035
Z-axis	±0.005		±0.005		±0.005		±0.005
Gang tools table size/Optional turret	T8 Hydraulic turret		T8/T10/T12 Hydraulic turret		T8/t10/t12 Hydraulic turret		T8/T10/T12 Hydraulic turret
Quill diameter	Φ65		Φ65		Φ100		Φ100
Quill travel	80		80		120		120
Max.headstcok travel	300		710		670		1250
Taper of quill	M.T.4		M.T.4		M.T.5		M.T.5
Overall size (L*W*H) mm	3200x1500x1800		3320x1600x1830		3580x1640x1760		4170x1780 x3000
Weight	2500kg		4000kg		4300kg		5600kg
Standard Equipment
- Hollow oil pressure 3-jaw chuck
- Standard soft jaw
- Standard hard jaw
- Hollow rotary oil cylinder
- Alarm lamp
- Working lamp
- Pedal switch
- Automatic lubricating system
- Oil pressure system
- Cooling system
Optional Equipment
- Automatic bar-feeder
- Chip converyor
- Collets
- Automatic safety door
FEATURES:
1.The machine is equipped with 45°Integrated design with good aseismatic and high rigidity
2.Spindle with the integrated quill structure,it can achive high speed swing,high rigidity and precision.

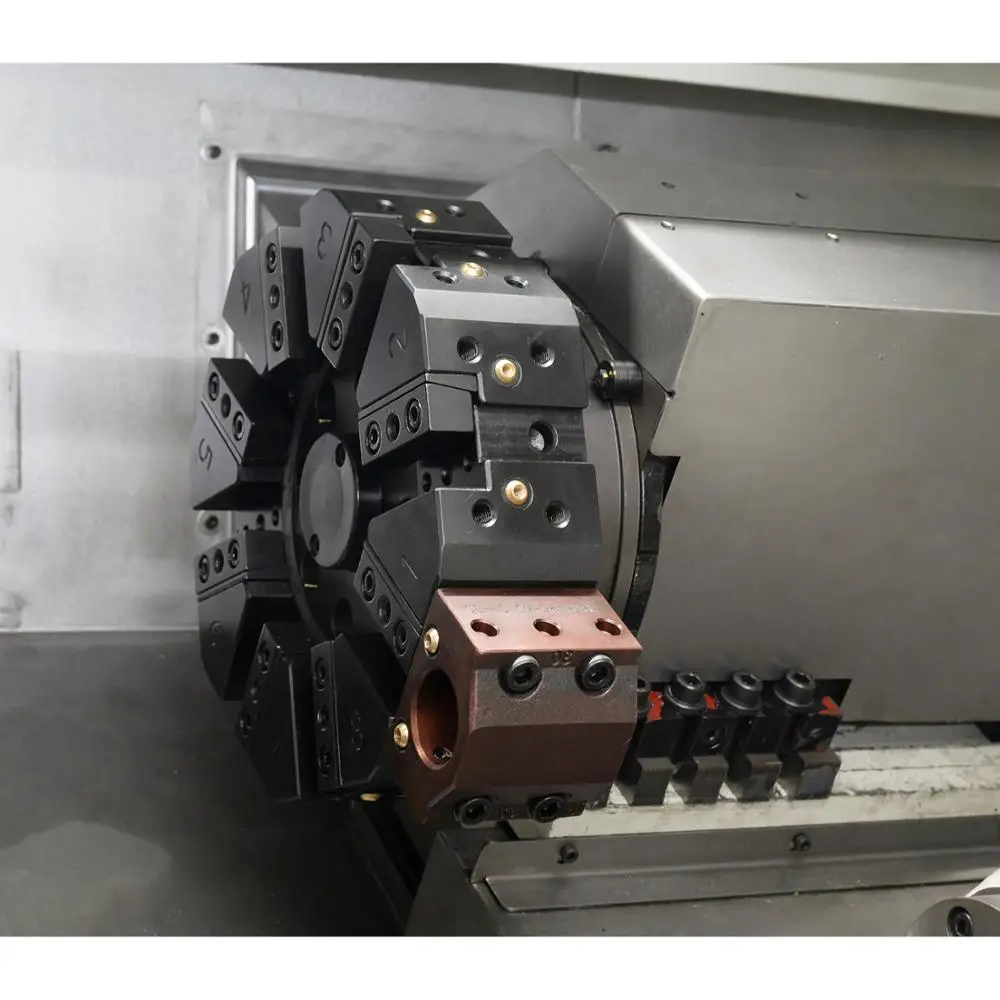

3.With hydraulic turret,it can achieve high positioning, fast speed for toolchange and high performance
4. Direct connection adopted on feeding motor and leadscrew,it can assure the machining precision and positioning accuracy.
5. Tailstock can be adopted by hydraulic driving to make sleeve travel bigger and easy operation.
6. Complete closed cover can protect the iron scraps splashing out.
7.Designed with the individual water tank,anychip convery can be equipped

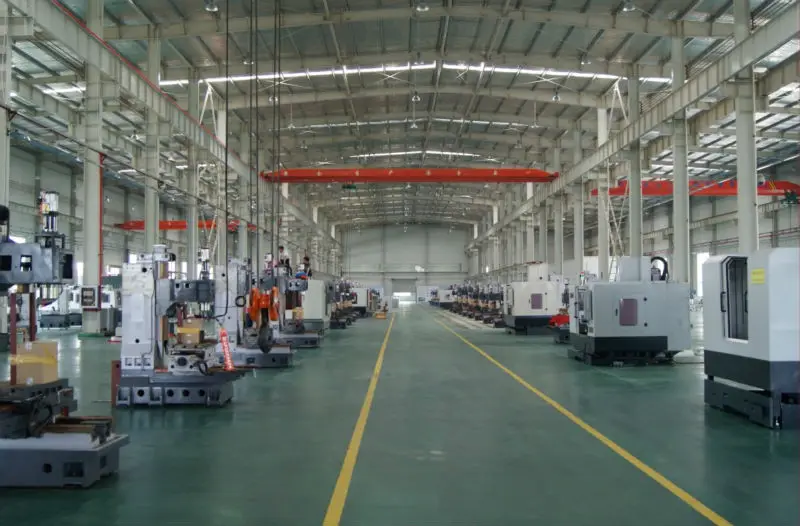

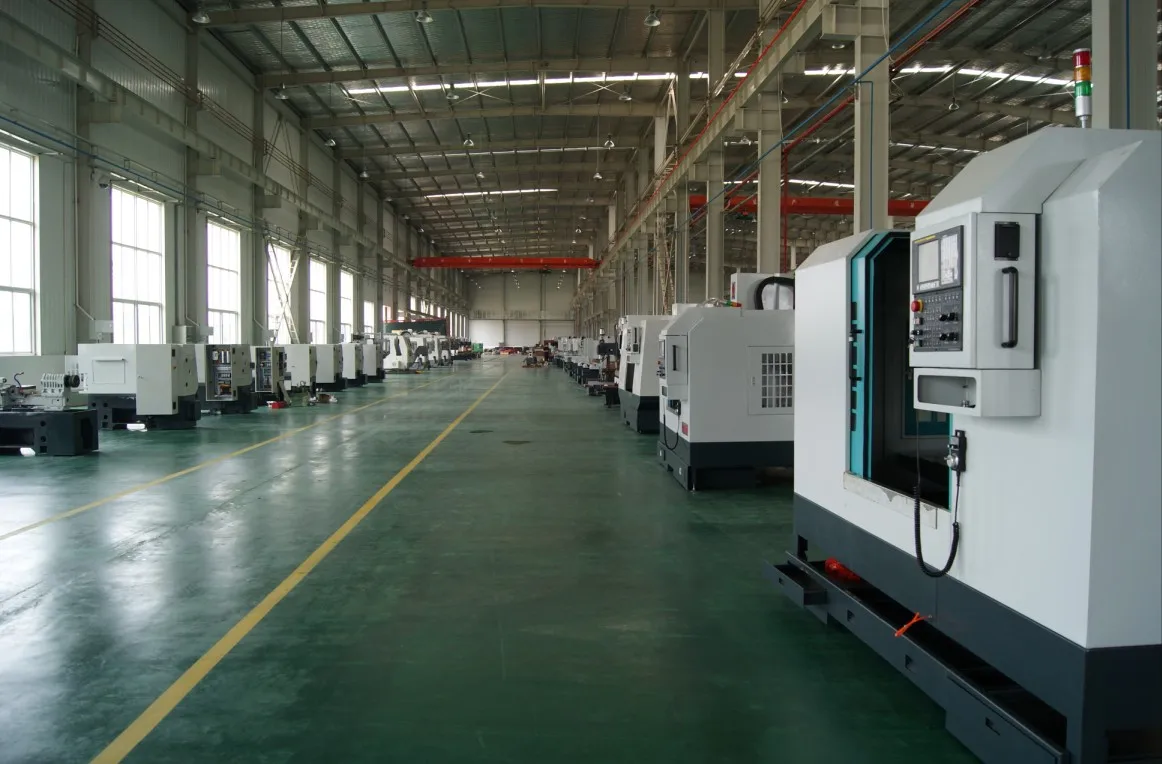

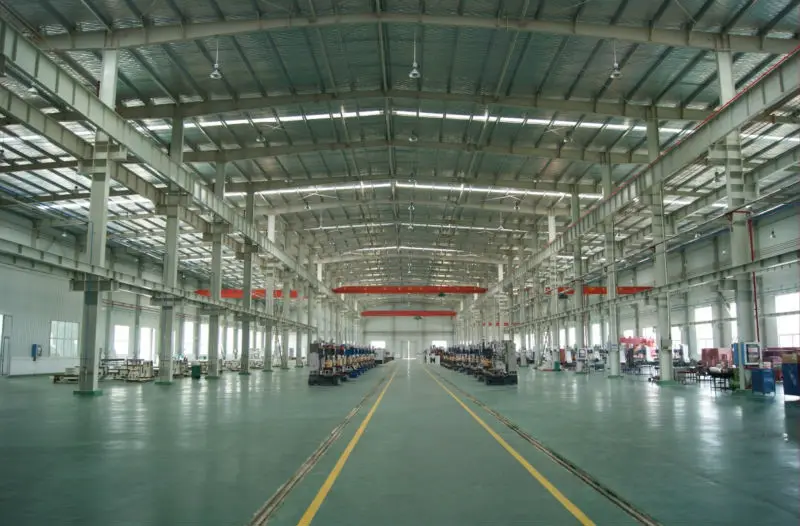

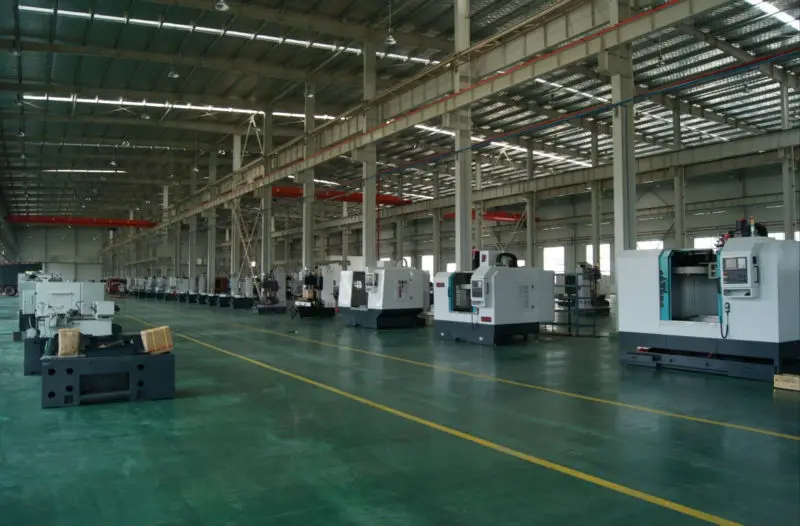

Manufacturing ability
