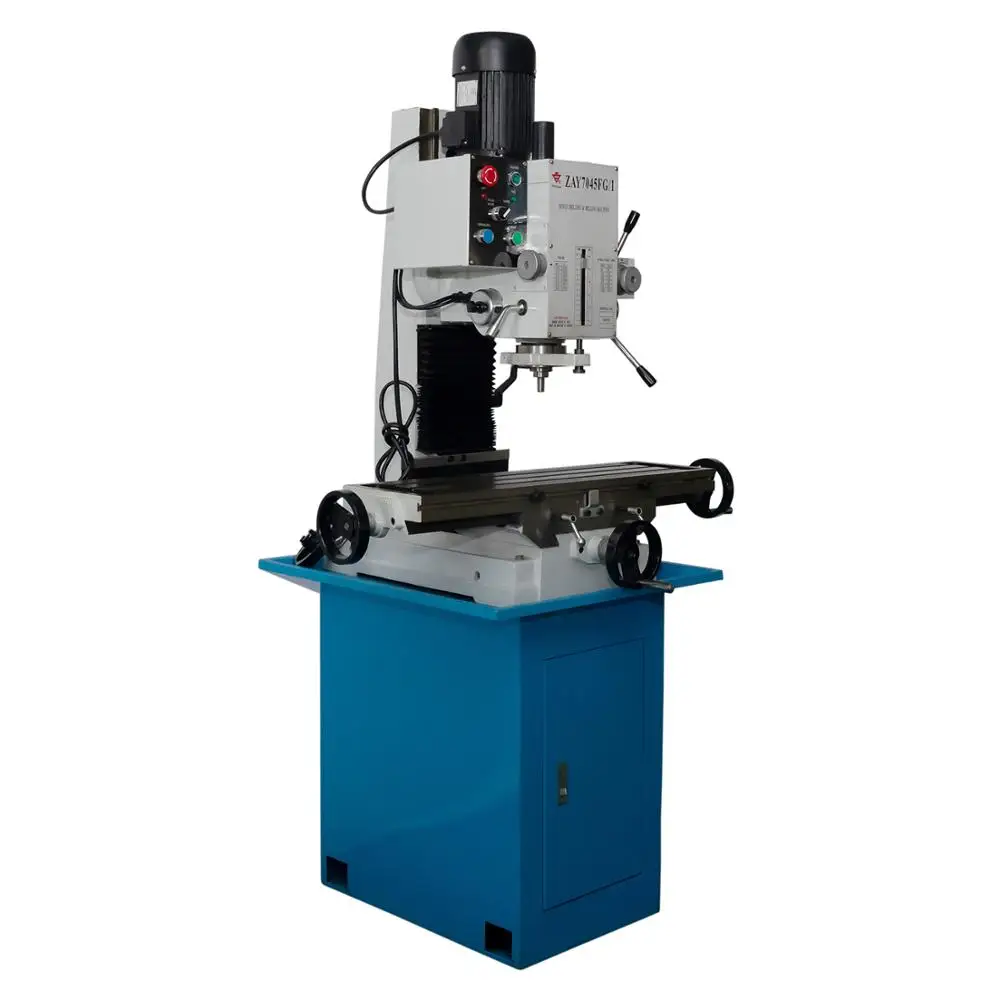

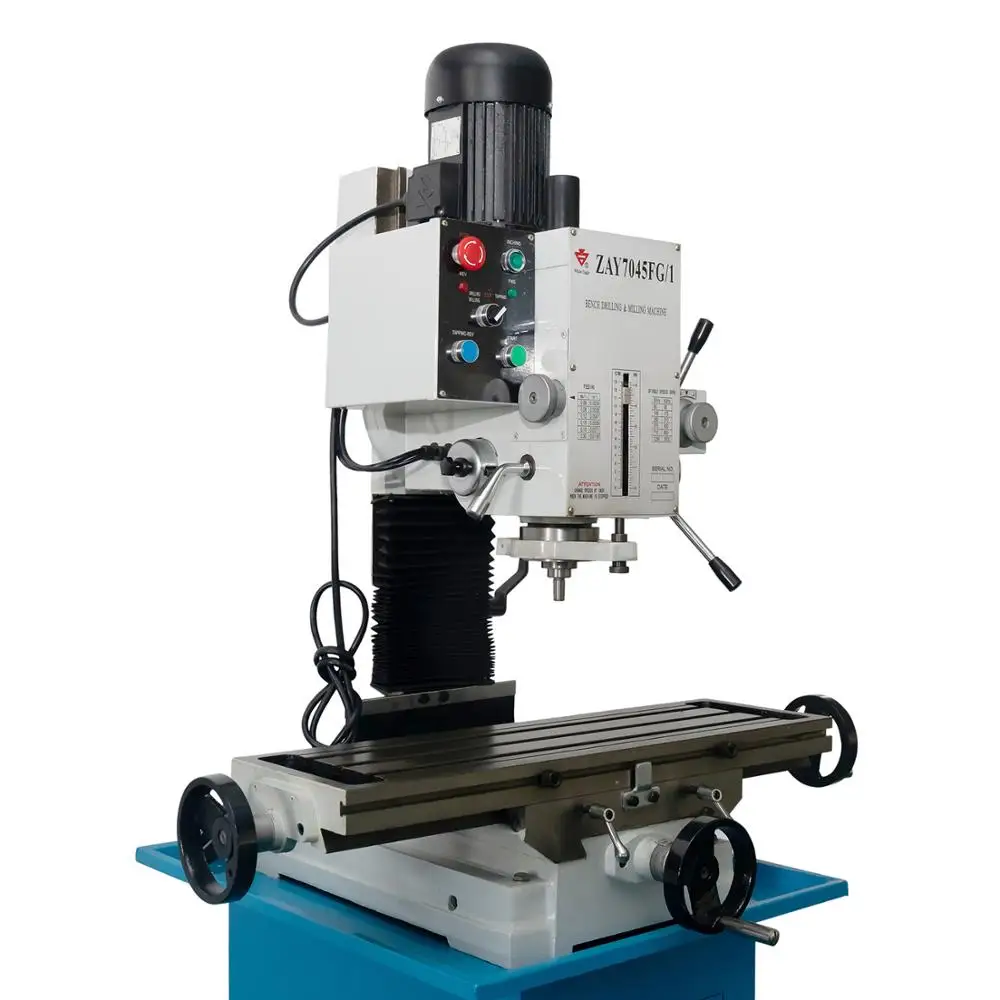

ECM approved Milling & drilling machine ZAY7032FG/1, ZAY7040FG/1
- Category: >>>
- Supplier: Anhui Chizhou Household Machine Tool Co. Ltd.
Share on (1666590469):
Product Overview
Description
Product Description
Model | ZAY7032FG/1 | ZAY7040FG/1 | ZAY7045FG/1 | ||
Drilling capacity | φ32mm | φ40mm | φ45mm | ||
Boring diameter | φ50mm | φ60mm | φ70mm | ||
Face milling capacity | φ63mm | φ80mm | φ80mm | ||
End milling capacity | φ20mm | φ32mm | φ32mm | ||
Distance from spindle nose to table | 450mm | ||||
Min.distance from spindle axis to column | 260mm | ||||
Spindle travel | 130mm | ||||
Spindle taper | M.T.3, M.T.4 or R8 | ||||
Step of spindle speed | 6 | ||||
Range of spindle speed 50Hz | 80~1250r.p.m | ||||
60Hz | 95~1500r.p.m | ||||
Auto-feeding step of spindle | 6 | ||||
Auto-feeding amount of spindle | 0.06-0.30mm/r | ||||
Swivel angle of headstock(horizontally) | ±90° | ||||
Table size | 840*250mm(optional 1000*240mm) | ||||
Forward and backward travel of table | 175mm | ||||
Left and right travel of table | 500mm(700mm) | ||||
Motor Power | 0.75kw(1HP) | 1.1kw(1.5HP) | 1.5kw(2HP) | ||
Net weight/Gross weight | 320/370kgs | 323/373kgs | 325/365kgs | ||
Packing size(L*W*H) | 770*880*1160mm | ||||
Features
1.Spindle speed step-changed cyclically and spindle auto-feeding and cyclic change of feeding speed
2.Milling, drilling, tapping, boring and reaming
3.Head swivels ±90° vertically
4.Micro feed precision

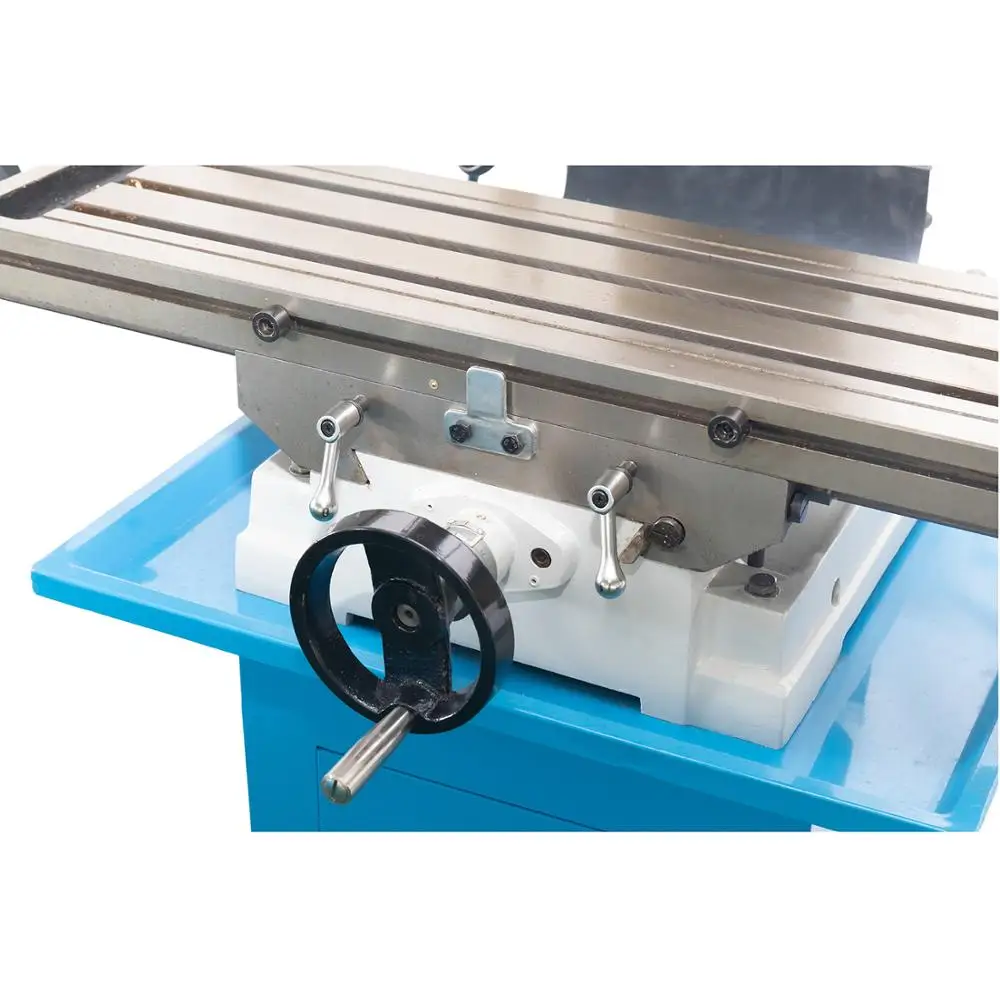

5.Adjustable gibs on table precision
6.Strong rigidity, powerful cutting and precise positioning
Stadard Accs
1.Allen wrench
2.Wedae
3.Tie rod
4.Drill chuck arbor
Packing&Shipping
Our Strength
OEM APPROVED
- *LOGO OEM accept.
- *Packing design OEM ccept
- *Even machine design OEM accept.
OUR TEAM SERVICE
*Professional team,perfect pre-sale and after-sale serives
* Engineers available to service machinery overseas.
* Good English speakers from sale department,can handle your suggestion
* Good English speakers from sale department,can handle your suggestion
