Automatic grape stem removing machine

Product Overview

Description

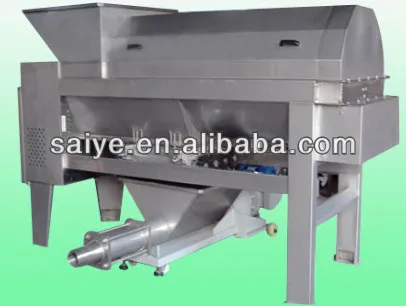

Automatic grape stem removing machine









Technical parameter:

model	SP-5T	SP-8T	SP-20T	SP-30T	SP-50T
capacity	5-7t/h	8-10t/h	18-22t/h	30-35t/h	45-50t/h
Slurry pump discharge	90mm	100mm	100mm	125mm	125mm
Crusher power	0.75kw	1.1kw	1.1kw	3kw	3kw
Engine power	1.5kw	2.2kw	4kw	5.5kw	5.5kw
Slurry pump power	4kw	5.5kw	7.5kw	15kw	15kw
weight	690kg	850kg	1000kg	1800kg	1950kg
size	1.9*0.72*1.35m	2.2*0.9*1.6m	2.55*0.91*1.63m	3.15*1.2*2m	3.2*1.25*2m



Adopts the advanced technology of the France and Italy, our company designed the series of the grape

stalk removing and crushing machine. The capacity can range from 5-50t/h.







Characters:



1. Quantitative spiral conveyor: first to remove the stalk, then crush the grape



2.The stem removing axis and the stem removing screen are steeples speed. The length of

the screen is longer, which can adapt for several kinds of grapes’ process.

3.The crusher roller is made of for non-toxic, high elastic rubber







REMARK:



1.Delivery time: 7 days after clients’ payment.



2.Payment term: 50% as down payment by T/T, 50% by seeing the faxed B/L by T/T.
