Newest 2014 China hot selling atlas copco air leg rock drill

Product Overview

Description



Newest 2014 China hot selling atlas copco air leg rock drill



Application :

1.widely used in coal, metallurgy, railway, transportion,

2.water conservancy, infrastructure and defense engineering in the level of all kinds of rocks.



Features:

1. Kaishan brand  air leg rock drill widely used in coal, metallurgy, railway, transport, water, infrastructure and national defense projects of various levels of rock, tilt, down the hole drilling operations

2. The use of modern design means,performance of each product is optimized.

3. For all operating agencies were arranged according to ergonomic principles, to ensure that the products of high-performance, high efficiency and convenience of operation, security.

4. Quality materials and scientific and forging, all reflect the "quality " content, to ensure that the products of high strength, high wear resistance and impact resistance.



Specification:

famous brand Hand-held rock drill YO15

Model	Weight kg	Length mm	Cyinder Dia.×Stroke mm	Working pressure MPa	Impact energy J	Impact frequency HZ	Air comsumption I/s
YO15	15	550	58×45	0.4-0.63	≥21	≥32	≤20
YO18	18	550	58×45	0.4-0.63	≥22	≥32	≤20
Y19A	19	600	65×54	0.4-0.63	≥28	≥28	≤37
YO20	20	561	63×55	0.4-0.63	≥26	≥33	≤33
Y26	26	650	65×70	0.4-0.63	≥30	≥23	≤47

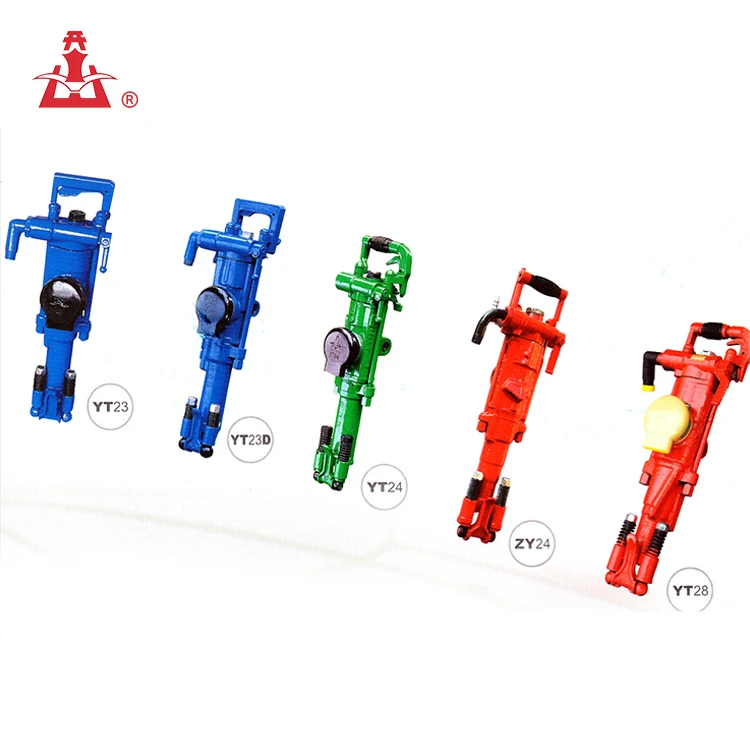

Air-leg rock drill:

Model	Weight kg	length mm	Cyinder Dia.×Stroke mm	Working pressure MPa	Impact energy J	Impact frequency Hz	Air comsumption I/s
YT23	24	628	76×60	0.4-0.63	≥65	≥37	≤78

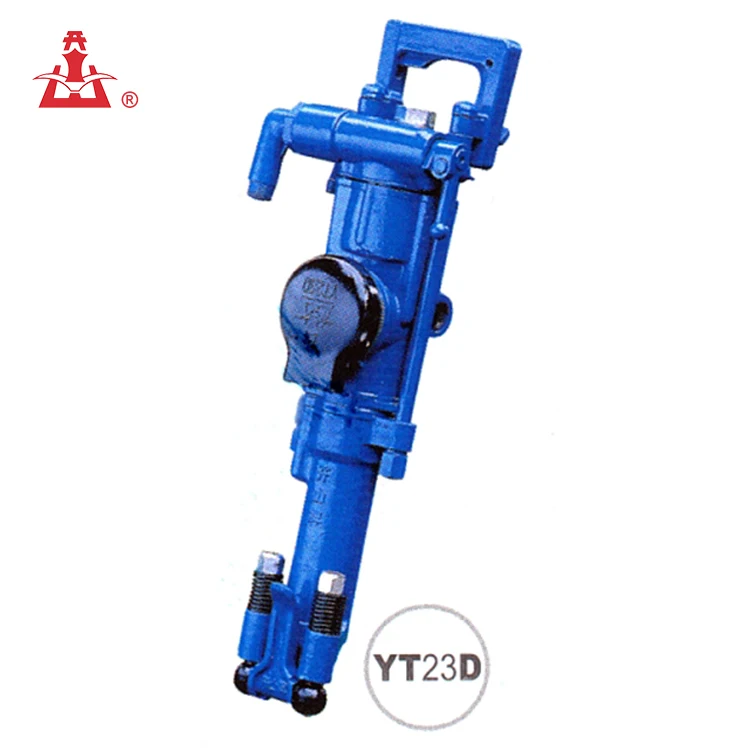

YT23D	24	668	70×70	0.4-0.63	≥65	≥31	≤67
YT24	24	678	70×70	0.4-0.63	≥65	≥31	≤67
ZY24	25	690	70×70	0.4-0.63	≥65	≥30	≤67

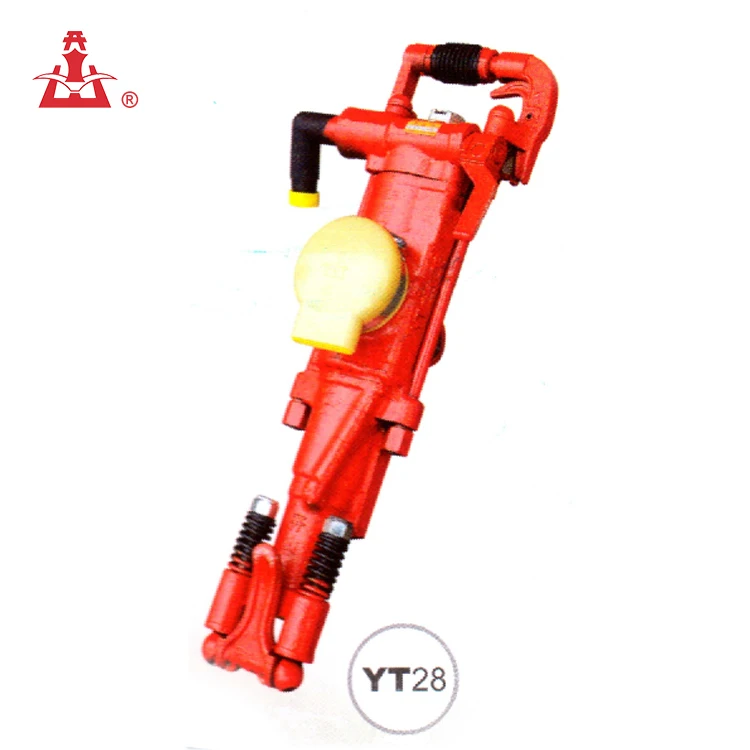

YT28	26	661	60 ×60	0.4-0.63	≥70	≥37	≤81
